Wago 2-Way Lever Connector (12-28 AWG) - Pack of 3

WagoSKU: 104811
£1.50
incl. VAT
excl. VAT
Only 7 units left

Awesome Extras

Wago 2-Way Lever Connector (12-28 AWG) - Pack of 3 - The Pi HutWago 2-Way Lever Connector (12-28 AWG) - Pack of 3 - The Pi Hut
WagoWago 2-Way Lever Connector (12-28 AWG) - Pack of 3
£1.50 incl. VAT excl. VAT
Wago 3-Way Lever Connector (12-28 AWG) - Pack of 3 - The Pi HutWago 3-Way Lever Connector (12-28 AWG) - Pack of 3 - The Pi Hut
WagoWago 3-Way Lever Connector (12-28 AWG) - Pack of 3
£2.50 incl. VAT excl. VAT
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
£12 incl. VAT excl. VAT

These high-quality official Wago lever connectors are used across the globe for residential and industrial electrical work, and they're absolutely perfect for makers too!

If you need to join cables together quickly to prototype a project, these are ideal for the job and require no tools - the levers simply lift open and close. The levers are very stiff and snap down hard to ensure a solid connection, which is crucially important with electronics!

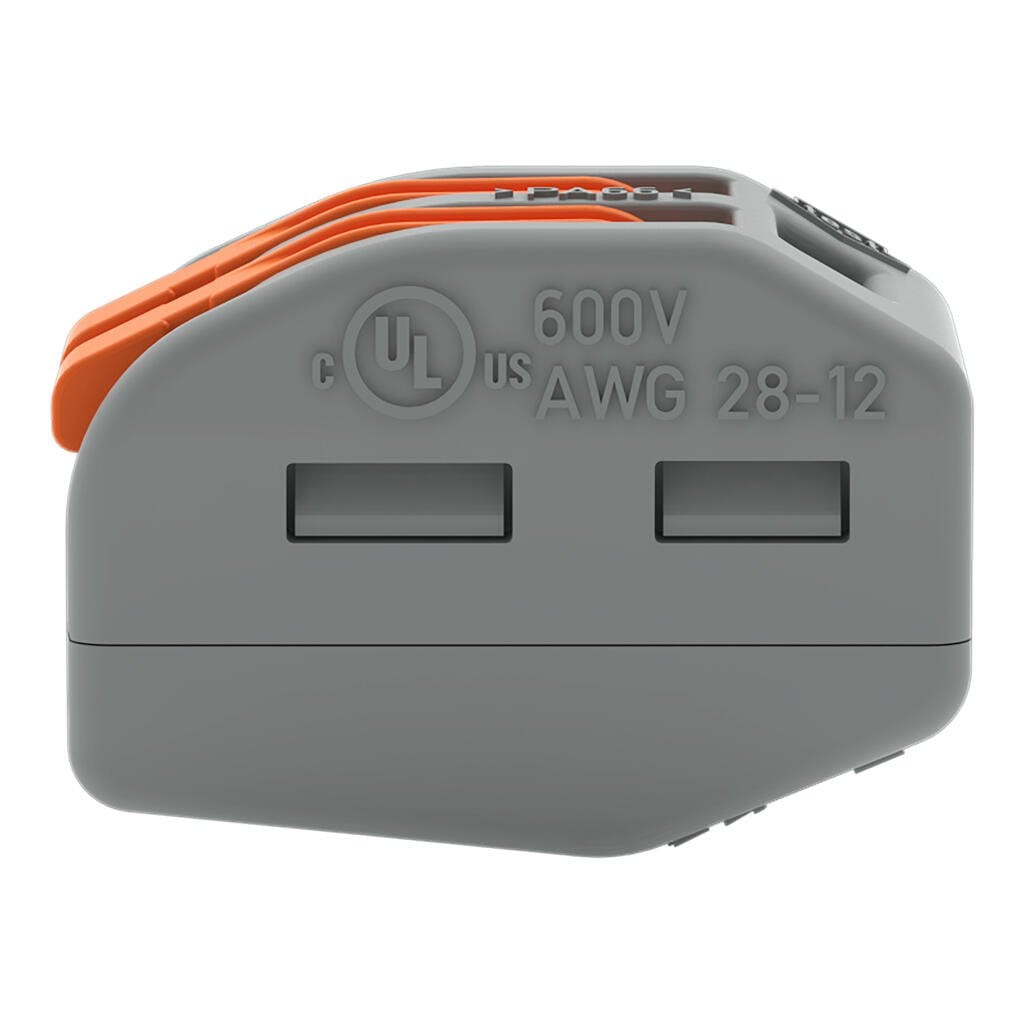

The connectors support up to 20A @ 300V and are UL listed so you can use them for your mains wiring. Wires from 12-28AWG will fit and work well.

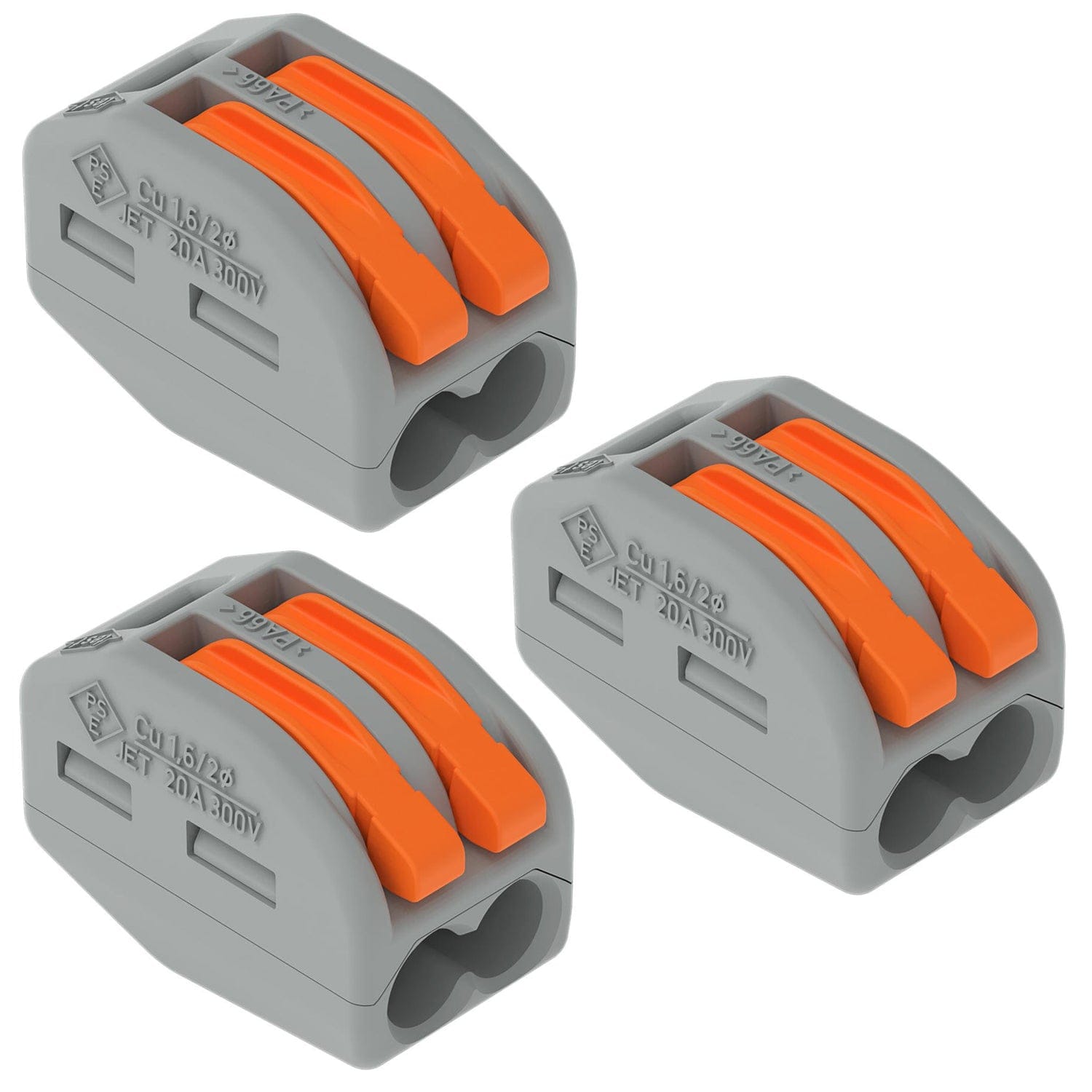

You will receive 3x 2-way Wago lever blocks as pictured.

Specification

  • Range: Wago 222 Series
  • Number of contacts: 2
  • Connection method: Cage Clamp
  • Touch-proof connection
  • Cross-section [AWG]: 12-28 AWG
  • Nominal voltage: 400V
  • Rated Current: 32A
  • Wiring type: Side-entry
  • Flammability rating per UL 486C
