The Voltaic Corner Panel Mount Set provides a secure way to attach ETFE solar panels to surfaces or straps for portable or fixed installations.
The VoltaicCorner Panel Mount Set is designed to securely attach compatible Voltaic ETFE solar panels to a wide range of surfaces. Supplied as a set of four, each mount includes a corner bracket, washer, screw, and post nut for a complete mounting solution.
Compatible with Voltaic ETFE solar panels with corner mounting holes, such as the P110, P120, P105, and P108, offering flexibility for use with straps, frames, or fixed installations.
Installation is straightforward, with components designed to pass through the panel and secure from the rear, creating a stable and reliable mounting point for portable or permanent setups.
Features

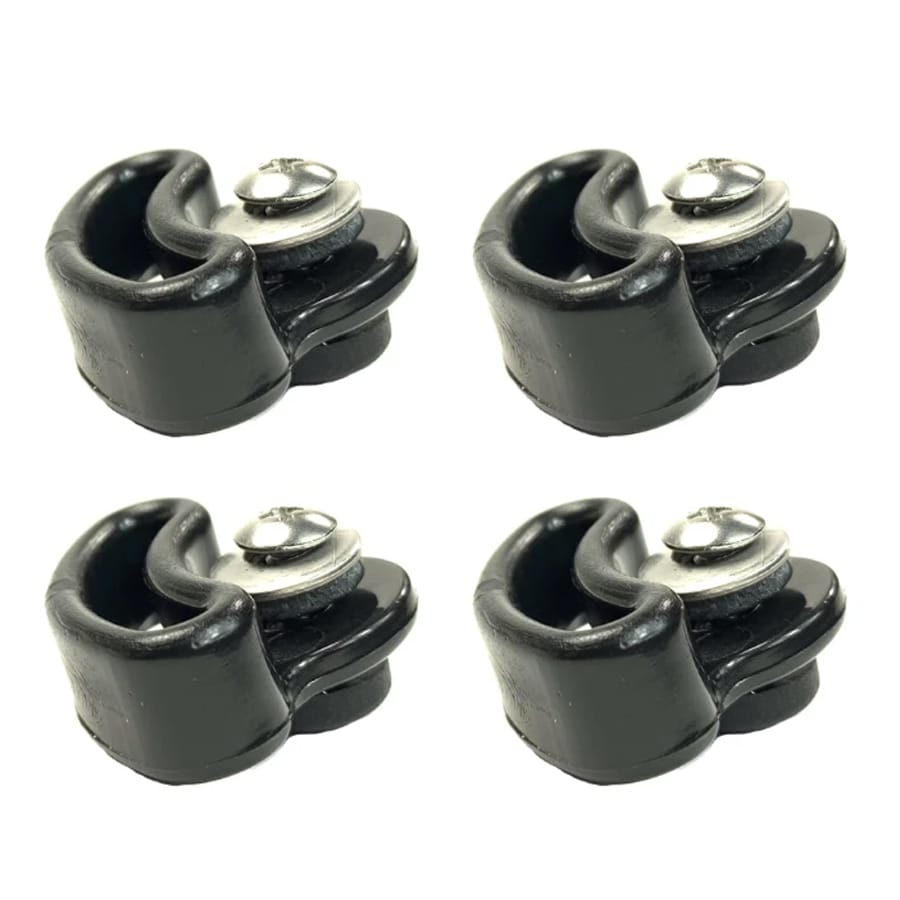

Set of four corner mounts for ETFE solar panels

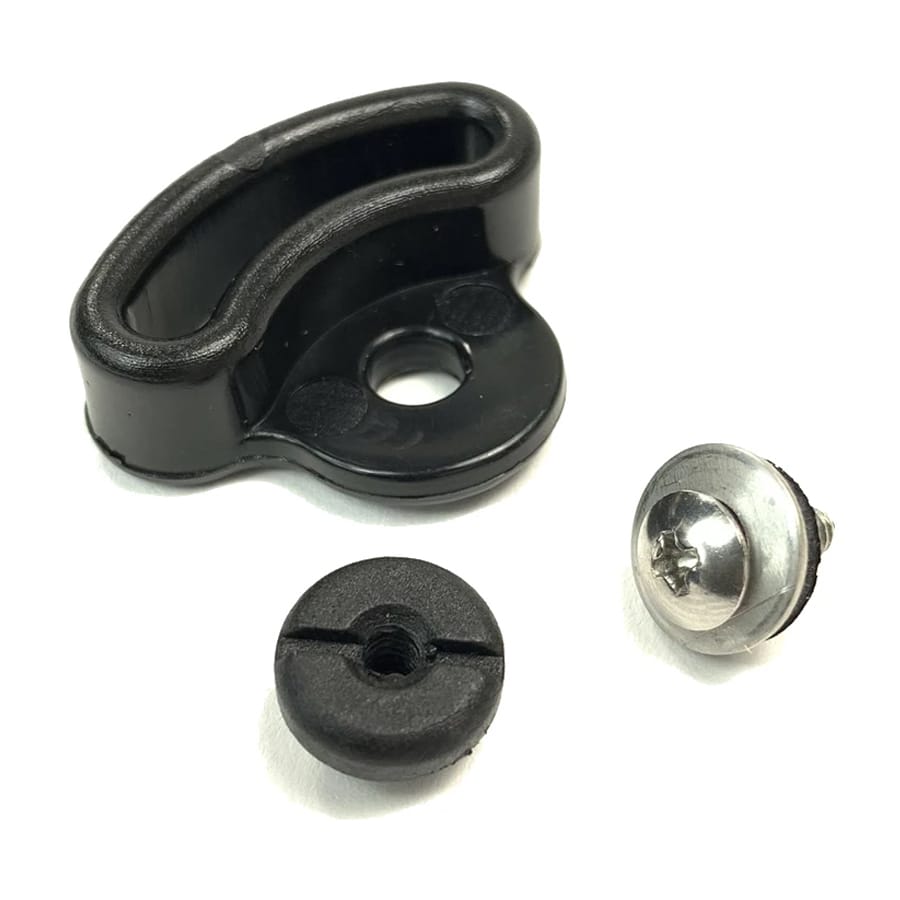

Each mount includes corner bracket, washer, screw, and post nut
Compatible with Voltaic ETFE solar panels with corner mount holes
Suitable for strap, frame, or fixed installations

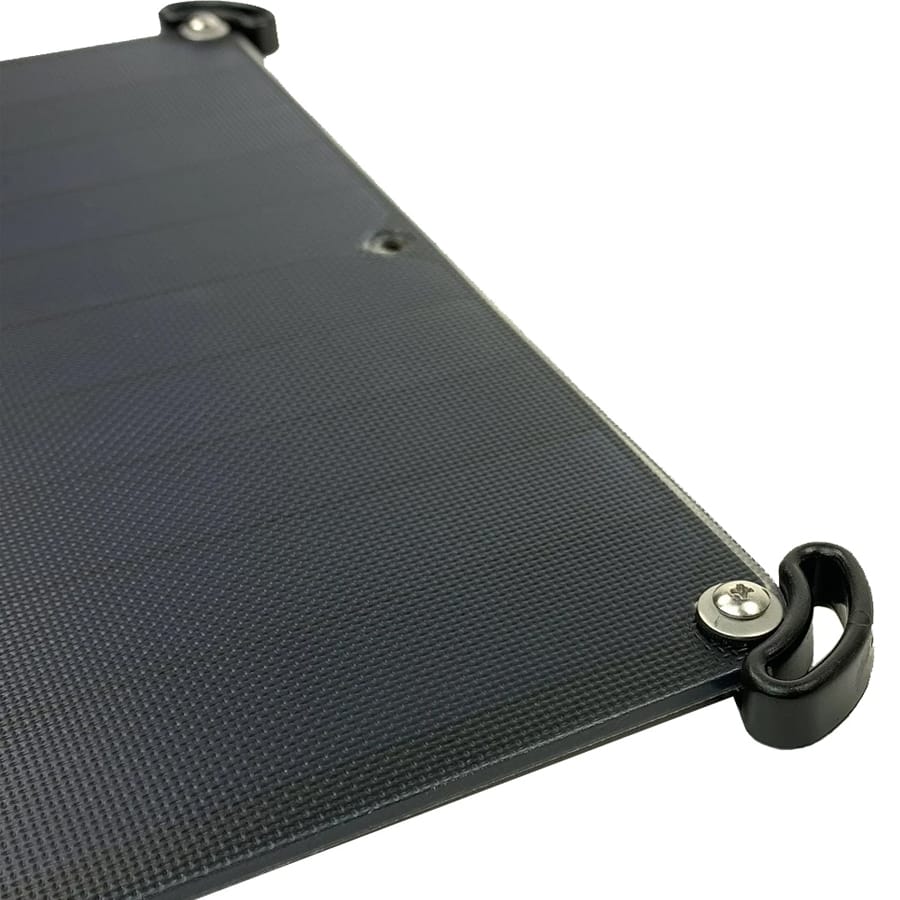

Components pass through panel and secure from rear
Suitable for portable or permanent setups
Specifications
Corner Mount
Fits 3/4" and 1/2" Webbing
Screw
Extra-Wide Truss Head Phillips Screws
Passivated 18-8 Stainless Steel
4/40 Thread
3/8" Long
Washer
Neoprene Backed Stainless EPDM Washer
Outer Diameter: 3/8"
Post nut
ABS Plastic
Internal Thread: 4/40
Compatibility
Voltaic ETFE solar panels with corner mount holes
Notcompatible with Voltaic urethane solar panels, which include an embedded screw and ABS post nut.
Package Contents
1x Voltaic K-MT-COR-ETFE Panel Corner Mount Set - ETFE (Set of 4)
Solar panel not included.
