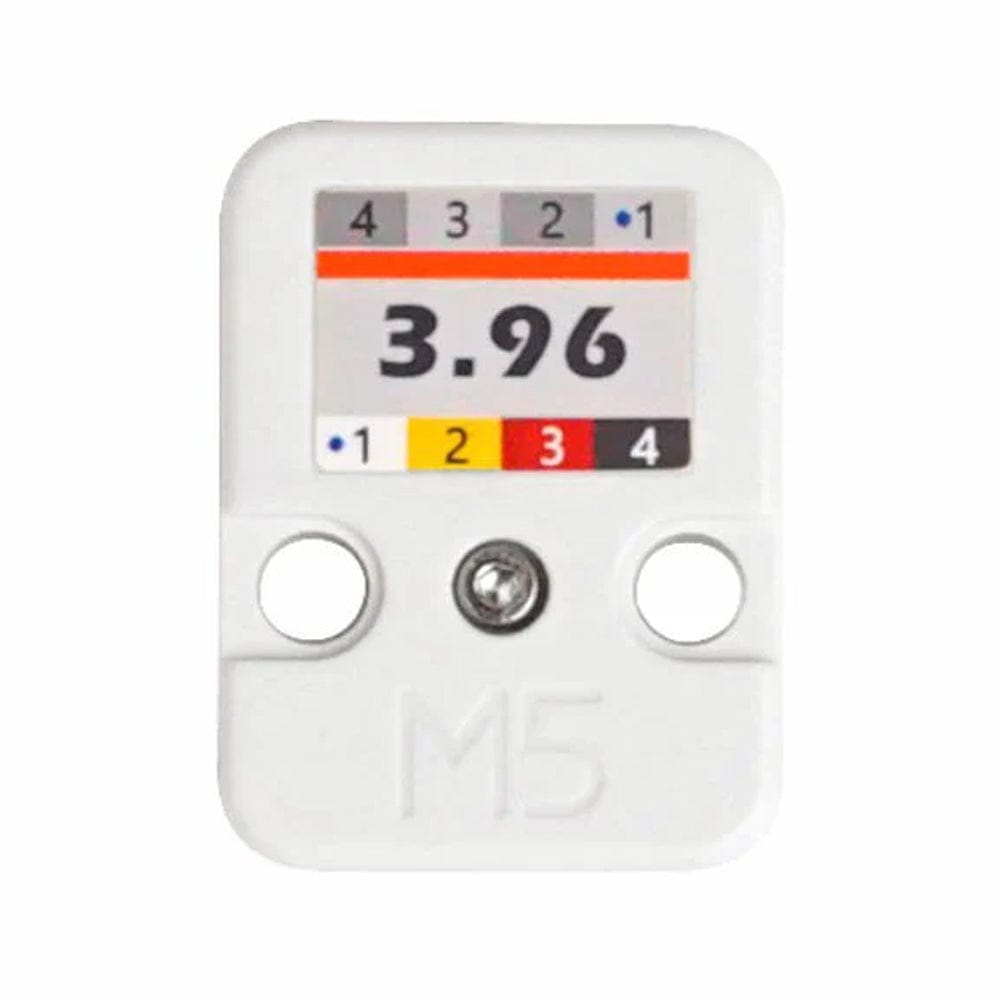

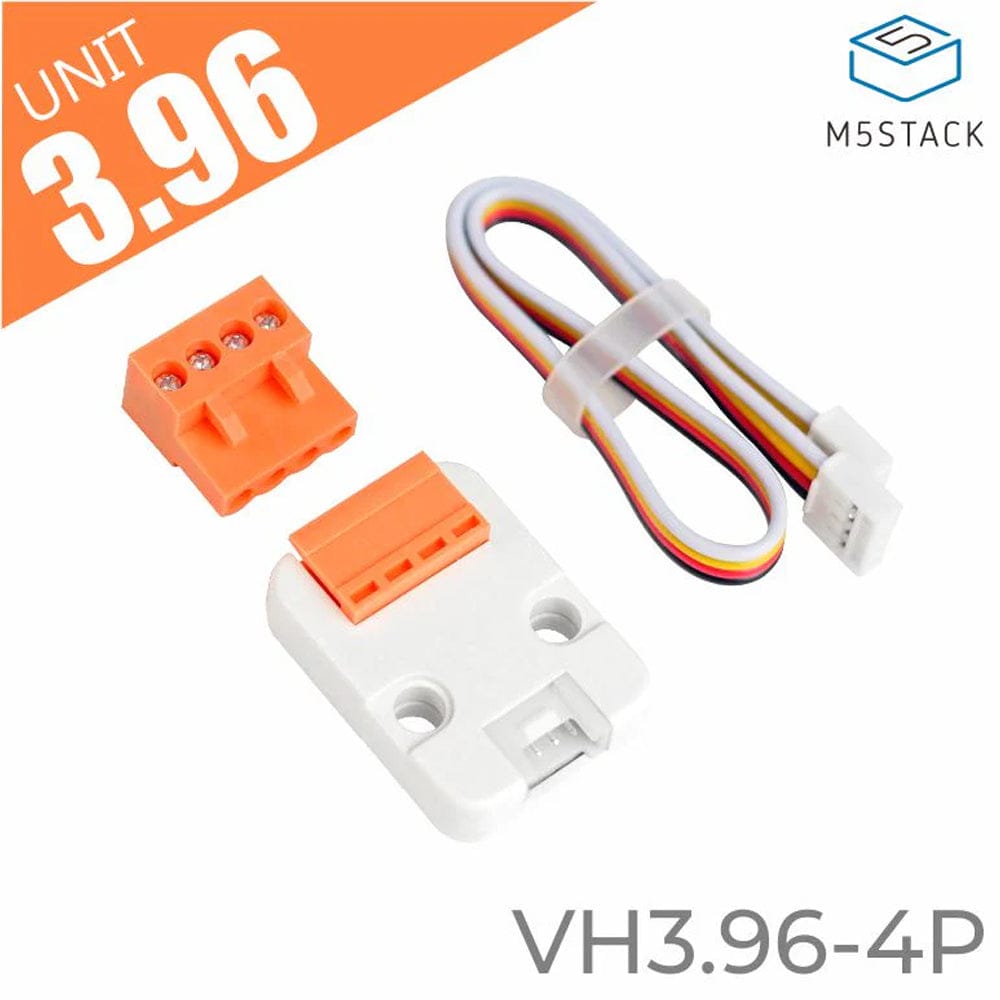

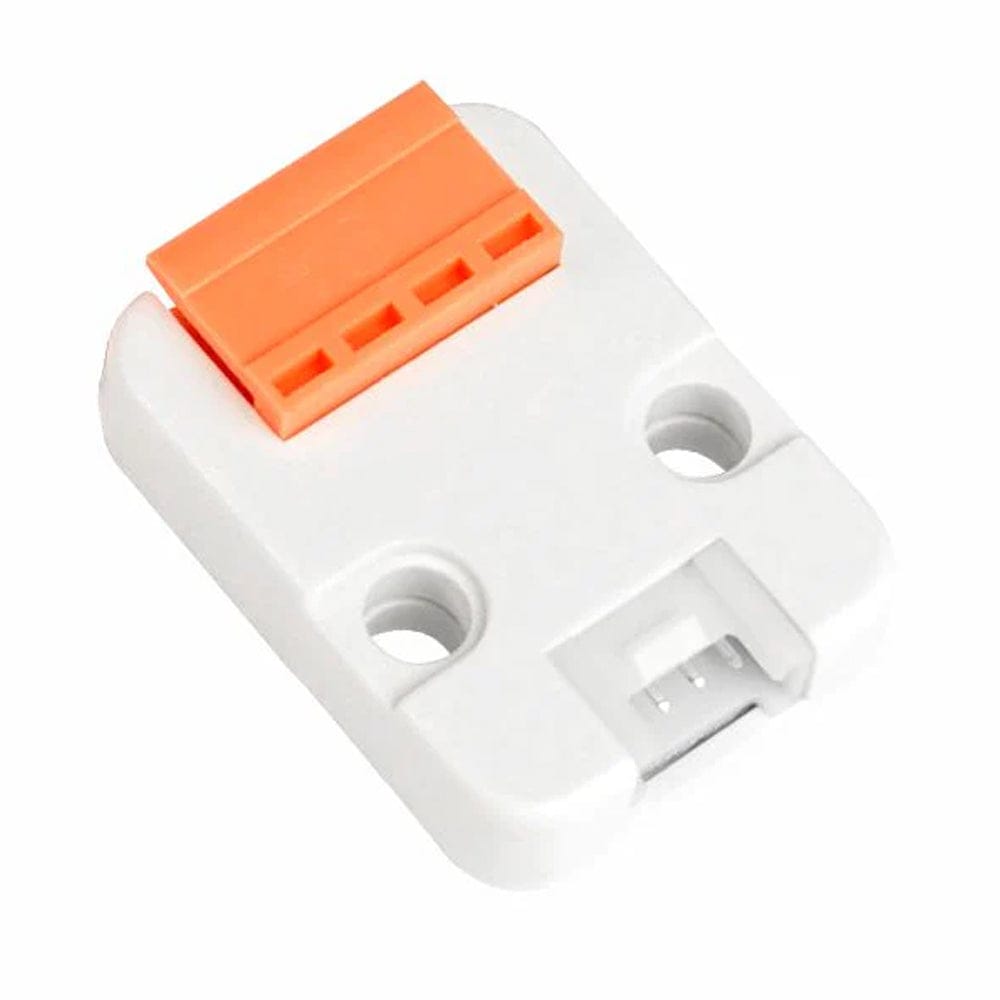

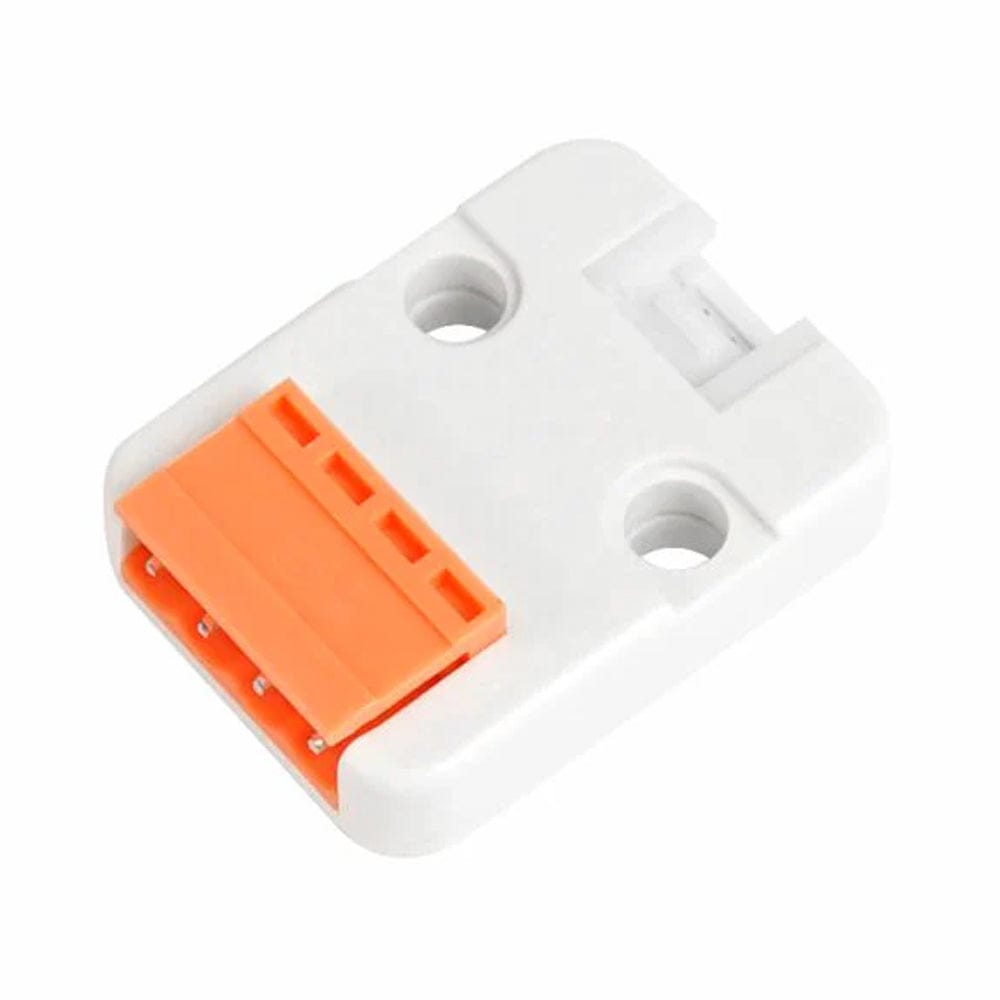

The M5Stack 3.96port Converter adapts HY2.0-4P cables to HT3.96 pluggable terminals, offering an easy, reliable way to connect and disconnect power and ground lines in switching and power-related applications.
The M5Stack 3.96port is an interface converter that adapts an HY2.0-4P connector to an HT3.96 pluggable terminal. The converter provides four pins and uses the widely adopted HT3.96 standard, commonly found in pluggable terminal blocks.
With this adapter, an HY2.0-4P cable can be easily converted to a pluggable terminal connection, making it simple to attach or remove wires as needed. It’s often used in power switch socket applications, offering a convenient way to connect power and ground lines.
The 3.96port converter makes cable handling easier and provides a reliable, efficient interface solution for power-related projects.
| Resources | Parameter |
|---|---|
| Type | Pluggable terminal block (female) |
| PIN bit | 4 |
| Total | 1 group |
| spacing | 0.156" (3.96mm) |
| Pin specifications | 180 ° horizontal |
| Installation type | Inline |
| Net weight | 7g |
| Gross weight | 19g |
| Product Size | 40*24*10mm |
| Package Size | 67*53*12mm |
