Type B Low-Profile ICE Tower Raspberry Pi 4 Cooler

This is the Type B version of the 52Pi Low-profile ICE Tower cooler for the Raspberry Pi, offering an alternative layout with the fan pushing the hot air away from the Raspberry Pi. This model also uses a lower-profile 4010 fan (no LEDs) which hides behind the heatsink for a cleaner look and greater protection.

The cooling concept is otherwise the same as the original ICE Tower and Low-profile ICE Tower. Just like an aftermarket cooler for a full-size desktop PC, it uses a central 5mm copper heatpipe to quickly conduct heat away from the Raspberry Pi CPU. Heat moves up into the heat pipes, allowing the included fan to blow cool, crisp air over the fins and away from the board, bringing temperatures down quickly and efficiently.

The fan is powered by the Raspberry Pi's GPIO pins (5V and GND) removing the need for a separate dedicated power supply.

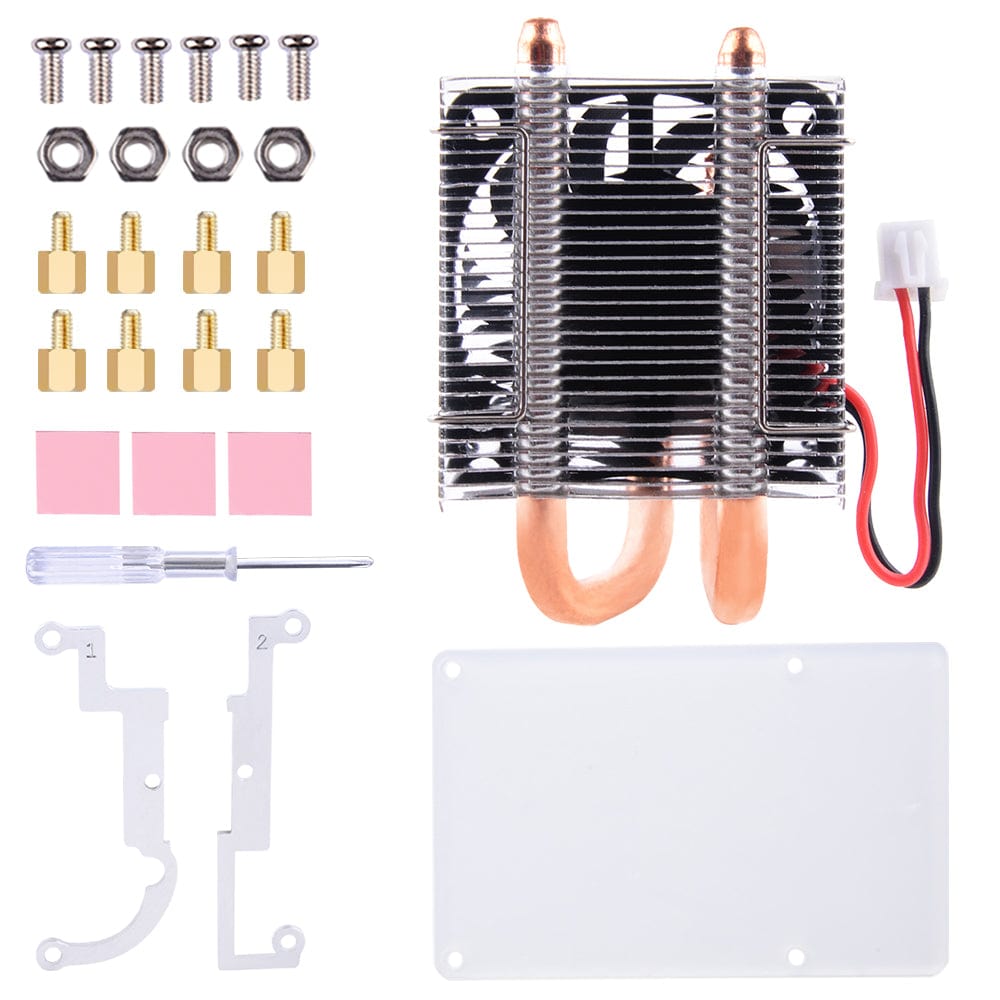

Hardware is included to mount this to your Raspberry Pi 4 or Raspberry Pi 3B+/3/2/B+, including mounting brackets, fixings and thermal pads. If you prefer, a thermal compound can also be used in place of the thermal pad. Experiment with your favourite PC thermal compound and bring those temperatures down even further!

Compatible with the V1 Metal Case!

We have tested this cooler with the Low-profile Metal Case and the V1 version fits perfectly as long as you have all of the fixings from the fan available.

Alternative ICE Towers!

We also stock the original ICE Tower with RGB LED fan, and the original Low-profile ICE Tower with RGB LED fan.

Features

• Alternative low-profile ICE Tower
• Fan layout that keeps hot air away from the Raspberry Pi and adds protection
• 4010 5V DC fan (powered by the Raspberry Pi GPIO)
• Low-profile
• 5mm copper tube
• Super heat dissipation
• Rated power 0.4W @5V, 0.08A

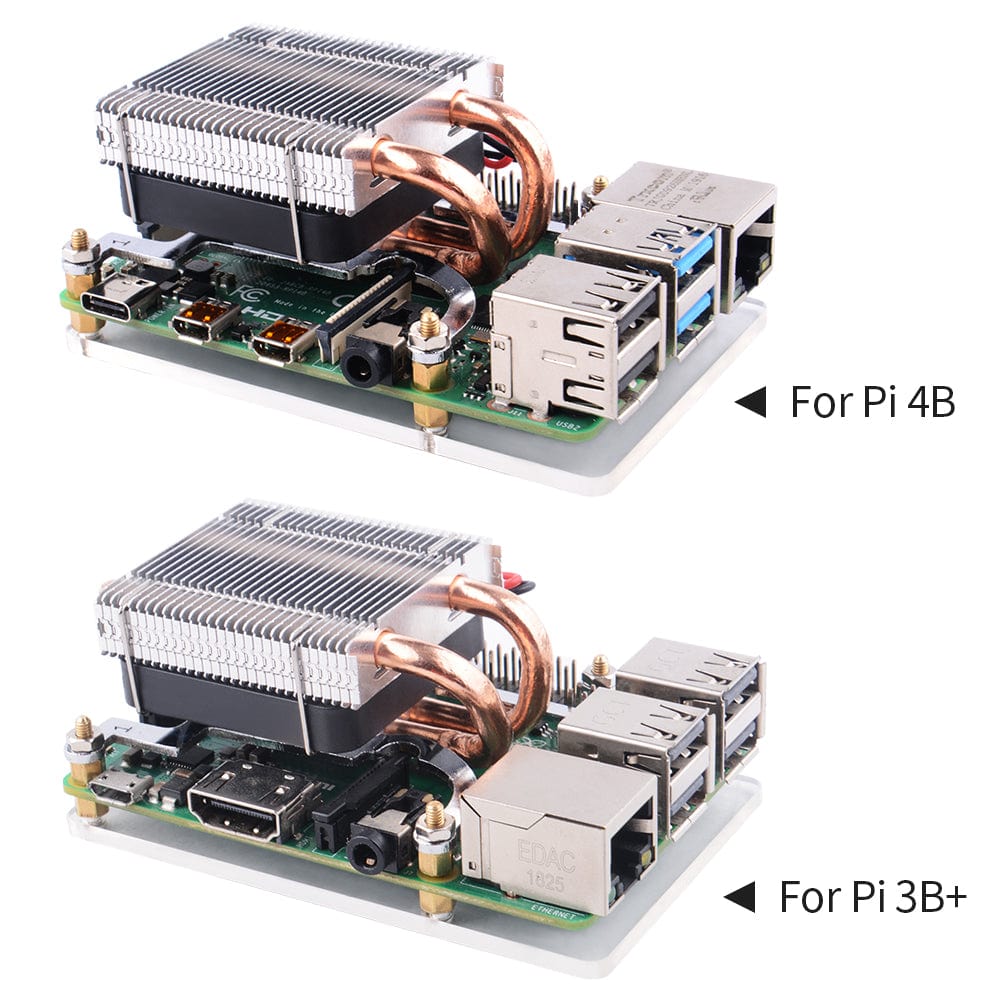

• Compatible with Raspberry Pi 4, 3B+, 3, 2, B+
• Compatible with the V1 metal case

Assembly

The assembly is the same for all compatible models of Raspberry Pi:
