TowerPro Servo Motor - MG938 (Metal Gear)

TowerProSKU: MMP-1308
Sale price £21
incl. VAT
excl. VAT
Only 9 units left

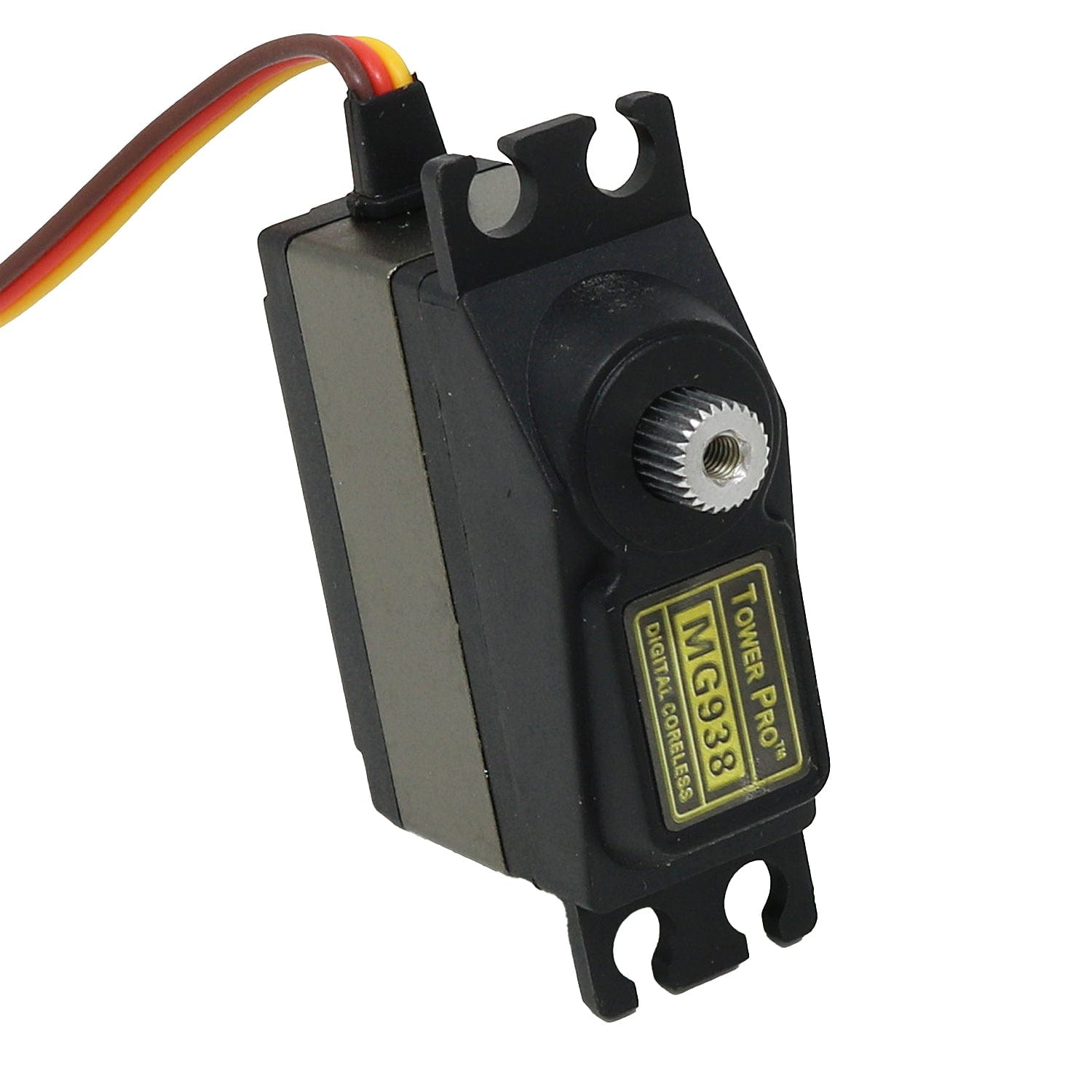

The MG938 from TowerPro is a digital 31g metal gear, double ball bearing servo designed for RC helicopters & airplanes, but useable in just about any servo situation we can think of. The unit features a central alloy casing, and all metal gearing.

The unit features a stalling torque of 3.7kg in a 31g package, and it's larger (and heavier) than the MG90/1/2 ranges.

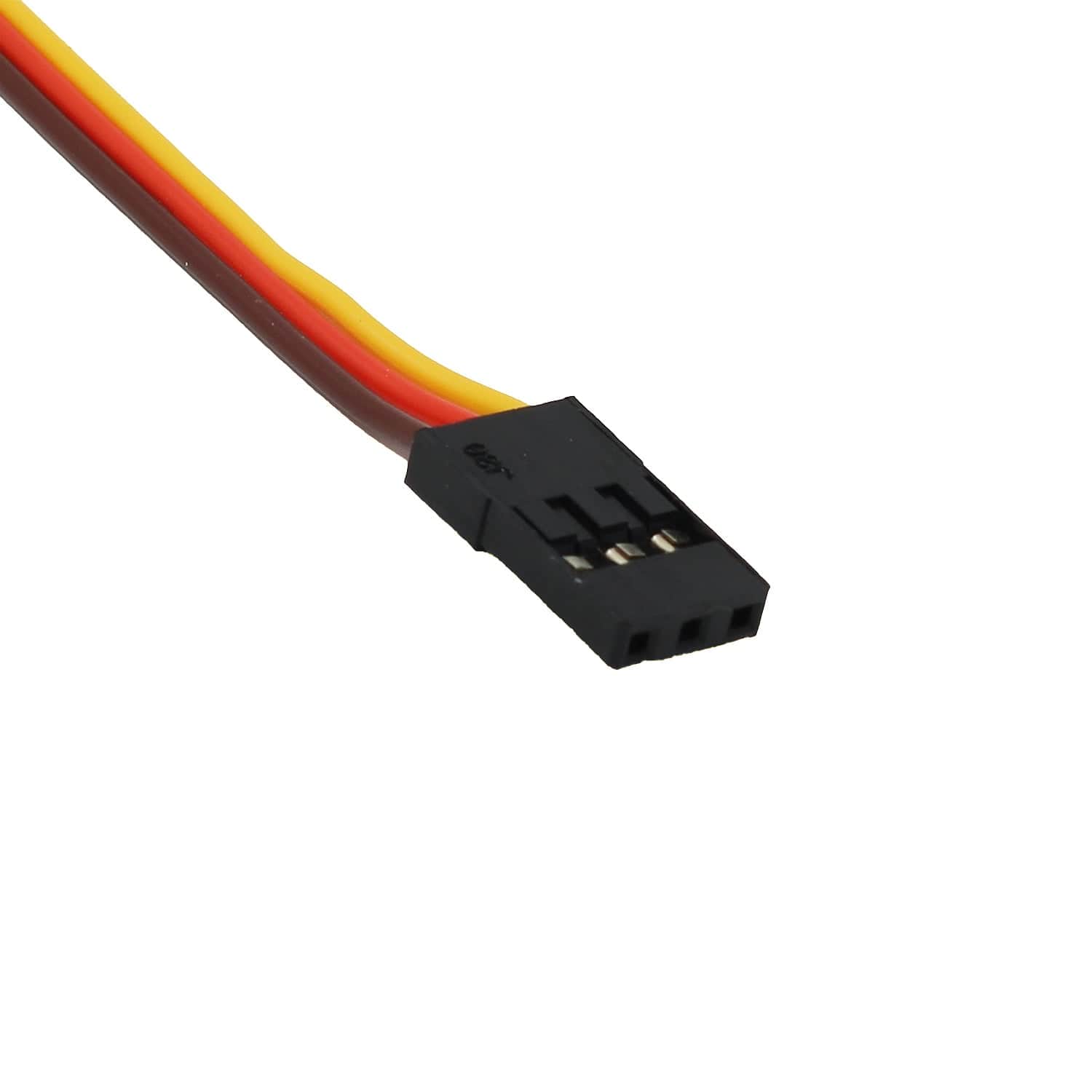

The unit comes complete with 32cm wire and 3 pin 'S' type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.

They work great with our UltraBorg servo and ultrasonic control board, and other Raspberry Pi Motor Controllers. They're also great for the Arduino Motor Shield - or simply by wiring up Arduino with the Servo library. You can use any servo code, hardware or library to control these servos, so it's great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places.

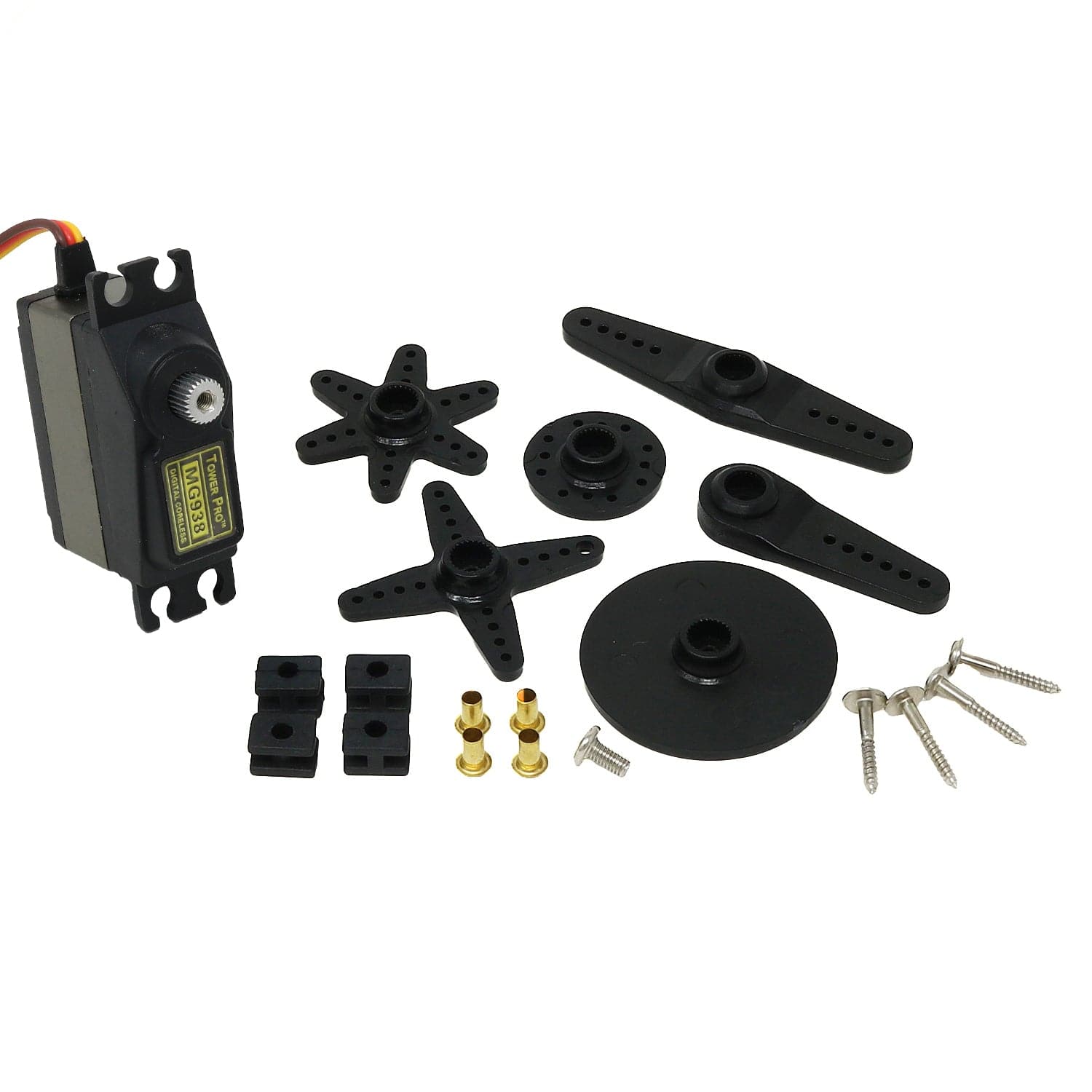

Towerpro Servo's comes with a selection of arms and hardware to get you set up nice and fast!

The Towerpro MG938 Servo Features:

  • MG938 Digital Servo with Metal Gearing
  • Genuine TowerPro Product
  • Includes Selection of Horns and Screws for Different Application - See Picture for Details.
  • Weight: 31 g
  • Dimension: 35.4*15.2*29.6 mm
  • Stall torque: 2.9 (4.8 V) ; 3.7 (6.1 V)
  • Operating speed: 0.11 sec/60° (4.8 V) ; 0.09 sec/60° (6.0 V)
  • Operating voltage: 4.8 - 6.0 V
  • Temperature range: 0 - 55° C
  • Servo Plug: JR (Fits JR and Futaba)
  • Gear Type: Metal gear
  • Double Bearing
  • Dead band width: 1 ?s
  • Power Supply: Through External Adaptor
  • Servo wire length: 32 cm
  • Servo Plug: JR (Fits JR and Futaba)
  • Servo arms &screws included and fit with Futaba servo arm
  • Apply for EP - Heli (500 class), aero
  • Dimension Sheet

Wiring Guide:

  • Red: Battery Positive
  • Brown: Battery Negative
  • Orange: Signal

To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (Example Sketch). Position "0" (1.5ms pulse) is middle, "90" (~2ms pulse) is all the way to the right, "-90" (~1ms pulse) is all the way to the left.
