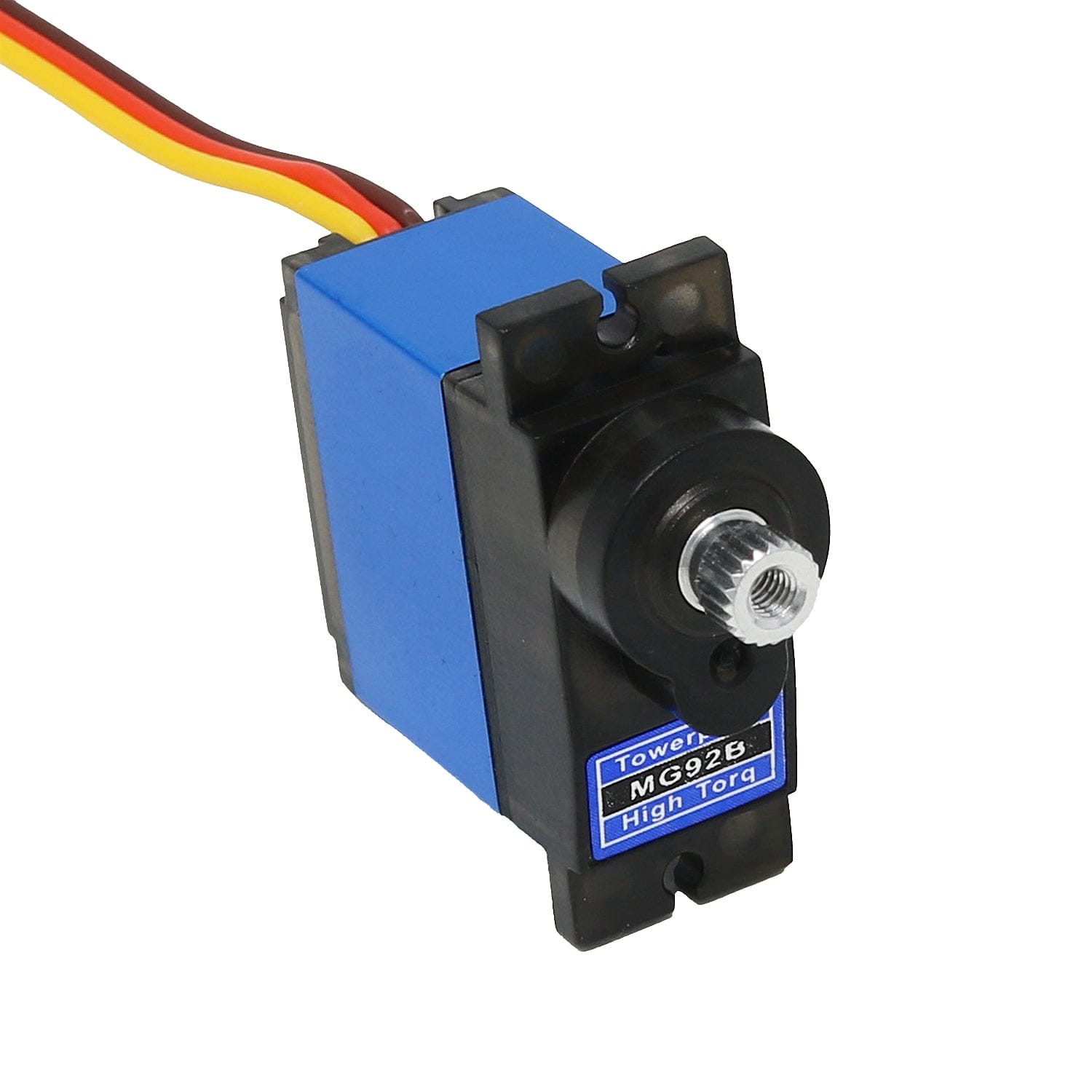

The MG92B from TowerPro is a digital 14g metal gear, double ball bearing servo designed for RC helicopters & airplanes, but useable in just about any servo situation we can think of. The unit features a central alloy casing, and all metal gearing.
The MG92B features a lower operating speed, but higher torque rating than the MG91 & MG90D's, with a stalling torque of 3.5kg in a 14g mini package.

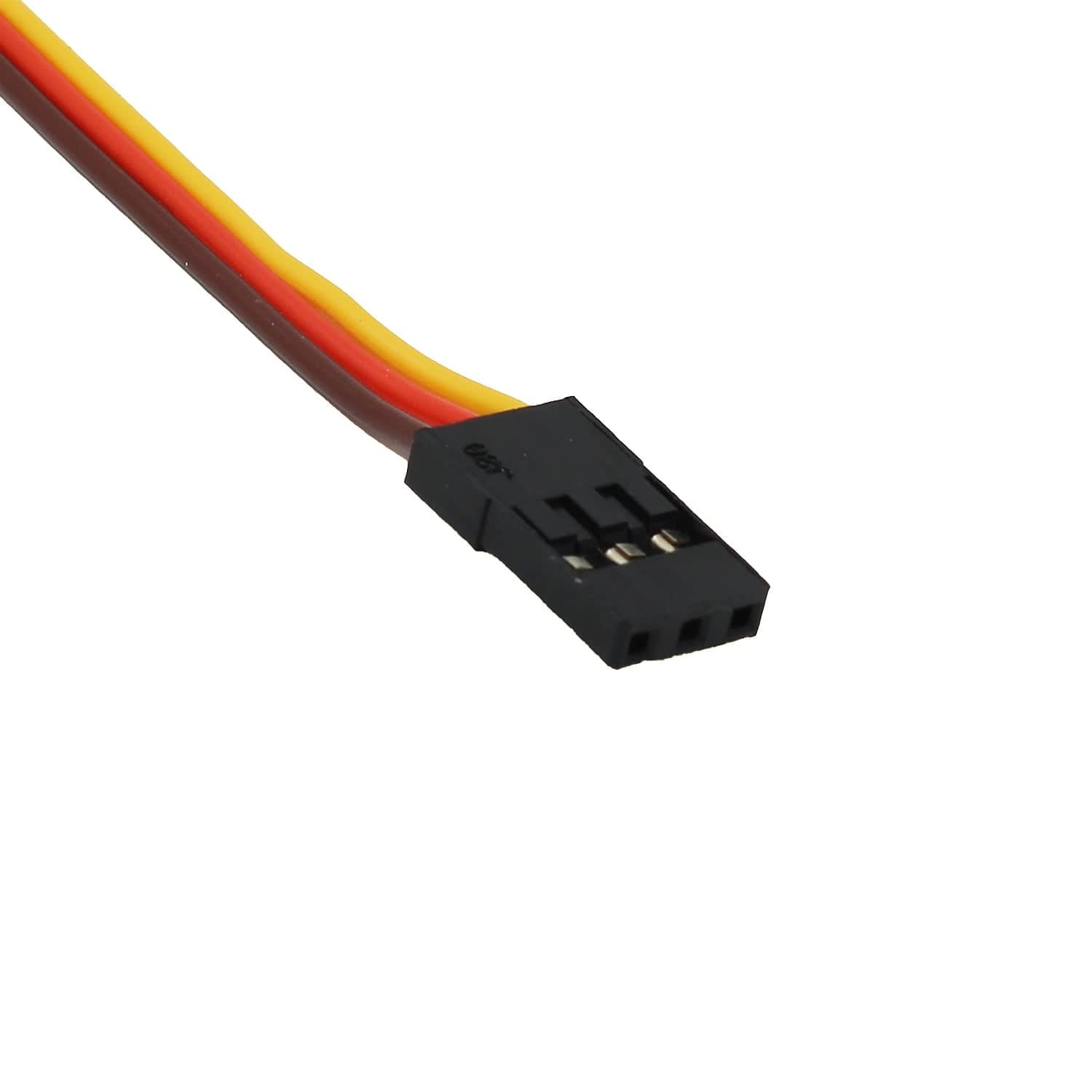

The unit comes complete with 25cm wire and 3 pin 'S' type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.
They're also great for the Arduino simply by wiring them up and using with a Servo library. To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (Example Sketch).

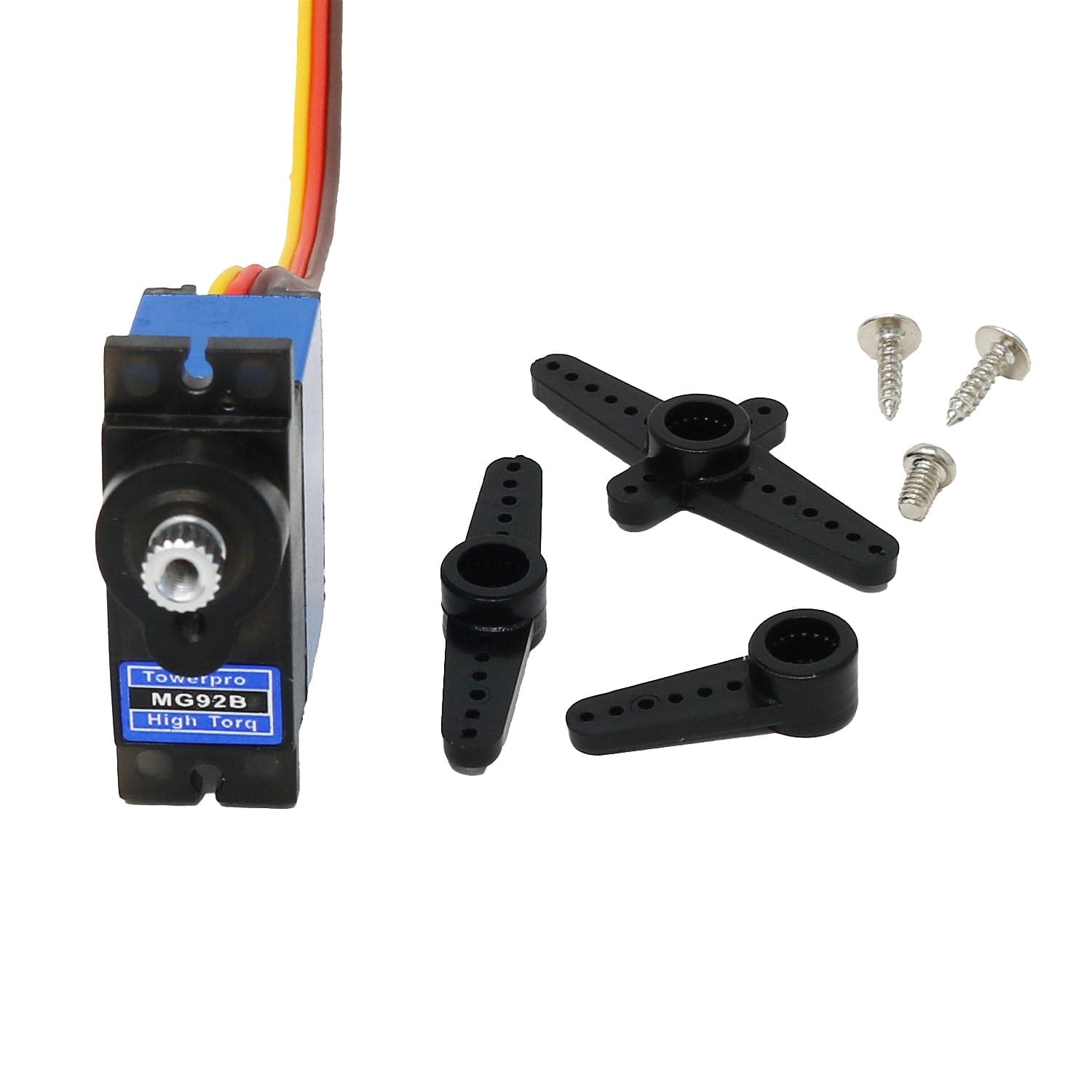

Towerpro Servo's comes with a selection of arms and hardware to get you set up nice and fast!
The Towerpro MG92B Servo 360° Features:
MG92B Digital Servo with Metal Gearing & 360° Rotation
Genuine TowerPro Product
Includes Selection of Horns and Screws for Different Application - See Picture for Details.
To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (Example Sketch). Position "0" (1.5ms pulse) is middle, "90" (~2ms pulse) is all the way to the right, "-90" (~1ms pulse) is all the way to the left.
