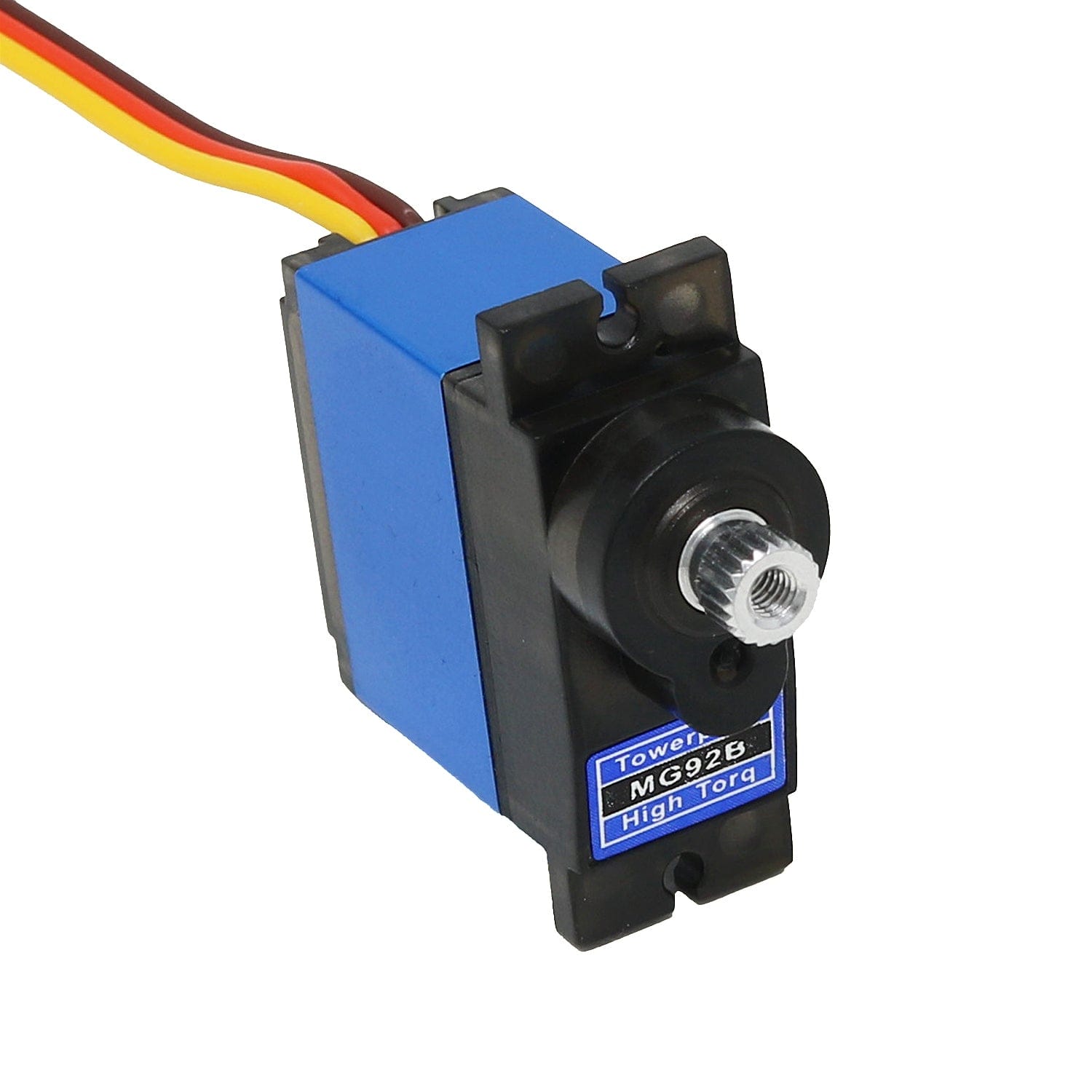

TowerPro Servo Motor - MG92B (Metal Gear)

The MG92B from TowerPro is a digital 14g metal gear, double ball bearing servo designed for RC helicopters & airplanes, but useable in just about any servo situation we can think of. The unit features a central alloy casing and all metal gearing.

The MG92B features a lower operating speed, but higher torque rating than the MG91 & MG90D's, with a stalling torque of 3.5kg in a 14g mini package.

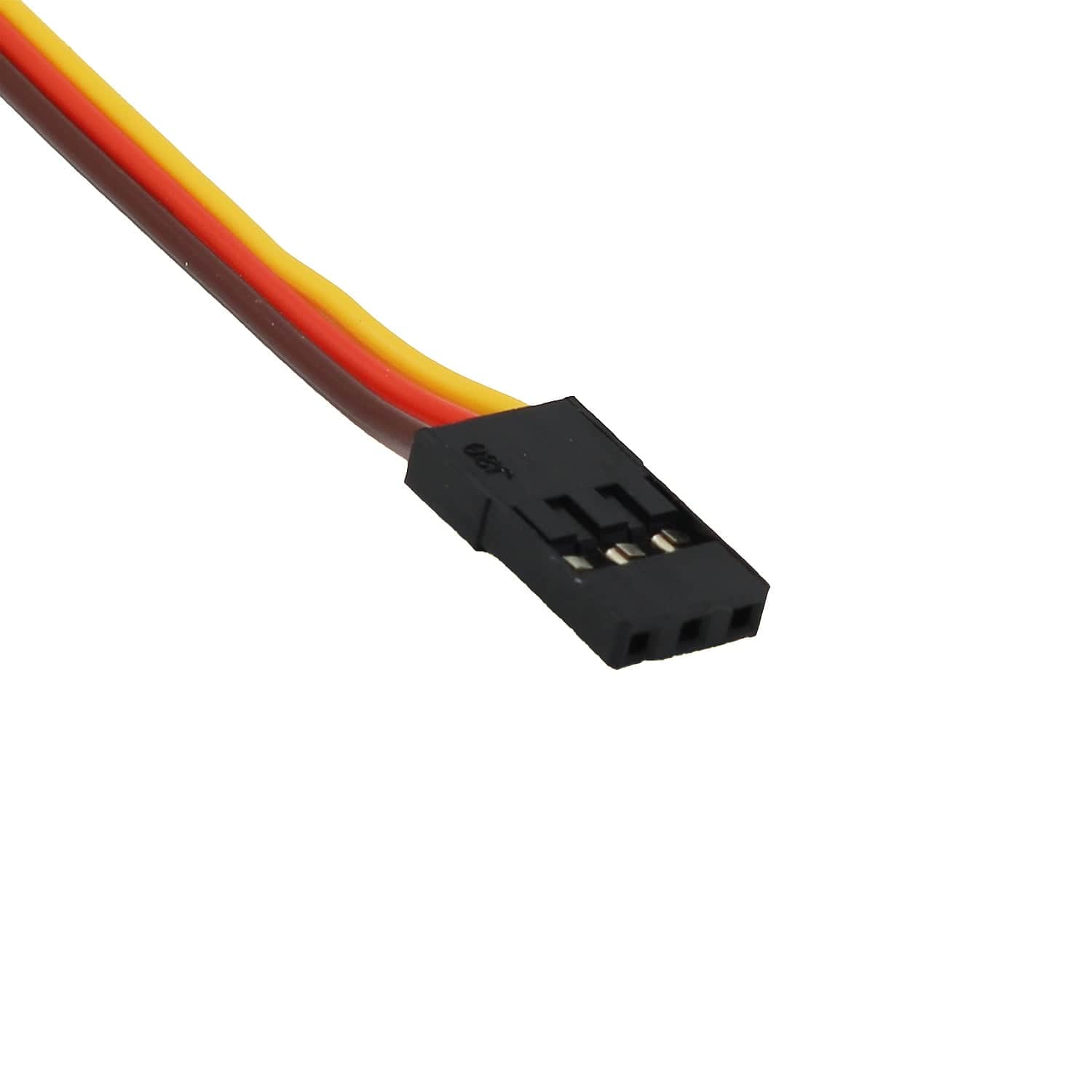

The unit comes complete with 25cm wire and 3 pin 'S' type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.

They work great with Raspberry Pi servo controllers such as the Picon Zero.

They're also great for the Arduino simply by wiring them up and using with a Servo library. To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (Example Sketch).

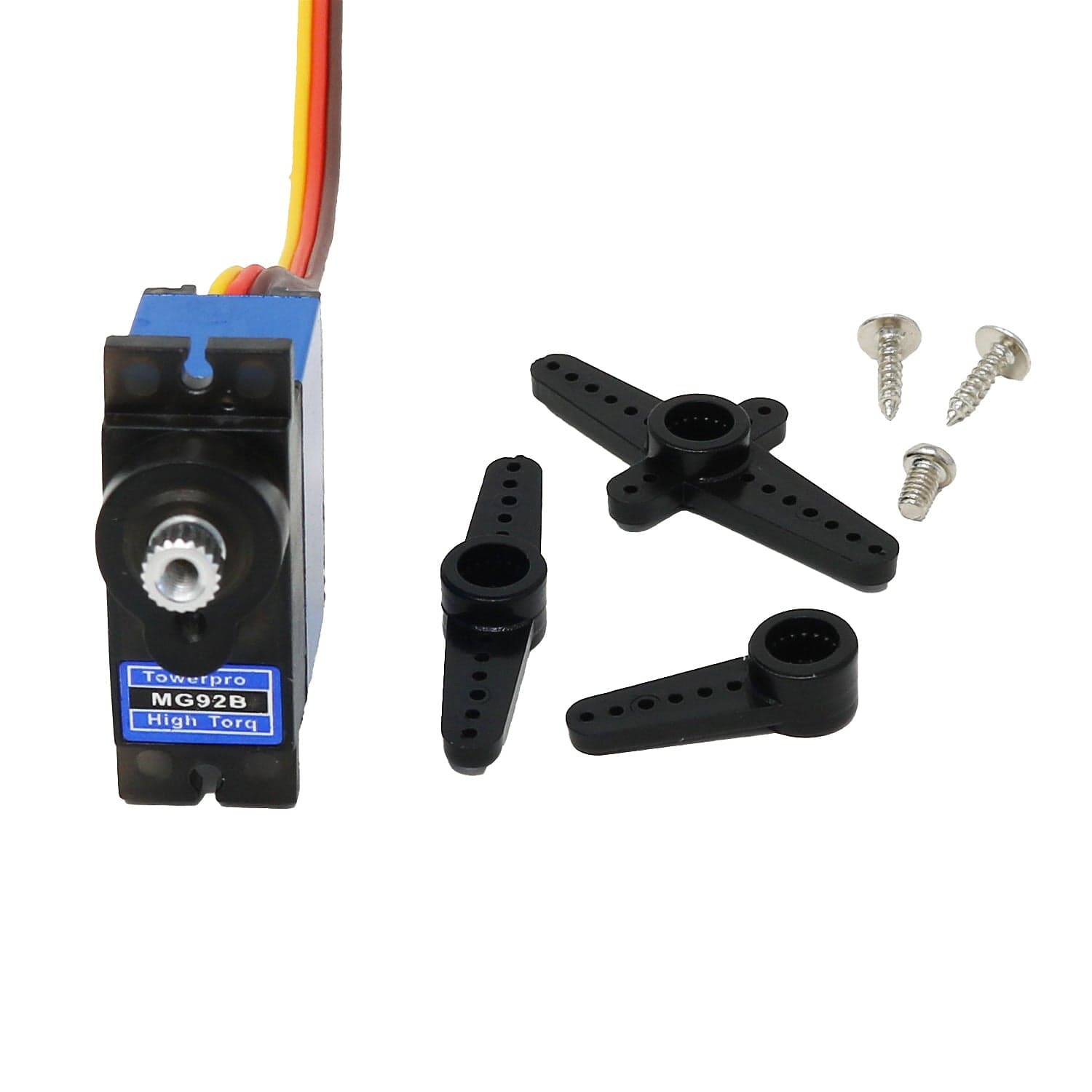

Towerpro Servo's comes with a selection of arms and hardware to get you set up nice and fast!

Towerpro MG92B Servo Features:

• Weight: 13.8g
• Dimension: 22.8x12x31 mm
• Stall torque: 3.1kg/cm (5.0v); 3.5kg/cm (6.0v)
• Operating speed: 0.13sec/60degree (5.0v);0.08sec/60degree (6.0v)
• Operating voltage: 5.0~6.6v
• Gear Type: Metal gear
• Bearing: Double ball bearing
• Servo case: Middle with alloy case
• Temperature range: 0- 55℃
• Servo case: Middle with alloy case
• Servo Plug: JR (Fits JR and Futaba)
• Dead band width: 1us
• Servo wire length: 25cm
• Servo arms &screws included
• Universal “S” type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
• CE & RoHS approved
• Upgraded servo gear set and shaft to aluminium 6061-T6. It is stronger and lighter than copper.

Wiring Guide:

• Red: Battery Positive
• Brown: Battery Negative
• Orange: Signal
