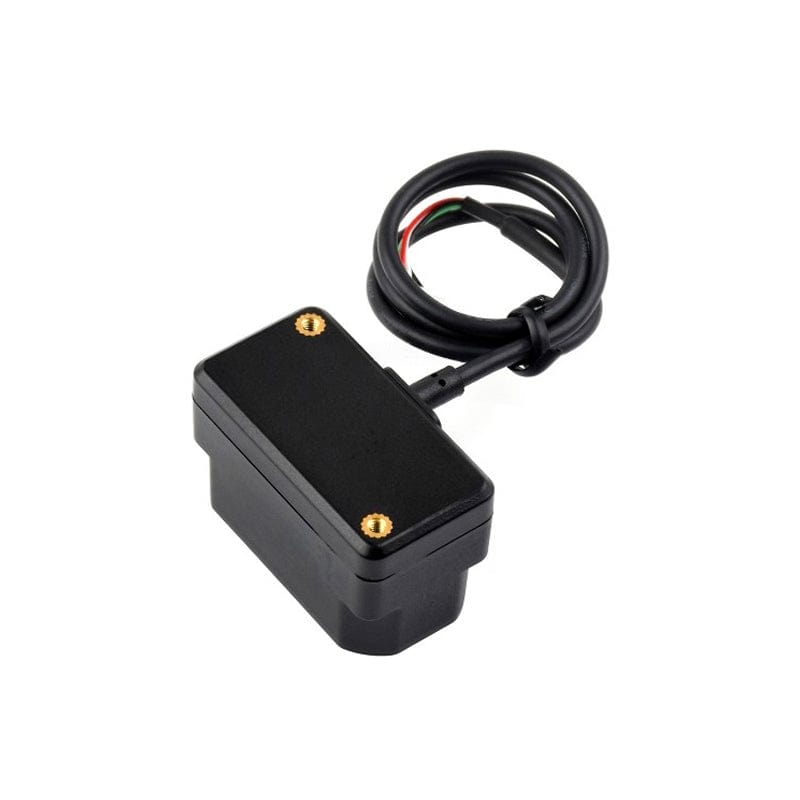

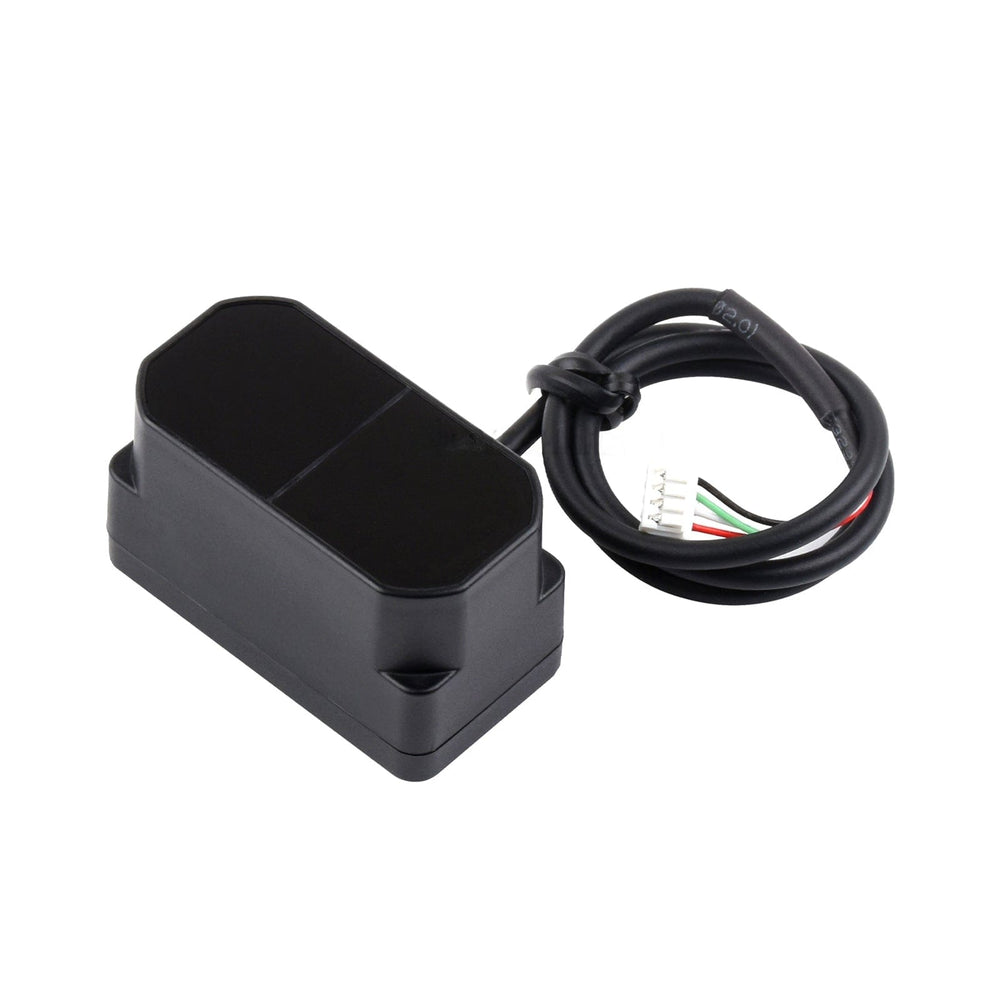

TFmini Plus Laser Ranging Sensor

WaveshareSKU: WAV-24895
Sale price £39.25
incl. VAT
excl. VAT
Only 6 units left

Awesome Extras

Raspberry PiRaspberry Pi 4 Model B
Sale priceFrom £29.17 incl. VAT excl. VAT
Raspberry PiRaspberry Pi Pico W
Sale priceFrom £5.25 incl. VAT excl. VAT
ArduinoArduino Uno Rev3
Sale price £20.42 incl. VAT excl. VAT

The TFmini Ranging Sensor is built on the Time-of-Flight (ToF) principle, setting new standards in accurate distance measurement. With a maximum ranging distance of 12 meters, this sensor excels in providing reliable and precise distance data. The frame rate can reach an impressive 1000Hz. This high frame rate ensures that the sensor captures fast-moving objects with exceptional fidelity, making it an ideal choice for applications that demand real-time monitoring and analysis.

The sensor's design is optimised to minimise blind zones, ensuring that it can accurately detect objects even when positioned very close to its surface. This small blind zone contributes to the sensor's versatility, enabling it to work well in scenarios where object detection in close proximity is the top priority. Consuming just 550mw of power, it gives a great balance between performance and power usage. Moreover, the sensor's low-power mode consumes less than 100mw, making it suitable for situations where energy conservation is paramount.

This combination of features positions the sensor as a standout choice for a wide range of applications, spanning robotics, automation, drones, safety systems, and more, where precise and reliable distance measurements are very important.


  • High frame rate (up to 1000Hz)
  • Compact Size
  • Low Power Consumption (550mw, less than 100mw in low power mode)
  • IP65 Protection
  • 12m Ranging Distance
  • High Accuracy
  • Small Blind Zone


Ranging Distance 0.1~12.0m @90% reflectivity (Indoor 0klux)
0.1~4.0m @10% reflectivity (Indoor 0klux)
0.1~12.0m @90% reflectivity (Outdoor 70klux)
0.1~4.0m @10% reflectivity (Outdoor 70klux)
Frame Rate UART: 1~1000Hz (adjustable, default 100Hz)
I2C: 1~100Hz (adjustable)
Distance Resolution 1cm
Operating Temperature -20-60°C
Accuracy  ±5cm@(0.1~5m)
Repeatability 1σ: <3cm (@100Hz UART)
1σ: <4cm (@100Hz I2C)
Ambient Light Tolerance 70 Klux
Protection Level IP65
Optical Parameters
Light Source LED
Eye Safety  Exemption Level (EN62471)
Central Wavelength  850mm
Field of View 3.6°
Electrical Parameters
Power Supply 5V±0.5V
Power 550mW (low power consumption mode: <100mW)
Communication Level LVTTL (3.3V)
Average Current ≤110mA
Peak Current  140mA
Communication Interface UART, I2C, I/O
Dimensions 35.0 x 18.5 x 21.0mm
Storage Temperature -20 - 75°C
Cable Length  30cm
Case Material  ABS/PC
Weight 12g±1g



Number Colour Function Description
1 Red +5V Power Input
2 White RXD/SDA UART RX / I2C data
3 Green TXD/SCL UART TX / I2C clock
4 Black GND Ground

Package Contents

  • 1x TFmini Plus LiDAR Range Sensor
  • 1x 4-pin Male Cable
