Gravity: TCS34725 RGB Colour Sensor For Arduino

DFRobotSKU: SEN0212
Price:
Sale price £7.60
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

DFRduino Uno R3 - The Pi HutDFRduino Uno R3 - The Pi Hut
DFRobotDFRduino Uno R3
Sale price £16 incl. VAT excl. VAT
Gravity: IO Expansion Shield for Arduino V7.1 - The Pi HutGravity: IO Expansion Shield for Arduino V7.1 - The Pi Hut
DFRobotGravity: IO Expansion Shield for Arduino V7.1
Sale price £4.50 incl. VAT excl. VAT
Gravity: Digital Colorful Flashing LED Module - The Pi HutGravity: Digital Colorful Flashing LED Module - The Pi Hut
DFRobotGravity: Digital Colorful Flashing LED Module
Sale price £1.90 incl. VAT excl. VAT
After tens of millions of years of evolution, chameleons have formed a biological instinct where they can change the colour of their skin to match their environment. This technique has enabled them to avoid detection from predators.

We have taken inspiration from nature to develop the TCS34725 I2C Colour Sensor. Using optical techniques, this sensor detects colors in its surrounding environment and provides a digital return of red, green, blue (RGB) values. This enables you to then recreate the detected colors using these values.

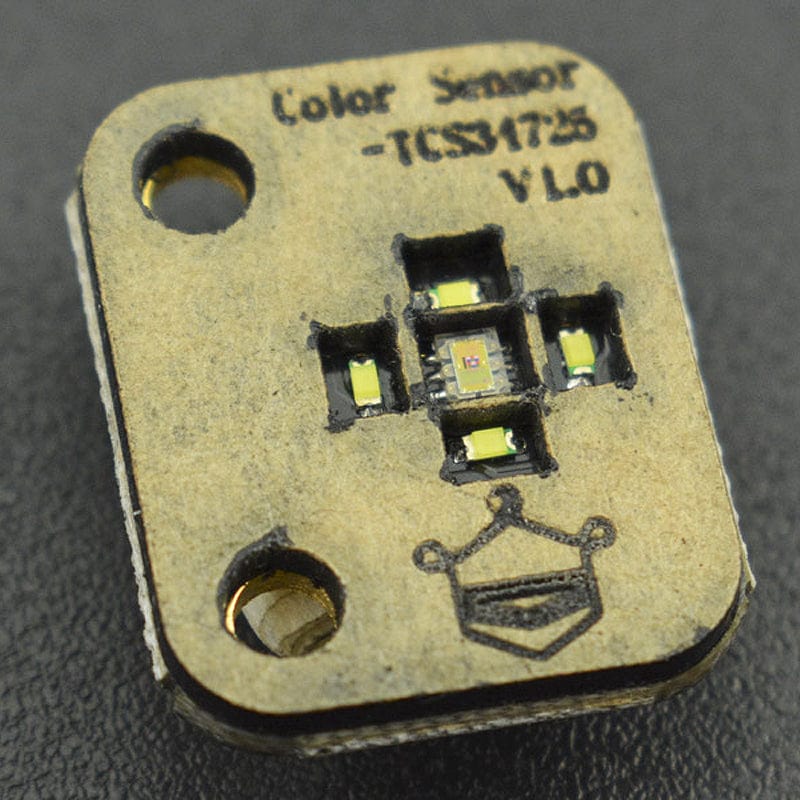

The TCS34725 has a high sensitivity, wide dynamic range, and includes an IR blocking filter making it an ideal colour sensing solution for use under varied lighting conditions. The sensor also includes four ultra-bright LEDs to allow the sensor to work without external light resources.

Connection Example - DFRduino UNO R3

Specifications

  • Operating Voltage: 3.3-5V
  • Operating Current: 65 uA
  • Detection Range: 3 - 10 mm
  • The Clock Frequency: 0 - 400 KHZ
  • Interface: I2C
  • Temperature Range: -30°C - + 70°C

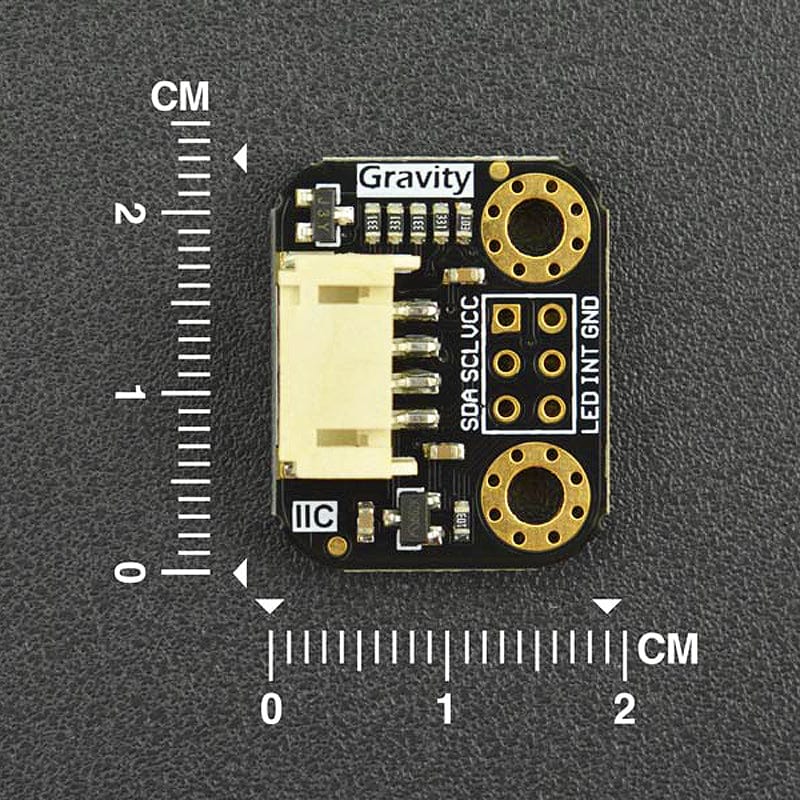

  • Dimensions: 18.5 x 23 mm
  • Weight: 12g
  • Resources

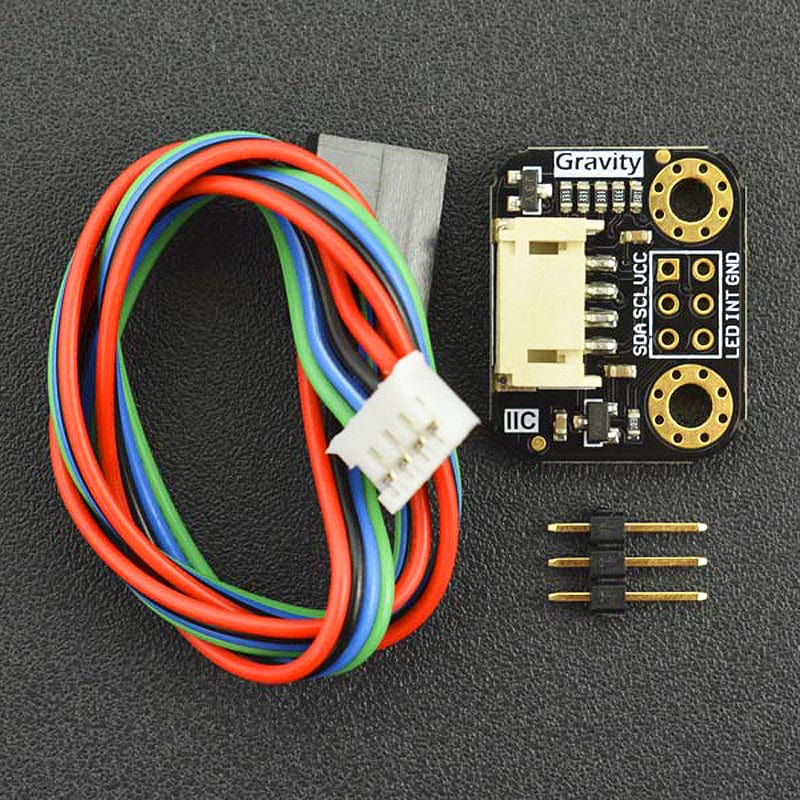

    Package Contents

  • 1x TCS34725 I2C Color Sensor For Arduino
  • 1x I2C sensor cable
  • 2x XH2.54-3P Pin Headers
