The SupTronicsX15-C1 is a two-piece metal enclosure designed for use with the SupTronics X1500 and X1501 IO boards for CM5. It provides physical protection for the installed hardware and allows airflow for heat dissipation during operation.
The design maintains access to ports while enclosing the system, making it suitable for embedded and industrial Compute Module 5 installations.
The enclosure supports additional optional hardware available in the store - including the SupTronics X15-F1 80 × 10 mm PWM cooling fan, and the X15-POE+ HAT with IEEE 802.3at Power-over-Ethernet support (coming soon!). It is also compatible with other low-profile HATs.
Case only - CM5, IO board and cooling fan add-on not included.
Features
Form factor: 96mm x 90mm x 44mm

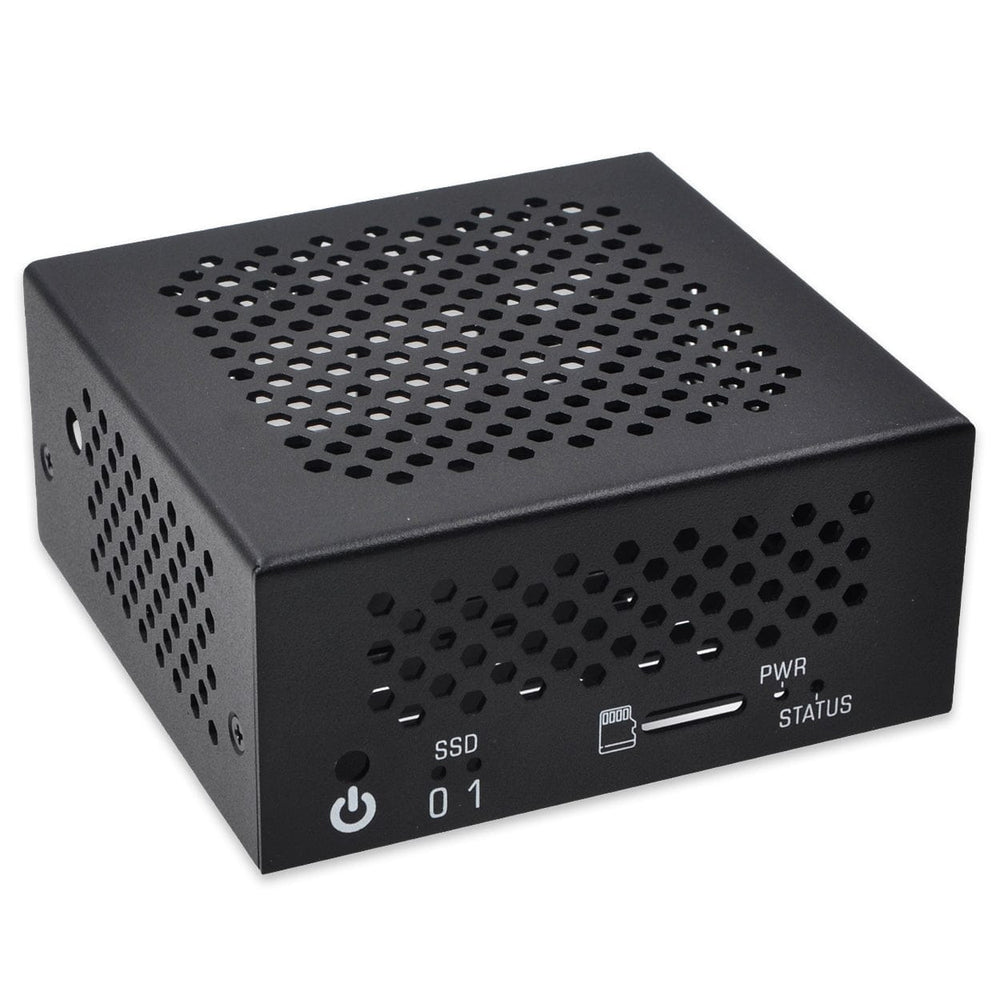

Precision cut-outs & clear labelling: Ensures easy access to ports and components with intuitive identification
Optimised thermal performance: Extensive ventilation holes on every side enhance heat dissipation

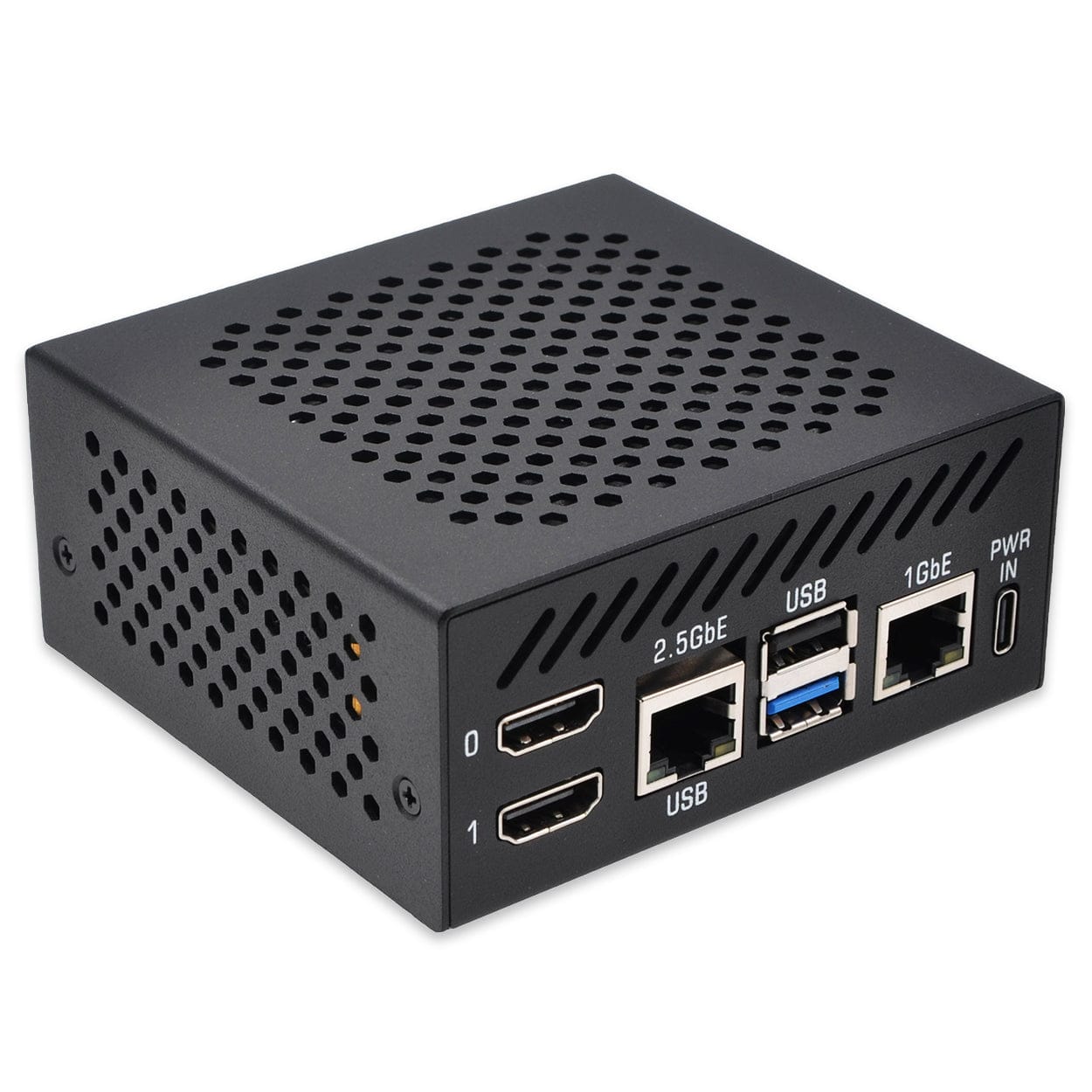

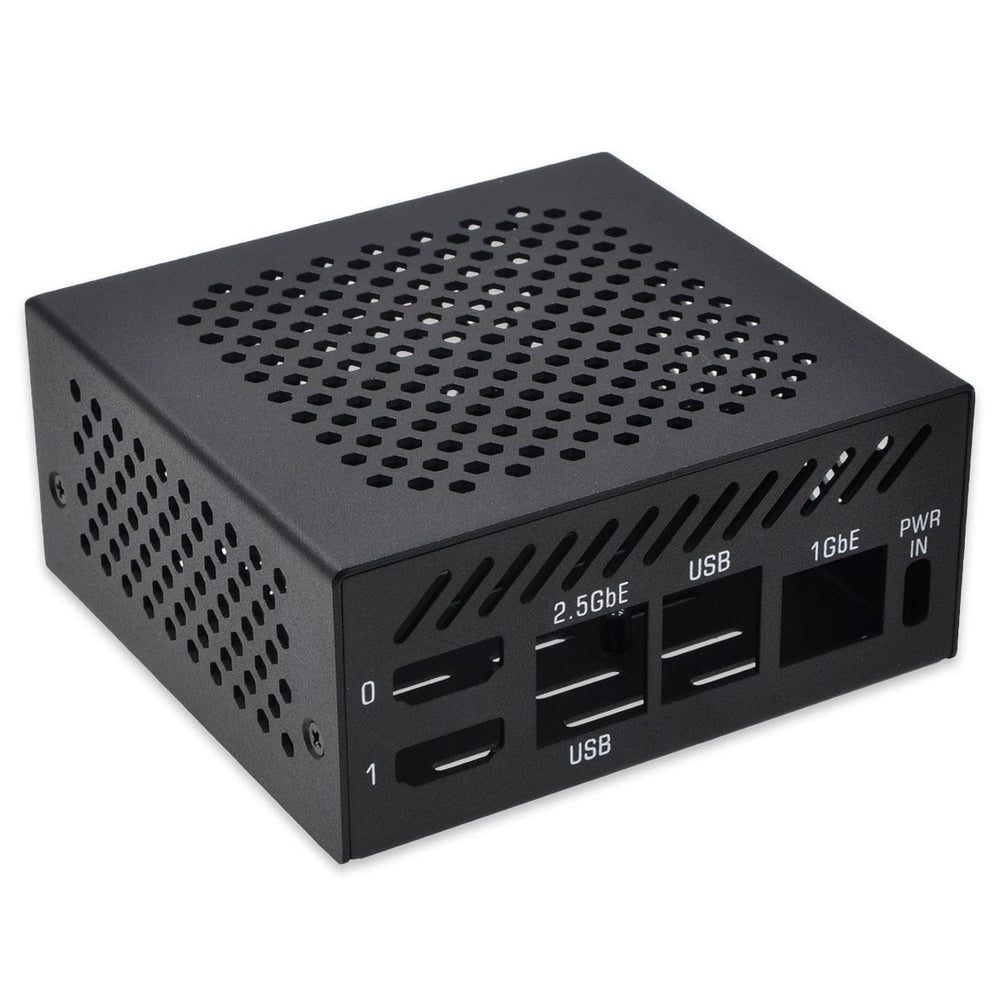

Comprehensive port access: Side cut-outs provide unobstructed access to HDMI, Ethernet, USB-A, USB-C (power input), and the MicroSD card slot

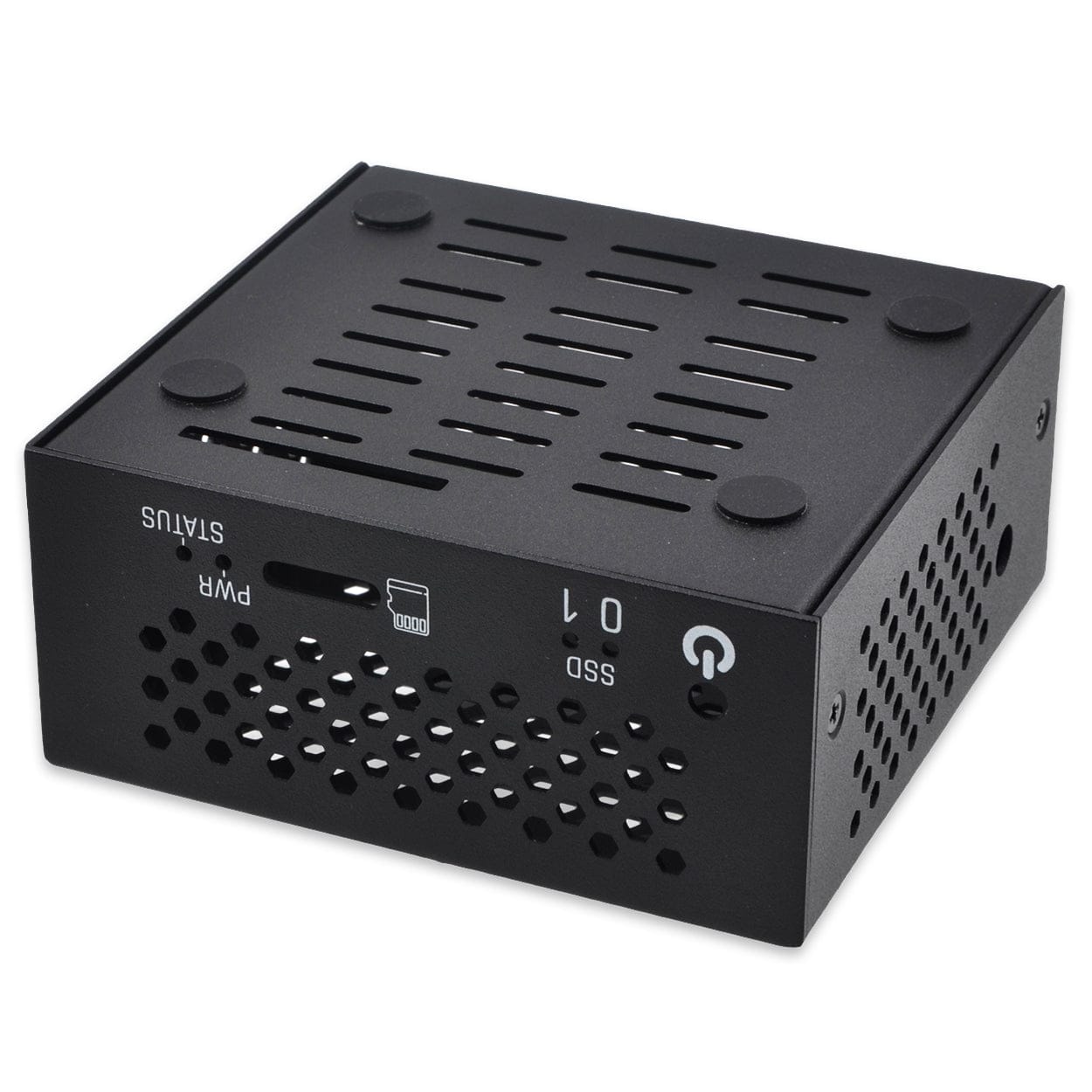

Expandable connectivity: Bottom slot allows seamless integration of CSI-2 cameras or DSI displays
Wireless antenna support: Includes dedicated mounting hole for external antenna

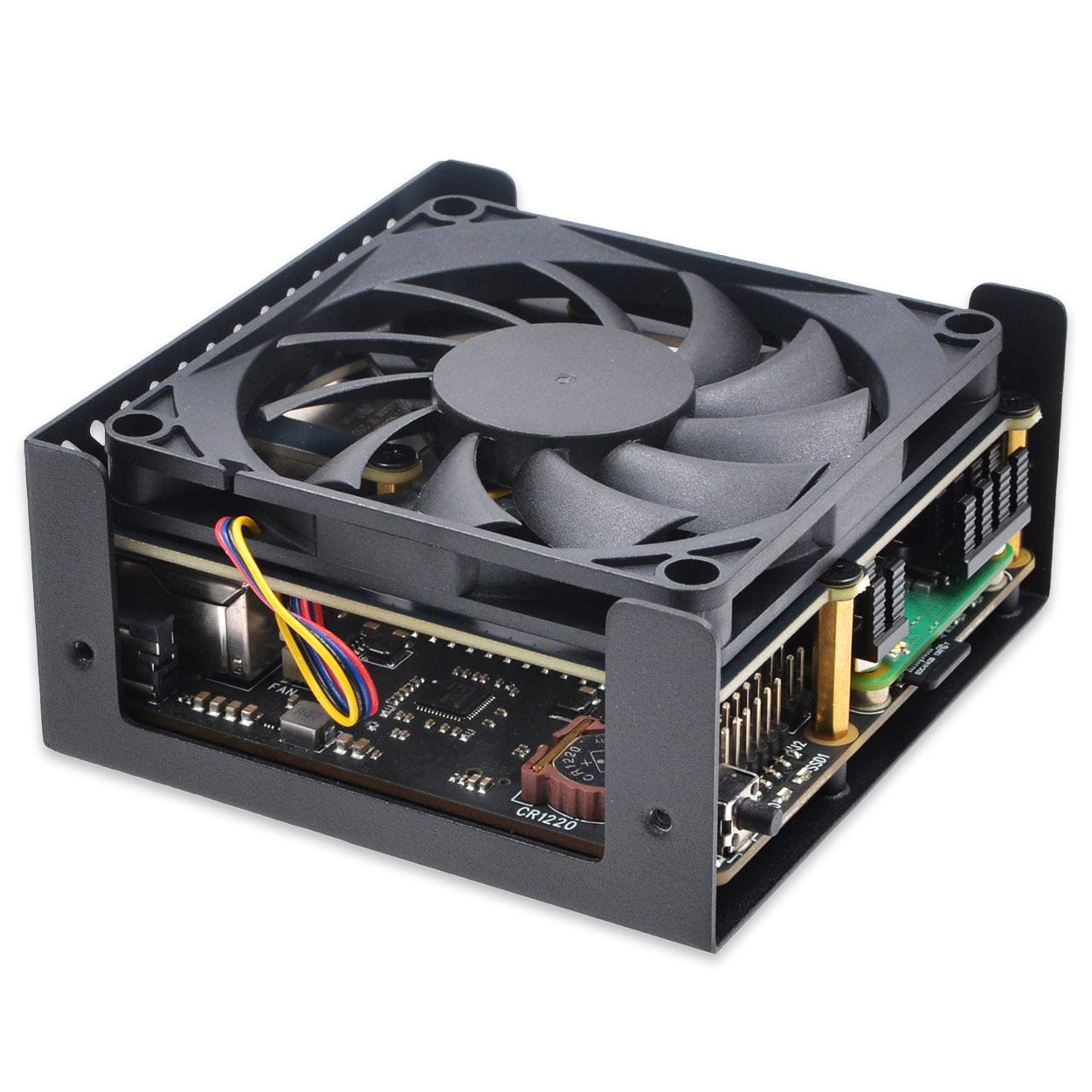

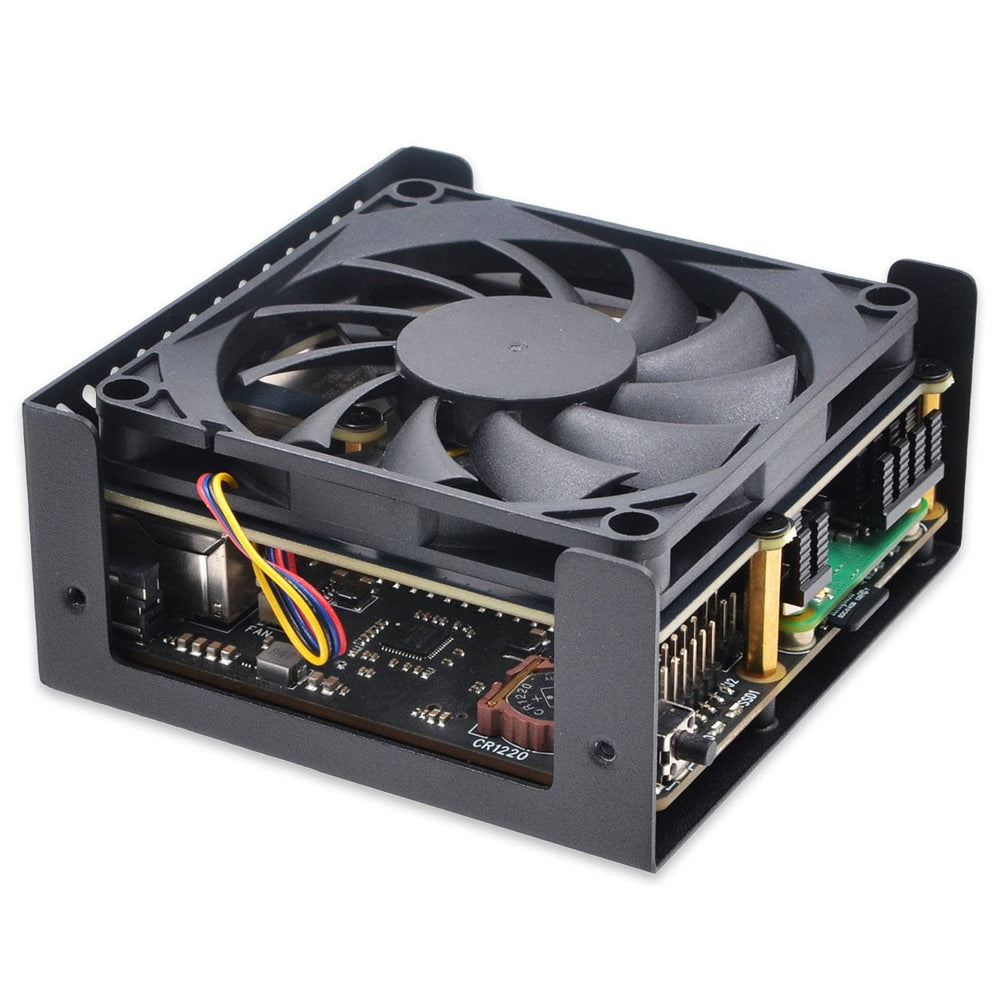

Flexible configuration options: Compatible with X15-F1 PWM-controlled fan, X15-POE1 HAT, and other low-profile expansion HATs
