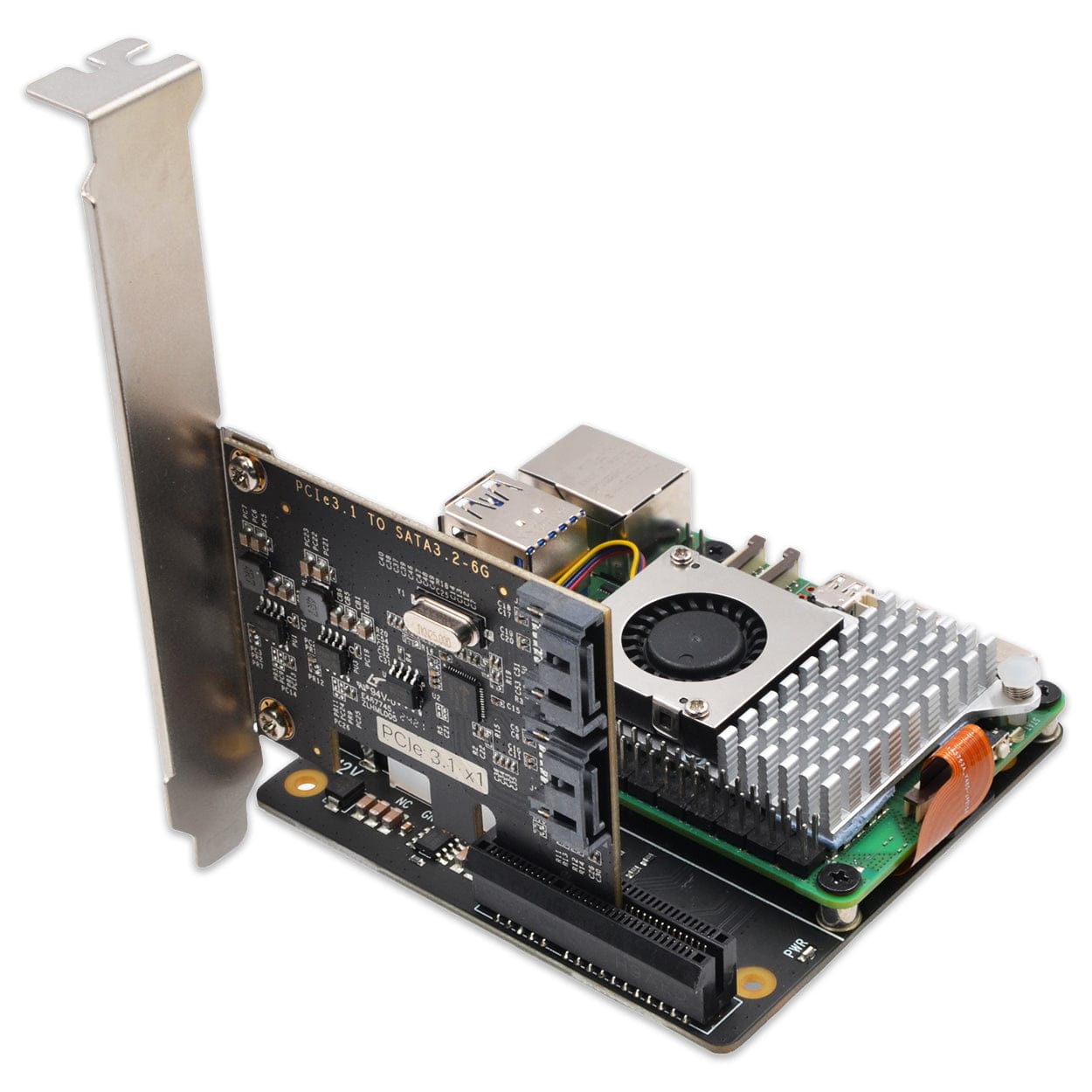

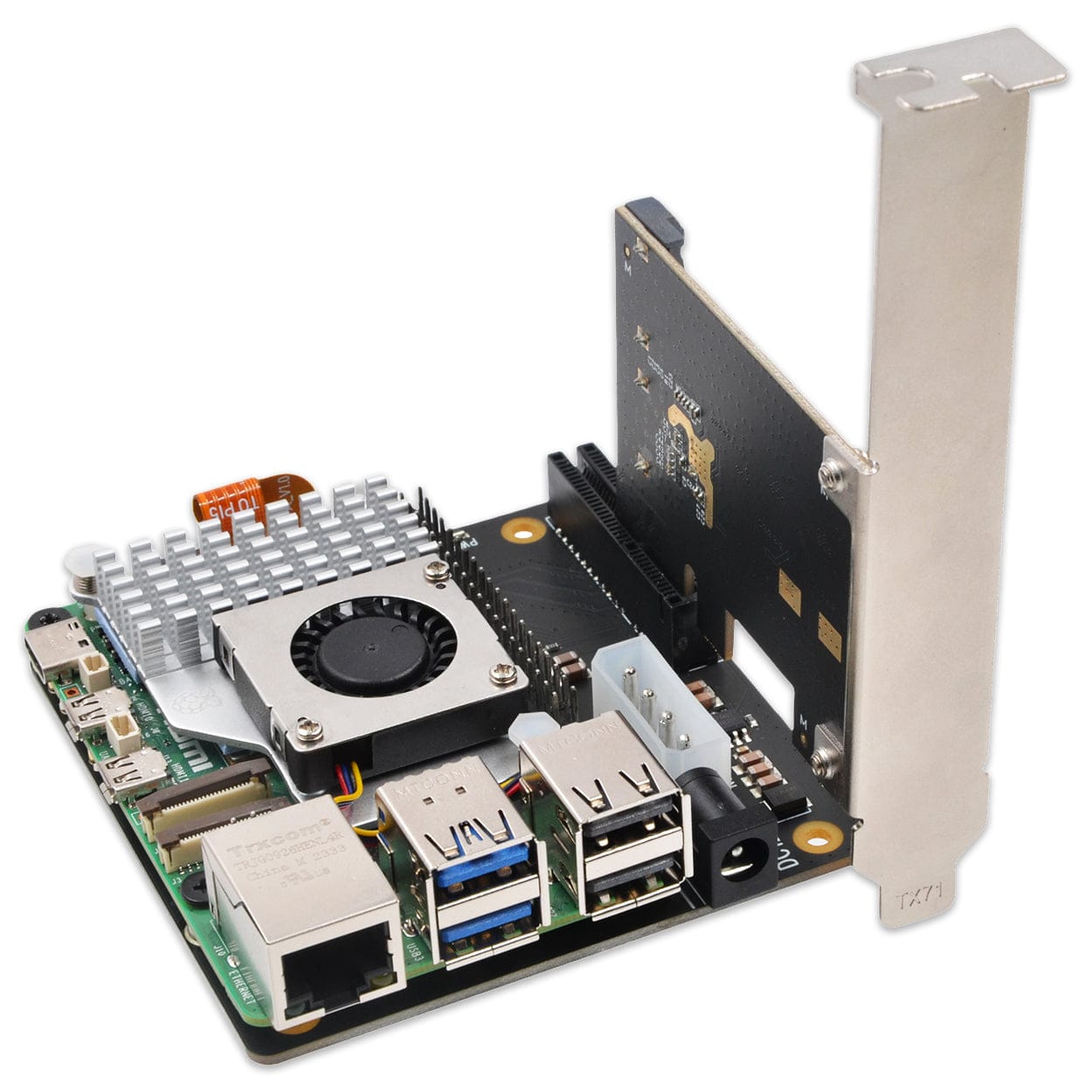

The SupTronicsX1010 lets you connect a full-size PCIe x4 card to yourRaspberry Pi 5 via the PCIe interface. It’s ideal for adding devices like graphics cards, RAID controllers, USB cards, high-speed network adaptors, Wi-Fi cards, or SSDs.
It supports 12V power inputvia a standard DC barrel jack or a 4-pin ATX connector. Onboard regulators provide up to 5.5A for the Raspberry Pi and 3.3V at 5.5A for your PCIe device.

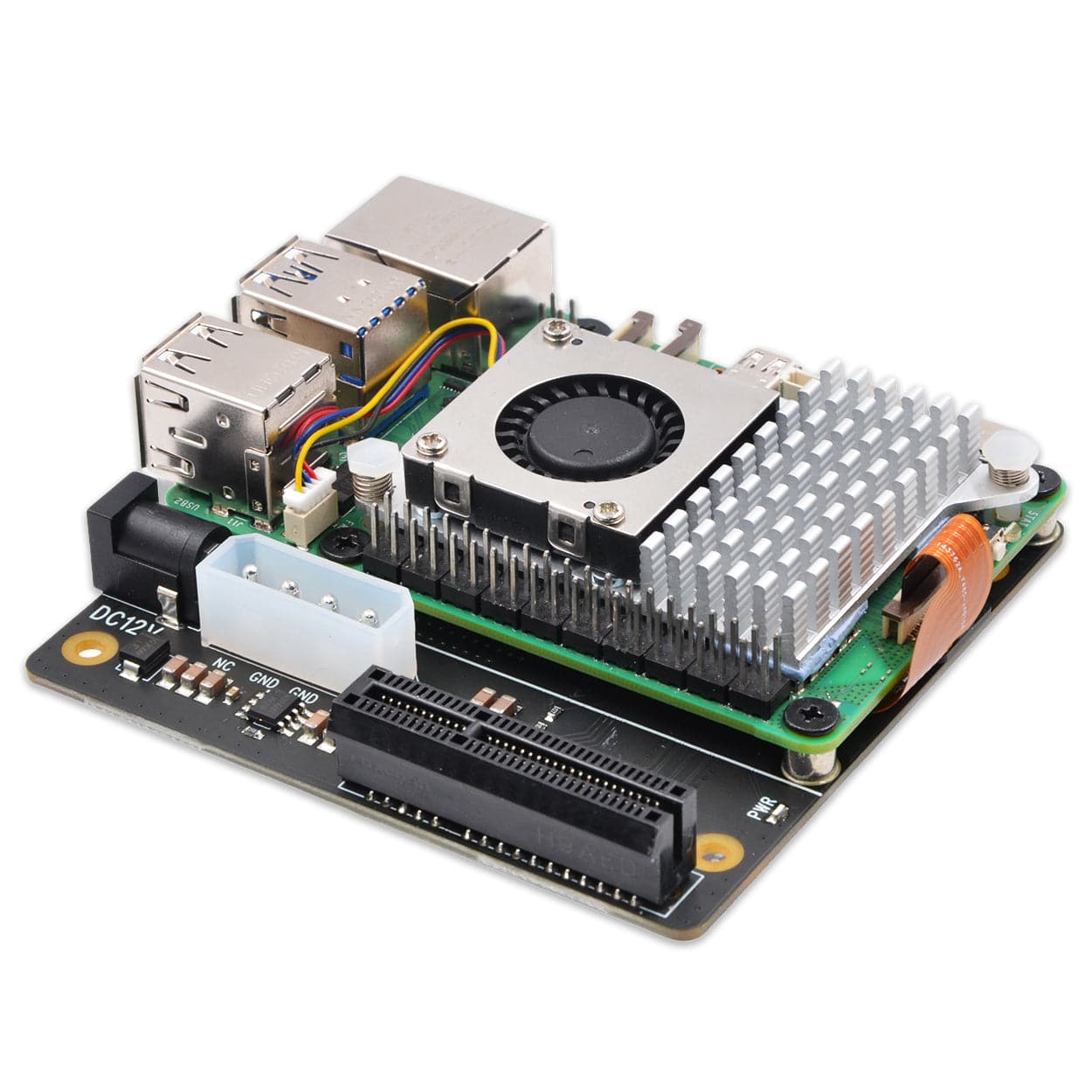

Designed to connect to the underside of the Pi 5, it leaves the GPIO header free, so you can continue using other HATs and coolers alongside the PCIe add-on.
Warning: do not power the X1010 via DC power jack and the Raspberry Pi5 via USB-C at the same time. Bad stuff will happen!
Raspberry Pi 5, power supply, Active Cooler and PCIe x4 device not included.
Features
Compatible with Raspberry Pi 5
PCIe 2.0x1 FFC connector to standard PCIe x4 slot
PCIE_DET_WAKE pin pulled high and automatically probe the PCIe bus at boot time
Flexible powering options via a common DC jack or ATX 4-pin peripheral power connector

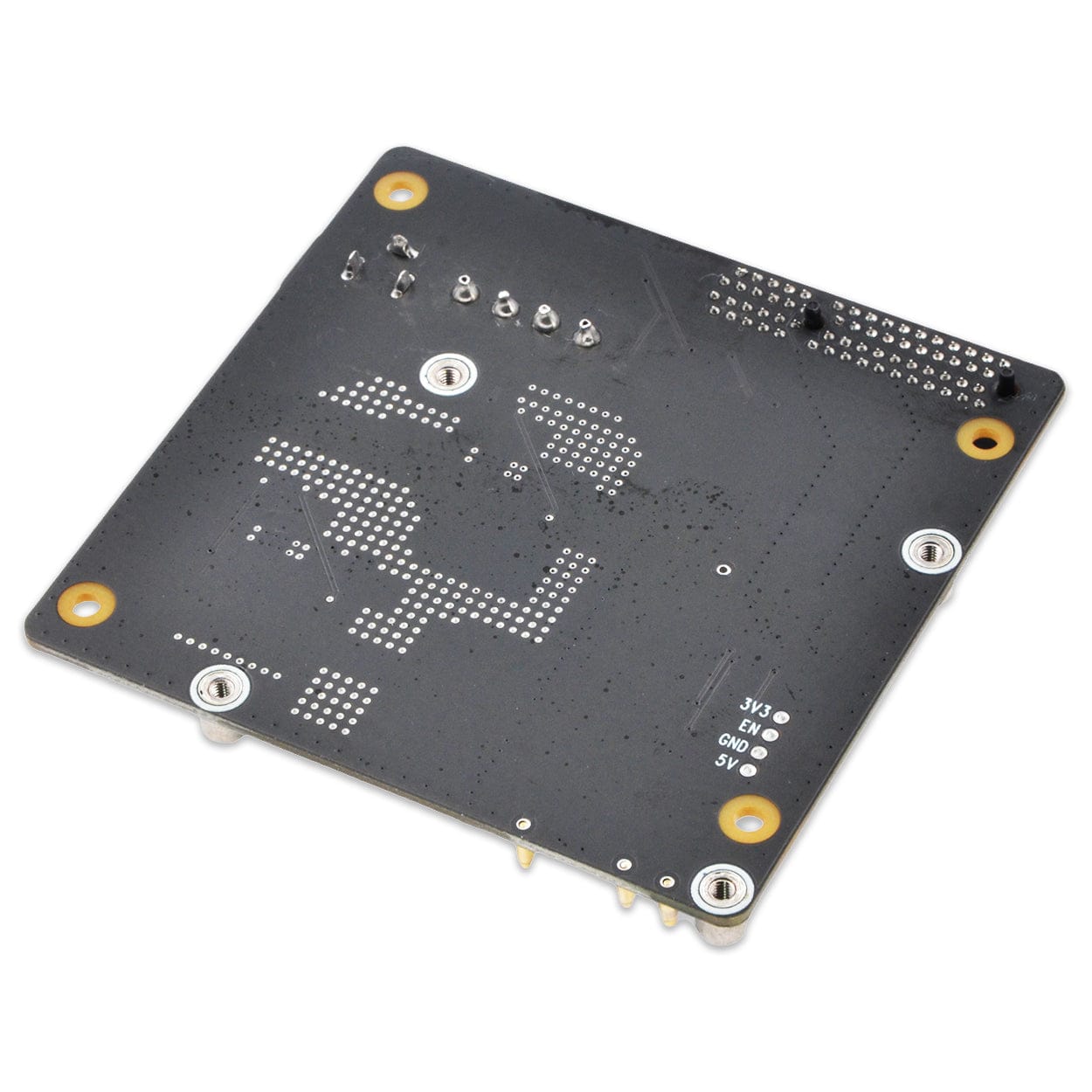

Efficient power delivery to the Raspberry Pi5 via pogo pin, streamlining the power supply to a single source
Equipped with a high-efficiency DC/DC step-down converter, providing a maximum of 5.5A to power your Raspberry Pi5
Compatible with the HAT+ STANDBY power state, automatically powering off the PCIe device when the Pi 5 is shut down.
Specifications
Power supply
12Vdc ±5% power via DC power jack 5.5 × 2.1mm 12Vdc ±5% power via ATX 4-pin peripheral power connector
Ports & connectors
DC power jack: 5.5 × 2.1mm, polarity: centre positive (+) ATX peripheral power connector: 4-pin, 5.08mm pitch PCIe connector x1: 16-pin, 0.5mm pitch PCIe x4 connector x1: 64-pin
