The M5Stack Stamp-Addon Cam0308 adds compact image capture to the Stamp-S3Bat, with a 0.3MP GC0308 sensor, flexible FPC design and support for QVGA and VGA resolutions.
The M5StackStamp-AddOn Cam0308 is a CMOS camera expansion module designed for the Stamp-S3Bat.

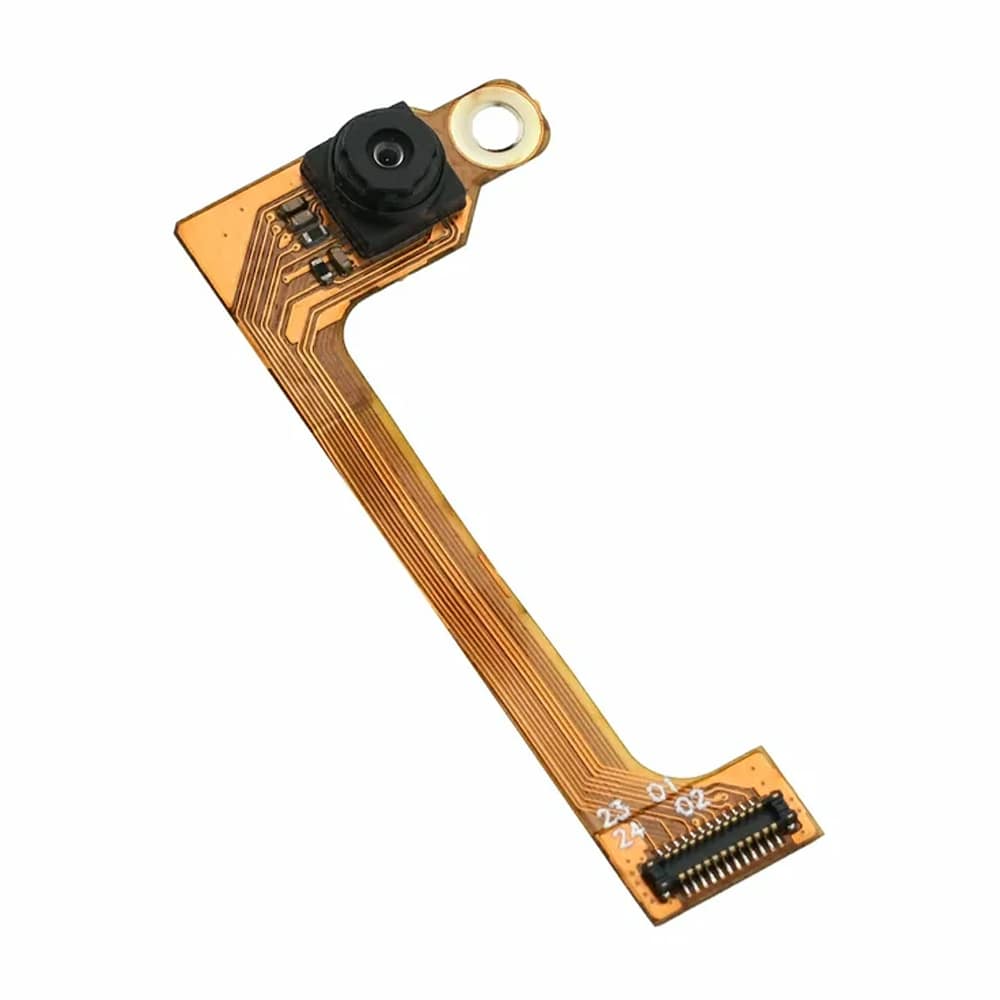

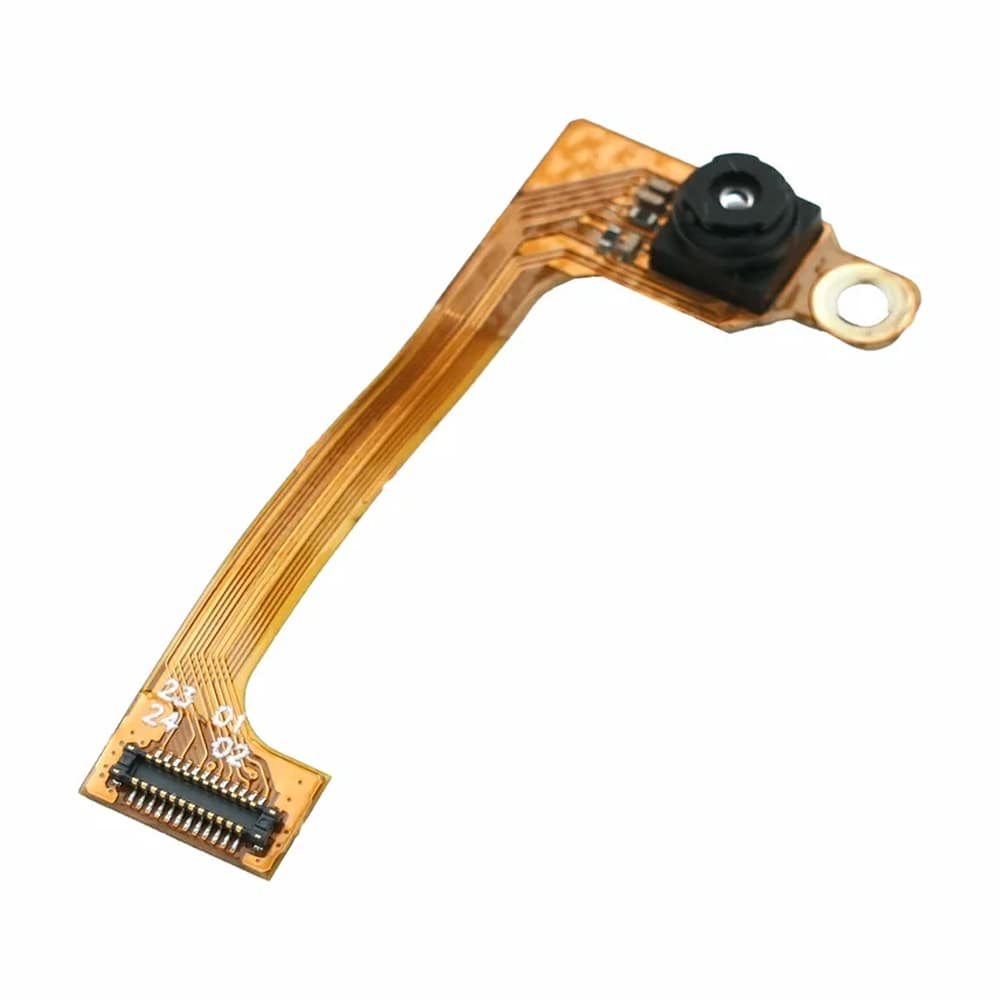

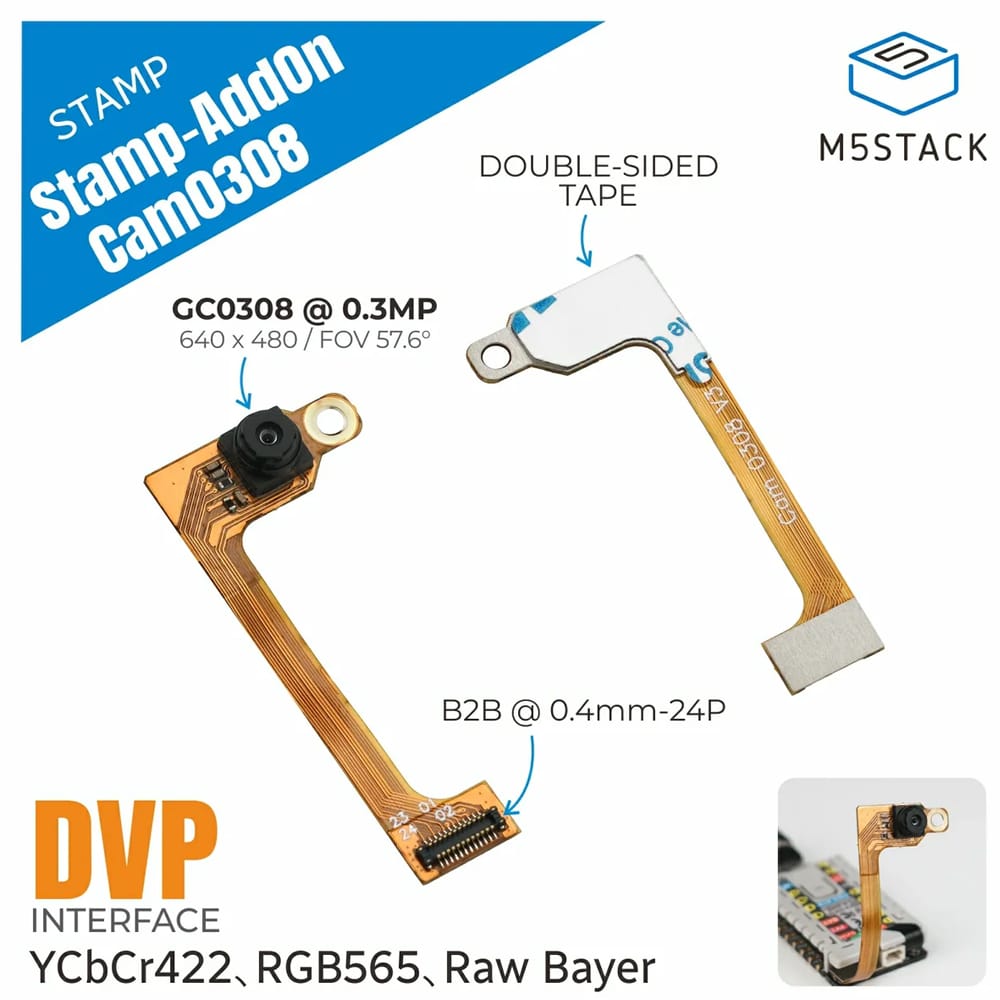

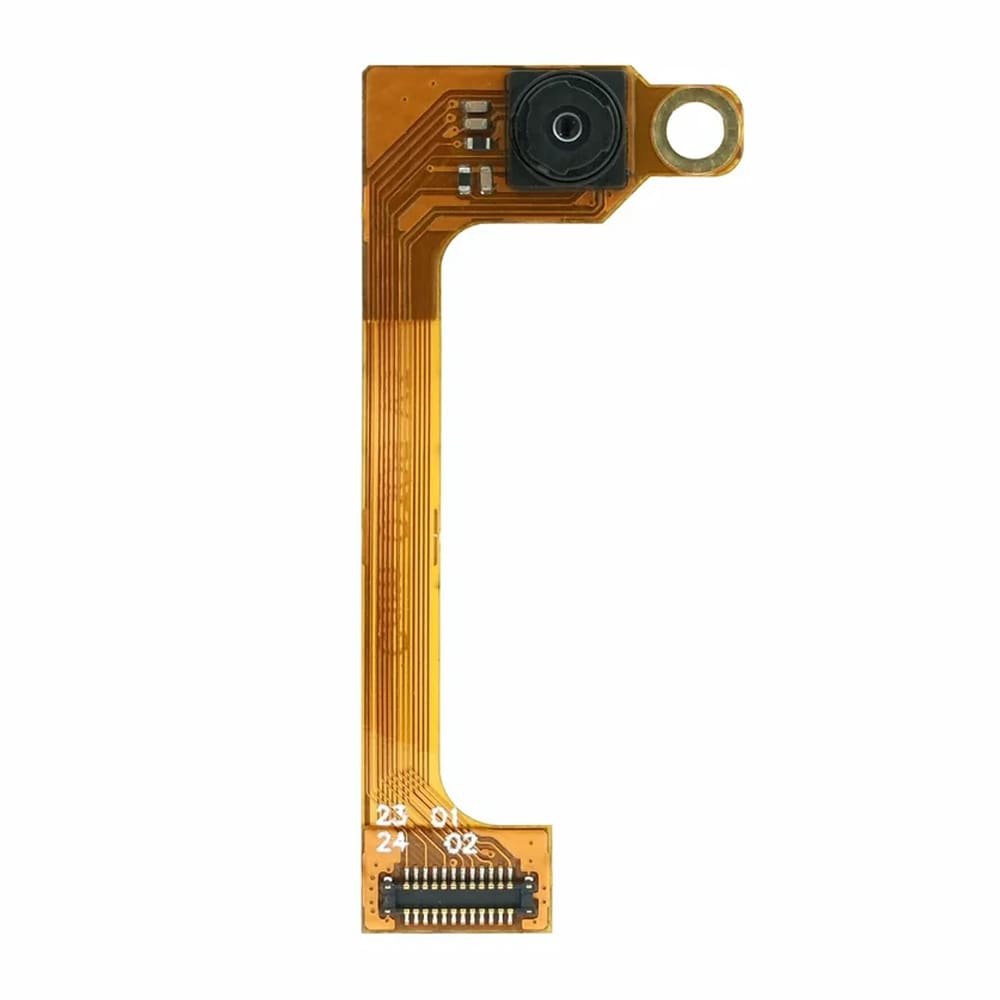

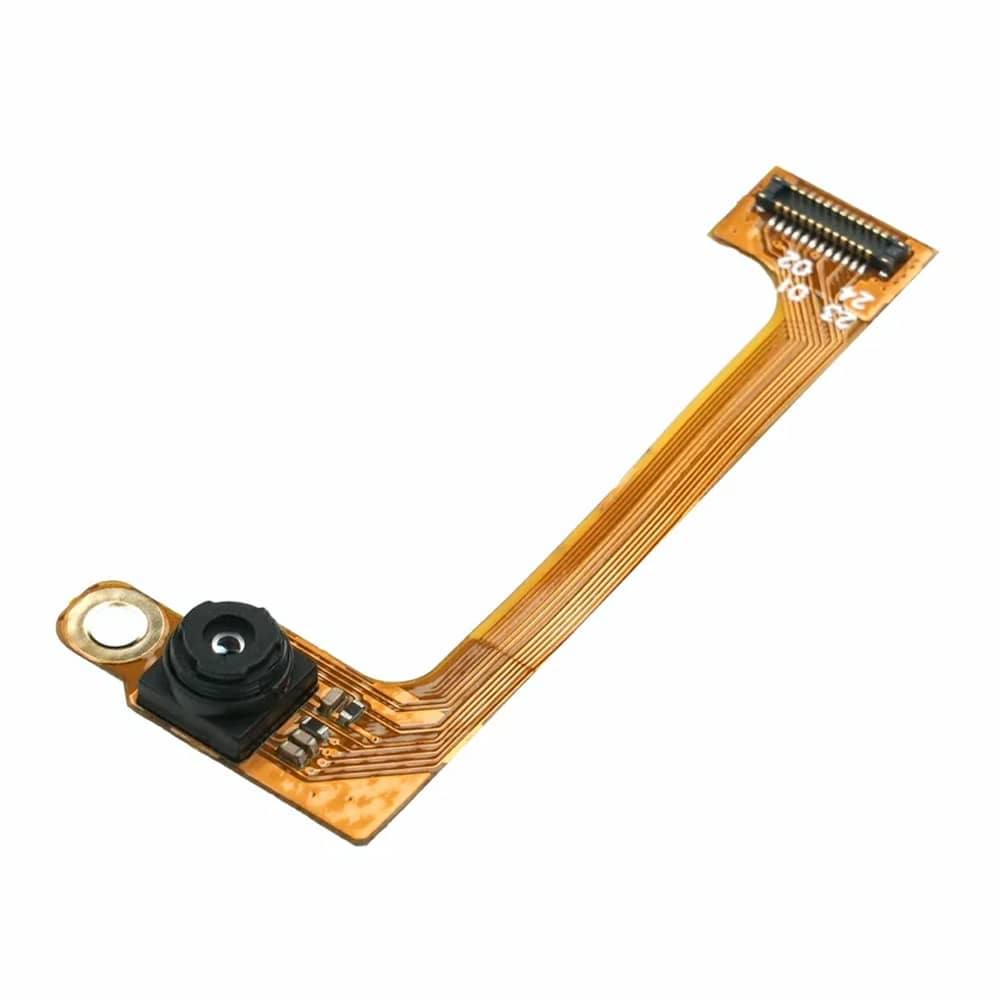

It features a 0.3MP GC0308 image sensor and adopts an L-shaped flexible FPC cable, connecting to the mainboard via a 0.4mm-24P B2B board-to-board connector; the side of the lens is provided with a metal mounting hole. The module outputs images through an 8-bit DVP parallel interface and configures the sensor registers via the SCCB bus, supporting QVGA (320 x 240) and VGA (640 x 480) image capture.
With its compact size, the module is suitable for installation in space-constrained devices and can be used in embedded vision scenarios such as image acquisition, barcode scanning, and visual inspection.
Features
Compatible with Stamp-S3Bat
0.3MP GC0308 CMOS image sensor
Supports QVGA (320 x 240) and VGA (640 x 480) resolutions
Supports YCbCr 4:2:2, RGB565, and Raw Bayer image output formats
8-bit DVP parallel image output interface
SCCB configuration bus (electrically compatible with I2C)
L-shaped flexible FPC with integrated 0.4mm-24P B2B board-to-board connector

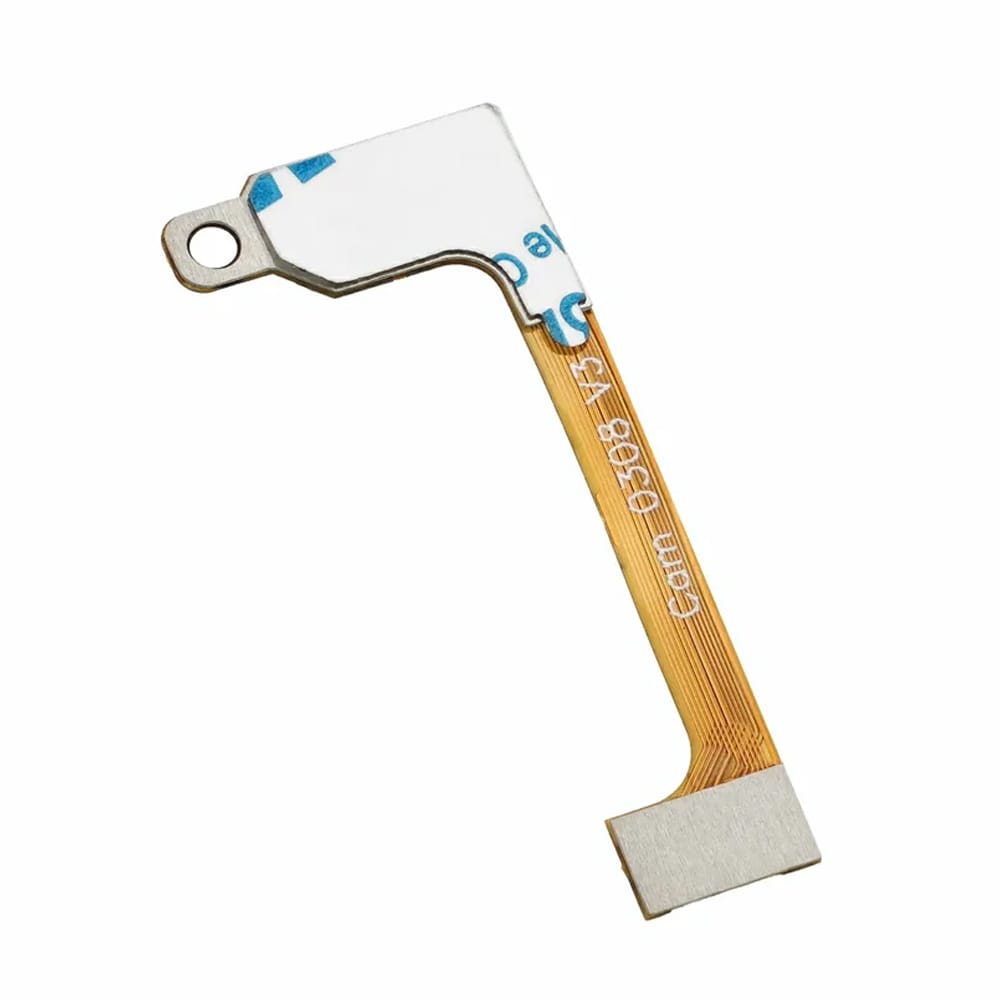

Side metal mounting hole for easy installation and fixation
