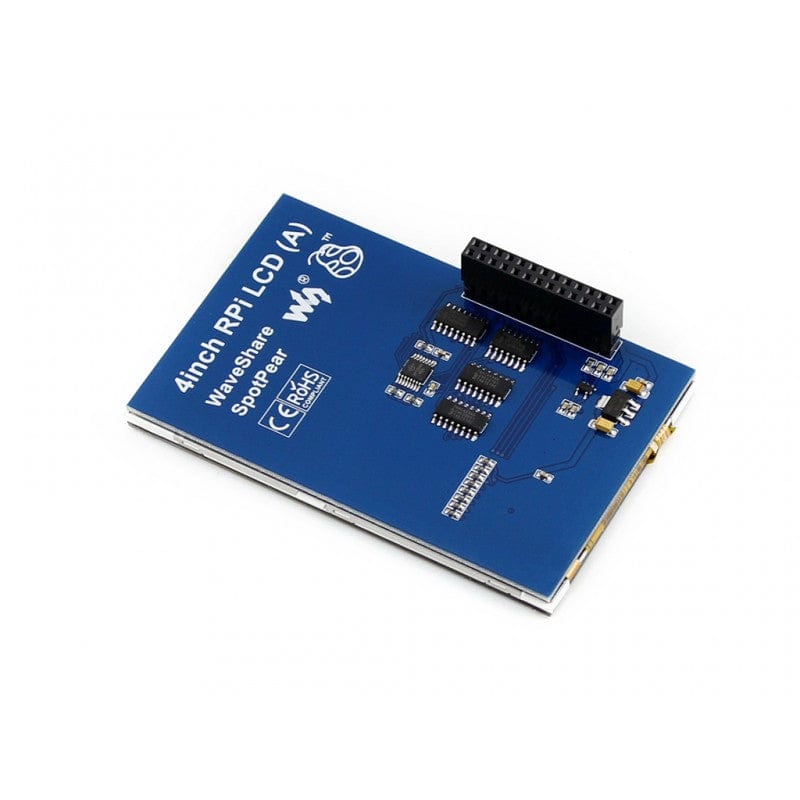

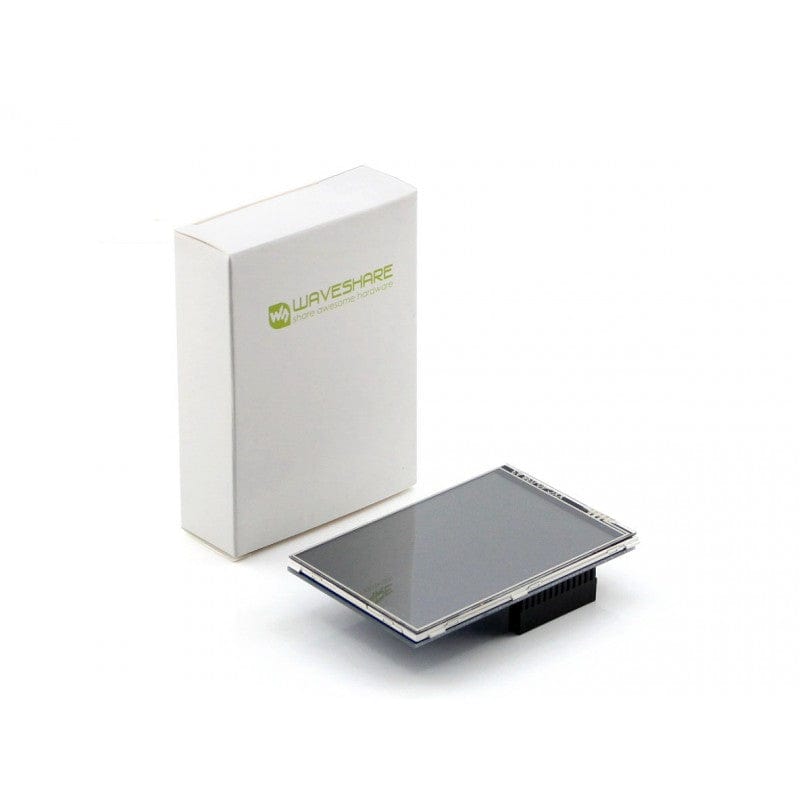

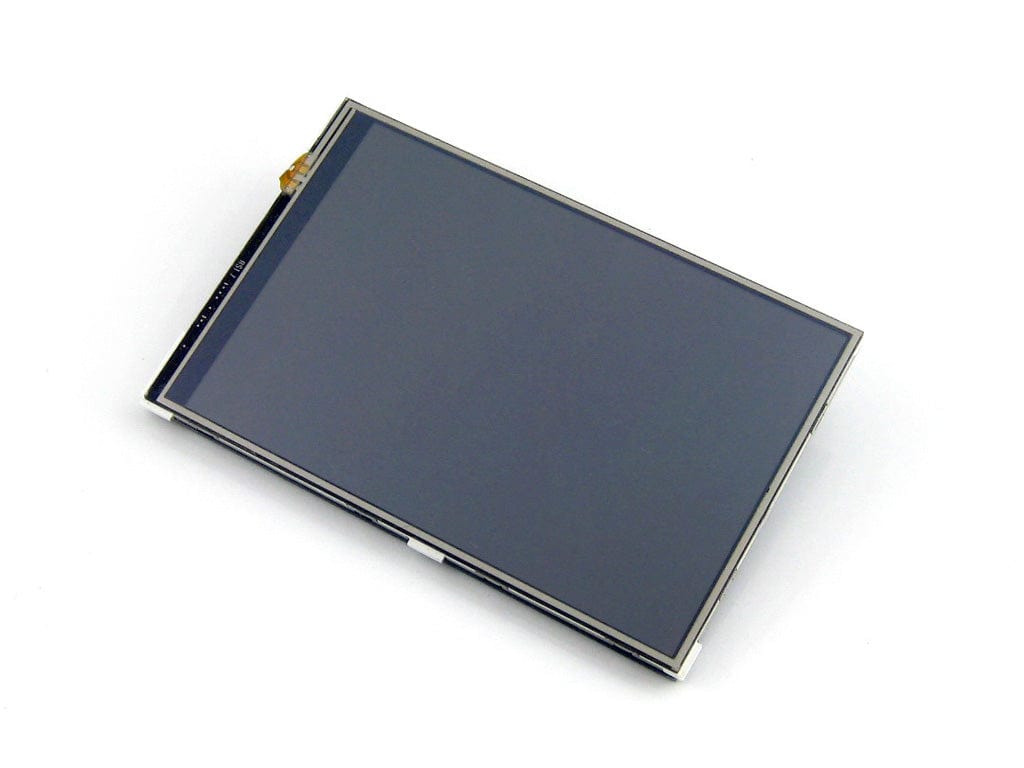

SPI 4" 480x320 (IPS) Touch Screen (GPIO)

WaveshareSKU: WAV-10207
Price:
Sale price £39.90
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry Pi 4 Model B - The Pi HutRaspberry Pi 4 Model B - The Pi Hut
Raspberry PiRaspberry Pi 4 Model B
Sale priceFrom £33.60 incl. VAT excl. VAT
Raspberry Pi 4 Model B Starter KitRaspberry Pi 4 Model B Starter Kit
The Pi HutRaspberry Pi 4 Model B Starter Kit
Sale priceFrom £59.70 incl. VAT excl. VAT
USB-C Cable with On/Off Switch - The Pi HutUSB-C Cable with On/Off Switch - The Pi Hut

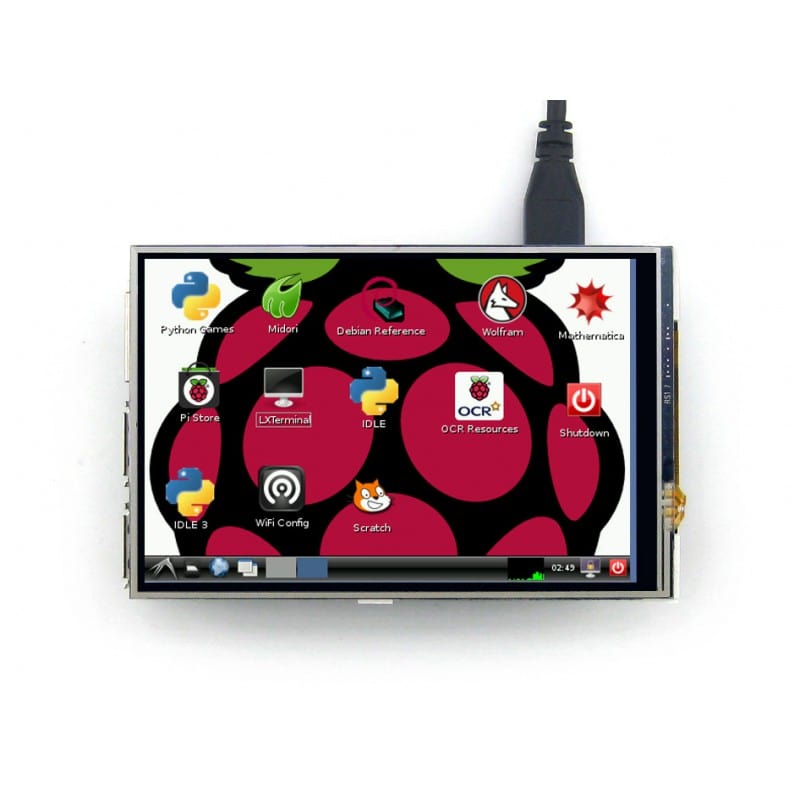

A neat little 4" 480x320 (IPS) touchscreen display for the Raspberry Pi!

This device uses the Pi's GPIO output for display, and the Pi's SPI port for touch control.

Installation is easy, you can either use the custom image, or follow the set up guide detailed on the Waveshare Wiki. Please Note. This device does require some simple set up.

Features:

  • Designed for Raspberry Pi
  • Supports any revision of Raspberry Pi (directly-pluggable)
  • Drivers provided (works with your own Raspbian/Ubuntu directly)
  • IPS technology, high quality and perfect displaying from very wide viewing angle
  • 320×480 resolution
  • Convenient Men-Machine interface for Raspberry Pi, combined with the portable power, DIY anywhere anytime
  • Supports Raspbian system, enables your system to:
    • Take photos by touching (up to 17 camera modes)
    • Support software keyboard (system interaction without keyboard/mouse)

Key Parameters

  • LCD Type: TFT
  • LCD Interface: SPI
  • Touch Screen Type: Resistive
  • Touch Screen Controller: XPT2046
  • Colours: 65536
  • Backlight: LED
  • Resolution: 320*480 (Pixel)
  • Aspect Ratio: 8:5

Downloads

Wiki Guide

Manufacturer Product Page
