SPDT ON-(ON) Non-Latching Spring-Return Miniature Toggle Switch

The Pi HutSKU: 105229
£1.50
incl. VAT
excl. VAT
In stock

Awesome Extras

Antex Lead Free Solder - 4m Tube
AntexAntex Lead Free Solder - 4m Tube
£4.40 incl. VAT excl. VAT
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
£12 incl. VAT excl. VAT
265-Piece Ultimate Heat Shrink Kit - The Pi Hut265-Piece Ultimate Heat Shrink Kit - The Pi Hut
The Pi Hut265-Piece Ultimate Heat Shrink Kit
£6 incl. VAT excl. VAT
Adafruit Wire Strippers - The Pi HutAdafruit Wire Strippers - The Pi Hut
The Pi HutMultifunction Wire Strippers
£6 incl. VAT excl. VAT
Magnetic Wire Grip for Soldering - The Pi HutMagnetic Wire Grip for Soldering - The Pi Hut
The Pi HutMagnetic Wire Grip for Soldering
£5 incl. VAT excl. VAT

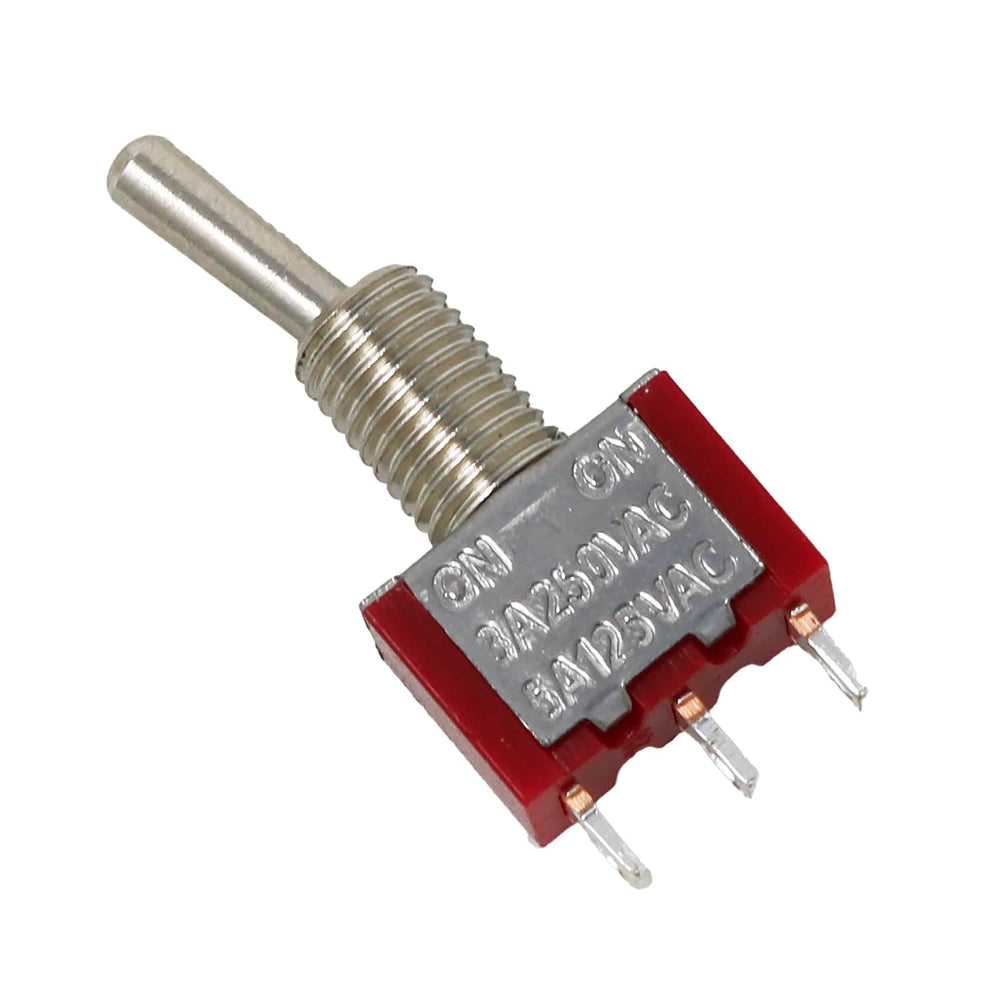

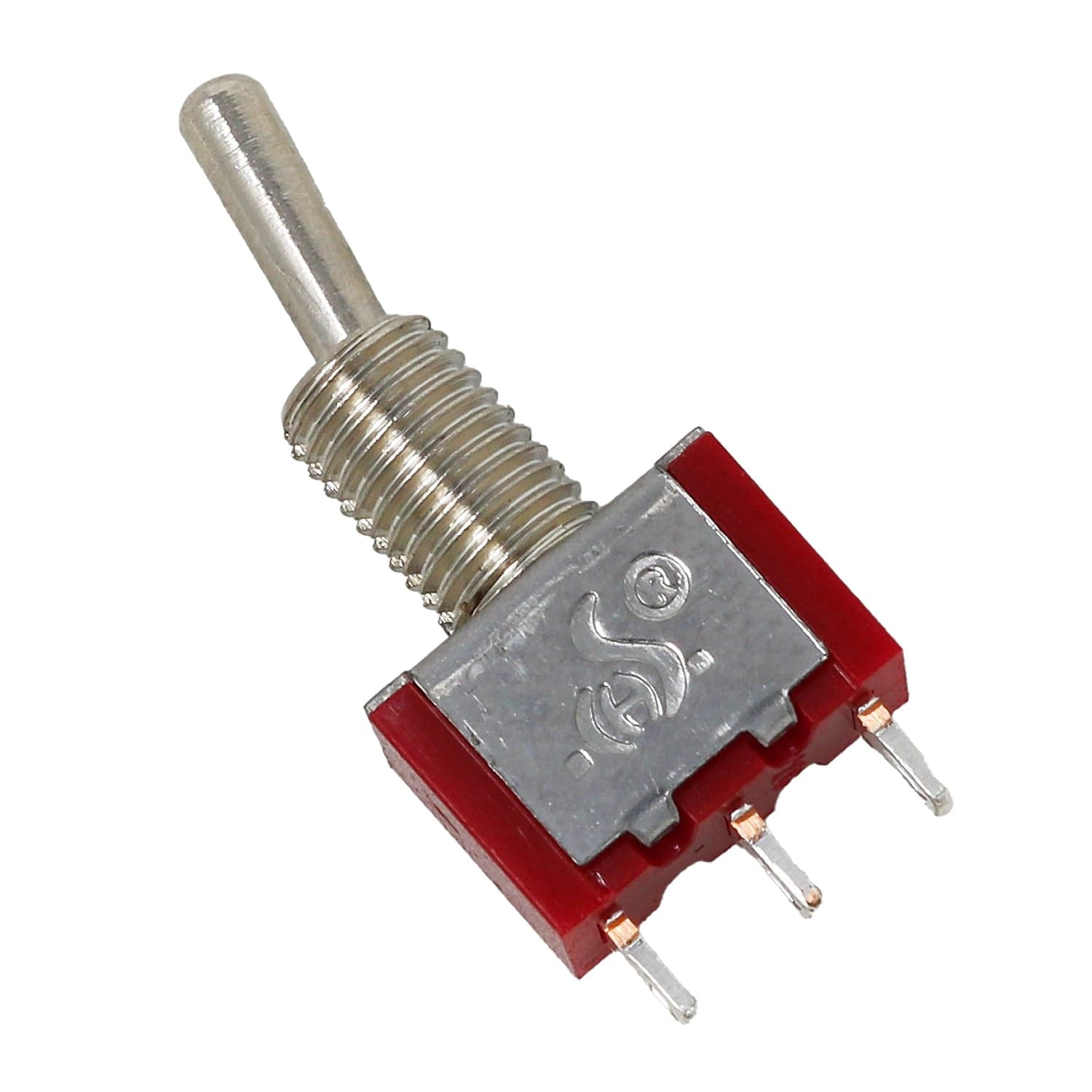

This is a Non-Latching (spring return) ON-(ON) SPDT miniature toggle switch with 3 pins, rated to AC 3A/250V, 5A/125V.

The switch has 3 pins allowing single pole, double throw use with an ON-(ON) spring return. The thread shaft requires a 6mm hole and has enough length to mount it to a panel/enclosure around 5mm thick (when using the included nuts/washers).

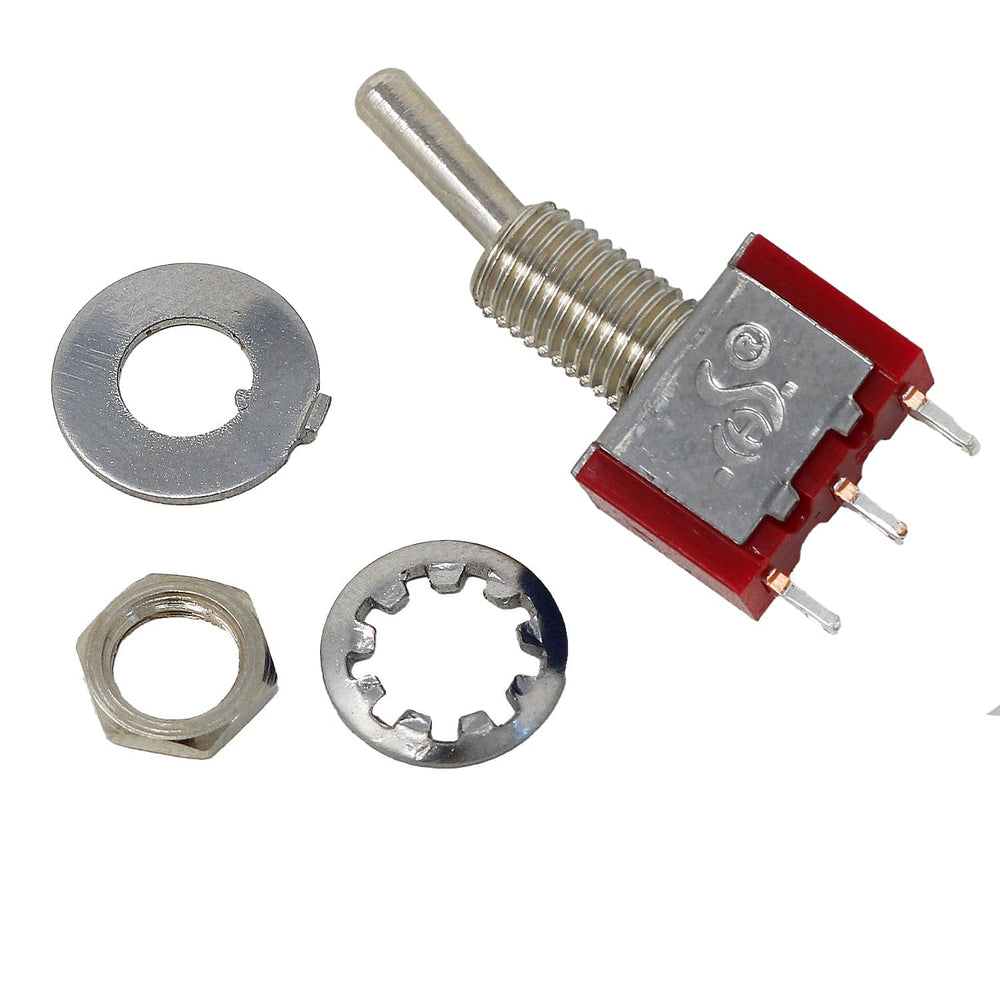

The switch comes with washers and nuts to mount to your panel/enclosure.

Do not use these switches with mains voltages!

Features

  • Miniature toggle switch
  • SPDT (single pole, double throw)
  • Non-latching action with spring return
  • ON-(ON) switch
  • Rated to AC 3A/250V, 5A/125V
  • 3 contacts/pins
  • Body colour: Red
  • Washers and nut included
  • Model number: MTS-112
  • Thread hole size: 6mm
  • Maximum mounting panel thickness: 5mm

Resources

  • Datasheet coming soon
