SparkFun XBee Explorer USB

SparkfunSKU: WRL-11812
Price:
Sale price £26.50
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

Save 50%
The Pi HutUSB-A to USB Mini-B Cable - Black
Sale priceFrom £1.50 Regular price £3 incl. VAT excl. VAT
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT

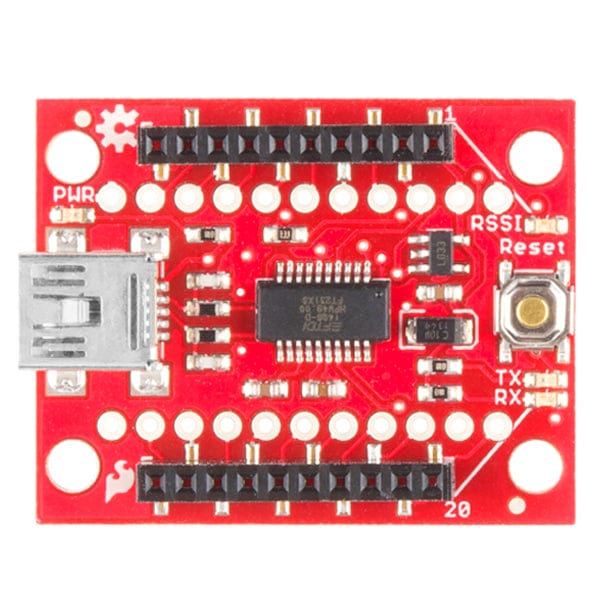

This is a simple to use, USB to serial base unit for the Digi XBee line. This unit works with all XBee modules including the Series 1 and Series 2.5, standard and Pro version. Plug the unit into the XBee Explorer, attach a mini USB cable, and you will have direct access to the serial and programming pins on the XBee unit.

The highlight of this board is an FT231X USB-to-Serial converter. That’s what translates data between your computer and the XBee. There’s also a reset button, and a voltage regulator to supply the XBee with plenty of power. In addition, there are four LEDs that’ll help if you ever need to debug your XBee: RX, TX, RSSI (signal-strength indicator), and power indicator.

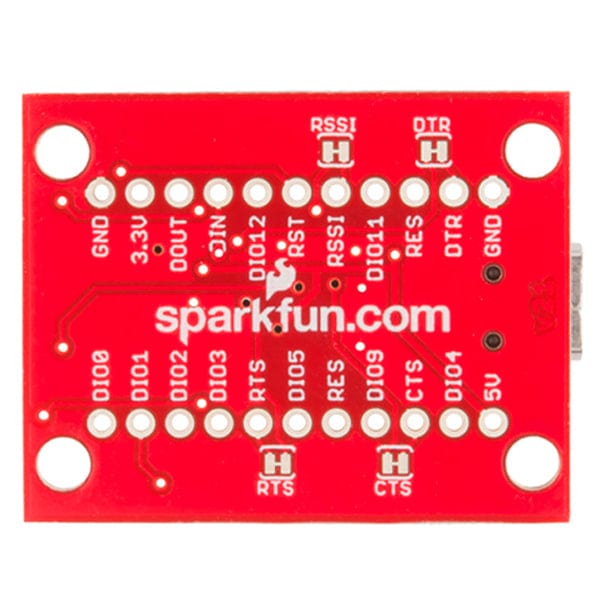

This board also breaks out each of the XBee’s I/O pins to a pair of breadboard-compatible headers. So if you want to make use of the XBee’s extended functionality, you can solder some header pins into those, or even just solder some wire.

Notes

  • There is no XBee included with this Explorer USB.
  • This board cannot source the power required for the Cellular XBee line. It will only work with the 802.15.4 variants.

Resources
