SparkFun Qwiic Micro - SAMD21 Development Board

SparkfunSKU: DEV-15423
Price:
Sale price £24
incl. VAT
excl. VAT
Stock:
Only 6 units left
Quantity:

Awesome Extras

(89 Reviews)
The Pi HutUSB to Micro USB Cable
Sale priceFrom £1.50 incl. VAT excl. VAT
(2 Reviews)
SparkfunSparkFun Qwiic Cable Kit
Sale price £9.50 incl. VAT excl. VAT
(6 Reviews)
The Pi HutBreak-away 0.1" 36-pin strip male header - Black - 10 pack
Sale price £4.30 incl. VAT excl. VAT

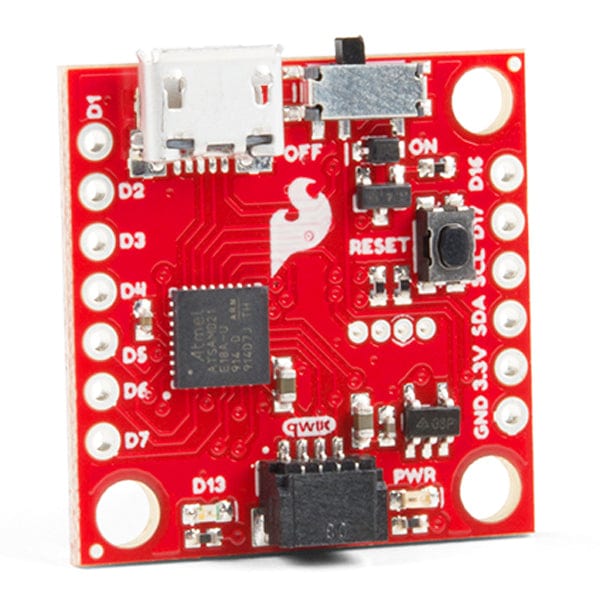

Looking for a super small microcontroller to use with the Qwiic eco-system? The SparkFun Qwiic Micro is moulded to fit our standard 1"x1" Qwiic standard size which makes it one of our smallest micro-controller offerings to date. At it's core is the powerful and versatile ATSAMD21E18, which is an ARM Cortex M0+, 32-bit microcontroller, with 256KB of flash memory that can run at up to 48MHz! It has 12 digital pins which include 5 analogue pins, SPI, I²C, and an additional UART data bus as well as a Qwiic connector for easy integration into the Qwiic ecosystem and I²C prototyping.

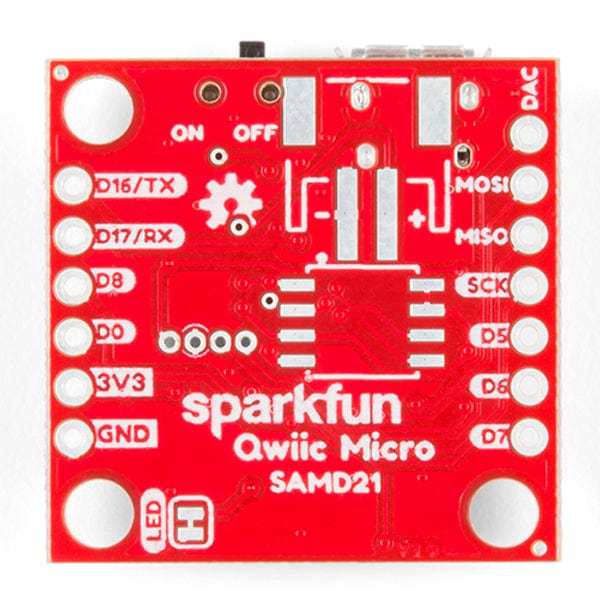

On the underside of the Qwiic Micro, we've left open pads for a LiPo Battery connector that you can add yourself if you wish you can make the micro-controller portable. We've also provided pads on the underside for a flash memory chip to maximize the board's memory capacity. The SparkFun Qwiic Micro comes programmed with a UF2 Bootloader making it easy to program with easy driver installation! If you need a tiny but mighty micro-controller for your next project check out the SparkFun Qwiic Micro.

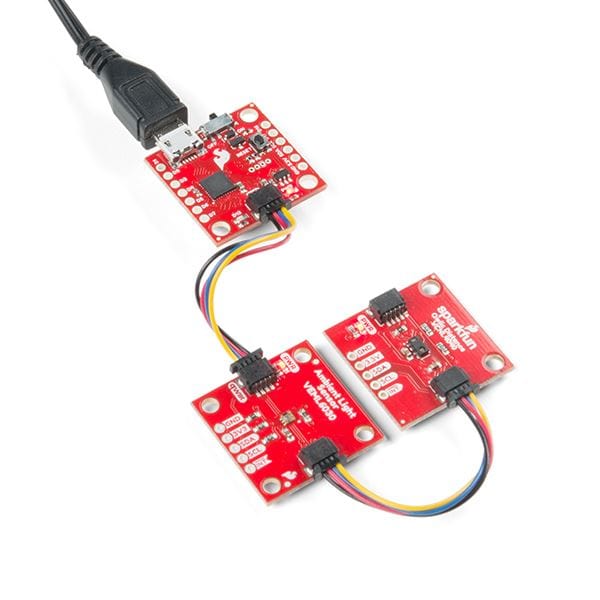

The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.


Features

  • Dimensions: 1in x 1in
  • Optional LiPo Charging Port
  • Expandable Flash Memory
  • Qwiic Connector

ATSAMD21E

  • 48 MHz
  • 256KB
  • 32K SRAM
  • UF2 Bootloader
