SparkFun Mini Linear 3D Hall-Effect Sensor - TMAG5273 (Qwiic)

SparkfunSKU: SEN-23881
Price:
Sale price £6.20
incl. VAT
excl. VAT
Stock:
Only 2 units left
Quantity:

Awesome Extras

SparkFun RedBoard Plus - The Pi HutSparkFun RedBoard Plus - The Pi Hut
SparkfunSparkFun RedBoard Plus
Sale price £20.40 incl. VAT excl. VAT
STEMMA QT / Qwiic Compatible JST-SH 4-Pin Cable (50mm) - The Pi HutSTEMMA QT / Qwiic Compatible JST-SH 4-Pin Cable (50mm) - The Pi Hut
SparkFun Qwiic Cable Kit - The Pi HutSparkFun Qwiic Cable Kit - The Pi Hut
SparkfunSparkFun Qwiic Cable Kit
Sale price £8.80 incl. VAT excl. VAT
Break-away 0.1" 36-pin male headers (Black 10-pack) - The Pi HutBreak-away 0.1" 36-pin male headers (Black 10-pack) - The Pi Hut
Half-Size Breadboard - WhiteHalf-Size Breadboard - White
The Pi HutHalf-Size Breadboard - White
Sale price £3 incl. VAT excl. VAT
Antex Lead Free Solder - 4m Tube
AntexAntex Lead Free Solder - 4m Tube
Sale price £4.40 incl. VAT excl. VAT

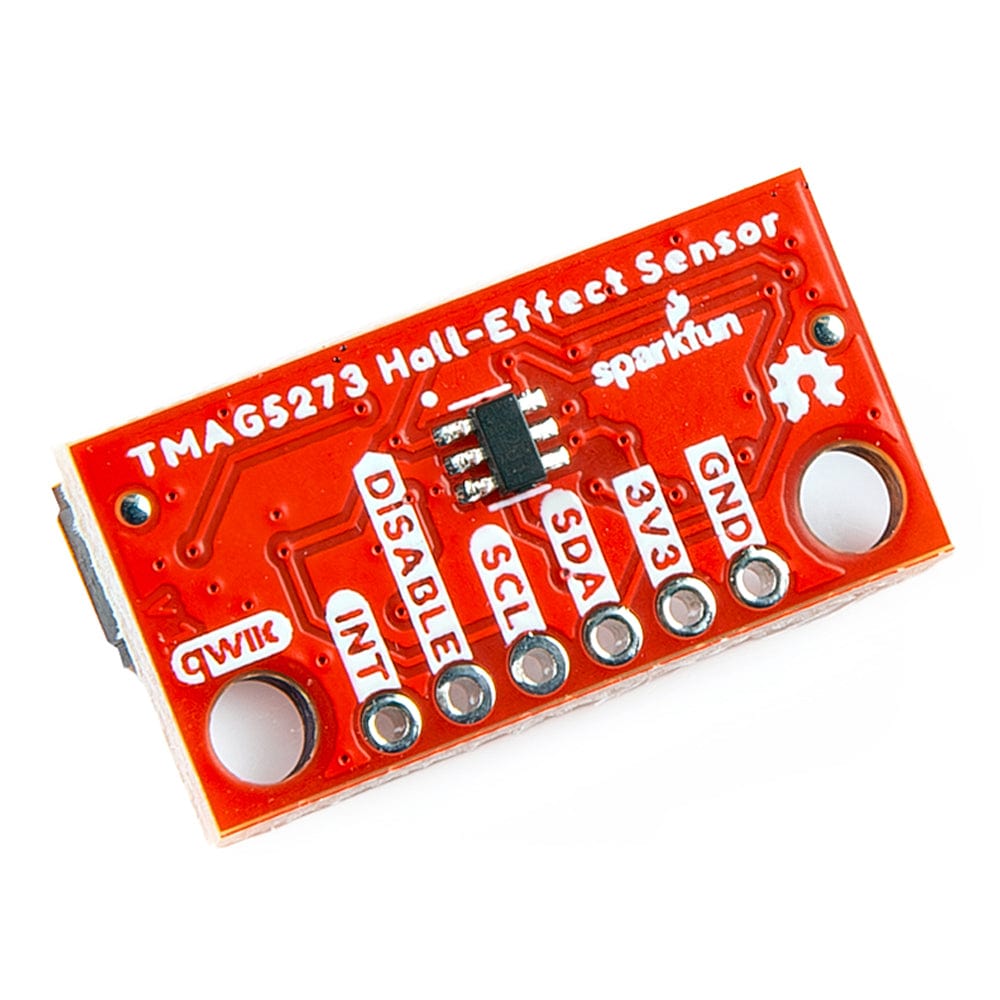

The SparkFun TMAG5273 Qwiic Mini Linear 3D Hall-Effect Sensor is a low-power, high-precision magnetic field sensor that can detect a magnetic field's presence, strength, and direction in three dimensions. This board is perfect for applications involving magnetic proximity detection, door and window sensing, mobile rotor and control, and more, all on a Mini 0.5in. x 1in. Qwiic breakout!

The TMAG5273 from Texas Instruments possesses a linear magnetic range configurable to either ±40 mT or ±80 mT and TI's integrated angle calculation engine (CORDIC) with gain and offset adjustment to be used in various applications. In addition, the included magnetic tamper detection and wake-up/threshold settings can be configured to trigger interrupts through the I2C interface or only with the dedicated interrupt pin.

With a low power consumption rate of only 2.3mA in Active Mode (1µA in sleep mode), a high precision of ±0.5% typical accuracy, and a built-in temperature sensor, the SparkFun TMAG5273 Linear 3D Hall-Effect board is a great and economical choice for anyone who needs a low-power, high-precision magnetic field sensor.

The Linear 3D Hall-Effect Sensor communicates via I2C, so we've broken out each of those pins to our Qwiic system, so no soldering is required to connect it to the rest of your system! This board version is also presented in our Qwiic Mini footprint for those who need more project space or weight to work with! However, if you would prefer, the I2C pins are also broken out to standard 0.1in.-spaced pins.

Get Started with the Sparkfun Linear 3D Hall-Effect Sensor - TMAG5273

Features

Breakout Board

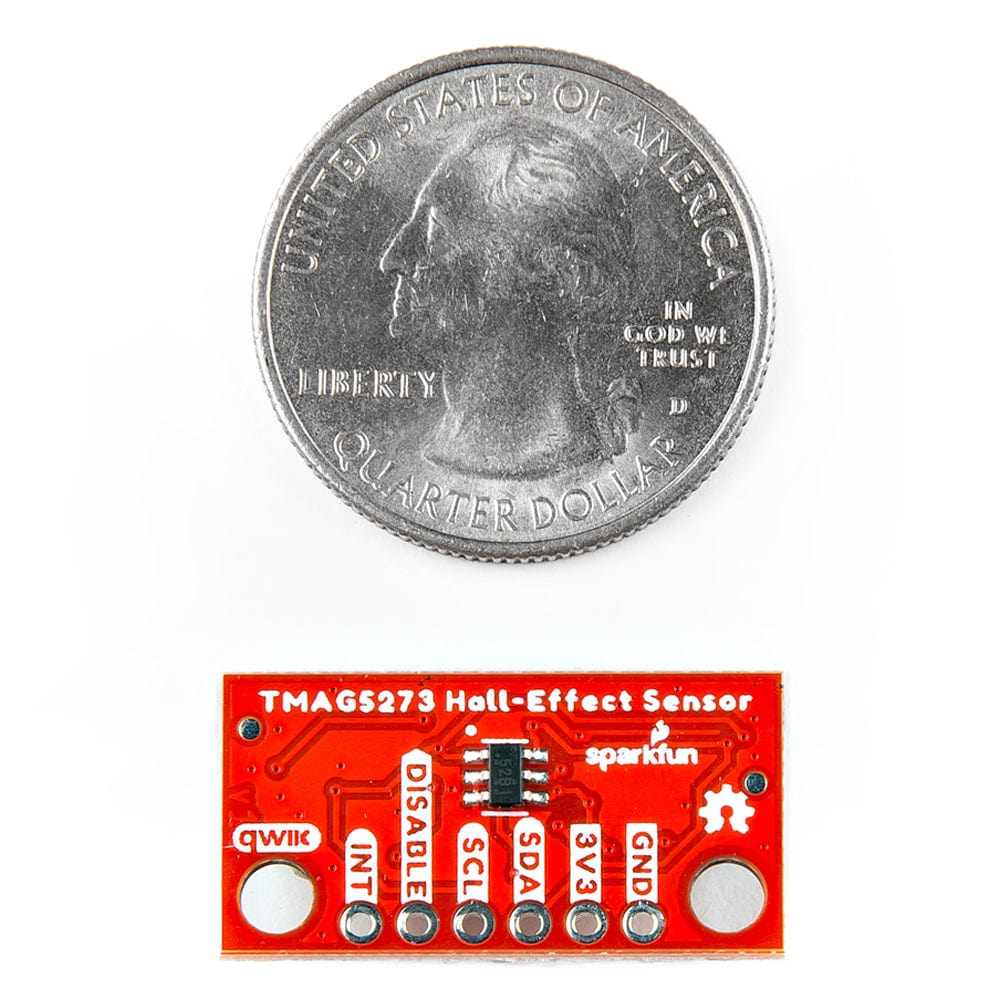

  • Dimensions: 0.5in. x 1" Mini-footprint

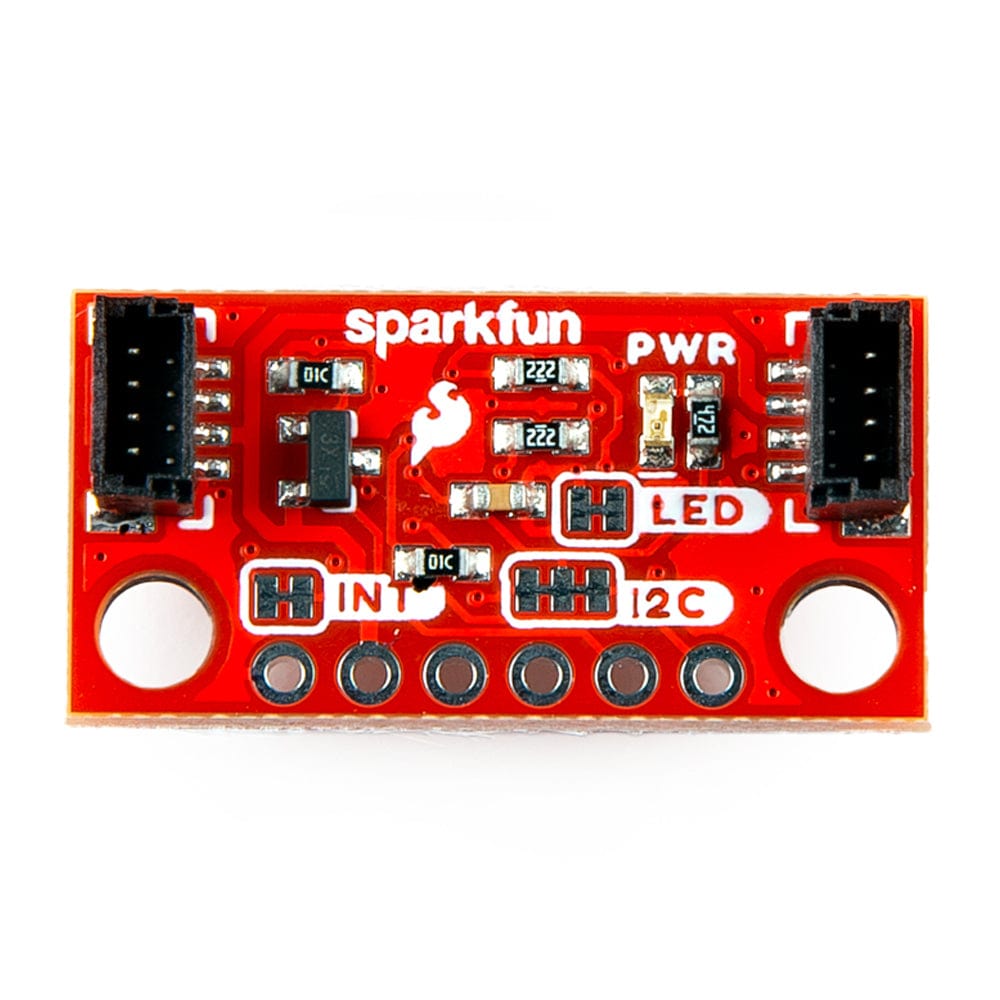

  • Two Vertical Qwiic Connectors
  • Two Mounting Holes:
    • 4-40 screw compatible

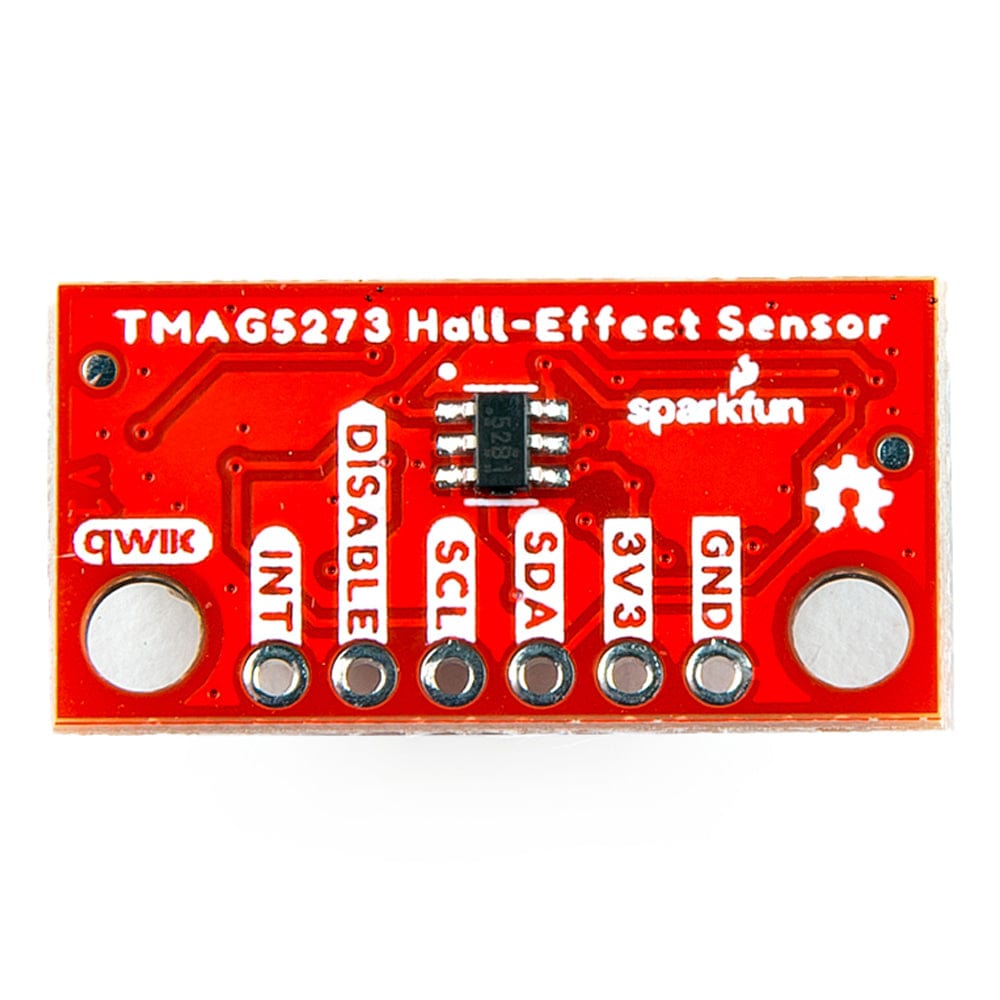

  • Six PTH Pins
    • 3V3, GND, SCL, SDA, INT, Disable
  • Power LED (Red)

TMAG5273 Hall Effect Sensor

  • Configurable I2C Address:
    • 0x35 (Default) (7-bit)
  • Magnetic Range (Sensitivity):
    • ± 40mT (820 LSB/mT)
    • ± 80mT (410 LSB/mT)
  • Magnetic Drift: 5%
  • Rotational Accuracy: ± 0.5°/360° rotation
  • Voltage Range: 1.7 - 3.6V
    • Sleep: 5nA
    • Wake-Up/Sleep: 1µA
    • Active: 2.3mA
  • Operating Temperature: –40 - 125°C
  • Integrated temperature compensation/measurement
    • Range: -40 - 170°C
  • Configurable data rate
