SparkFun Micro Magnetometer - MMC5983MA (Qwiic)

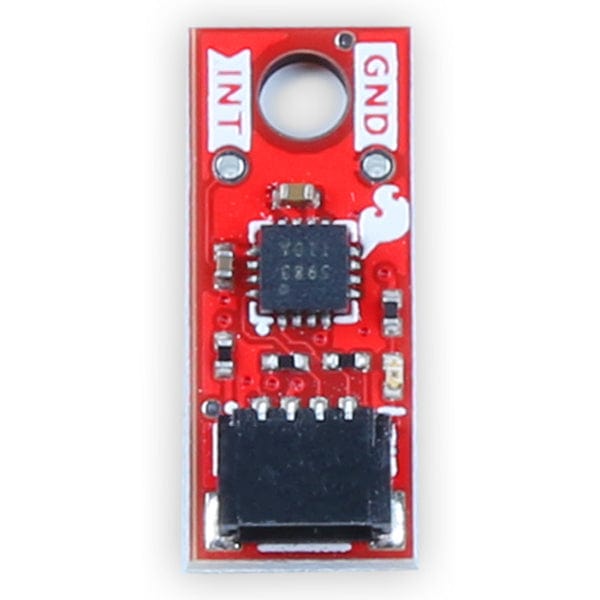

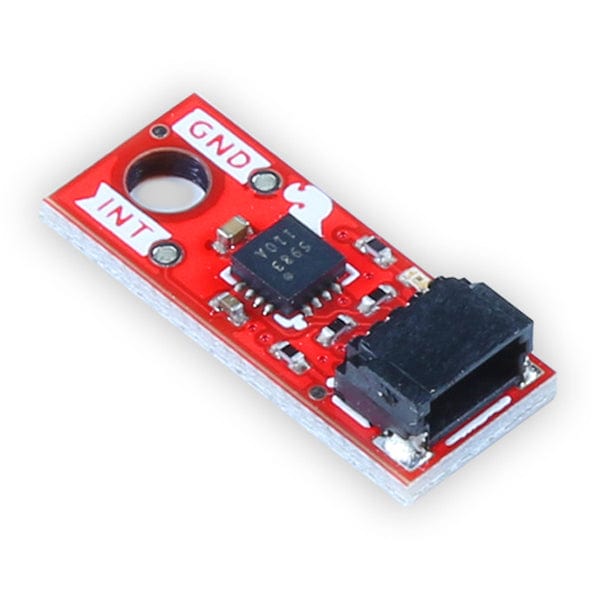

The SparkFun Qwiic Micro MMC5983MA Magnetometer is a micro-sized, 0.75in. by 0.30in. sensor that utilizes the highly sensitive triple-axis magnetometer by MEMSIC. We've attached the magnetometer IC onto an incredibly small Qwiic board form factor that we like to call Qwiic Micro! The MMC5983MA is capable of sensing down to 0.4mG, enabling a heading accuracy of ±0.5°. The Qwiic MMC5983MA IMU communicates over I²C by default utilizing our handy Qwiic Connect System, so no soldering is required to connect it to the rest of your boards.

Saturation is a problem for all mag sensors. The MMC5983MA has built-in degaussing circuitry to clear any residual magnetization. Output rates of 1000Hz, ±8G FSR, and 18-bit resolution make the MMC5983MA a phenomenal magnetic sensor for electronic compass applications.

We've also written a feature-complete Arduino library supporting I²C and SPI. Just search "SparkFun MMA5983MA" in the library manager and start measuring within minutes.

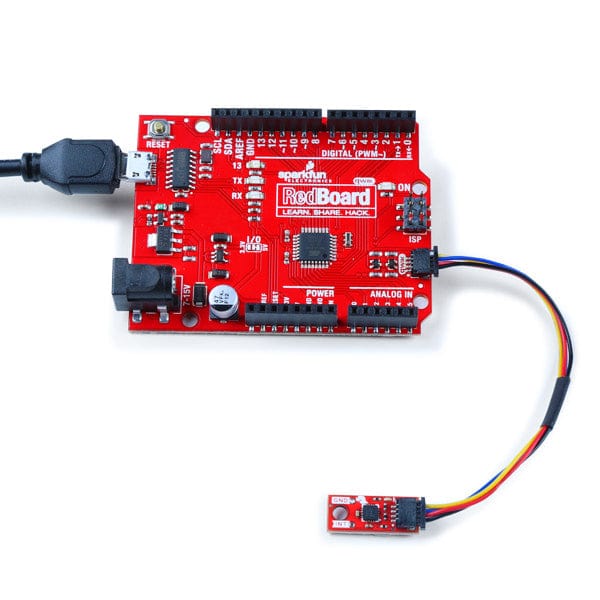

Note: The Redboard is NOT included

Get Started with the Qwiic Micro MMC5983MA Magnetometer Guide!

Features

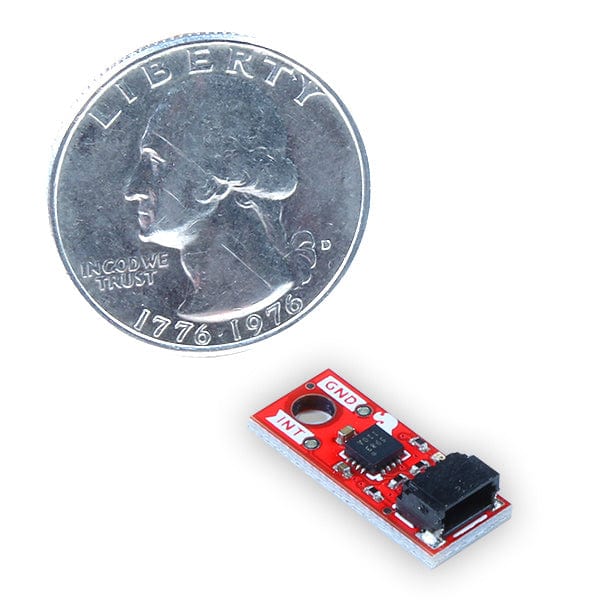

• Qwiic Micro Sized Board (0.75in x 0.30in / 19.05mm x 7.62mm)
• 2.8V to 3.6V supply voltage
• 1µA power down current
• Fully integrated 3-axis magnetic sensor
• Dynamic range and accuracy:
  • ±8G FSR
  • 18bits operation
  • 0.4mG total RMS noise
  • Enables heading accuracy of ±0.5º
• Max output data rate of 1000Hz
• On-chip sensitivity compensation
• On-chip temperature sensor
• I²C Address: 0x30
• 1x Horizontal Qwiic Connection Port

Resources

• Schematic
• Eagle Files
• Board Dimensions
• Hookup Guide
• Datasheet (MMC5983MA)
• Arduino Library
• GitHub Hardware Repo
