SMD Grove Headers with Locating Pins - 20-Pack by M5Stack - The Pi Hut

SMD Grove Headers with Locating Pins - 20-Pack

Name: SMD Grove Headers with Locating Pins - 20-Pack
Brand: M5Stack
SKU: A118
Price: 3.40 GBP
Availability: InStock

M5StackSKU: A118

£3.40

incl. VAT

excl. VAT

Only 20 units left

Awesome Extras

Flux Pen - Future 315 Low-Residue No-Clean by Warton Metals - The Pi Hut

Warton Metals Flux Pen - Future 315 Low-Residue No-Clean

£7.80 incl. VAT excl. VAT

Solder Paste - Microprint P4000 T4 SAC305 40g Syringe by Warton Metals - The Pi Hut

Warton Metals Solder Paste - Microprint P4000 T4 SAC305 40g Syringe

£28.40 incl. VAT excl. VAT

Rework Flux Jelly - Future HF 10g Syringe by Warton Metals - The Pi Hut

Warton Metals Rework Flux Jelly - Future HF 10g Syringe

£19.50 incl. VAT excl. VAT

Autosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi Hut

Warton Metals Autosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire

From £6 incl. VAT excl. VAT

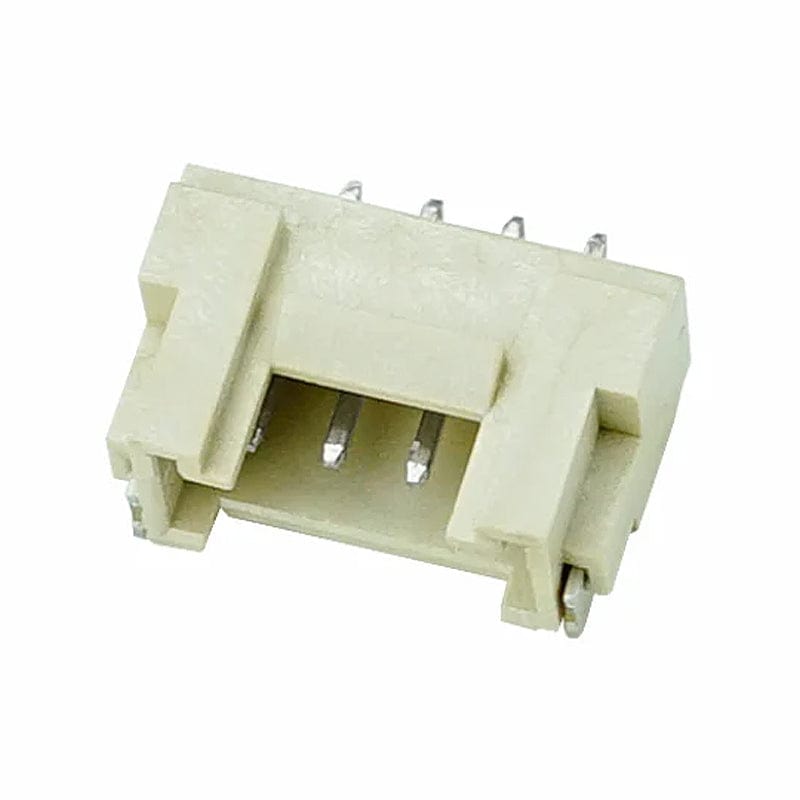

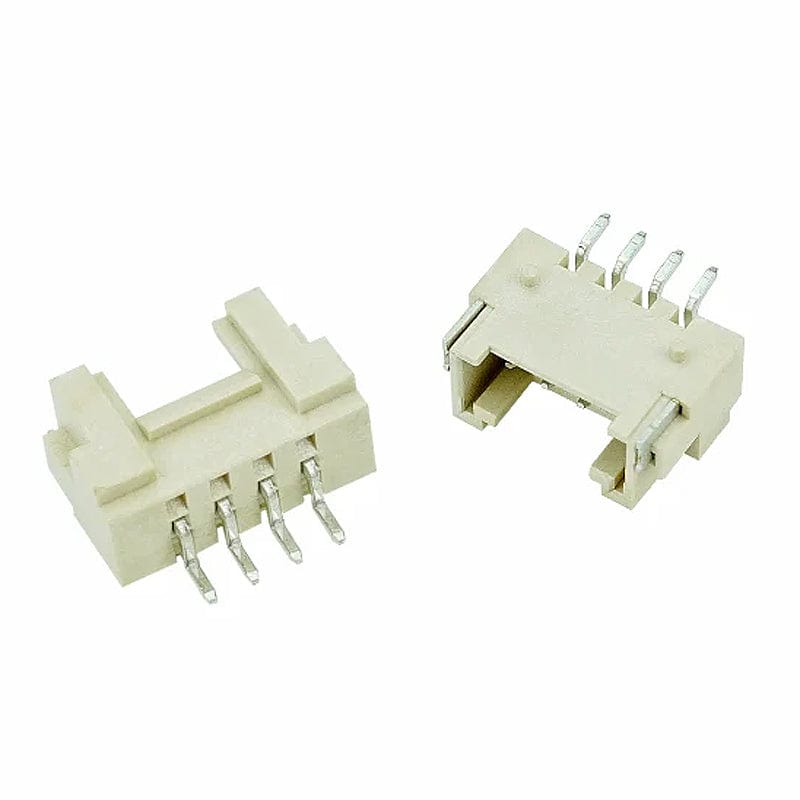

This is a pack of 20 SMD Grove connectors with a locating pin. You can easily apply it to your PCB design to create an easier and quicker connection to the M5Stack Unit system, which will help expand functionality.

Note: This product differs from the terminal shape specifications used with M5Stack connectors in design and specifications, thus recommended for DIY use only. It seems odd that M5Stack would offer these, considering the above note and lack of detail around the differences, however a customer asked us to stock them, so here they are!

Features

Grove SMD connectors
SMD type for compact PCB mounting

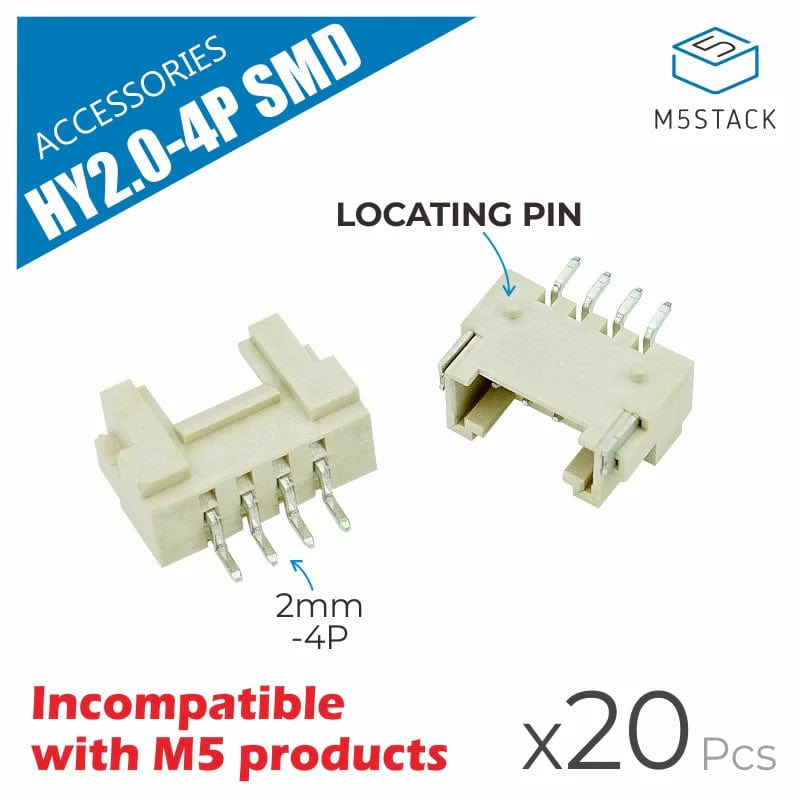

Locating pins for easy alignment
Grove-compatible for modular connections
Non-standard to the usual M5Stack design – DIY use only
Ideal for prototyping and custom builds

Specifications

Pitch	2.0mm
Number of pins	4P
Form Factor	R-90° (with pins)
Operating Temperature	-25 ~ 105°C
Insulation Resistance	≥1000MΩ

Resources

Package Contents

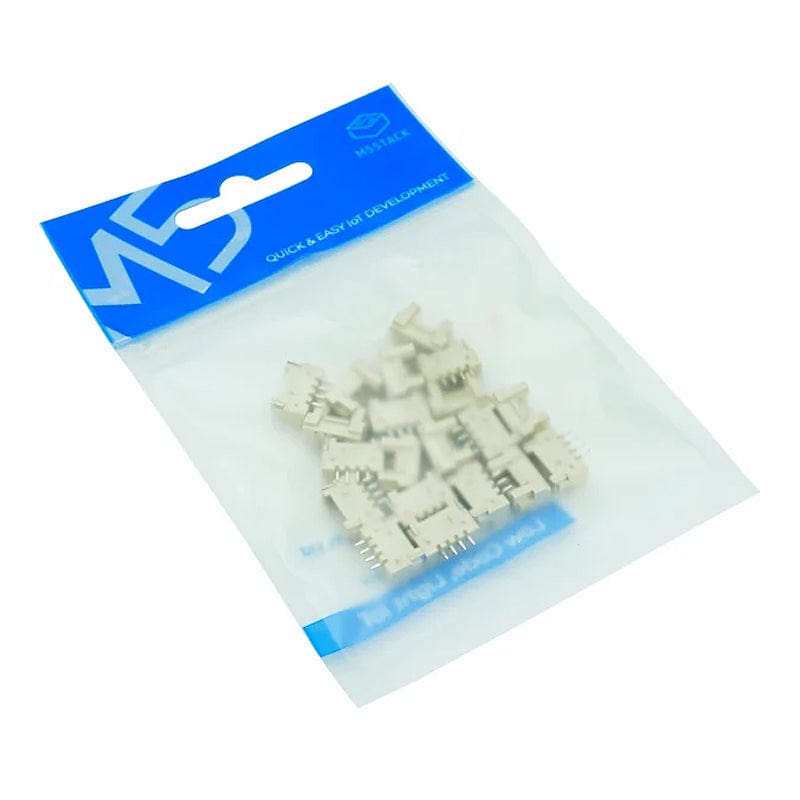

20x Grove SMD socket headers
