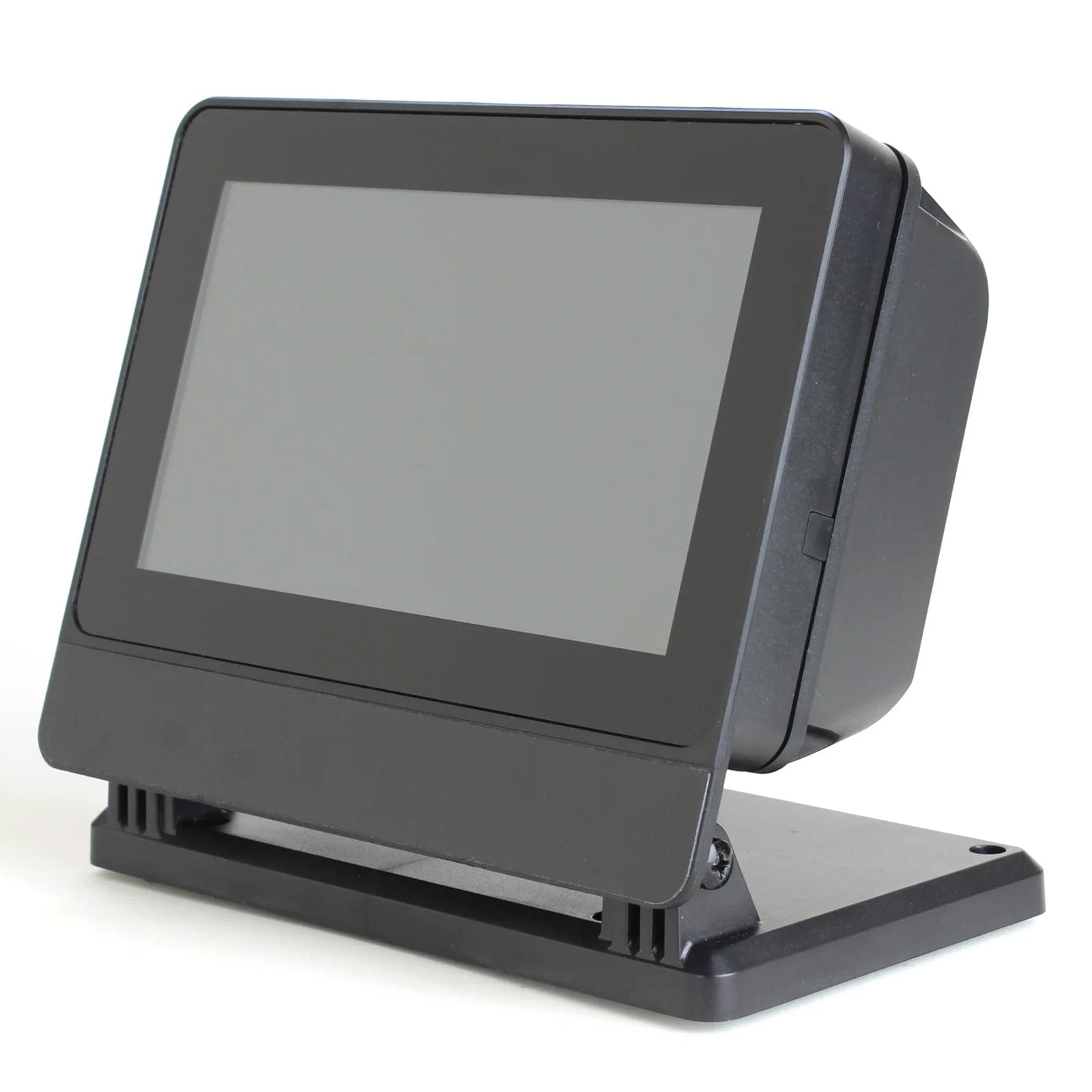

The SmartiPi Touch Pro 3 is a premium enclosure designed for the Raspberry Pi Touch Display 2 and is compatible with Raspberry Pi 5, 4, and 3 boards (display and Raspberry Pi not included).

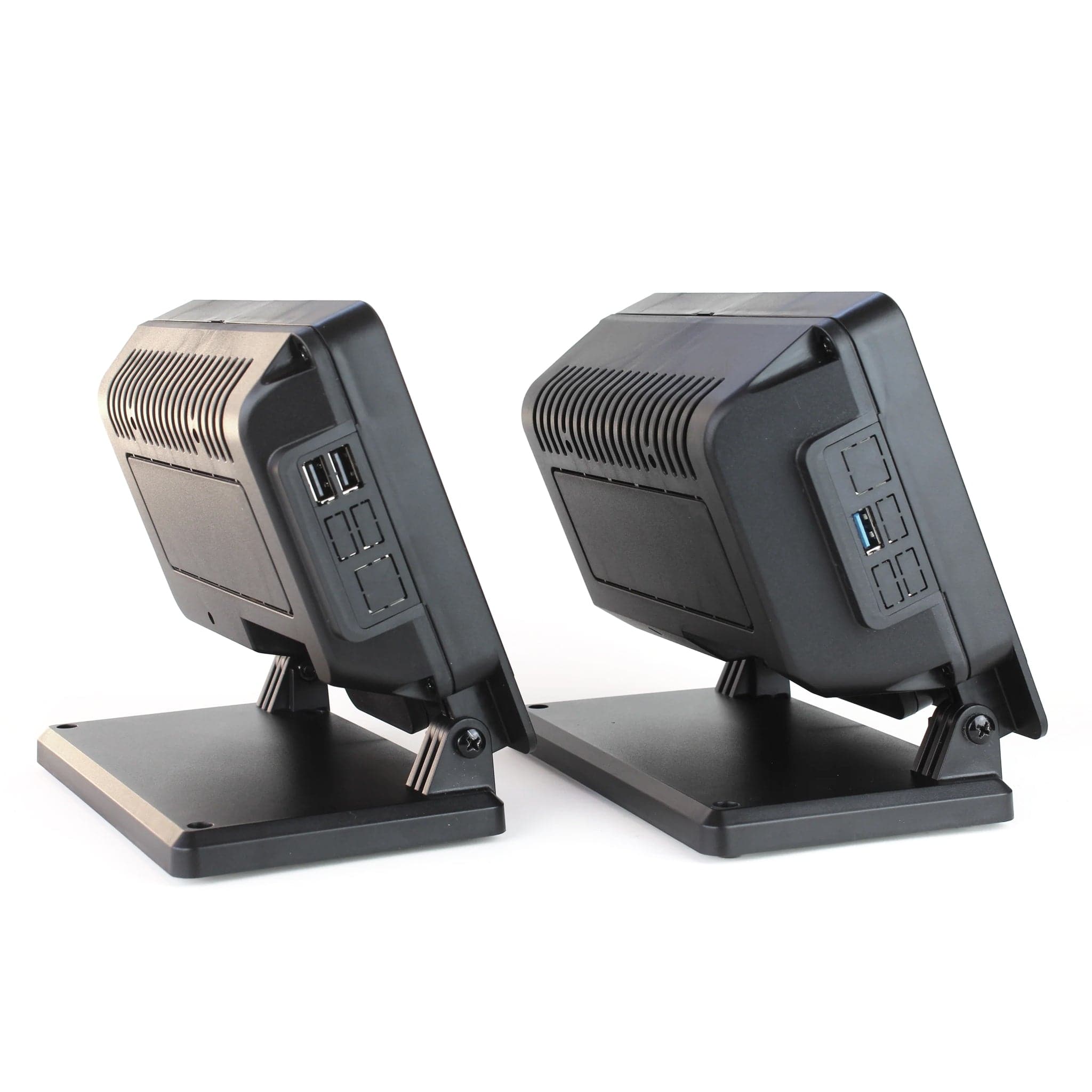

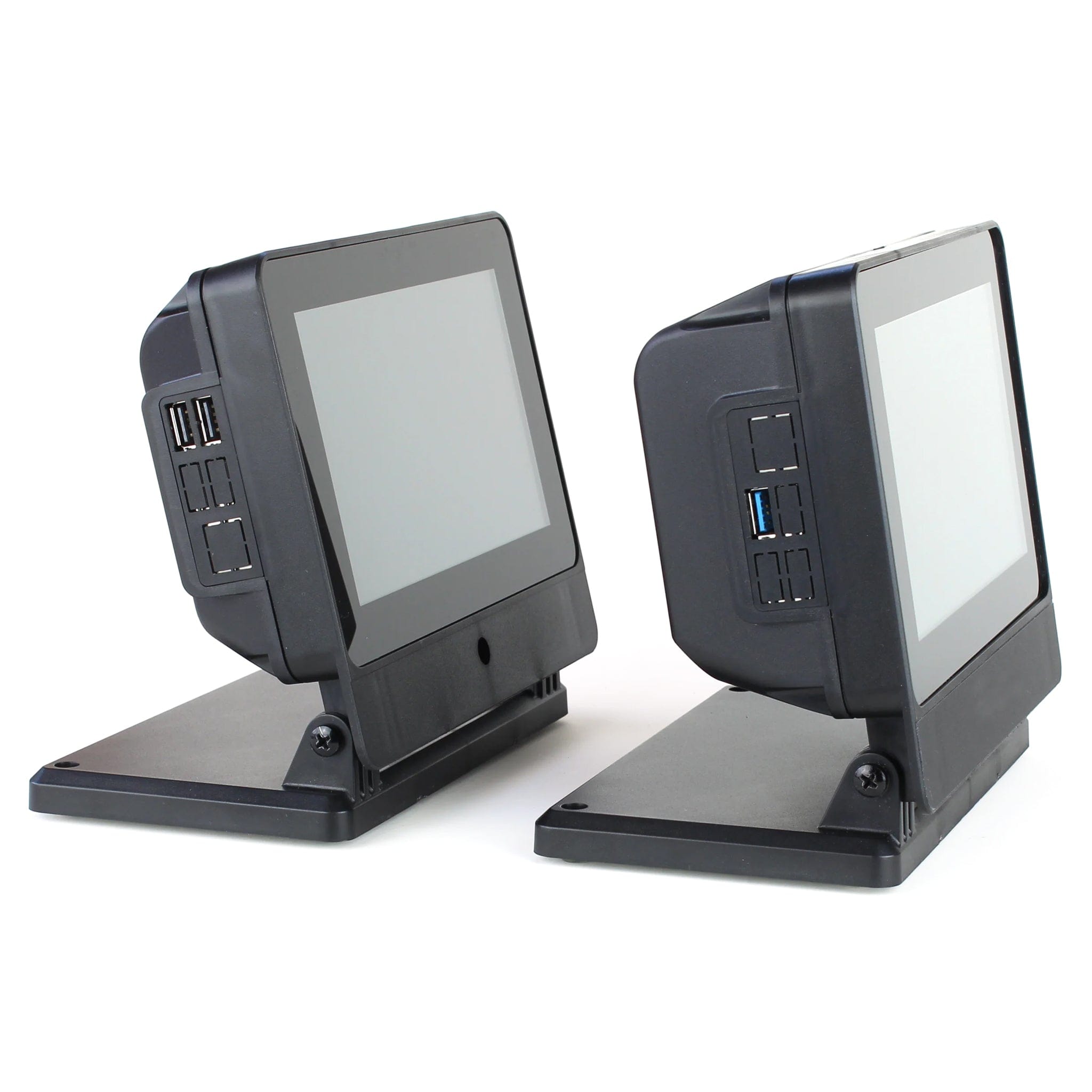

It’s available in two variants: one with a small back cover and one with a large back cover. The large version provides space for HATs or custom components, while both include a dedicated mounting point for a Raspberry Pi Camera (V2 or V3, including wide-angle versions) beneath the screen.

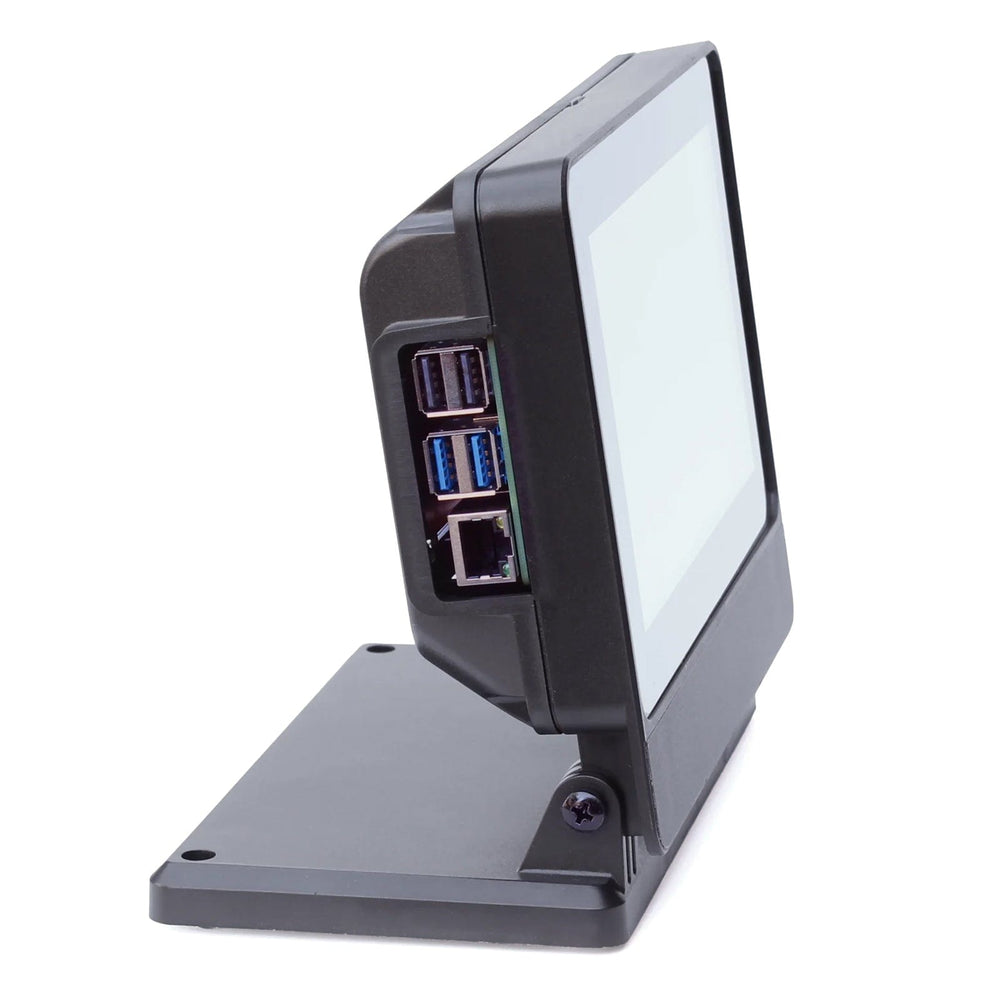

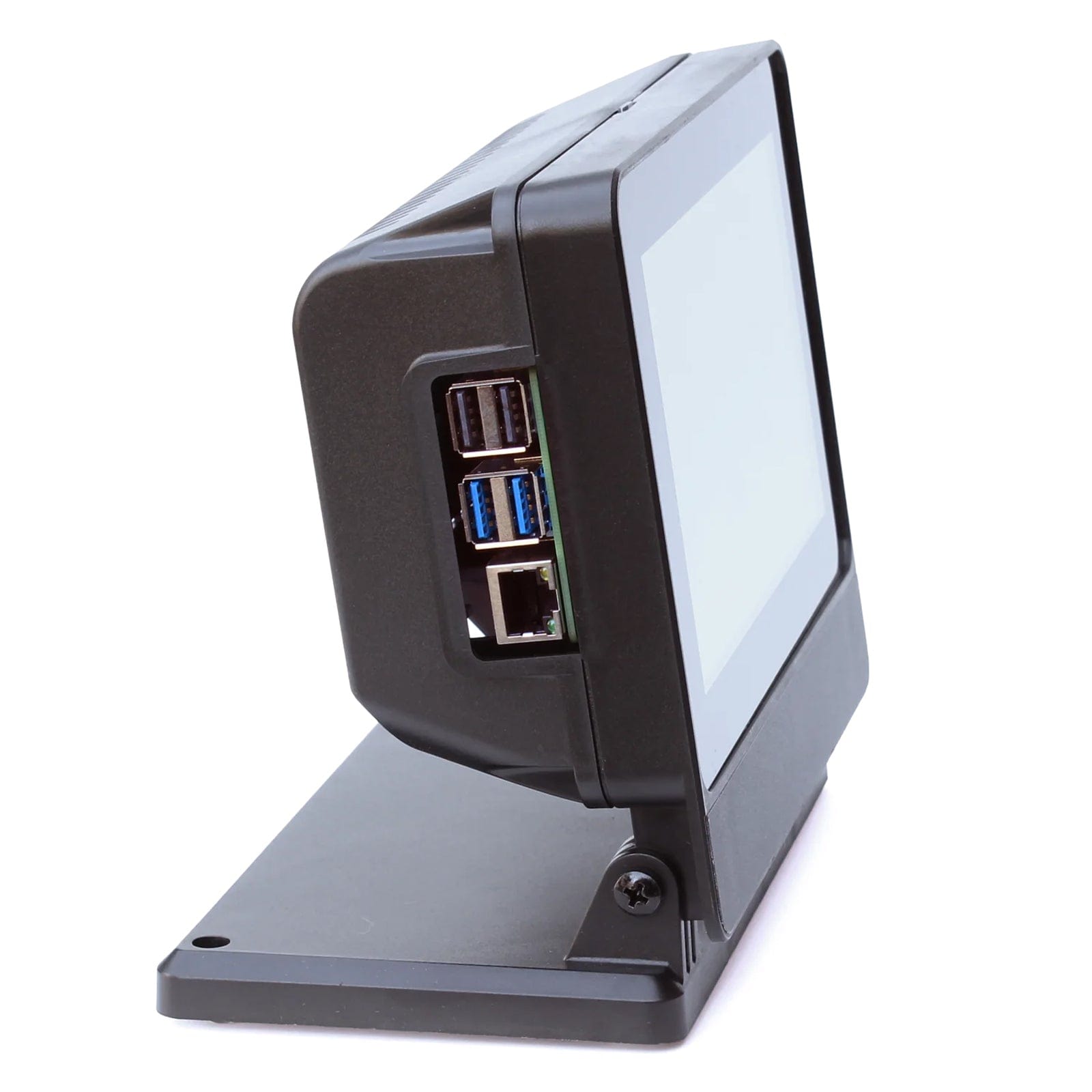

For Raspberry Pi 5 users running Raspberry Pi OS, the case includes a side-mounted switch that connects to the Pi’s power control header. USB and Ethernet ports are accessible from the side of the case, with HDMI, audio, and power ports available at the rear. A micro SD card extender routes the card slot to the top of the case for easy access.
Other features include a weighted base with tilt adjustment, 75mm VESA mount points, punch-out port covers for all supported Raspberry Pi models, and a removable side panel for easier access to HATs or connectors. Optionalaccessories such as a cooling fan and USB-C splitter cable (for powering the display via USB-C instead of the usual GPIO) are available separately.
Important Notes
Raspberry Pi, Touch Display 2 and PSU are not included
A separate USB-C power supply is required (not included)
Official Raspberry Pi 27W USB-C power supply recommended if using Raspberry Pi 5
Official Raspberry Pi 15W USB-C power supply recommended if using Raspberry Pi 4
Features

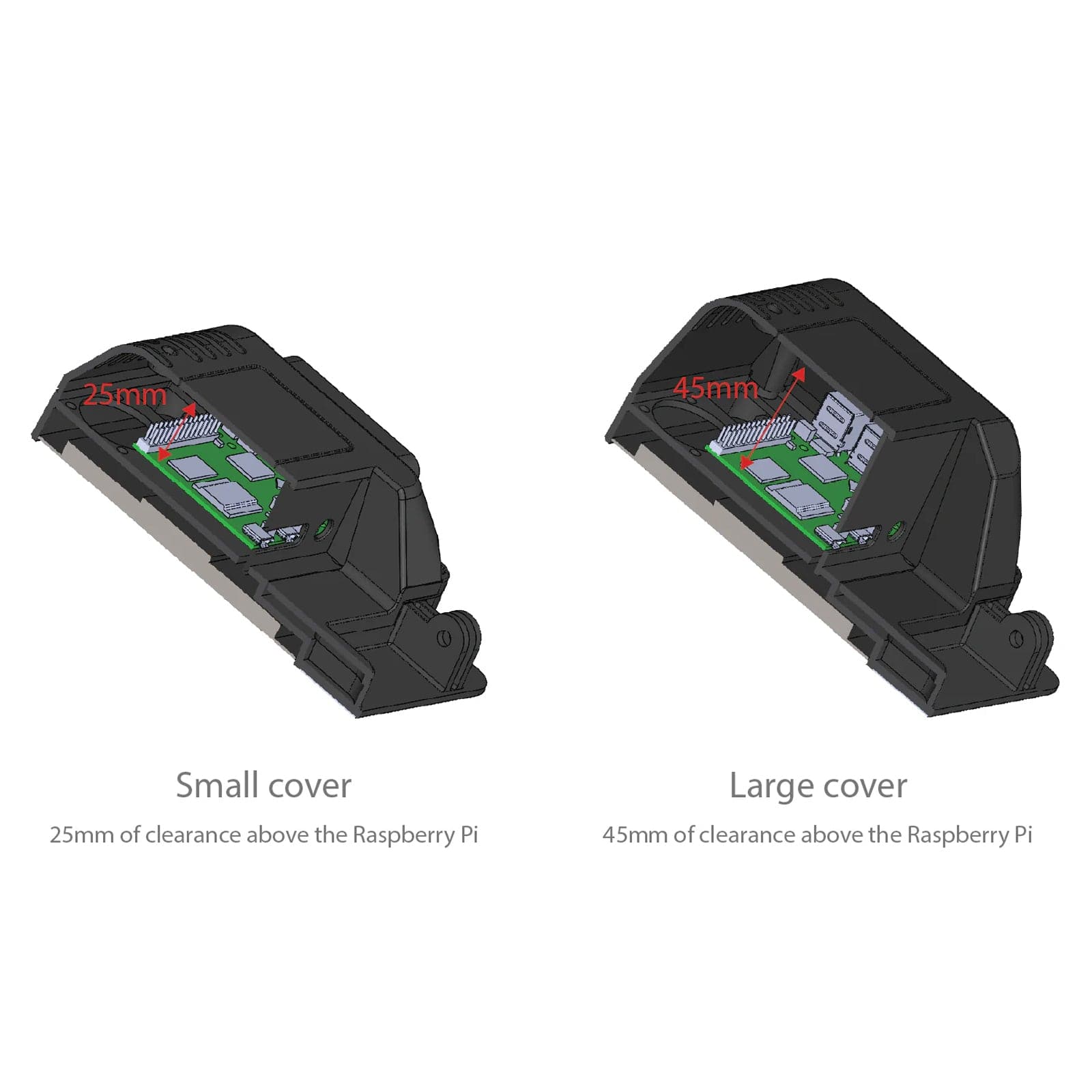

Two back cover sizes available

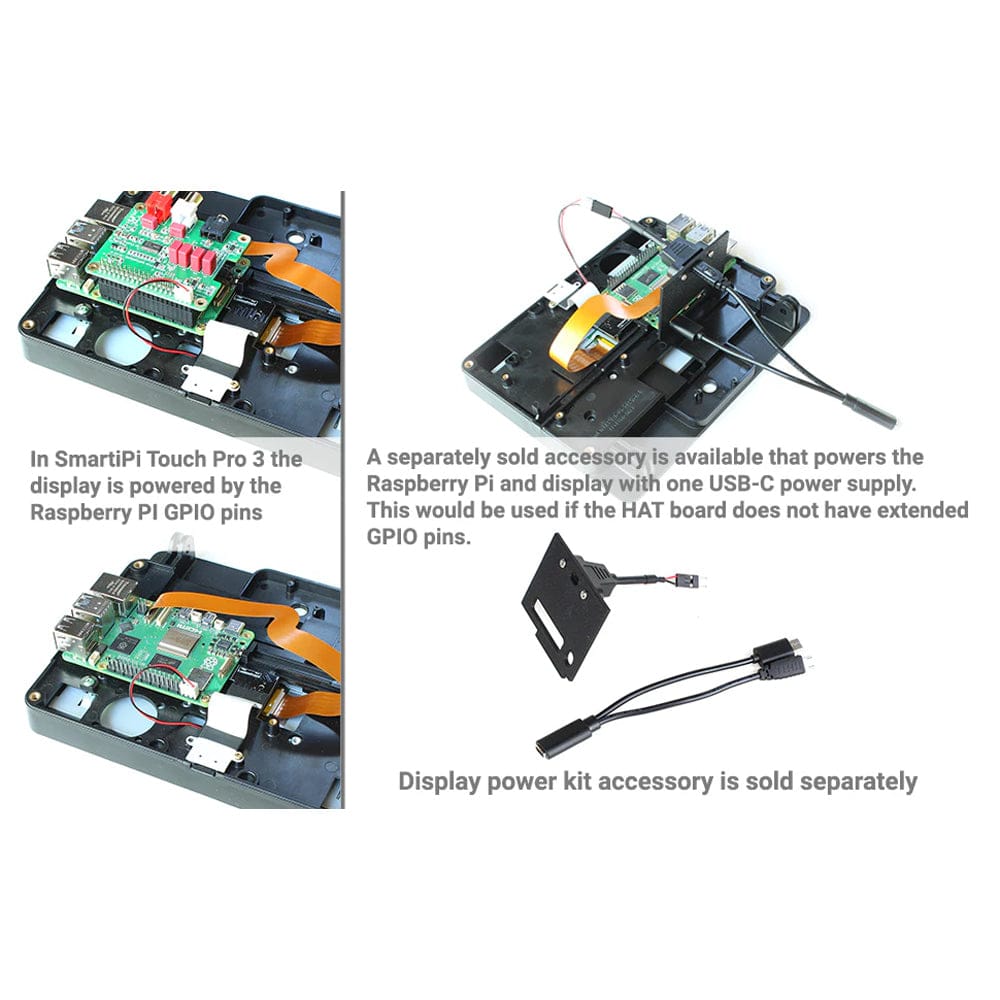

Your Touch Display 2 is powered by the Raspberry Pi GPIO as usual (extended GPIO pins are required if using a HAT)
An optional accessory is available to power the display via a USB-C splitter cable

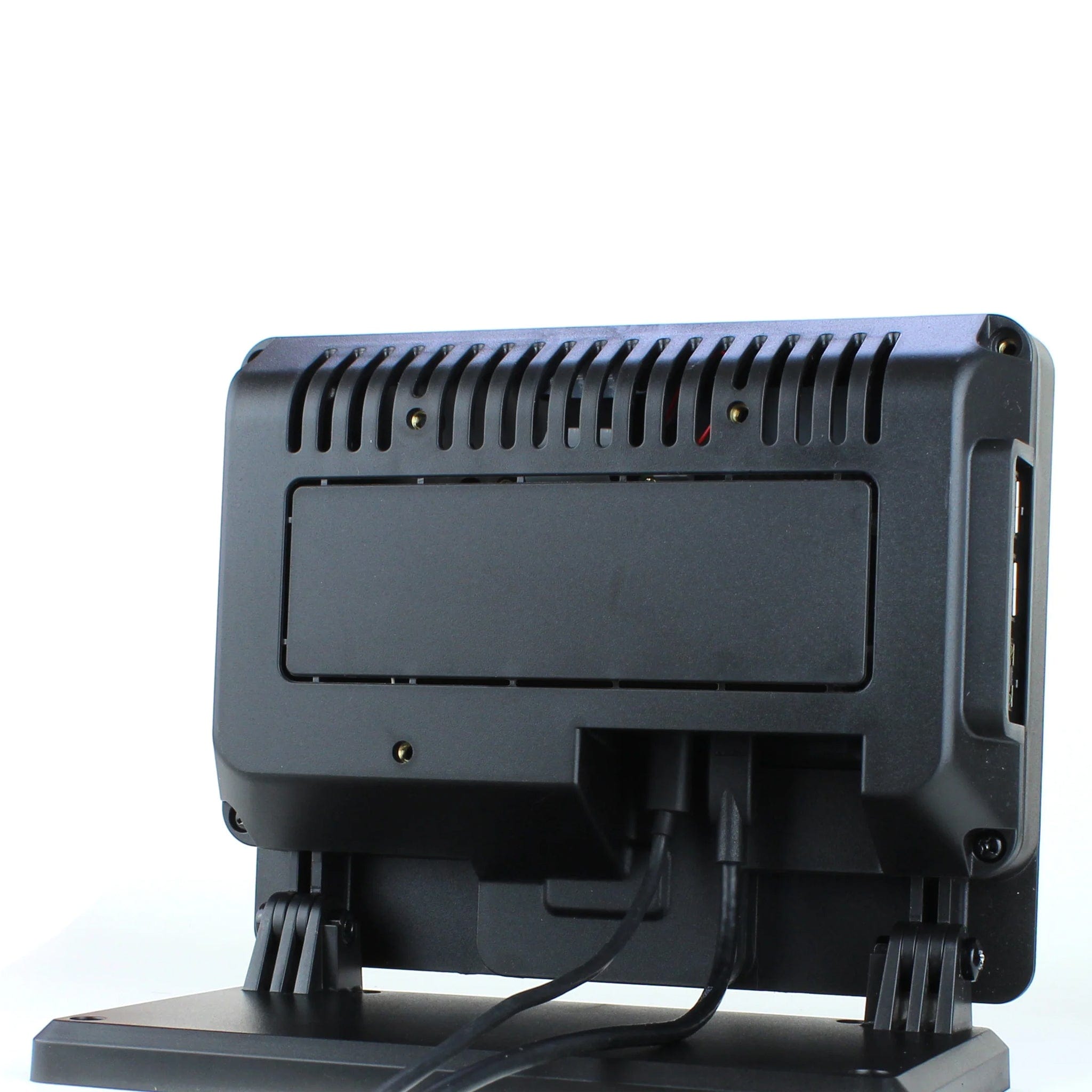

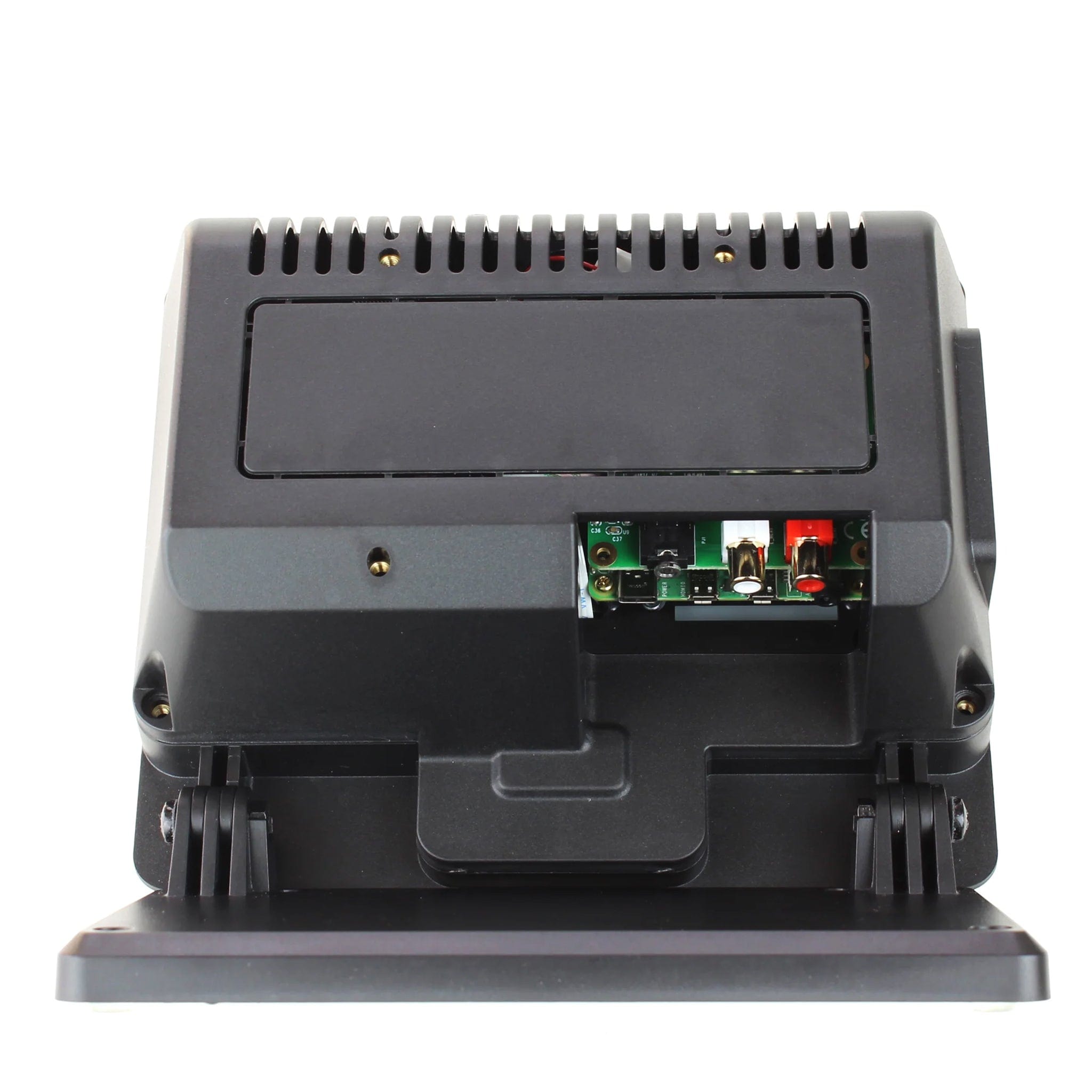

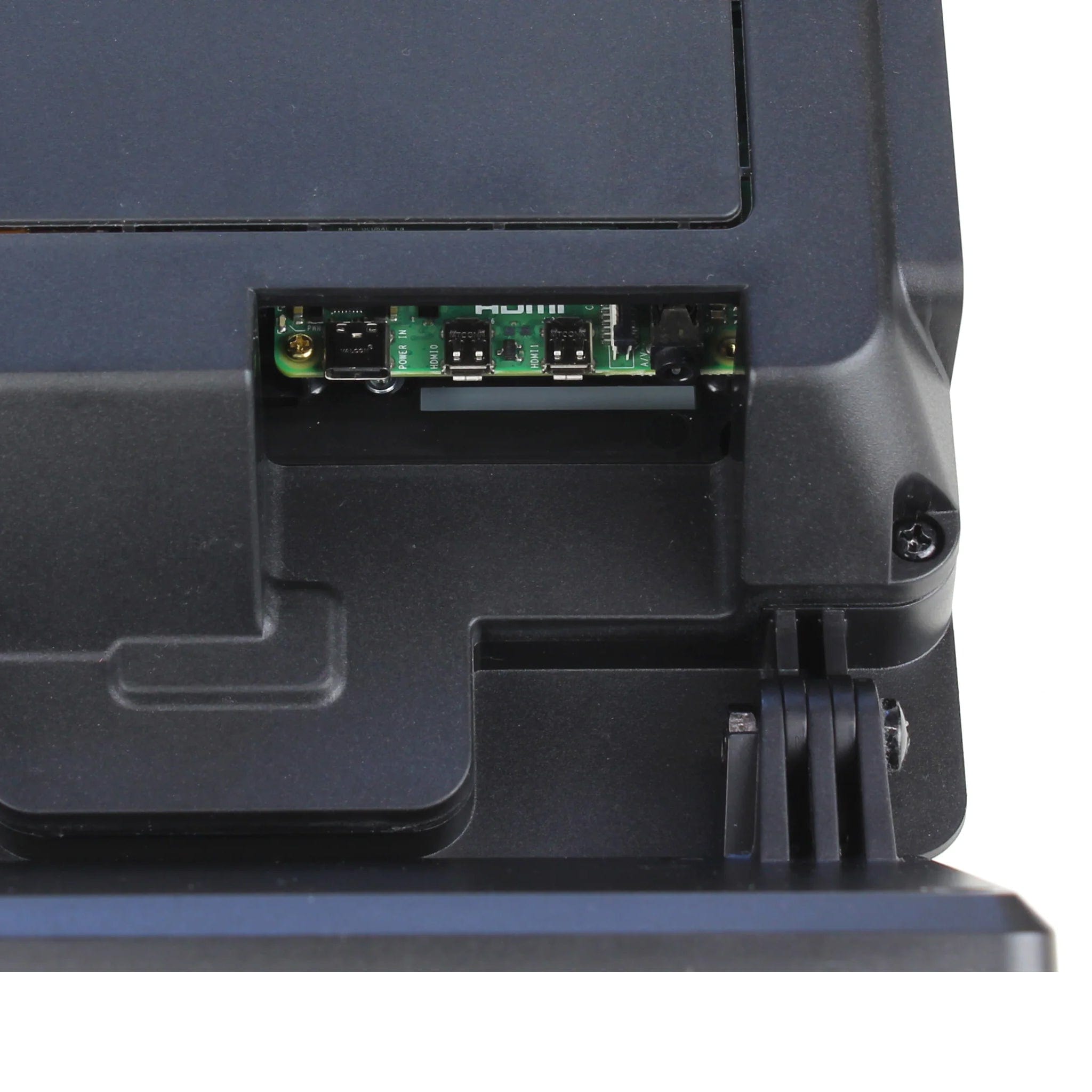

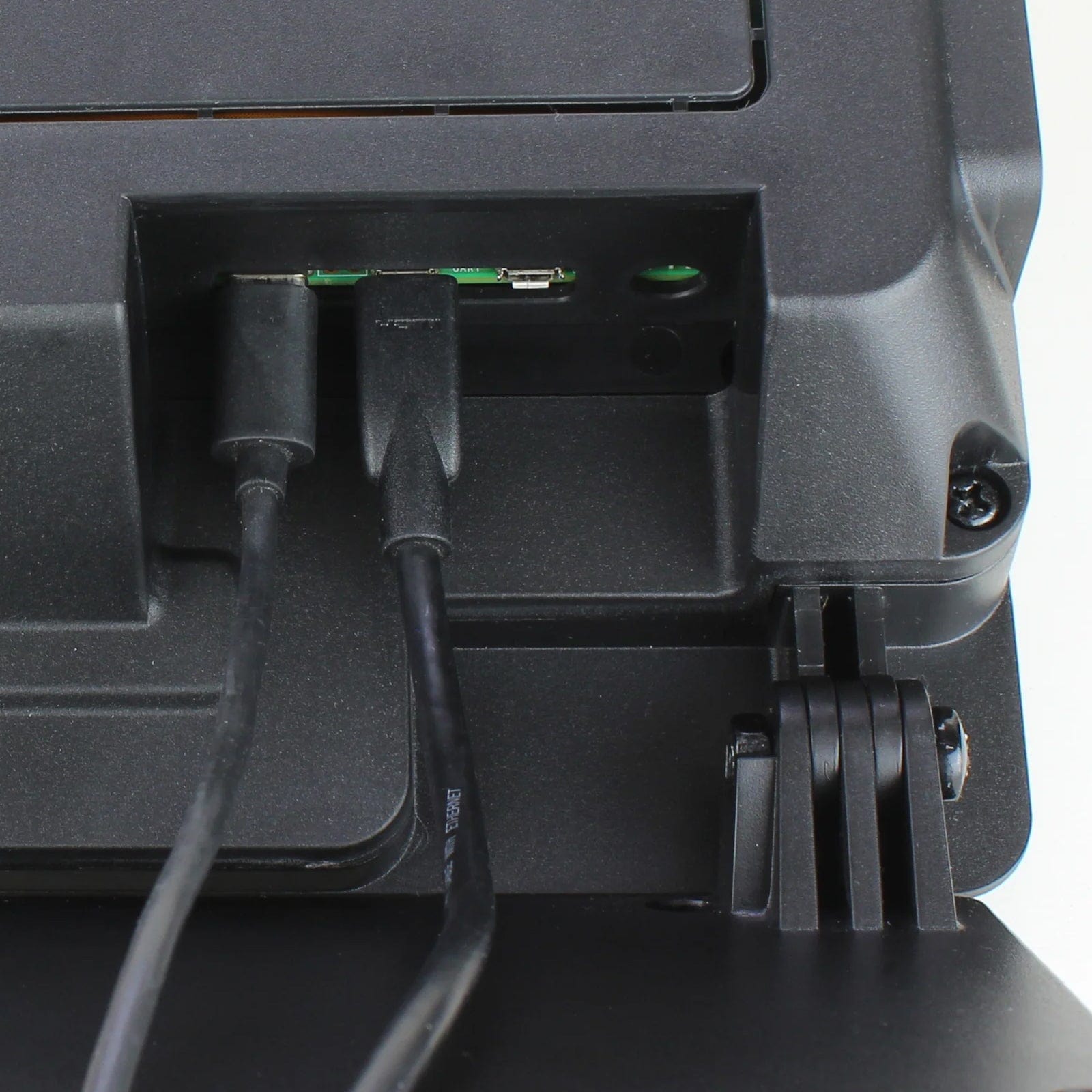

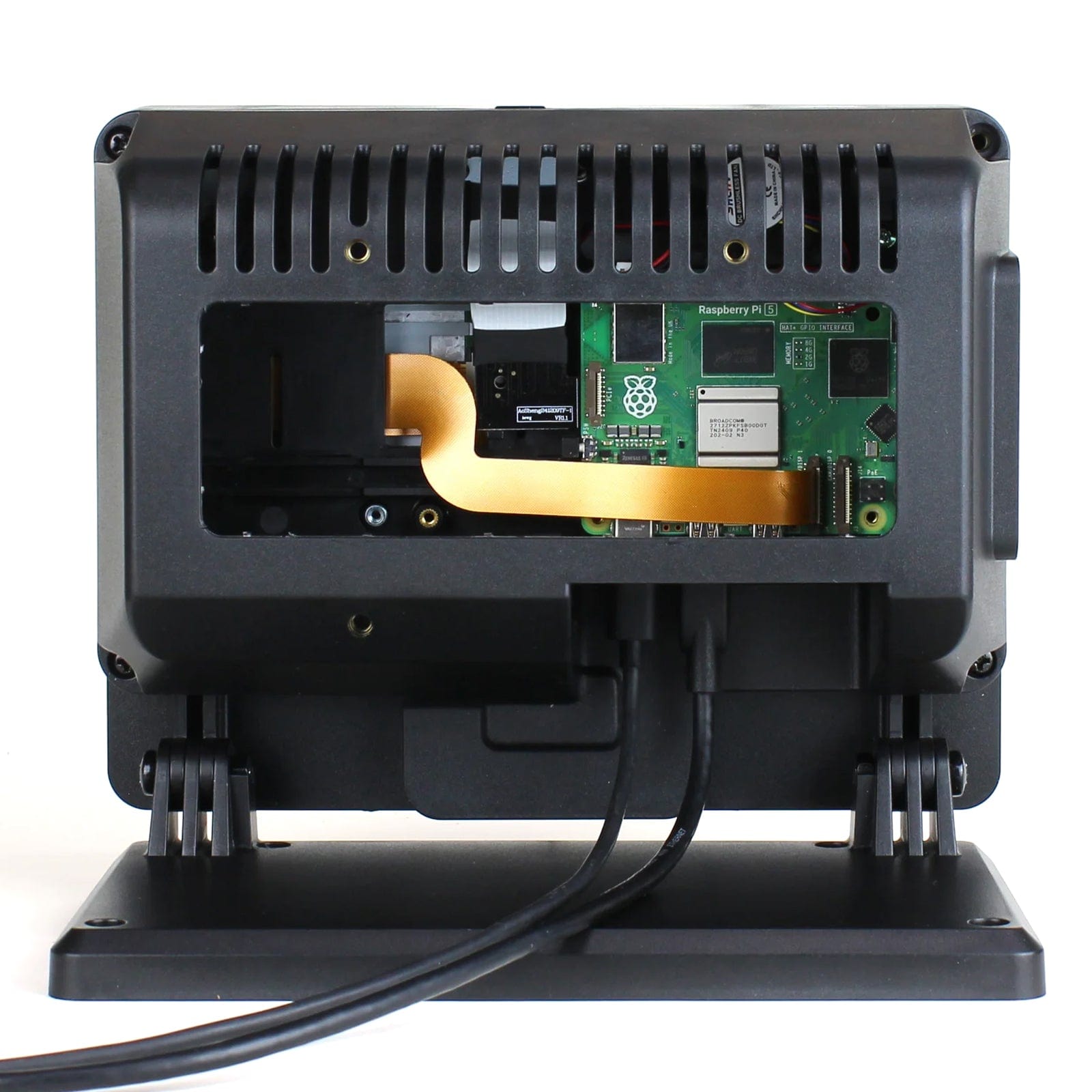

The power, HDMI, and audio jack on the Raspberry Pi are accessible on the back of the case
A removable panel near the Raspberry Pi ports allows the flexibility of accessing HAT boards and connectors

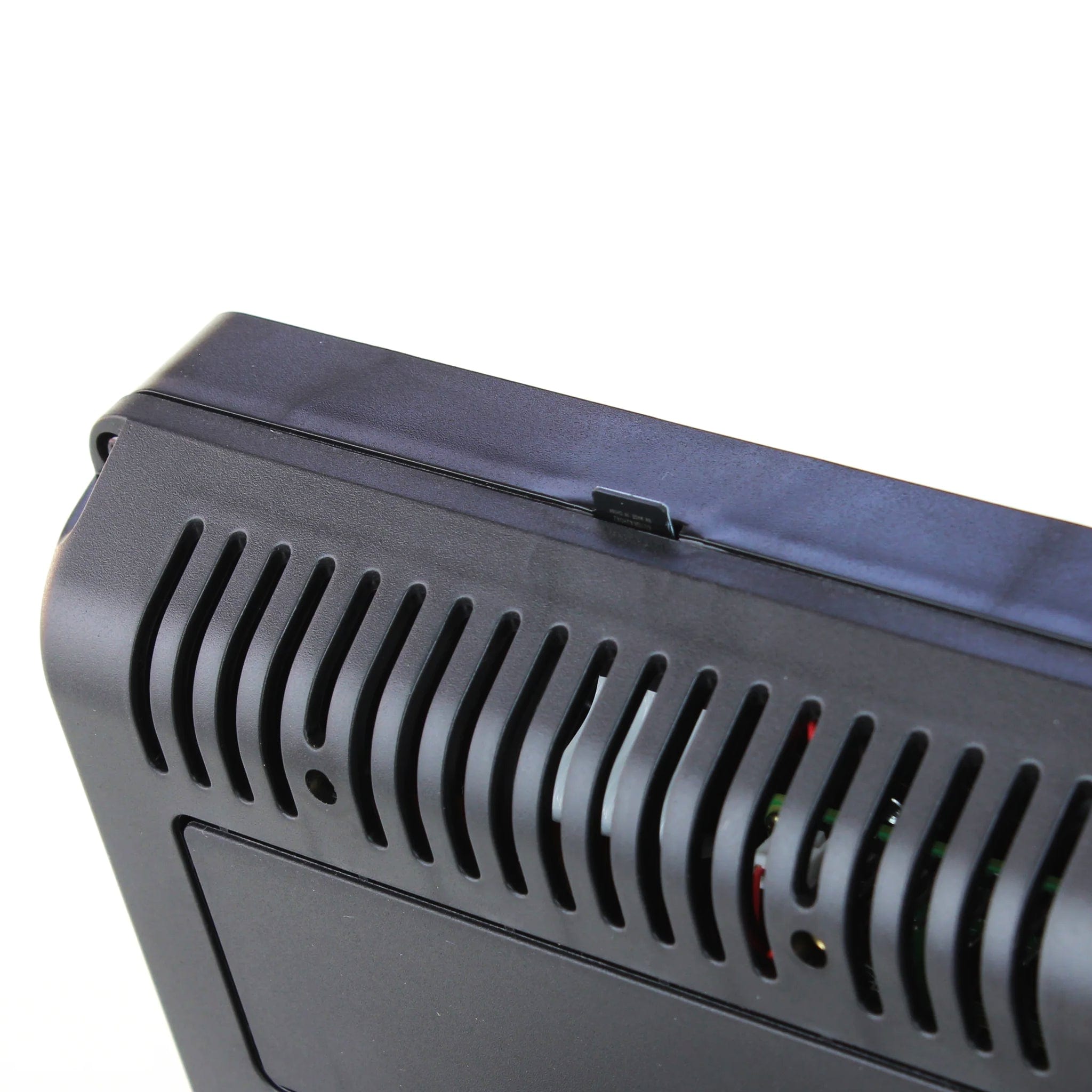

The included microSD extender allows access to the microSD card at the top of the case

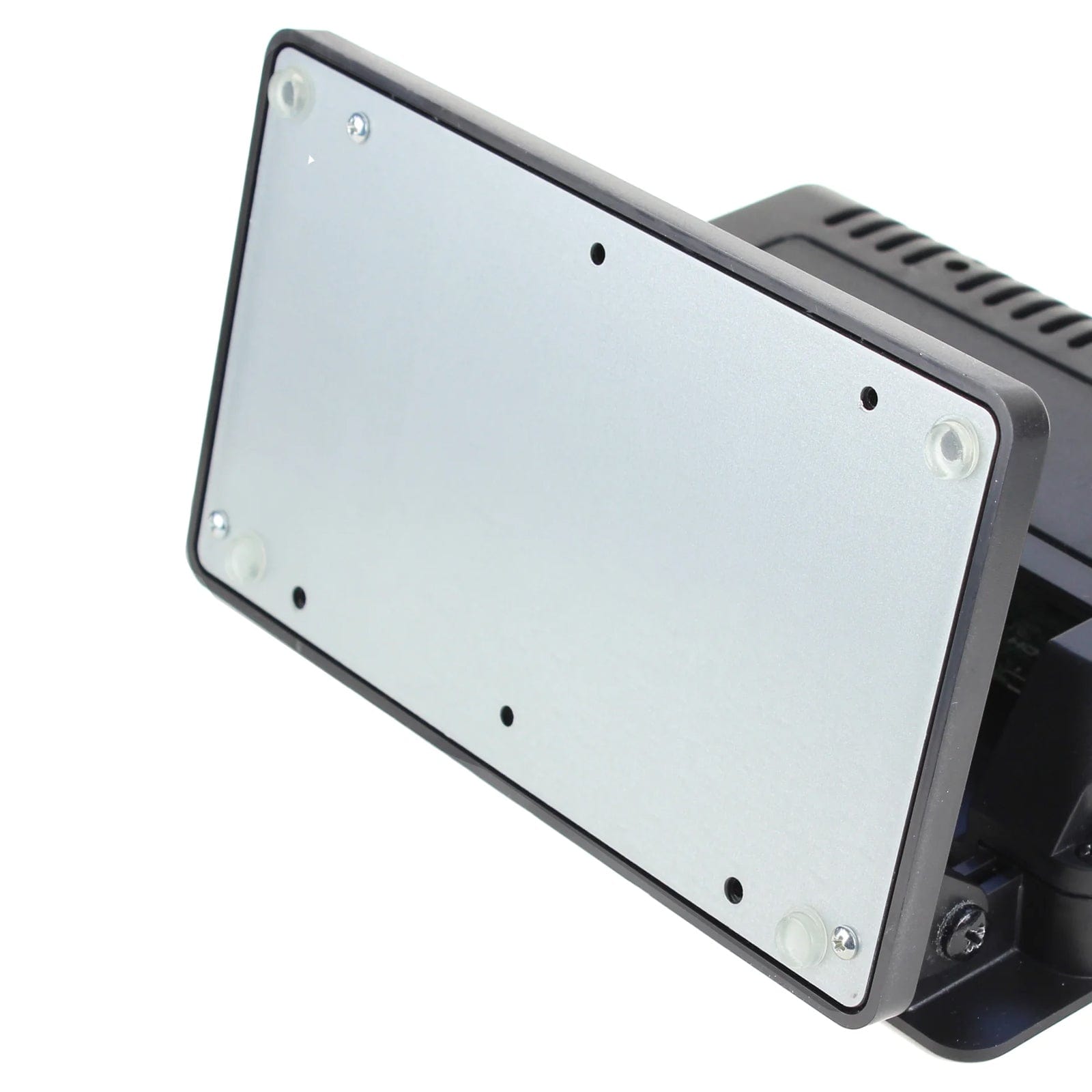

75mm VESA mount points on the back of the case
Weighted base

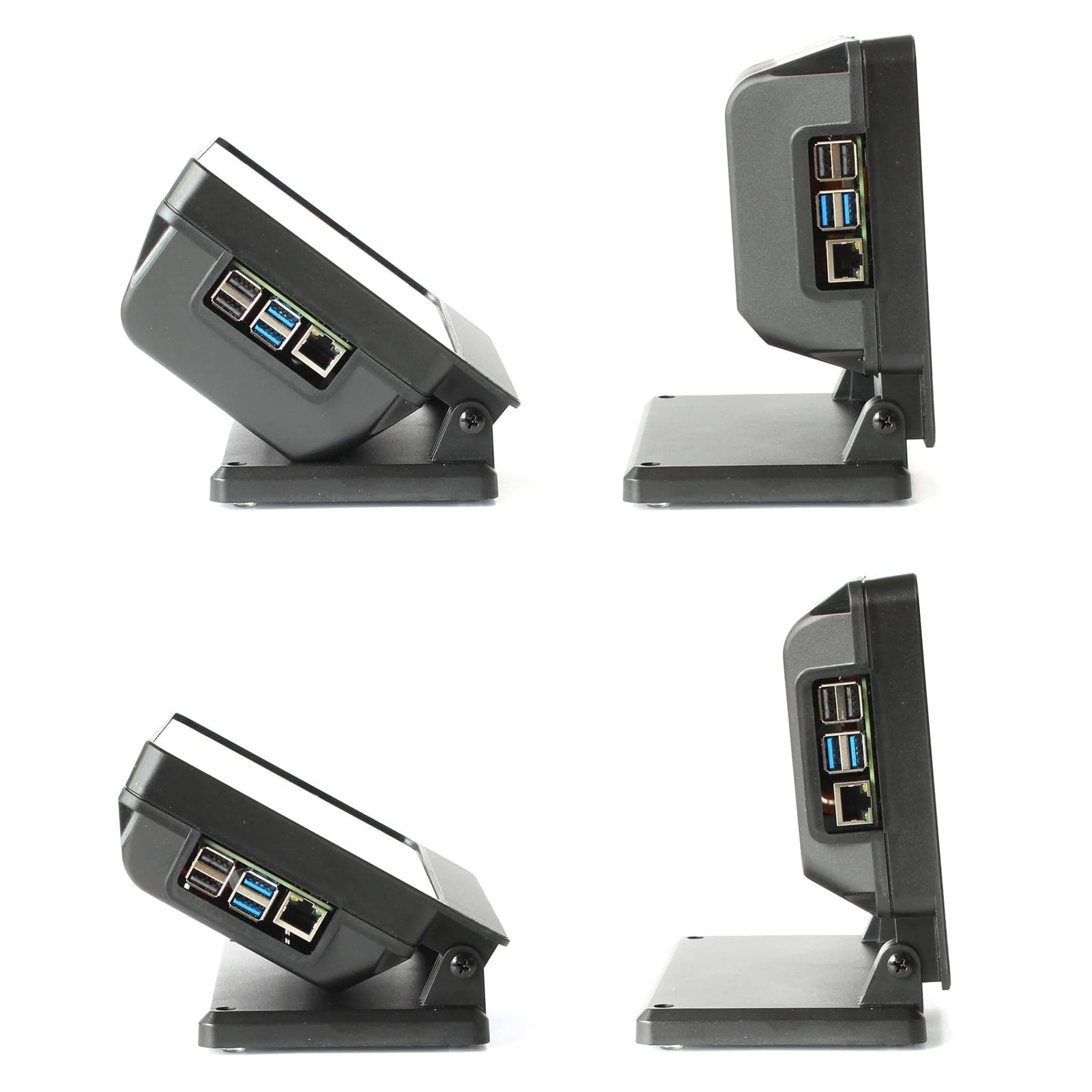

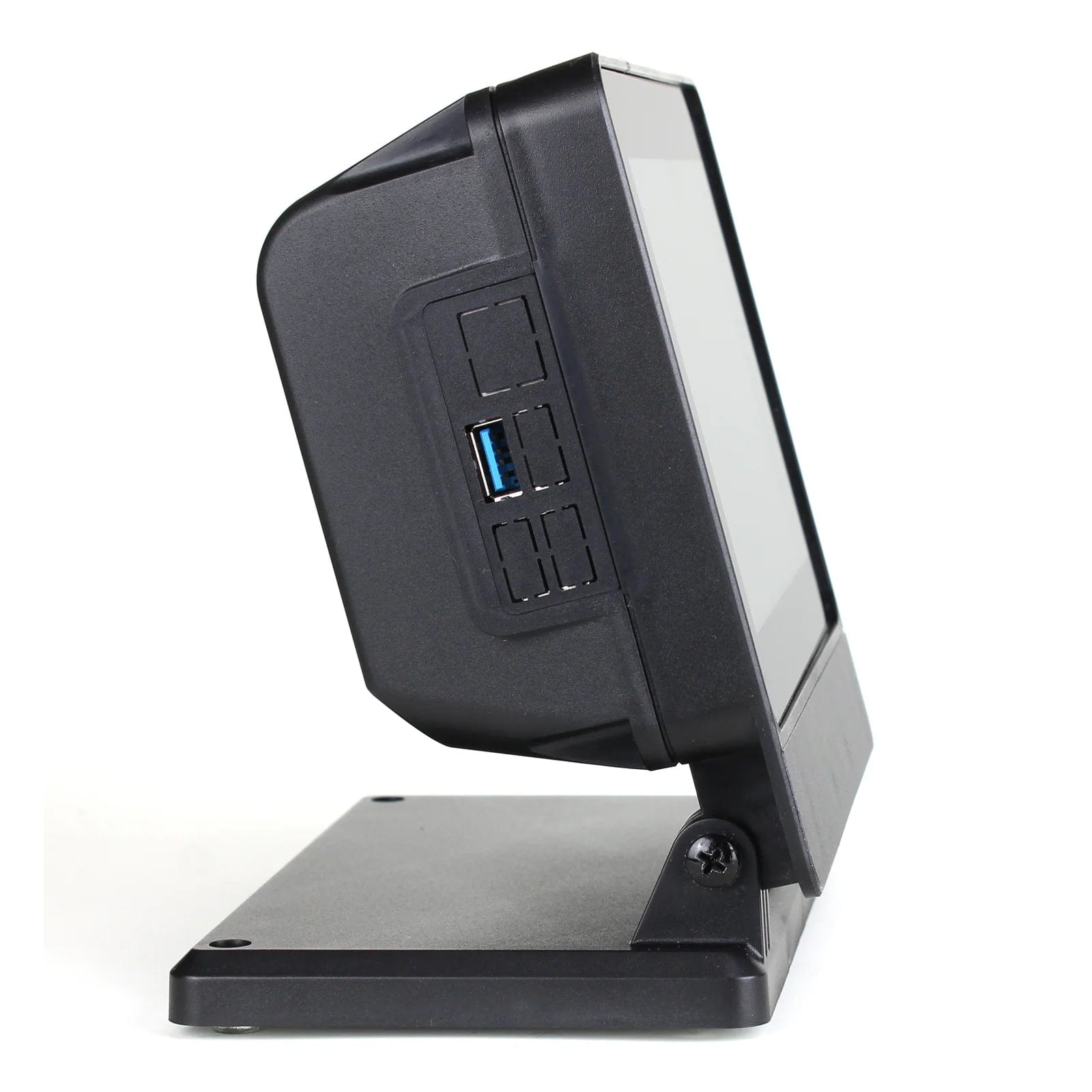

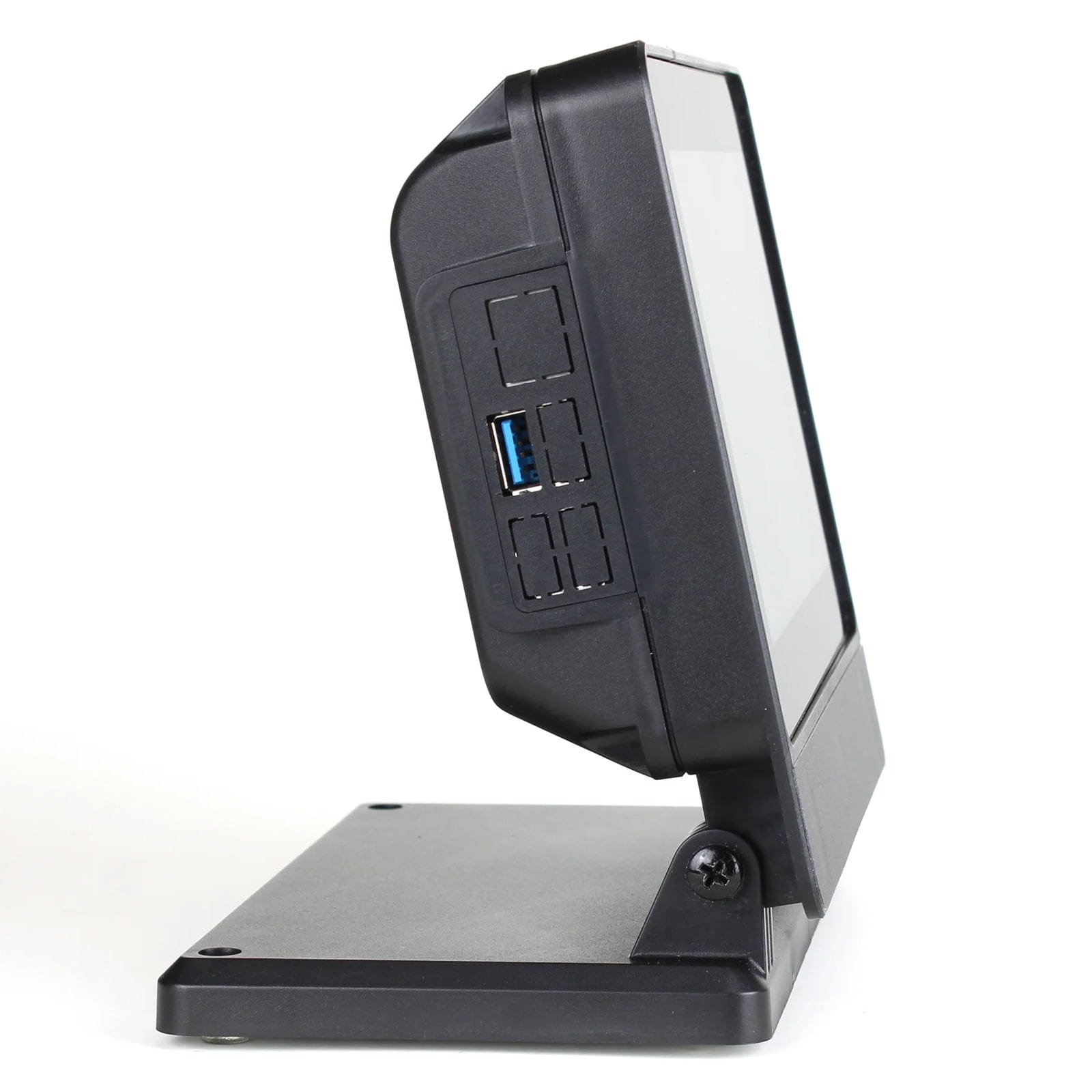

Punch out USB/Ethernet covers for Raspberry Pi 3,4, and 5

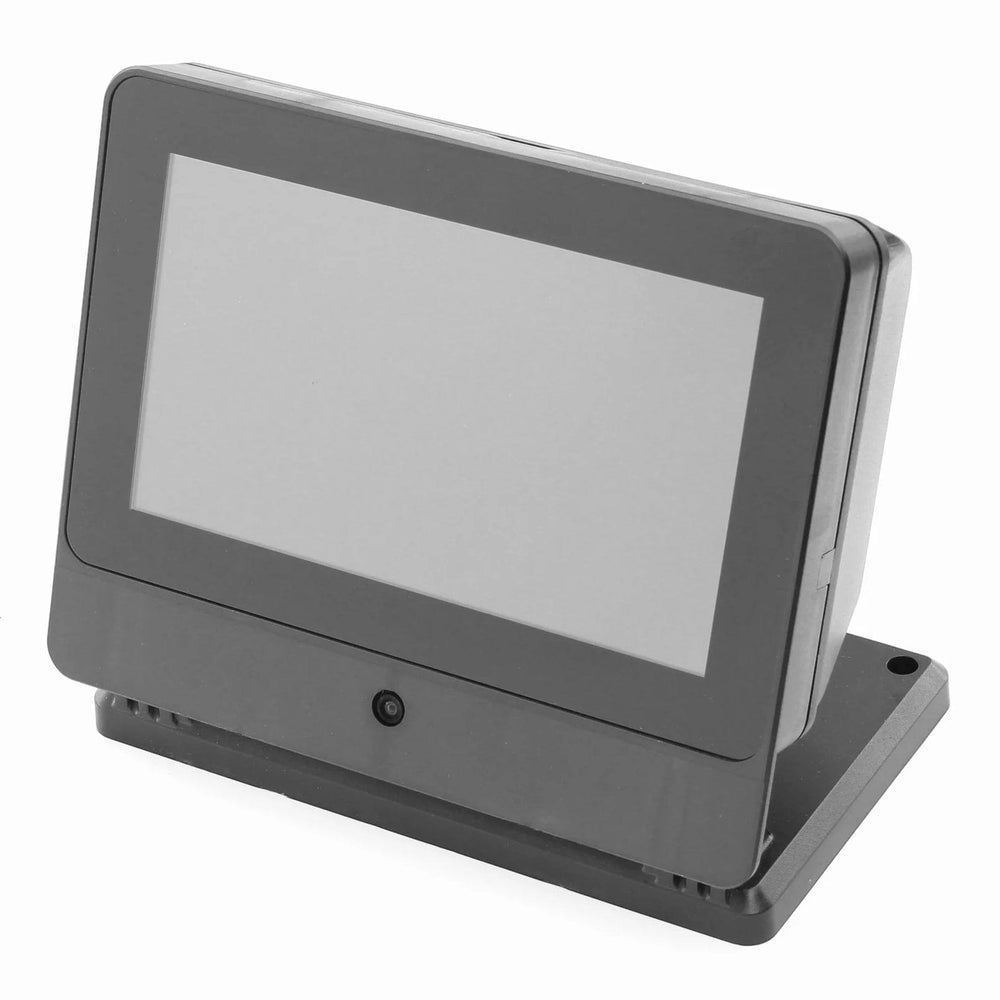

Mounting point for Raspberry Pi camera V2 and V3 (wide-angle and standard lens)
Back panel on the back cover can be cut out with a utility knife (allows for customisation if desired)
Front adhesive label to cover the camera hole
Tilting display

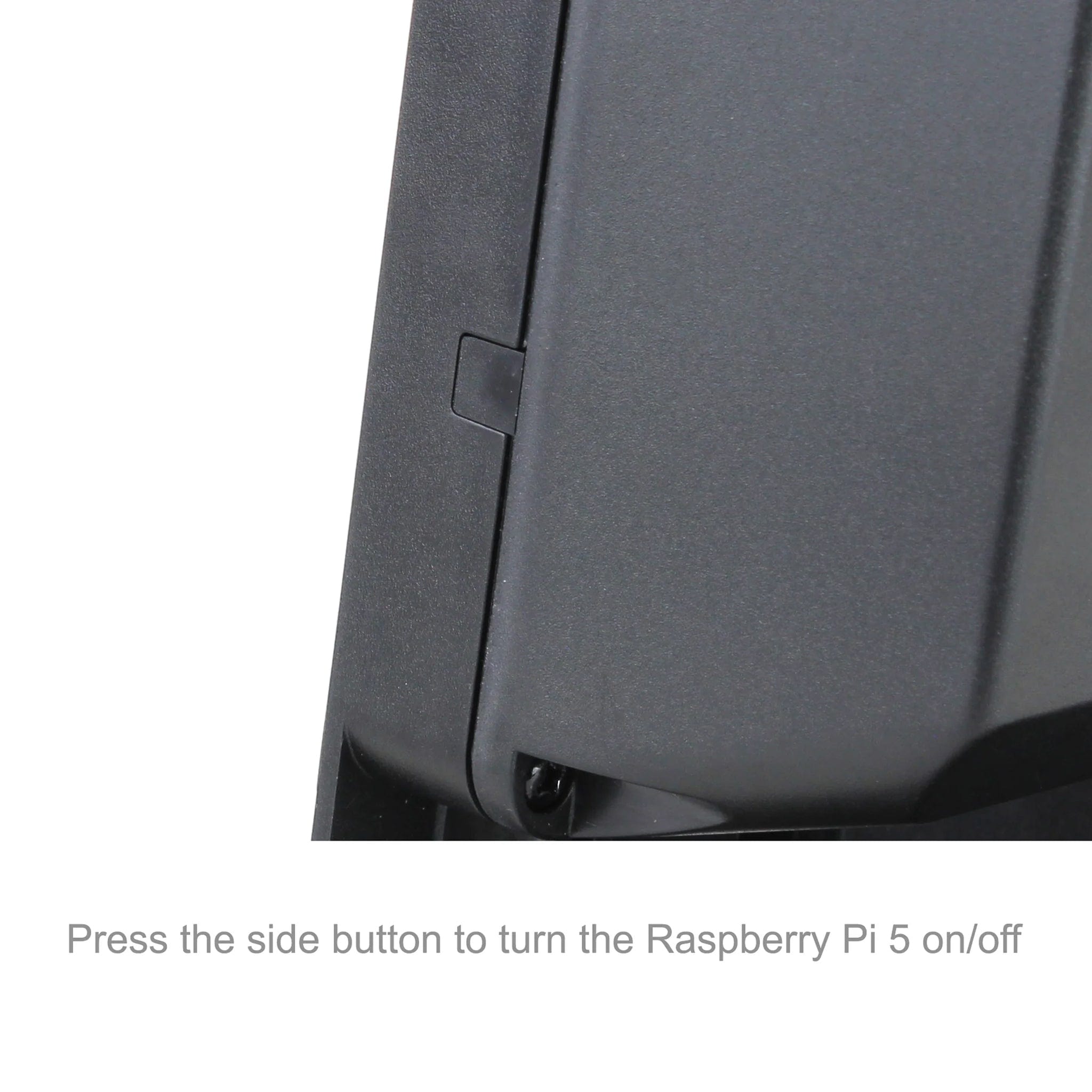

Side button to actuate the on/off microswitch on Raspberry Pi 5

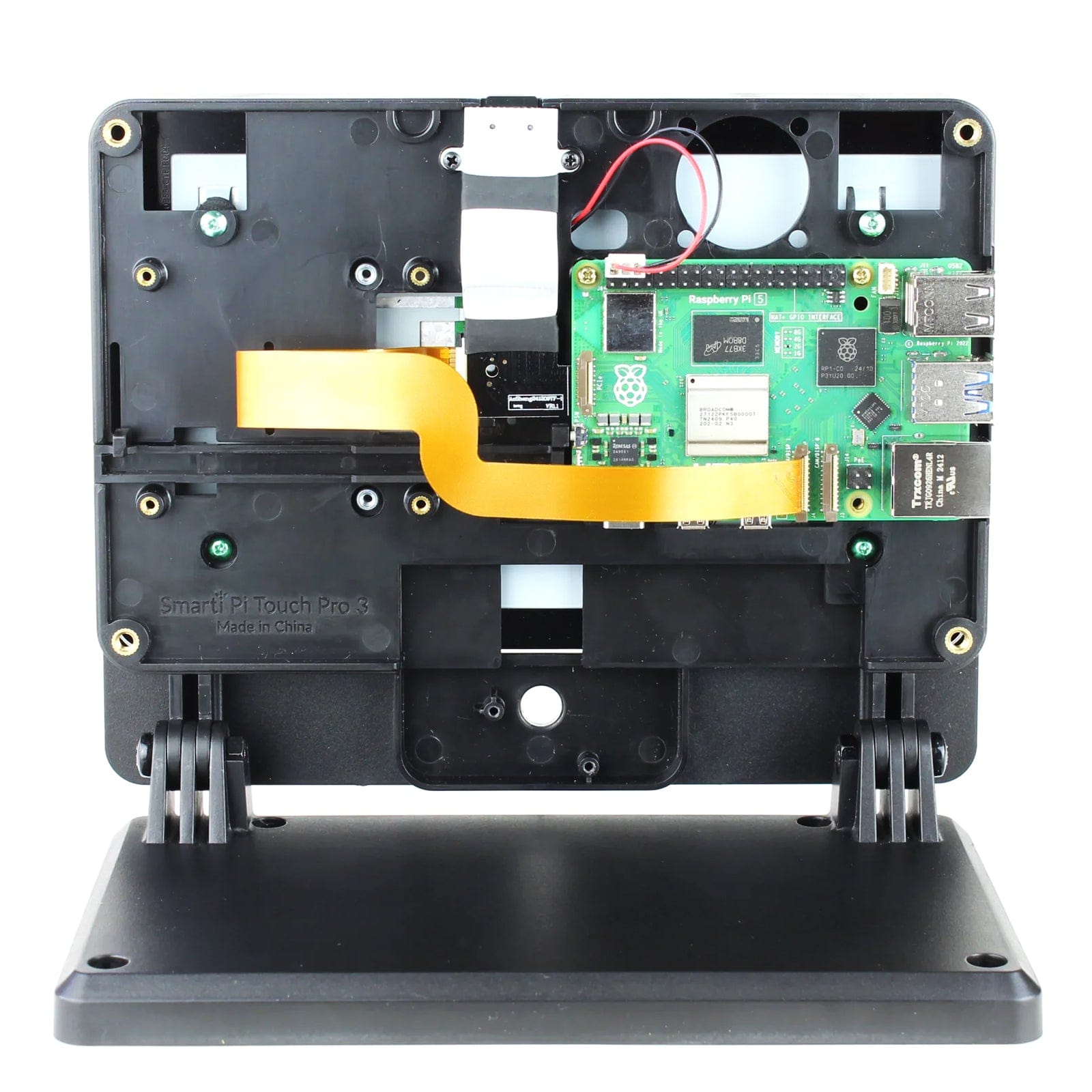

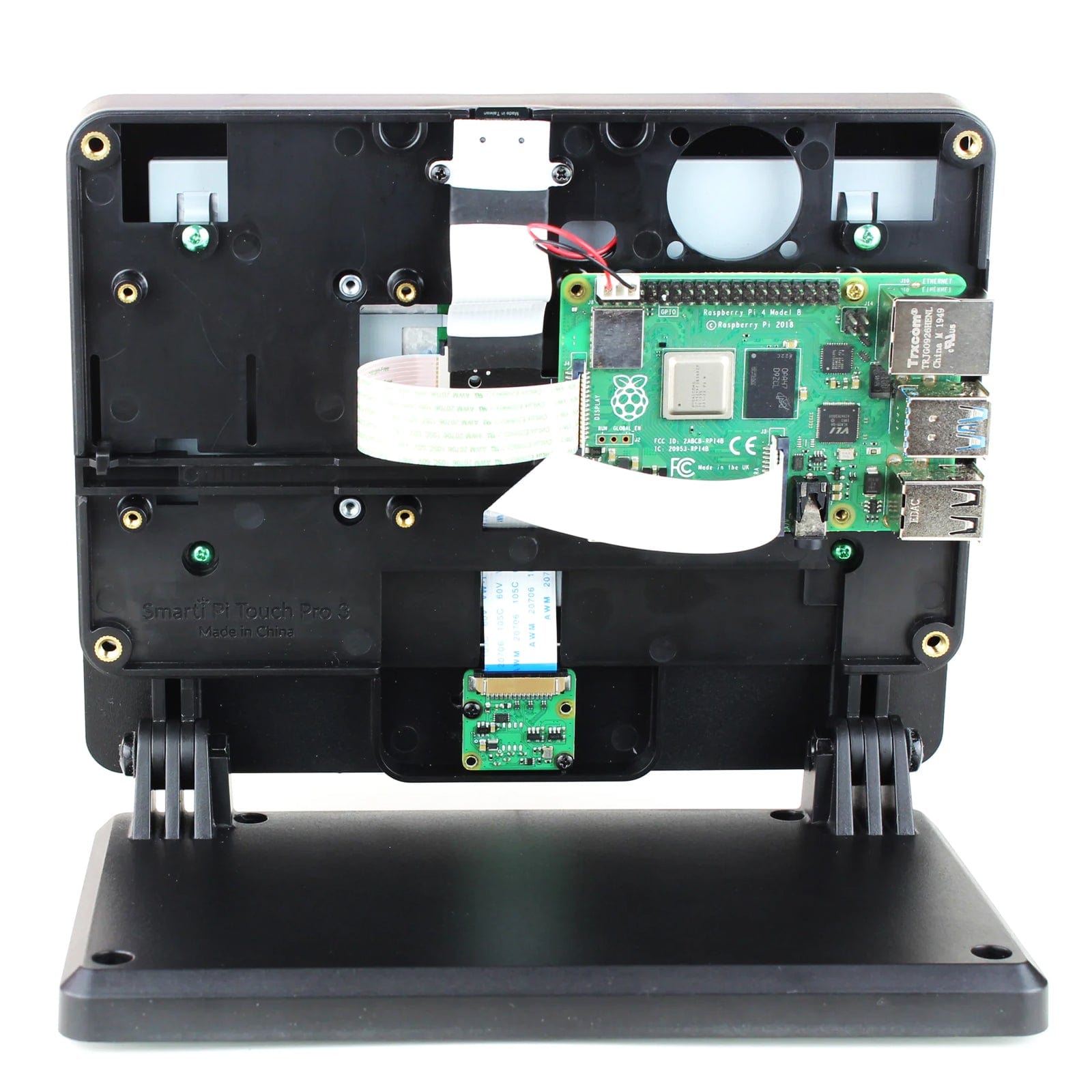

Secondary set of interior mounting points for a development board, HAT, or alternative Raspberry Pi position
