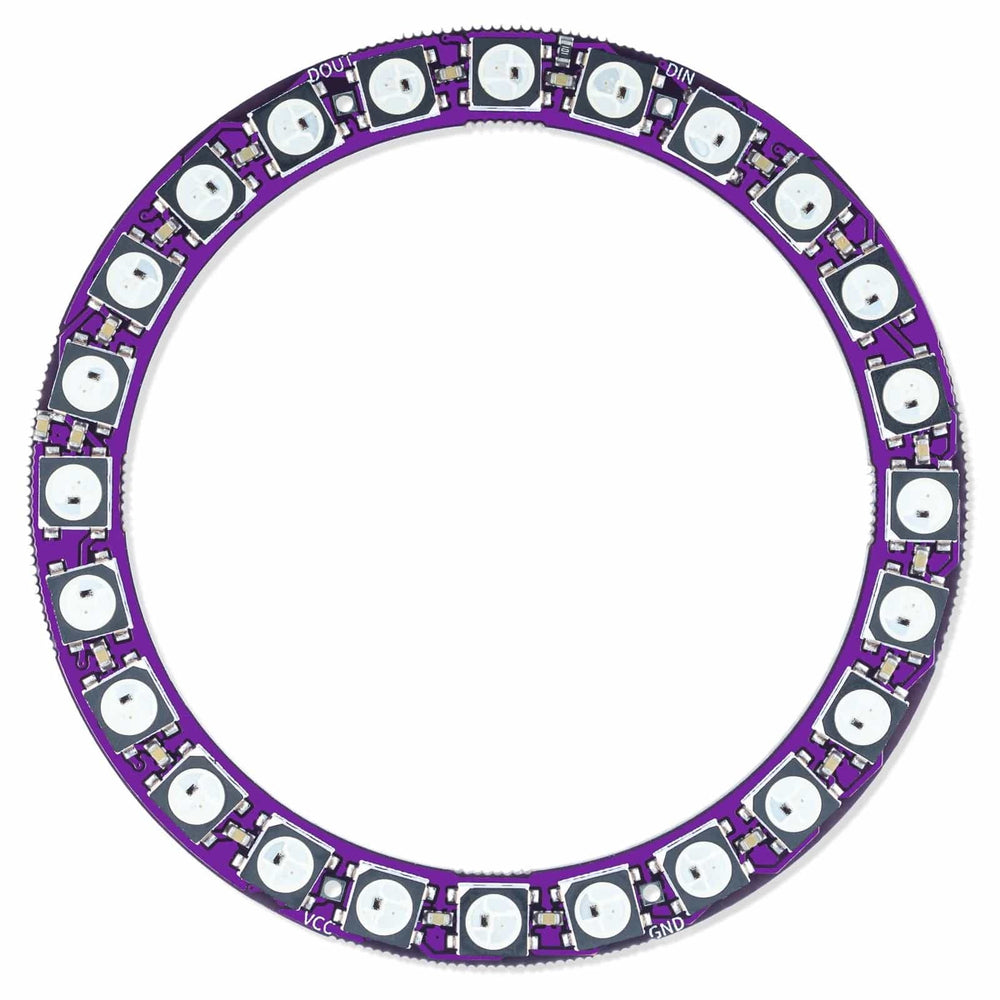

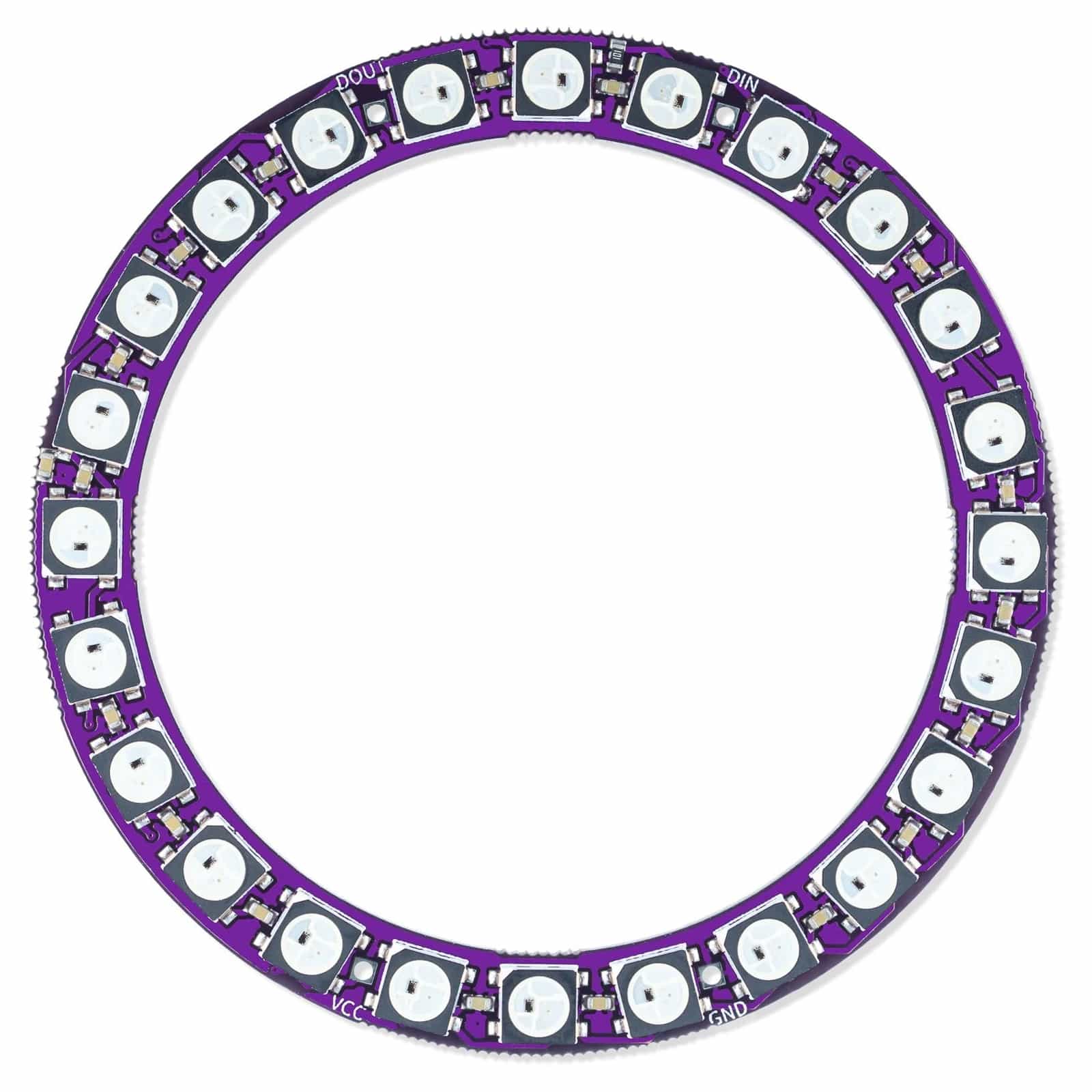

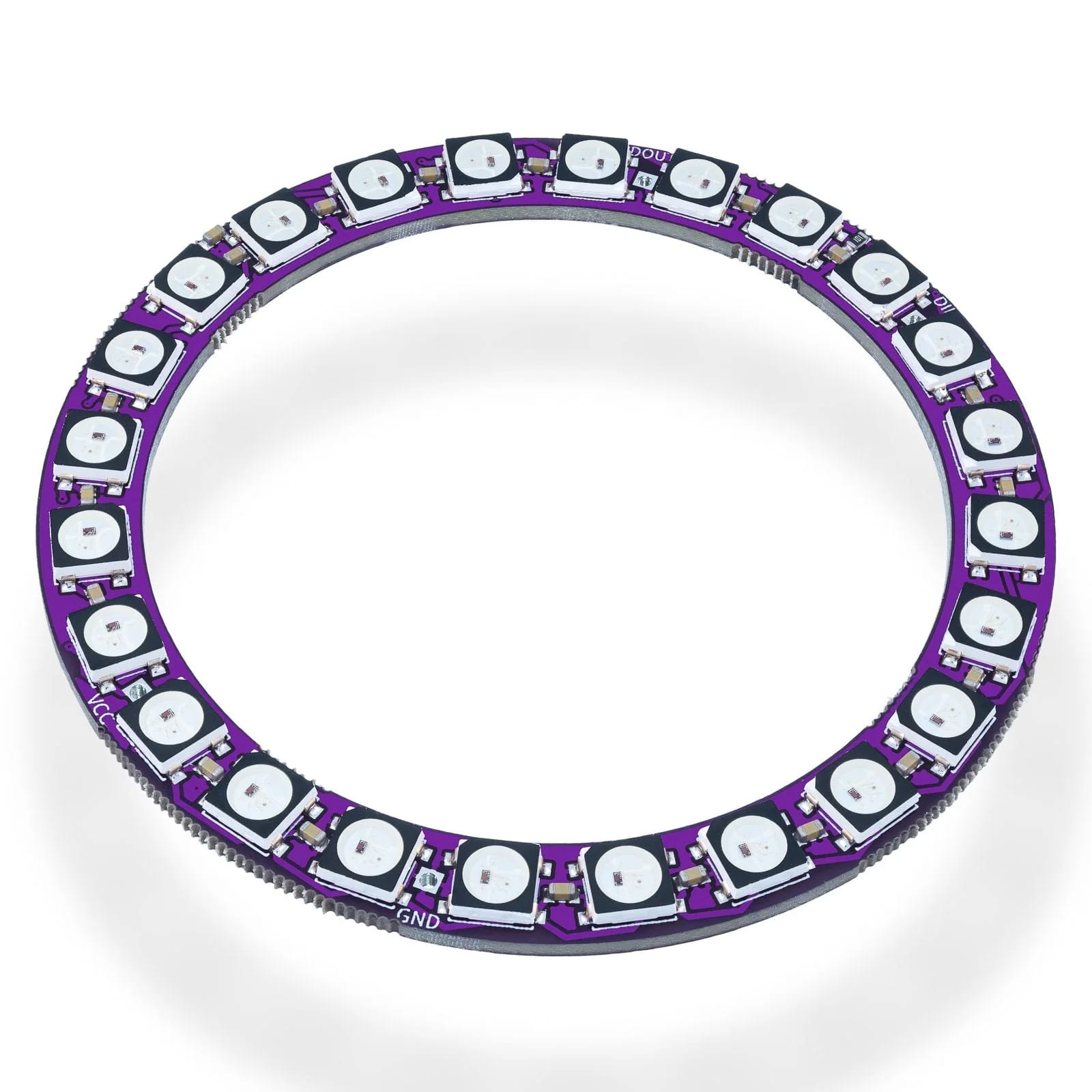

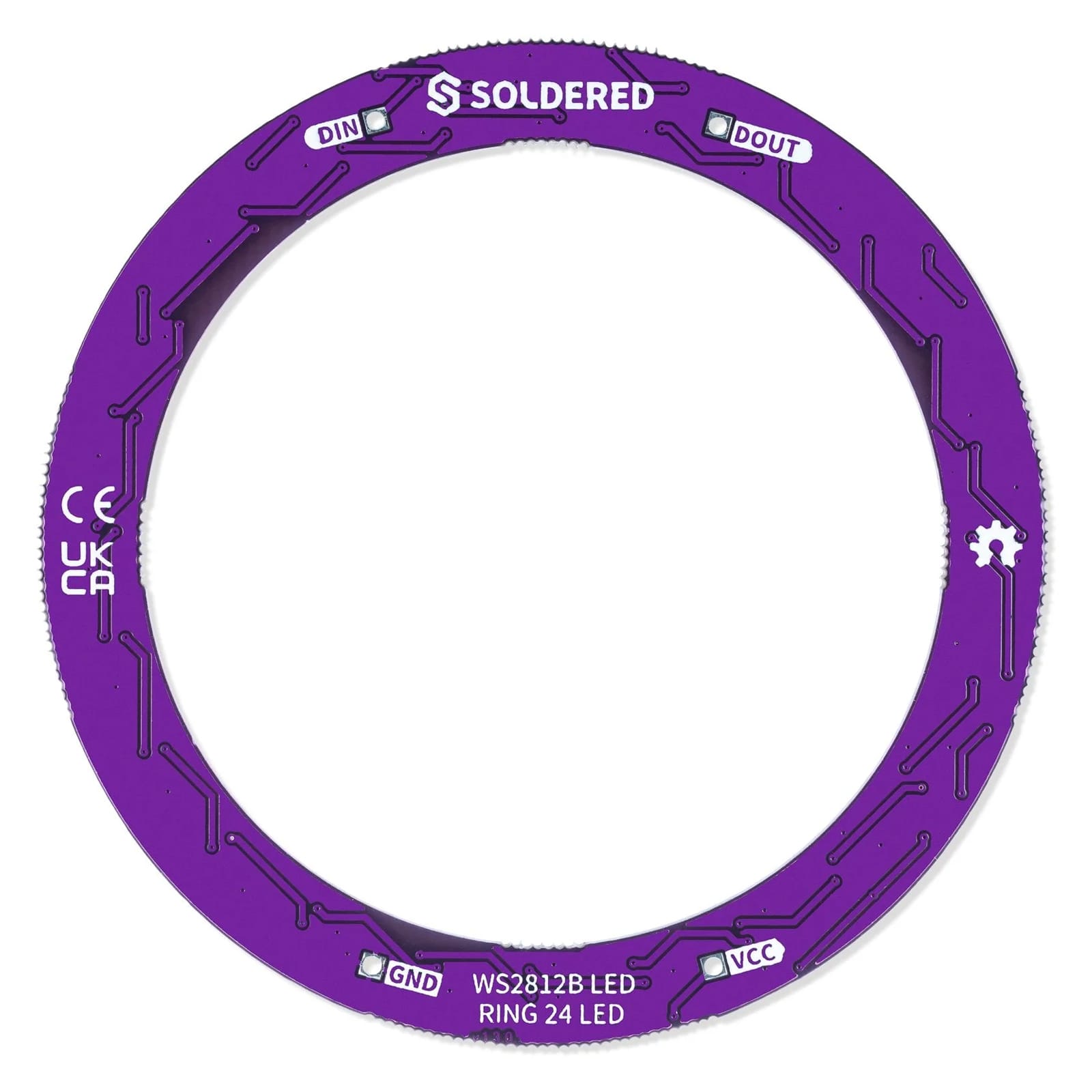

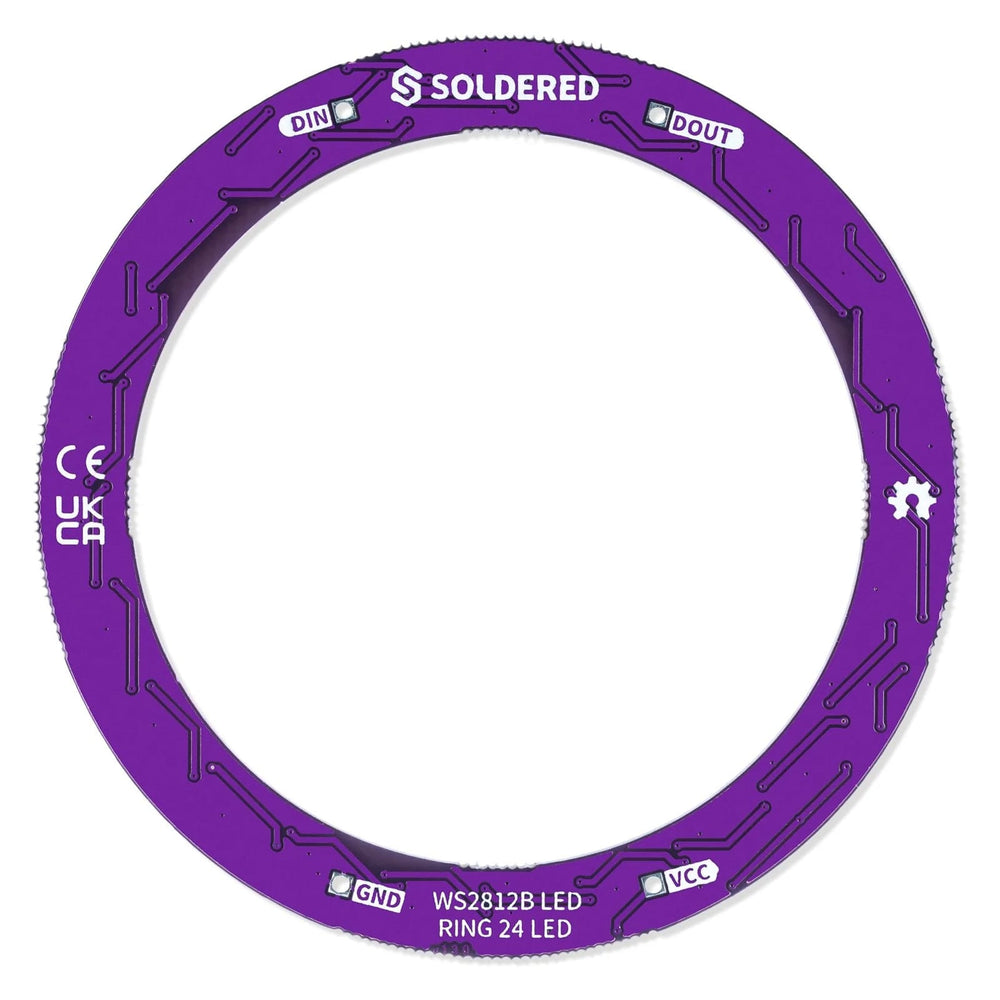

The Smart LED WS2812B Ring24 features 24 individually addressable RGB LEDs in a circular layout, making it ideal for colourful animations, status indicators, wearable projects, robotics, and interactive lighting effects.
The Smart LED WS2812B Ring24 is a circular array of 24 individually addressable WS2812B RGB LEDs, perfect for vibrant and dynamic lighting.
Each LED can be controlled independently via a single data line, enabling complex animations and colour patterns with microcontrollers like Arduino or ESP32. Its durable design ensures reliable performance for wearable tech, ambient lighting, or LED Alerts.
Operating at 5V, each LED draws ~18mA, with a maximum ring current of 432mA. The 67mmdiameter fits standard enclosures, and the WS2812B protocol allows daisy-chained control from one digital pin. High refresh rates ensure smooth, flicker-free animations with minimal external components.
Ideal for visual feedback in robotics, cosplay, or interactive art, the Ring24 displays complex colour gradients or status indicators with ease. Pair it with a Qwiic-compatible microcontroller for simplified integration and start building professional-grade dynamic lighting projects today.
