Smart AI Lens Adaptor for Bit:Bot XL

4tronixSKU: 105120
Price:
Sale price £6.60
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Compatible with:

Awesome Extras

ElecfreaksSmart AI Lens Kit
Sale price £57.50 incl. VAT excl. VAT
(1 Reviews)
4tronixBit:Bot XL Robot Kit for the micro:bit
Sale price £44.10 incl. VAT excl. VAT
(133 Reviews)
BBC micro:bitmicro:bit V2.2
Sale price £15 incl. VAT excl. VAT

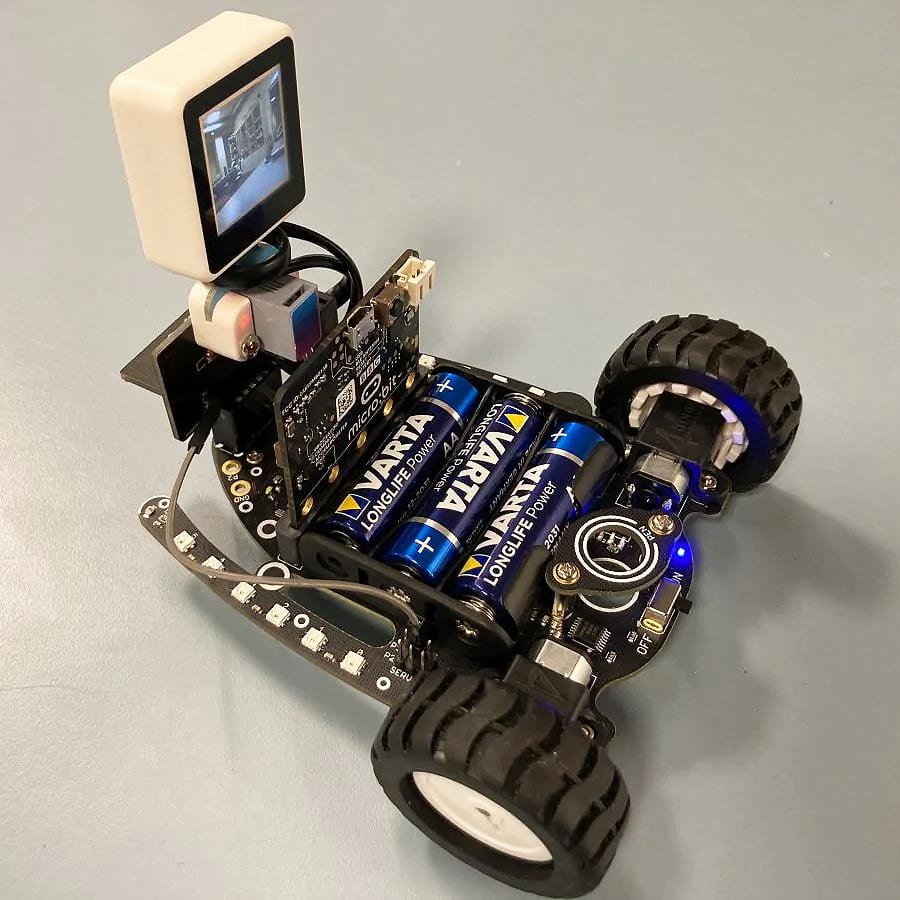

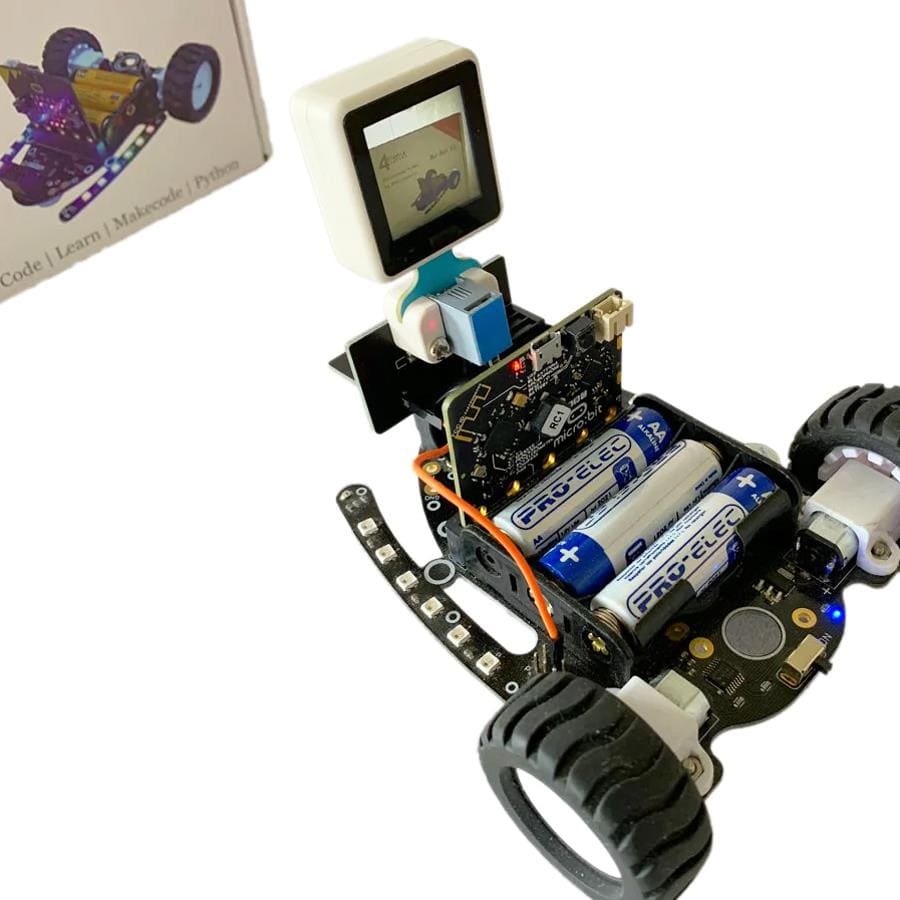

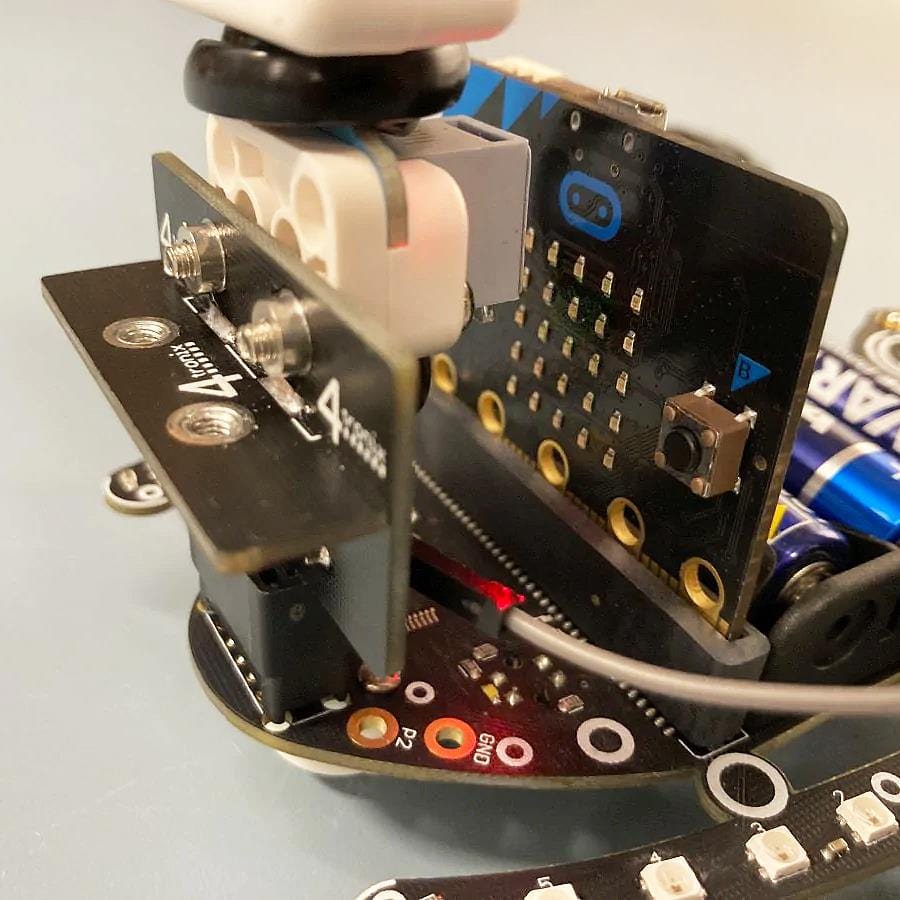

This adaptor enables you to fit the Elecfreaks Smart AI Lens to the Bit:Bot XL and use it to direct the movement of the robot!

Note: Smart AI Lens and Bit:Bot XL are not included!

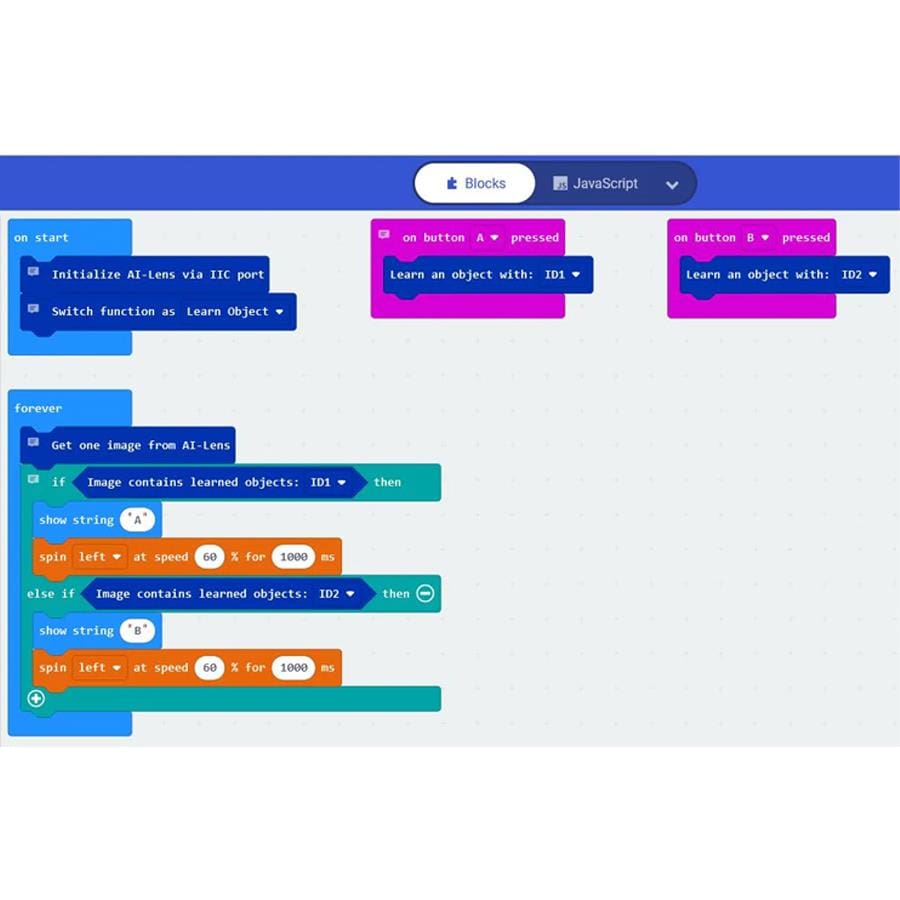

In Makecode, You can use the Smart Lens extension and the BitBot extension at the same time to very easily detect objects and change the direction of the robot's behaviour however you want. See the image of a very simple block of code that will turn the BitBot left or right depending on which object it recognises.

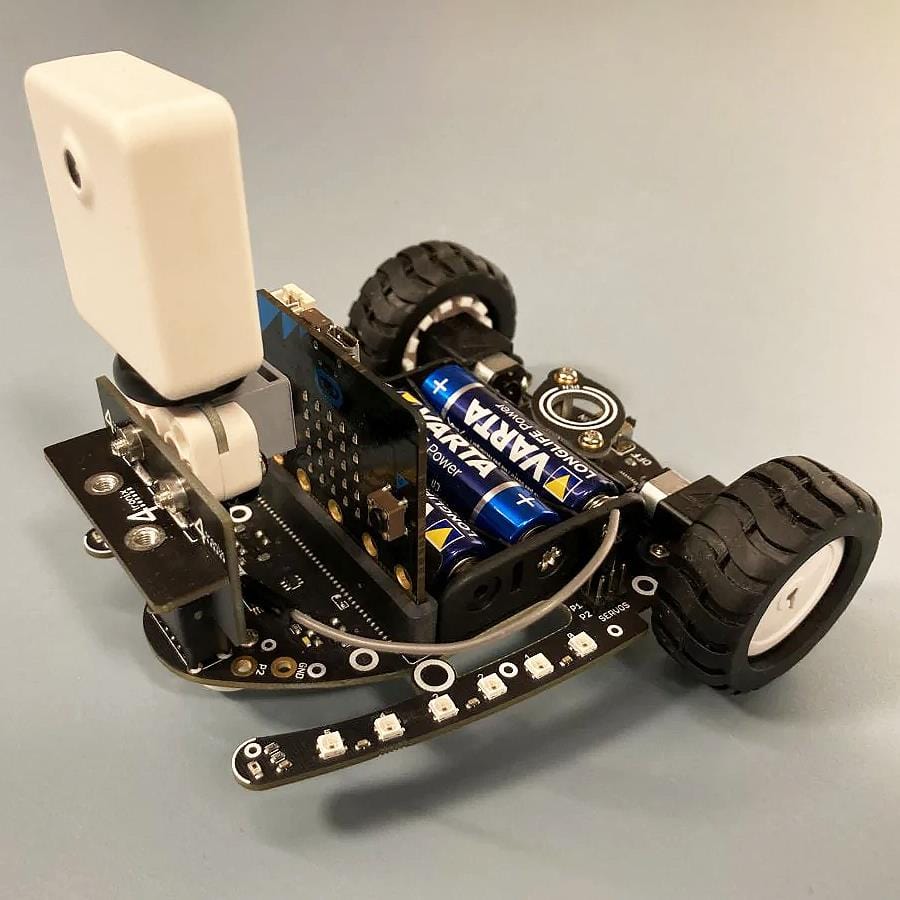

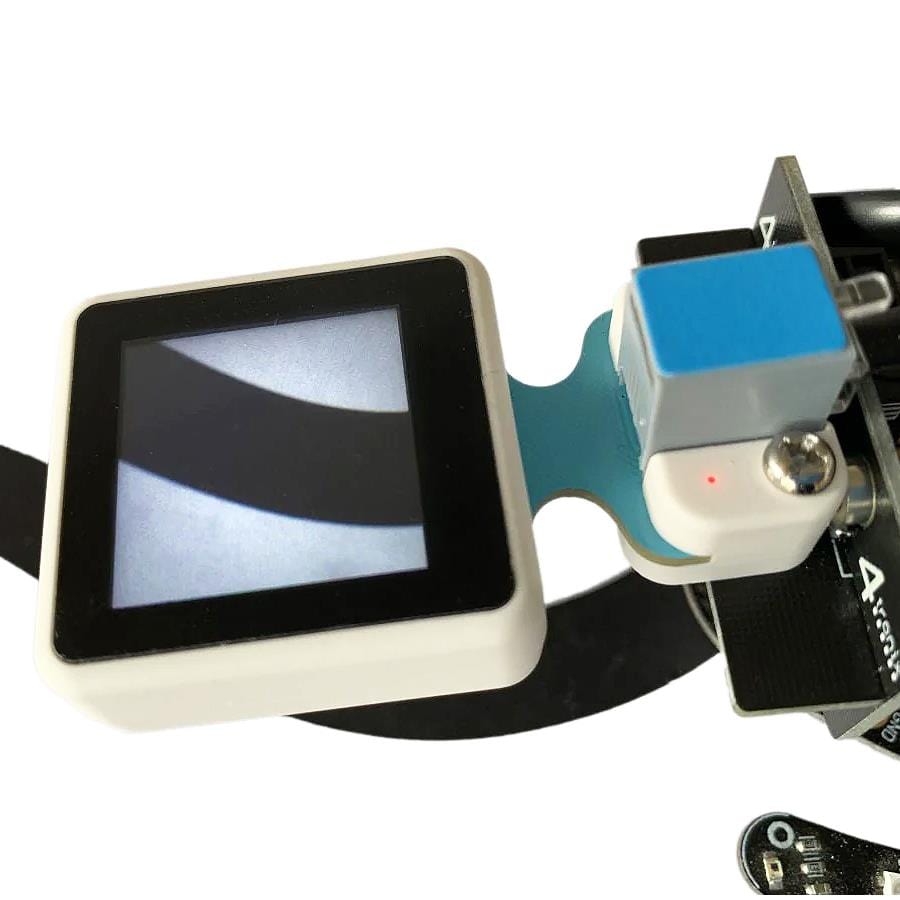

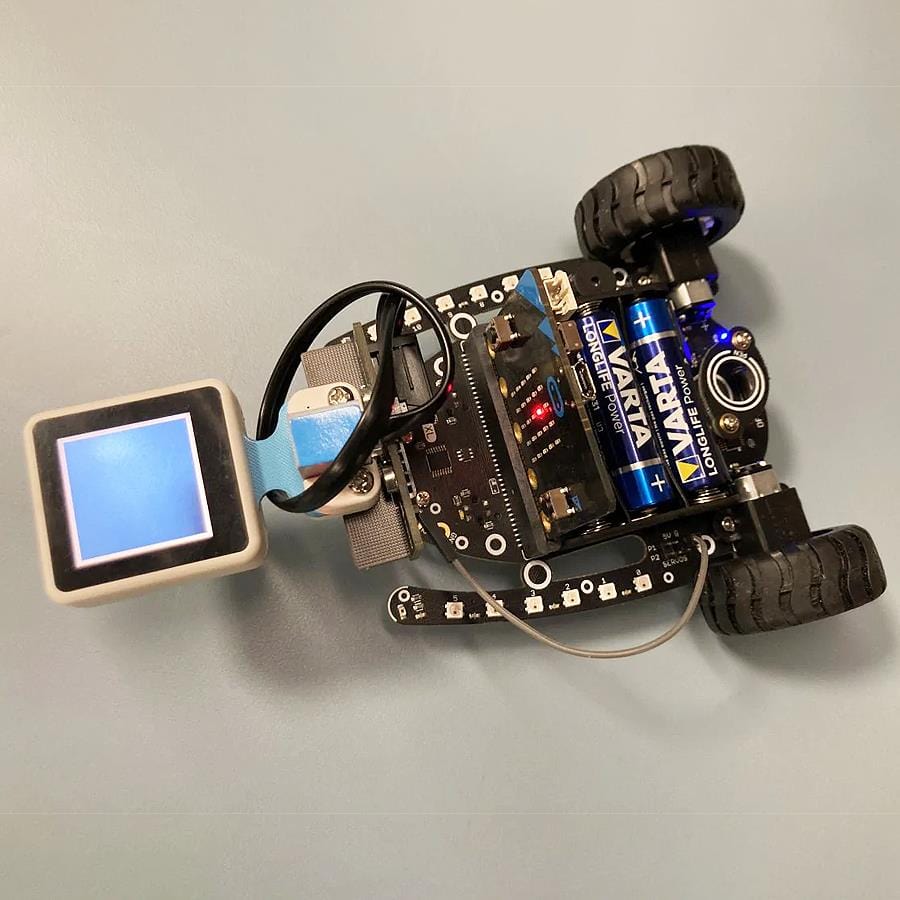

This adaptor can be used to mount the camera vertically (so the camera looks forwards), or horizontally (so the camera looks downwards). Mounting the camera to look downwards allows it to be used as a very sophisticated line following robot - see the Elecfreaks examples of line following.

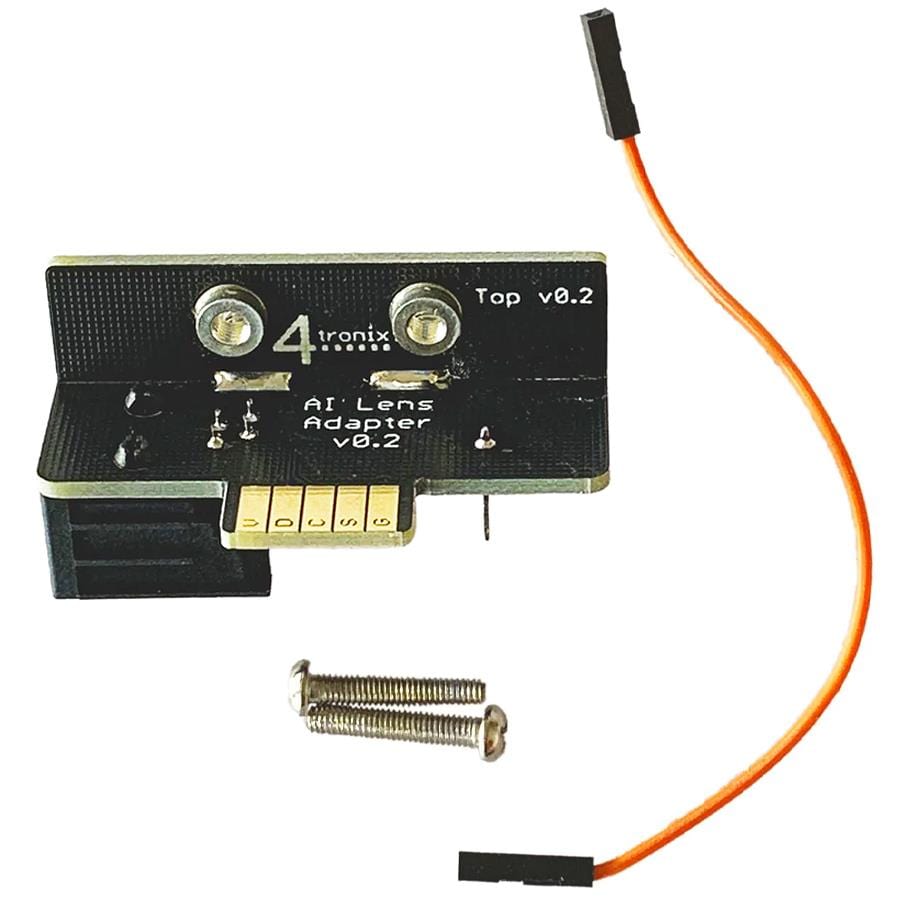

Package Contents

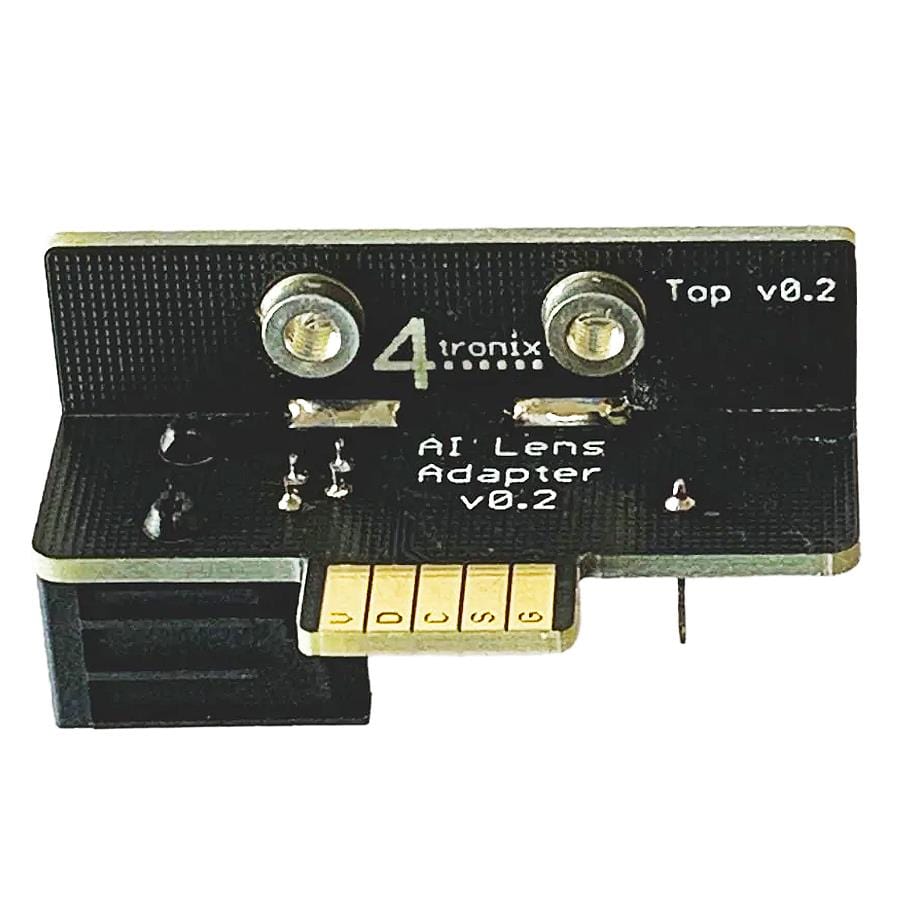

  • Assembled Adaptor (no soldering required). Includes captive nuts
  • 2 screws (M3, 16mm) to attach the camera
  • Jumper lead 10cm to connect to 5V pin on BitBot XL

Smart AI Lens and Bit:Bot XL are not included!

Assembly

  • Screw the camera to the adaptor so the lens points forwards or downwards
  • Plug the RJ11 cable (included with the camera) from the camera to the adaptor
  • Plug the adaptor into the front socket on the BitBot XL
  • Plug the 10cm jumper lead from the pin on the adaptor to the 5V pin on either Servo P0 or P1
