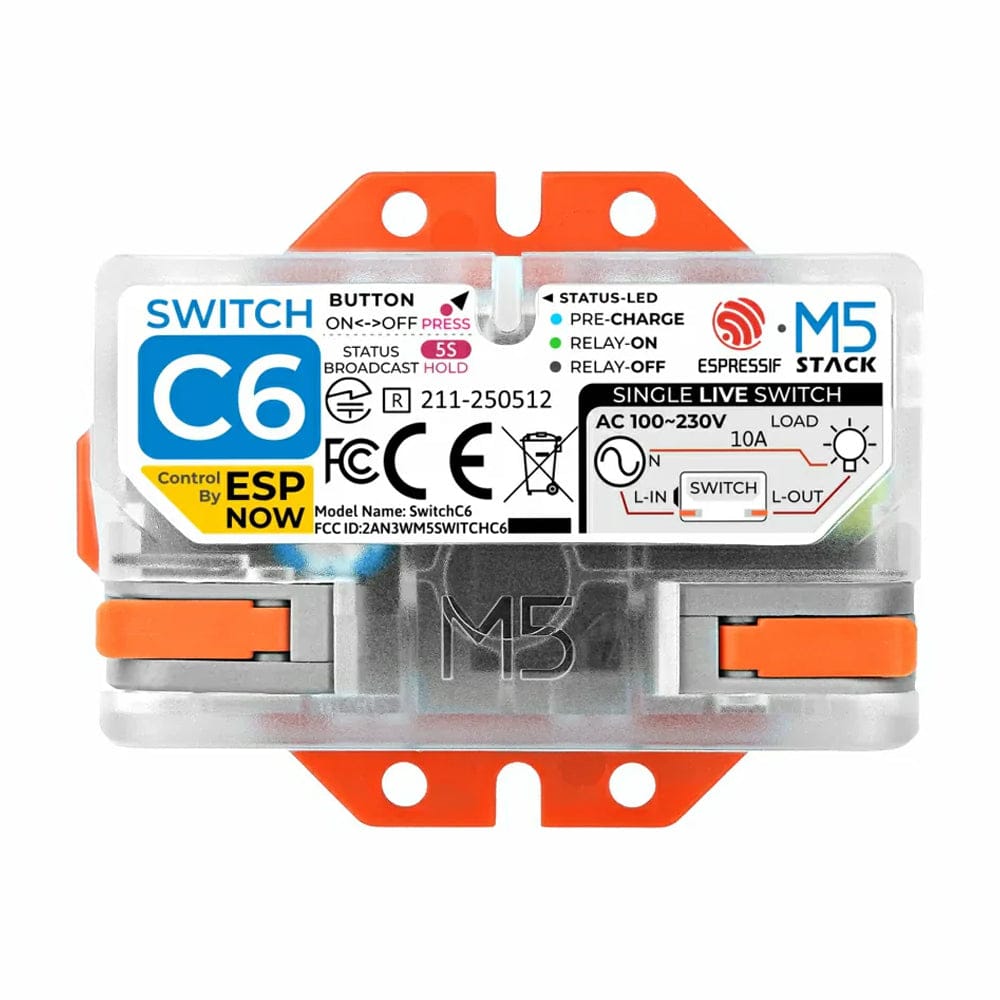

The SwitchC6 is a single-live-wire smart switch controller built around the ESP32-C6-MINI-1 SoC with a latching relay for AC 100–230V loads. Preloaded with ESP-NOW firmware for mesh networking, it supports wireless control via any ESP32 board and offers 2 isolated GPIOs for expansion—perfect for smart home upgrades without a neutral wire.
SwitchC6 is a single-live-wire smart switch controller designed for IoT applications. It features an integrated ESP32-C6-MINI-1 wireless SoC and a latching relay, supporting AC 100 ~ 230V electrical loads for quick smart home deployments.

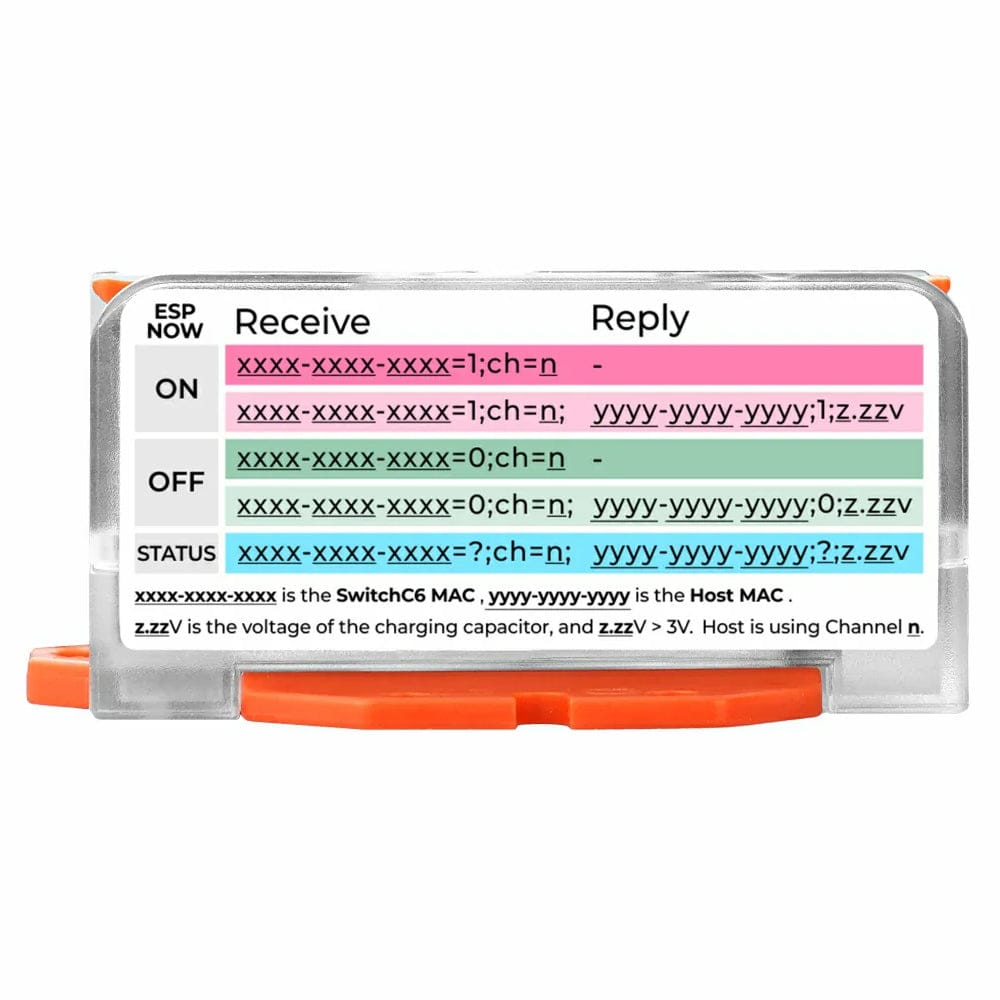

The controller comes preloaded with ESP-NOW firmware for mesh networking, along with a control protocol and SDK, allowing users to wirelessly control the device via any ESP32-based board. In addition to controlling standard lighting circuits, the hardware exposes 2 GPIOs through the CA-IS3642HW digital isolator, enabling secondary development and feature expansion.
Ideal for embedded smart home control or retrofitting traditional lighting systems without a neutral wire.
Features
Single live wire smart switch controller
Based on ESP32-C6-MINI-1 wireless SoC
2.4 GHz Wi-Fi 6
Integrated latching relay
Wide voltage support: compatible with AC 100-220V loads

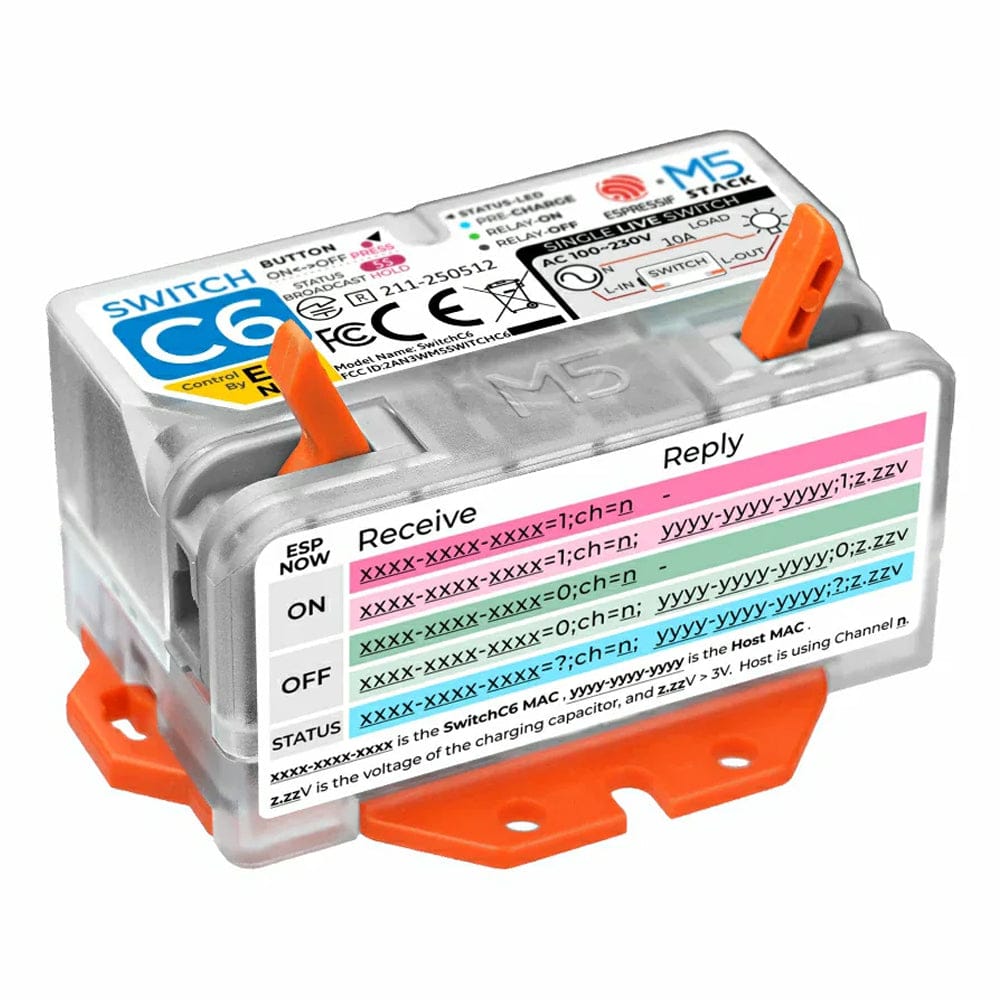

Preloaded ESP-NOW mesh networking firmware
Max load ≤ 2200W (10A)

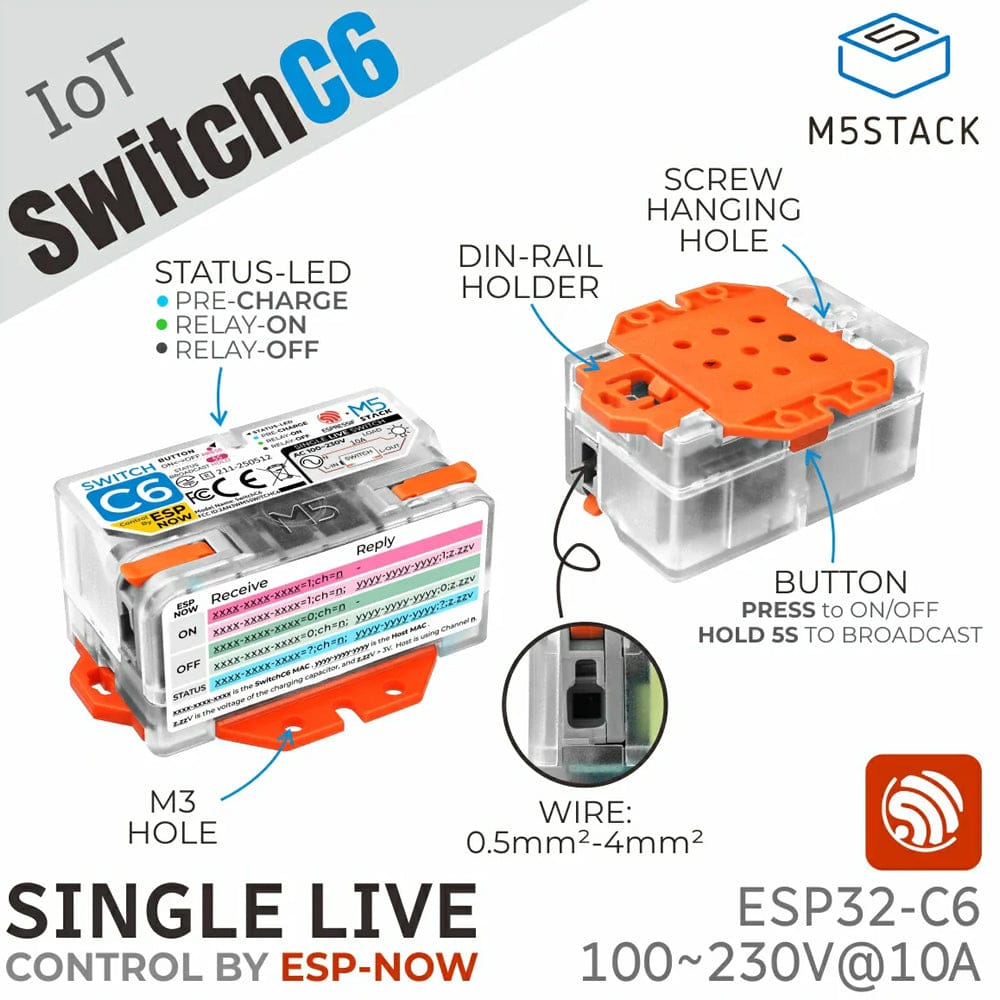

Status indicator LED
Specifications
SoC
ESP32-C6-MINI-1, 32-bit RISC-V single-core processor, up to 160 MHz
