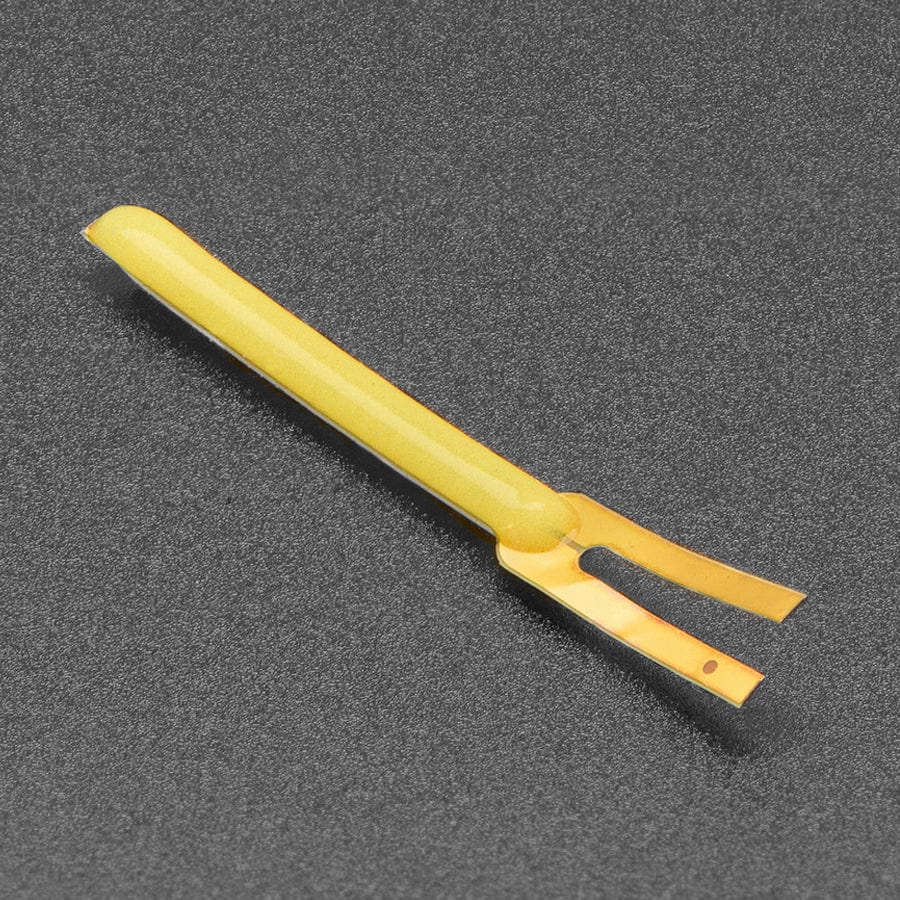

This flexible LED filament is often seen in 'Edison-like' LED bulbs, arranged in different patterns to give a bright, warm lighting effect. It's made of dozens of micro LED diodes that are bonded together on a flexible printed circuit backing, then coated in silicone for protection. Since the LEDs are in parallel, you only need ~3V to light 'em up - we recommend current-limiting with a resistor to let max 50mA through.

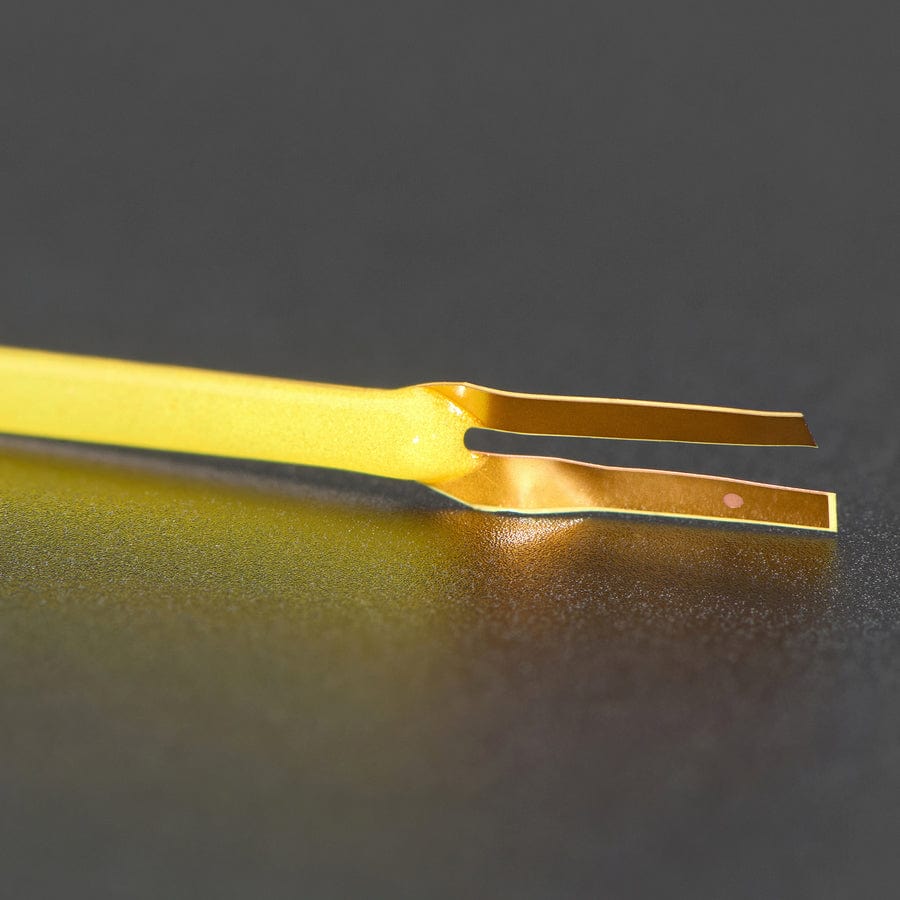

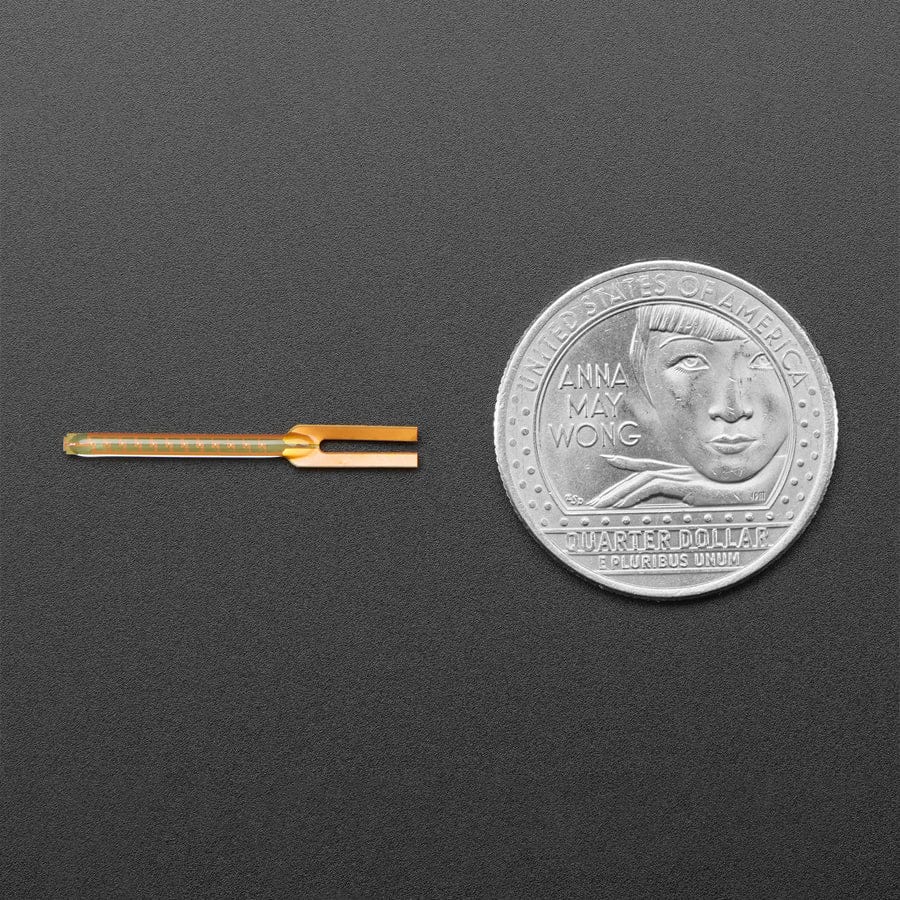

Like our longer n00ds, this filament is flexible despite its small size, and has a fairly uniform glow all the way around (although, up close you can see the mesh on the back side). It also has the two contacts on one end for easy installation.

Add some mini neon bling to your miniature sets, dioramas, wearables, dollhouses, mini-verses, what have you! Because they're just a 'big long LED' you can PWM dim them easily.

Simply power up with 3V by connecting to the double-ends - the anode positive should be the metal end with a little hole in it. If it doesn't immediately light up, try connecting the other way around, no biggie. Don't forget to have a current-limiting resistor!

Available in a range of colours, select an option before adding to your cart.

Resources

Package Contents

  • 1x Single-Ended Flexible LED Filament - 3V 25mm long (select a colour before adding to your cart)
