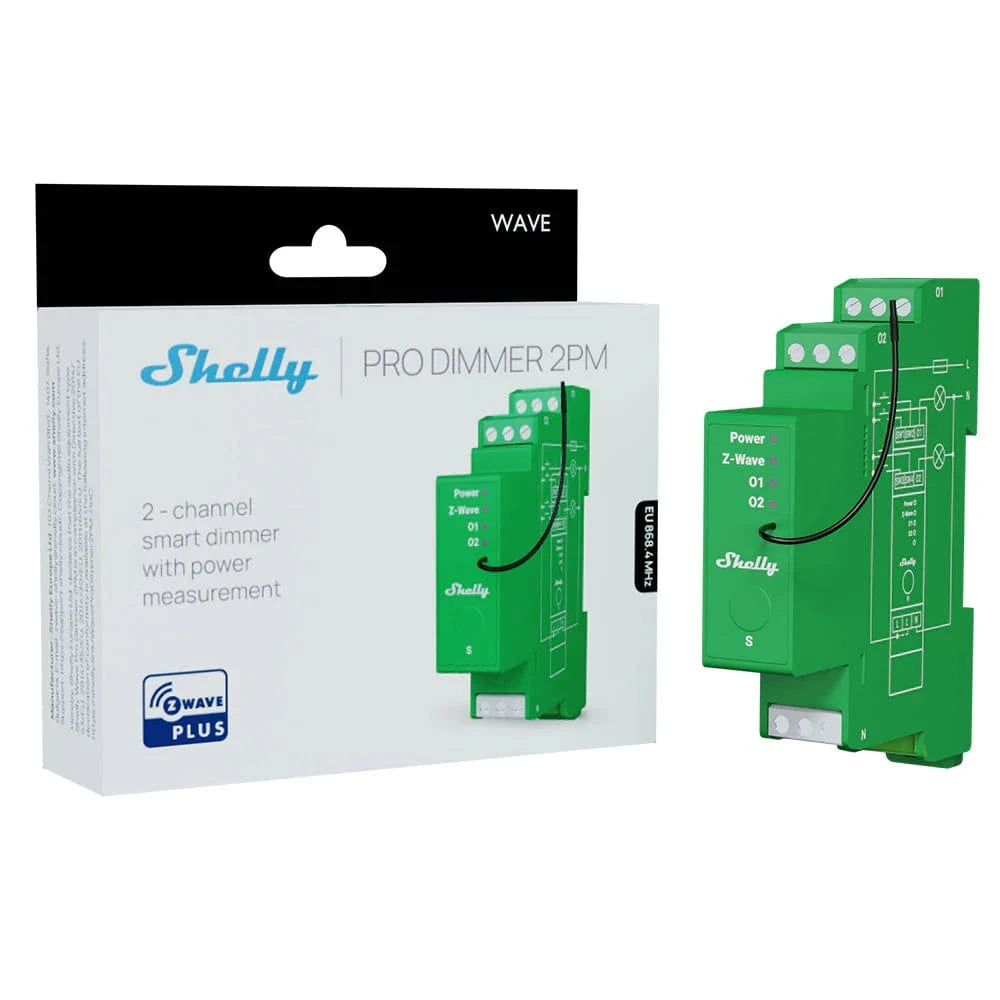

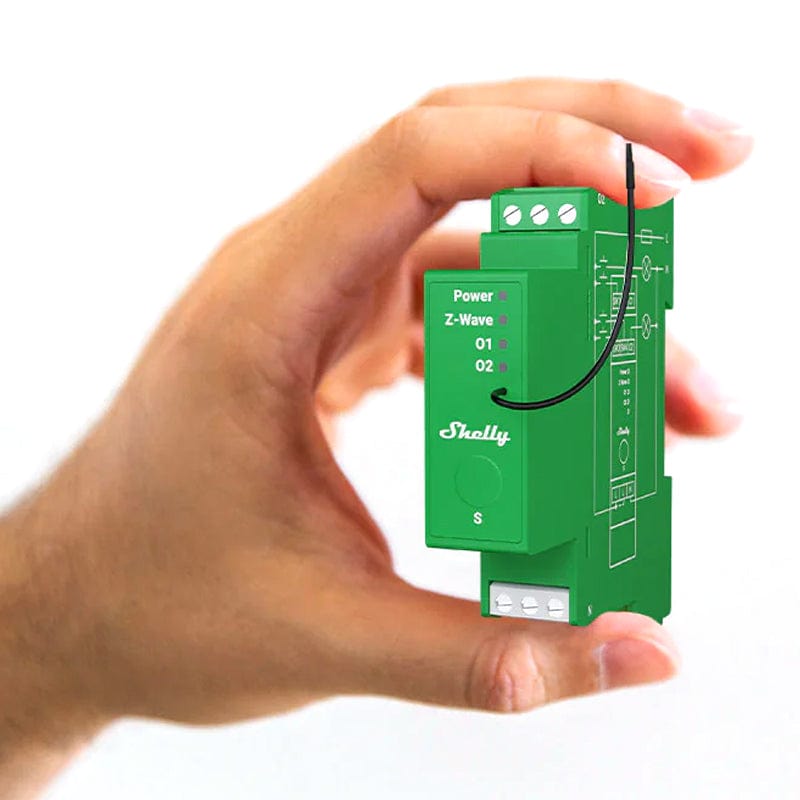

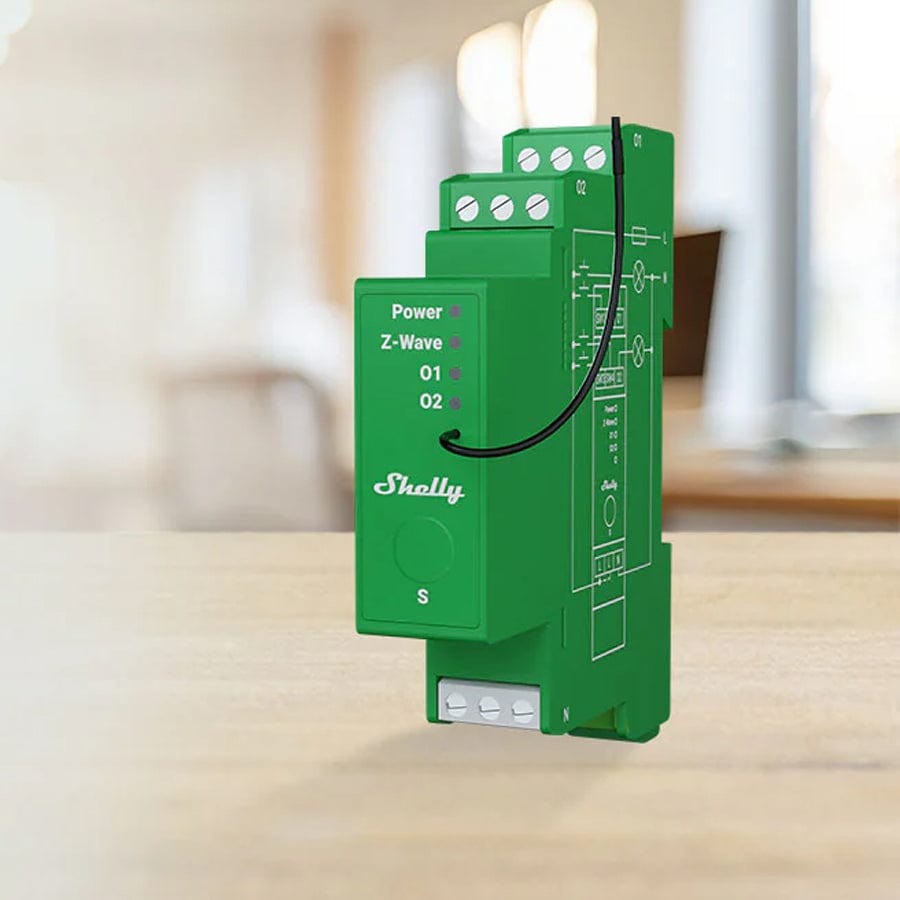

The Shelly Wave Pro Dimmer 2PM is a Z-Wave DIN-rail mountable, two-channel smart dimmer with power monitoring.
Use it to control, dim, and power measure a wide range of halogen lights, dimmable LED, and ferromagnetic transformers between 110-240V.
Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs, via the Shelly smart home ecosystem, including theShelly Smart Control app- or link it with a popular home automation software such asHome Assistant via aRaspberry Pi!
Note:You may require a neutral wire to use this product.Please research the device and your home wiring (safely, see below) before purchasing.
Shelly Wave works on Z-Wave
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub (Z-Wave gatewayis required)! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub.
All ShellyProproducts carry afive-yearmanufacturer warranty.
This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution.The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee(if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Highlights
Z-Wave operated - Include Shelly Wave Pro Dimmer 2PM to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.
Power monitoring - Shelly Wave Pro Dimmer 2PM provides precise monitoring of power consumption
Smart Scenes - Set custom scenes by combining Shelly Wave Pro Dimmer 2PM with your other Shelly devices
Light intensity adjustment - Use the dimming function to set the brightness of your lights to your preference
Flexible input control - Use it with your existing switches, no matter if they're single or dual button
The highest level of security - Include the device as Security 2 Authenticated for encrypted communication and utmost safety of your Z-Wave network.
Features
Dimming type: Trailing edge
Power measurement
Automatic dimming calibration
Switch/button input mode
Use with your existing switches (one/dual button control)
Adjustable min/max brightness
Adjustable button fade rate and transition time

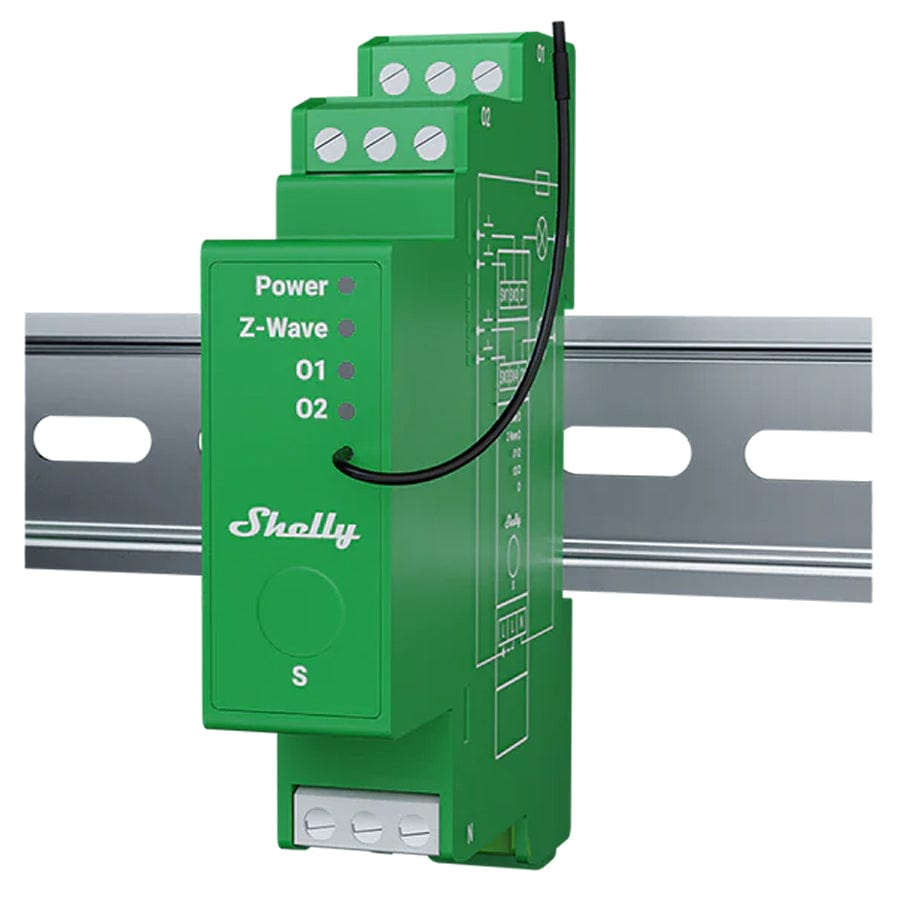

DIN-rail mountable
Extremely low power consumption: < 0.3 W
Z-Wave frequency band: 868.4 MHz (CEPT countries)
Latest technology: Z-Wave 800 Series
Automatic set-up with SmartStart
Security 2 Authenticated for the highest level of security
Over-the-air firmware updates
Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included.A Z-Wave gateway (smart hub) is required for the configuration of the device.
Specifications
Power supply
110 - 240 V AC, 50/60 Hz
Power consumption
< 0.3 W
External protection
10 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3
Dimming type
Trailing edge
Power measurement [W]
Yes
Max. output power
200 W per channel
Overheating protection
Yes
Overload protection
Yes
Overvoltage protection
Yes
Distance
Up to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave® repeater:
Yes
CPU
Z-Wave® S800
Z-Wave® frequency bands
868.4 MHz
Maximum radio frequency power transmitted in frequency band(s)
< 25 mW
Size (H x W x D)
94x19x69 ± 0.5mm
Weight
75g
Mounting
DIN rail
Screw terminals max. torque
0.4 Nm / 3.54 lbin
Conductor cross-section
0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
0.5 to 1.5 mm² / 20 to 16 AWG (white connectors) (solid, stranded, and bootlace ferrules)
