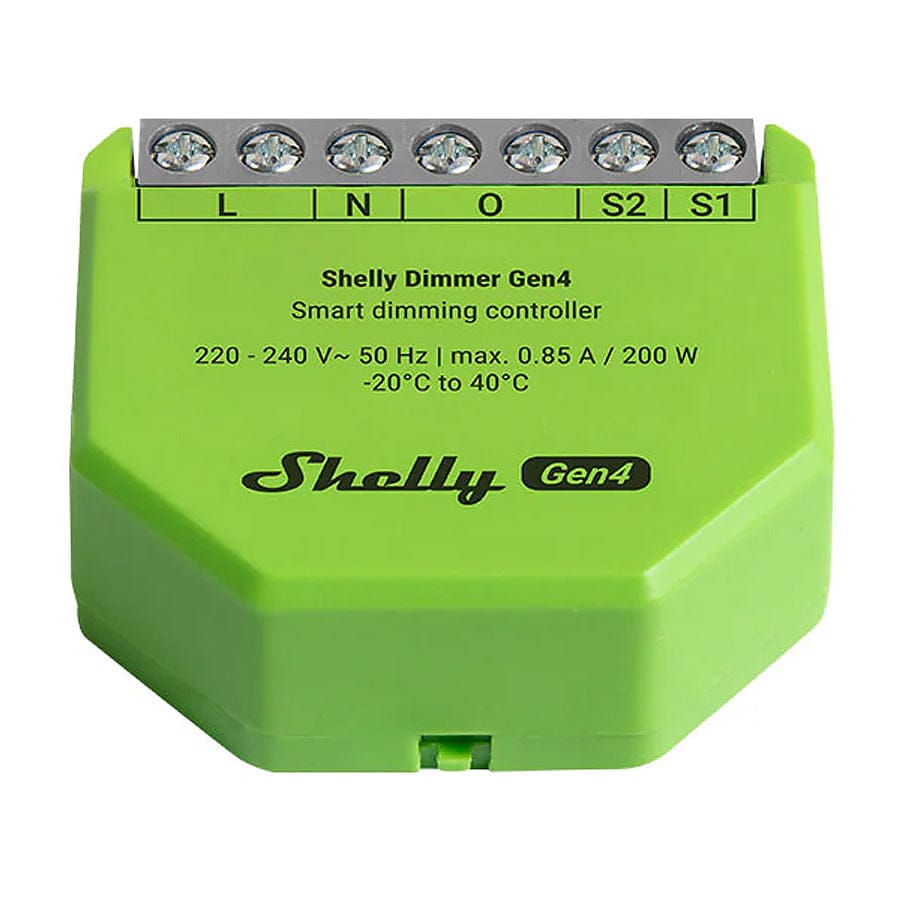

The ShellyDimmer Gen4 is a single-channelsmart dimming controller with the Gen4 Shelly chip, offering multiprotocol support - Wi‑Fi, Bluetooth, Zigbee and Matter-certified - allowing you to integrate it into a wide range of home automation systems without needing a hub - including Home Assistant!
The controller can support dimmable LED lamps up to 150W, incandescent bulbs up to 200W, halogen lamps up to 200W, iron-core transformers with low-voltage incandescent lamps up to 200VA, and dimmable electronic transformers up to 200W. It provides fine-tuning of the light’s response speed when adjusting brightness, and fine-tuning of the light’s fade time when toggling on or off.
Power metering is also included - voltage, current and consumption information is displayed when the device is used with neutral.
You don't need a neutral wire to use the Shelly Dimmer Gen4, allowing greater flexibility for different wiring setups (Note: a Shelly Bypass for Dimmer is required when the device is used without neutral and the load is under 20W).
Smart scenes: Combine with other Shelly devices to trigger actions and build custom automations.
Smart schedules: Set schedules based on your routine or sync with sunrise and sunset for adaptive lighting.
Night Mode: Create comfortable ambient lighting and automatically adjust to your predefined brightness during specific hours of the day.
Min/max brightness & fade rate: Adjust brightness levels and transition speeds for more precise control.
Flexible input control: Use it with your existing switches and/or buttons for a fast and convenient control.
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution.The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee(if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
No neutral required: works without a neutral wire
Connectivity: Wi-Fi, Bluetooth, and Zigbee
Matter support: easy smart setup
No hub required: works locally, remotely, and with 3rd-party systems
Compatibility: supports Home Assistant, Alexa, Google Home, SmartThings, and more
Range extender support: can extend Wi-Fi and Zigbee networks
Automation: scripts, schedules, local actions, timers, and webhooks
Integrations: HTTP API, MQTT(s), KNX, Webhooks, and UDP
Power monitoring: voltage, current, and power metering when used with neutral
Protection: over-current, over-voltage, and over-power protection
Dimming control: min/max brightness, transition duration, fade rate, presets, and night mode
Input modes: supports one-button and two-button dimming control
Auto calibration: smooth dimming setup and adjustment
Logs and storage: activity log and key-value storage
Specifications
Size (HxWxD):
38.5x43.5x17mm
Weight:
24.3g
Screw terminals max torque:
0.4 Nm / 3.5 lbin
Conductor cross section:
0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:
5 to 6 mm
Mounting:
In-wall
Shell material:
Plastic
Shell color:
Lime
Print color:
Black
Connectors color:
Gray
Ambient working temperature:
-20°C to 40°C
Humidity:
30% to 70% RH
Max. altitude:
2000m
Power supply:
220-240 V~ 50 Hz
Power consumption:
< 1.5 W
Neutral required:
No
Min. load without neutral and without a Bypass:
20W
Dimming type
Trailing edge
External protection:
16 A, tripping characteristic B or C, 6 kA interrupting rating, energy limiting class 3
Max. output power:
200W
Max. current:
0.85A
Voltmeter (AC):
180V - 280 V
Voltmeter accuracy:
± 5 % (when used with neutral)
Ammeter (AC):
0 A - 3A
Ammeter accuracy:
± 5 % (when used with neutral)
Internal-temperature sensor:
Yes
Wi-Fi
Protocol:
802.11 b/g/n/ax
RF band:
2401 - 2483 МHz
Max. RF power:
< 20 dBm
Range:
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:
5.0
RF band:
2400 - 2483.5 MHz
Max. RF power:
< 4 dBm
Range:
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Zigbee
Protocol:
802.15.4
Zigbee repeater:
Yes
RF bands:
2400 to 2483.5 MHz
Max. RF power:
< 20 dBm
Range:
Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:
ESP-Shelly-C68F STM32 G051
Clock frequency:
ESP-Shelly-C68F: 40 Mhz
Flash:
8 MB
Firmware capabilities
Schedules:
20
Webhooks (URL actions):
20 with 5 URLs per hook
Scripting:
Yes
MQTT:
Yes
*Precise measurement is possible only when used with neutral.
