Sewable USB Micro B Power Jack Connector

Sewable USB Micro B Power Jack Connector

Name: Sewable USB Micro B Power Jack Connector
Brand: Adafruit
SKU: ADA6076
Price: 2.40 GBP
Availability: InStock

AdafruitSKU: ADA6076

£2.40

incl. VAT

excl. VAT

Only 2 units left

Awesome Extras

The Pi Hut USB-A to Micro-USB Cable

From £1.50 incl. VAT excl. VAT

Adafruit Sewable Connector with 5.5/2.1mm DC Jack

£2.40 incl. VAT excl. VAT

Adafruit Sewable USB Type C Power Jack Connector

£2.40 incl. VAT excl. VAT

Small Alligator Clip Test Lead (set of 12) - The Pi Hut

The Pi Hut Small Alligator Clip Test Lead (set of 12)

£3.40 incl. VAT excl. VAT

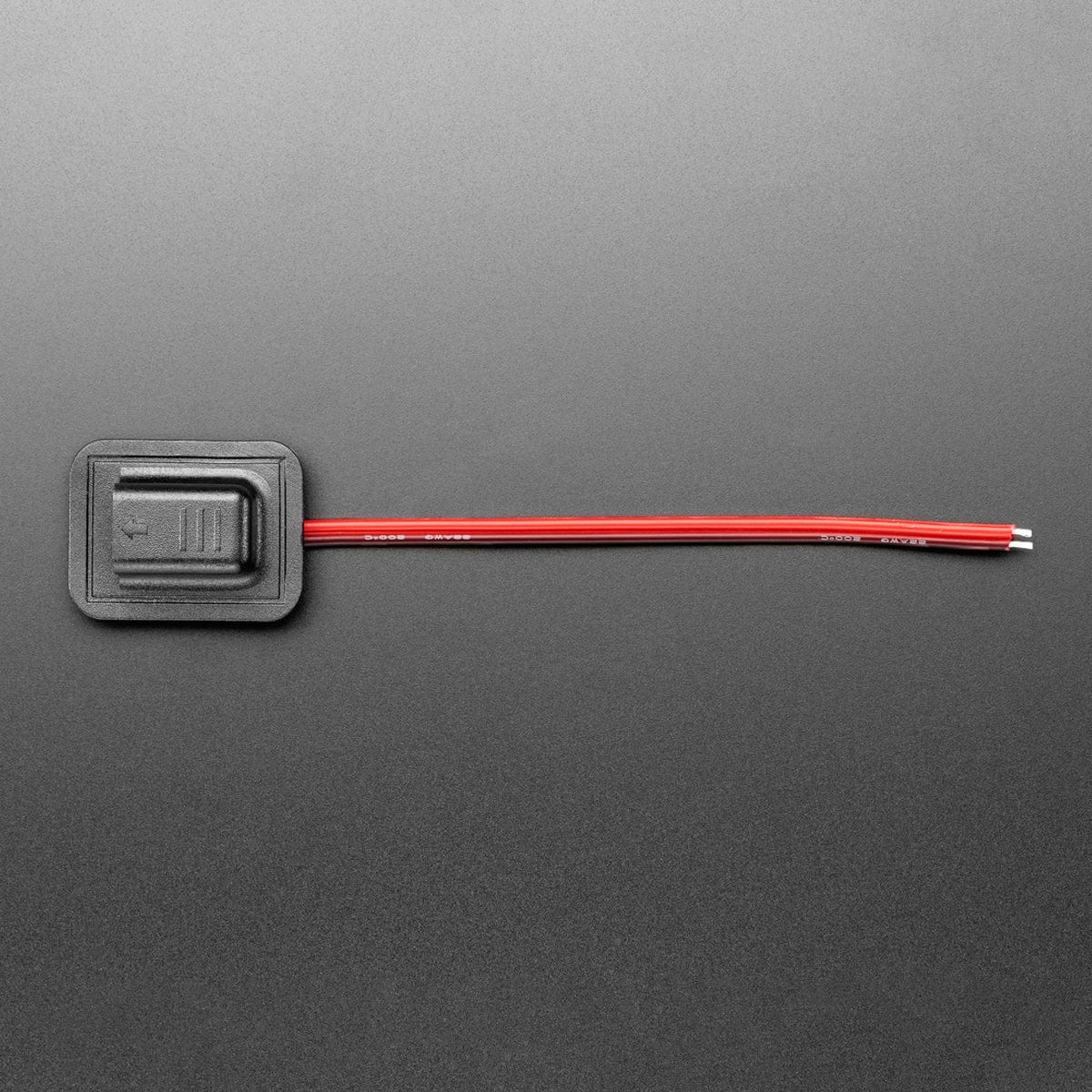

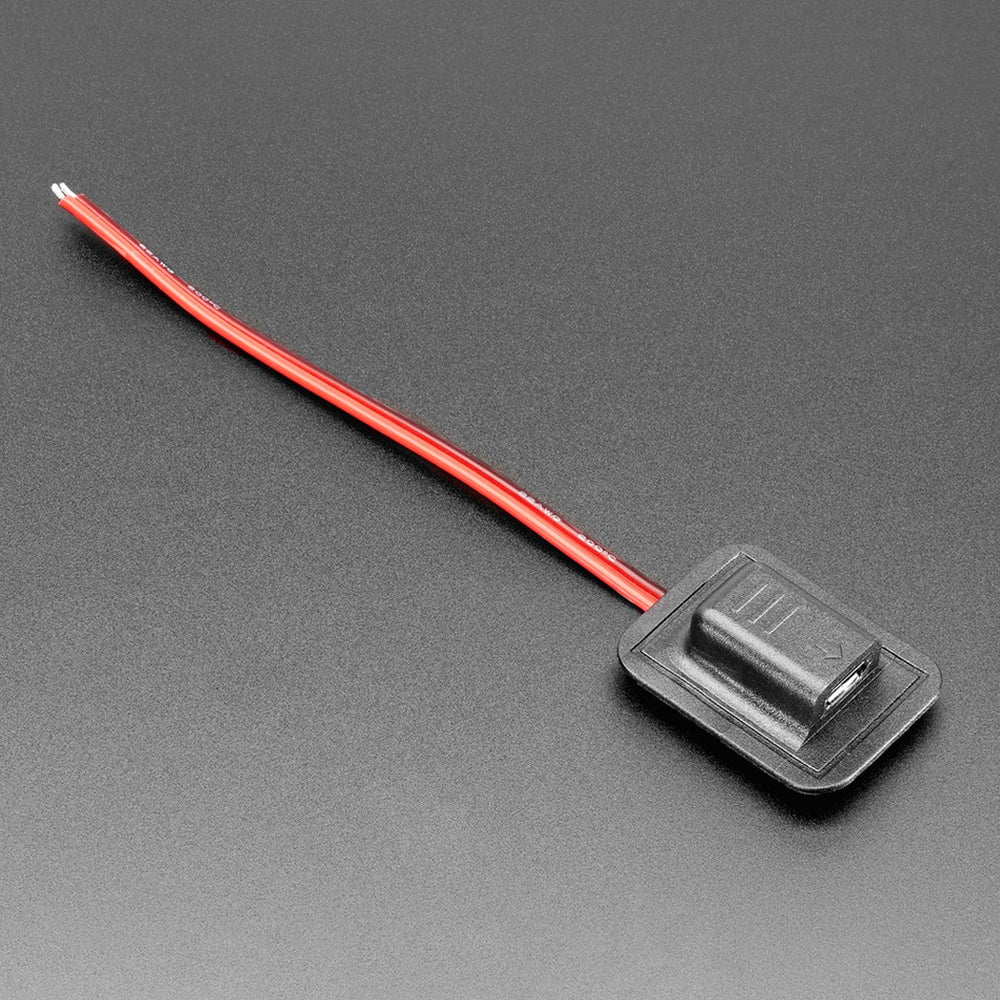

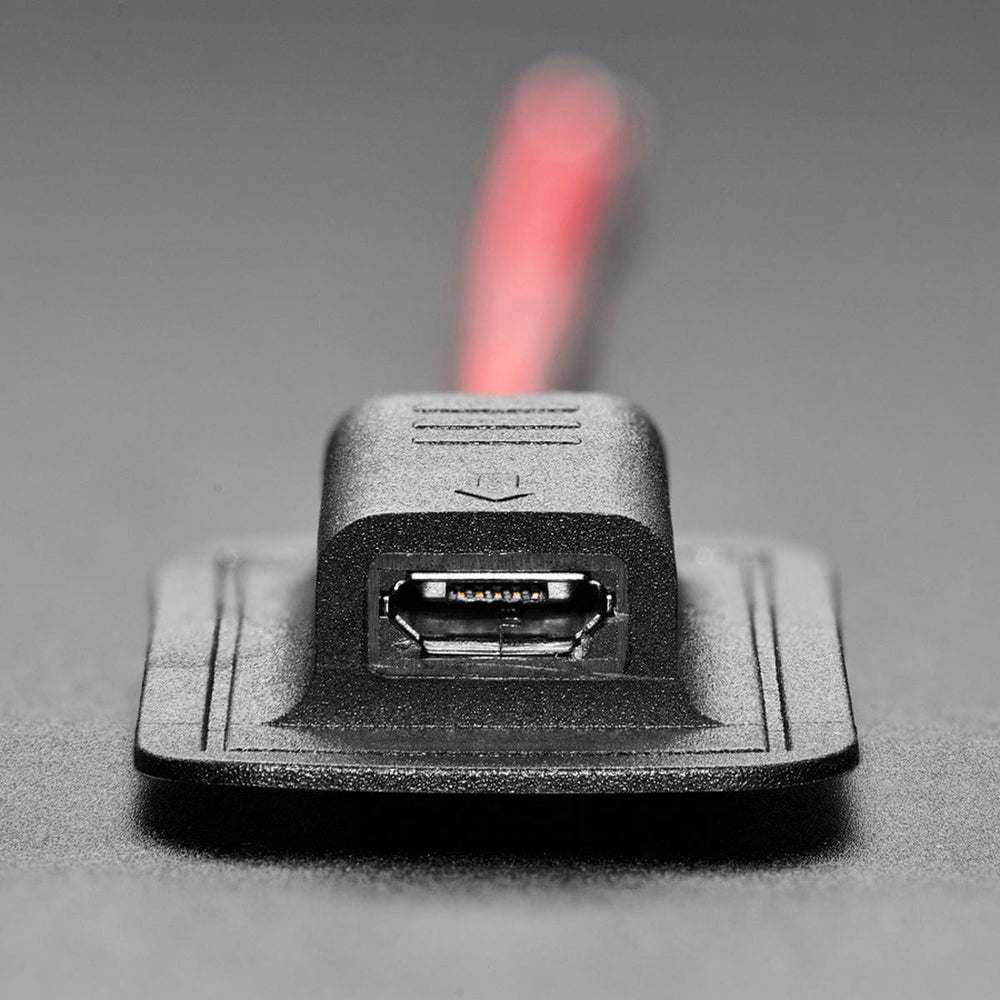

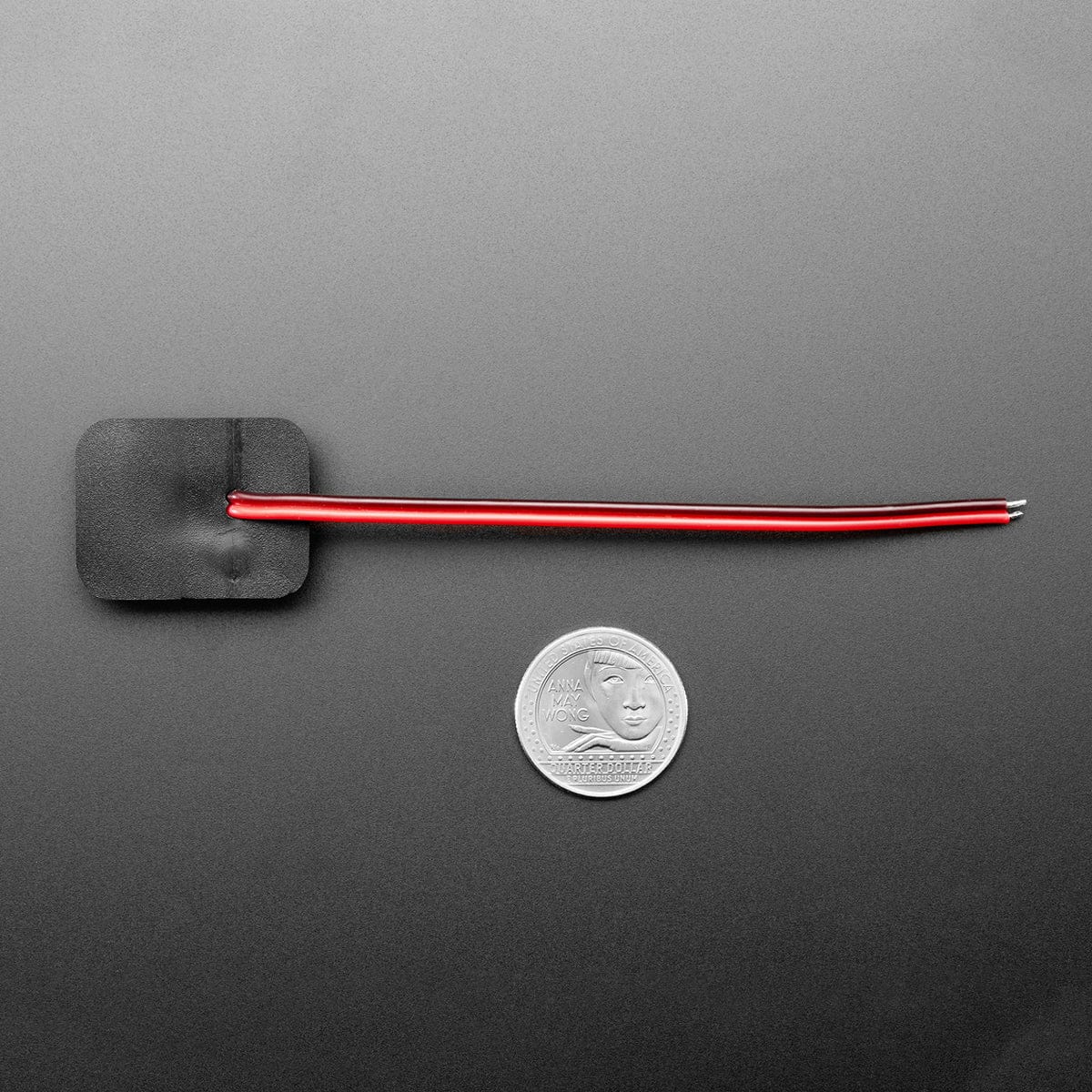

If you'd like to connect a Micro-B connector to your favourite garment to make a fun wearable tech project, then try out the array of sewable connectors we have. This is a Micro-B connector that is oriented in a horizontal position to the sewable base it's housed on with red and black wires running through the bottom.

The jack is moulded into a rubber that can be hand or machine-sewed through, then connected to the power wires on the end, red is positive/power and black is negative/ground. If desired, you can also glue /epoxy /staple it to a flat surface.

No data lines are connected, this is intended for charging batteries or powering a wearable project from a USB power pack.

We also stock a USB-C and a 5.5/2.1mm DC Jack version

Detector and cables are NOT included
