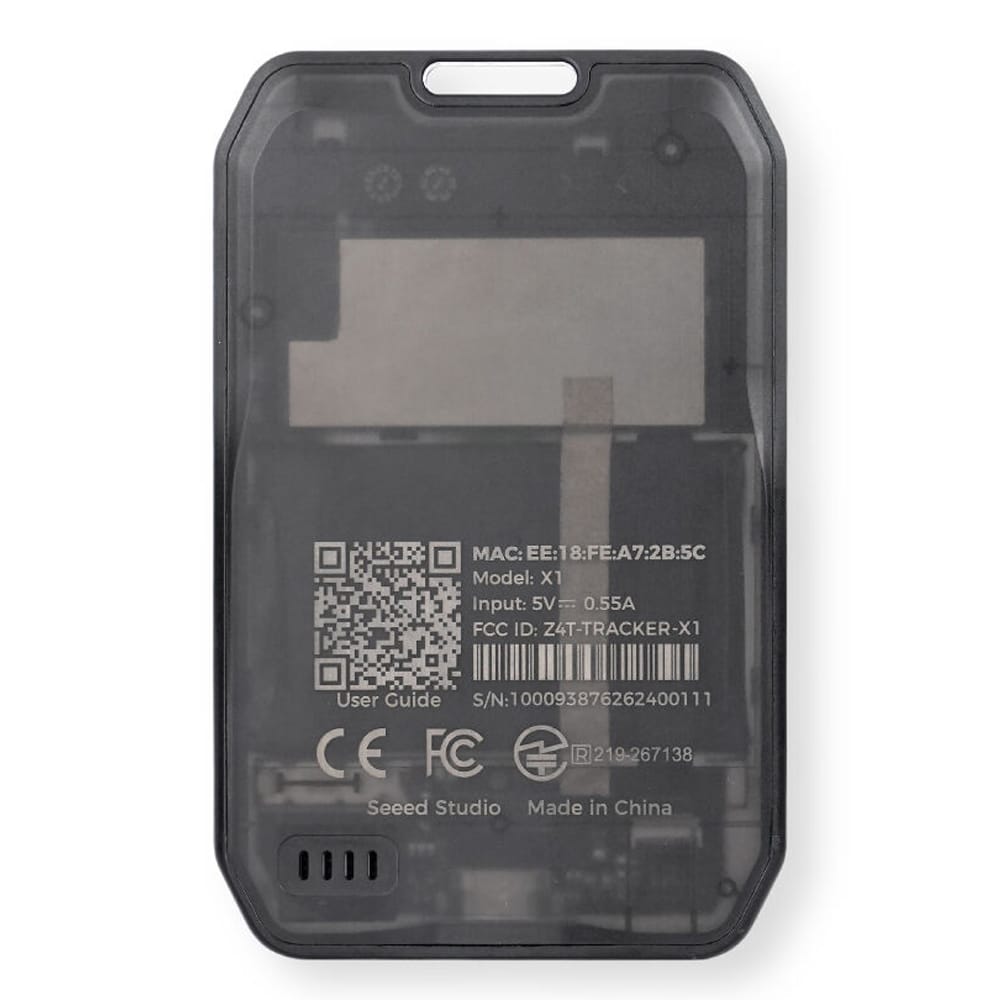

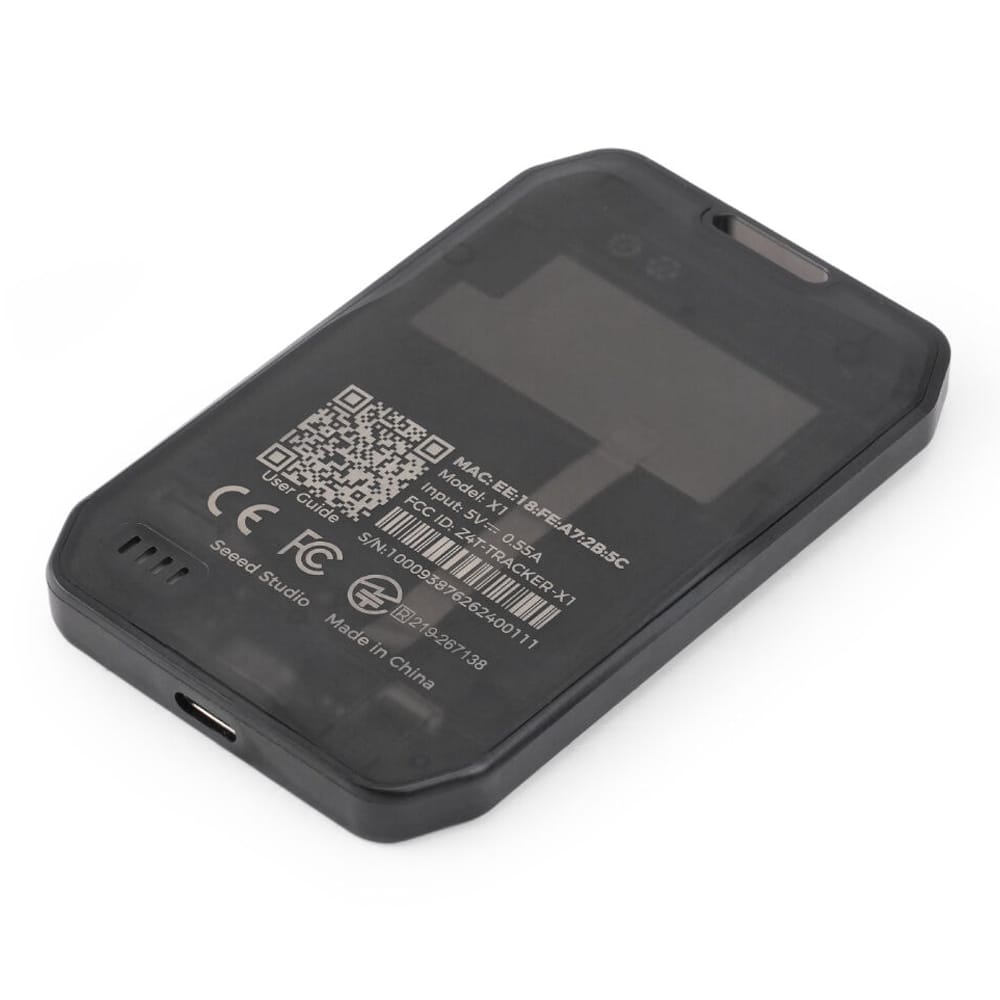

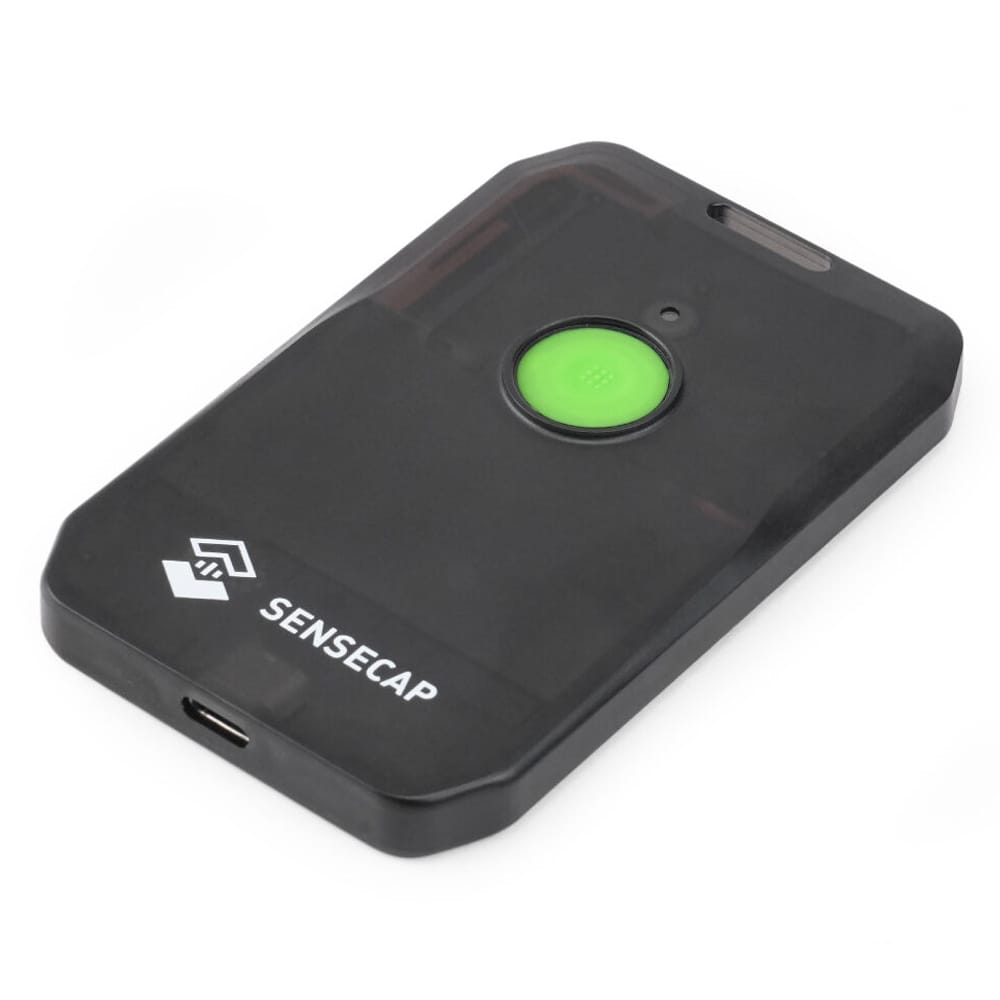

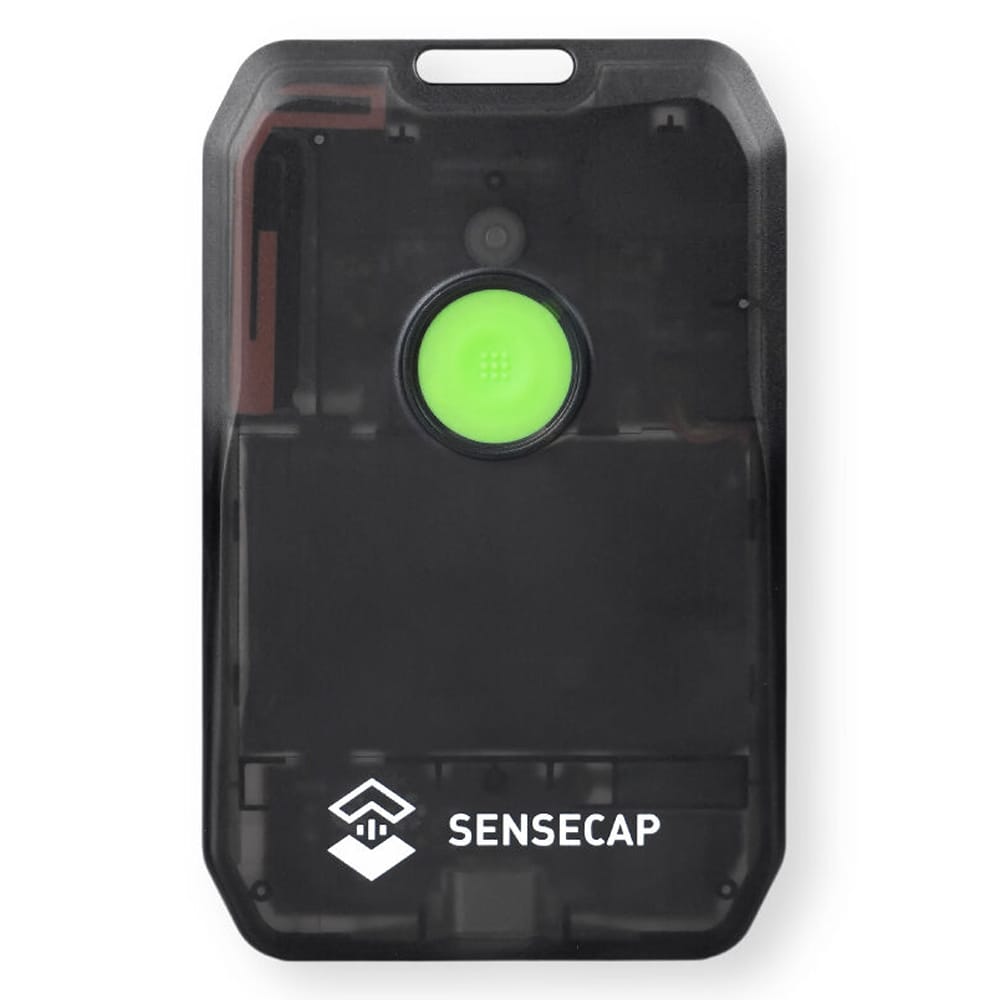

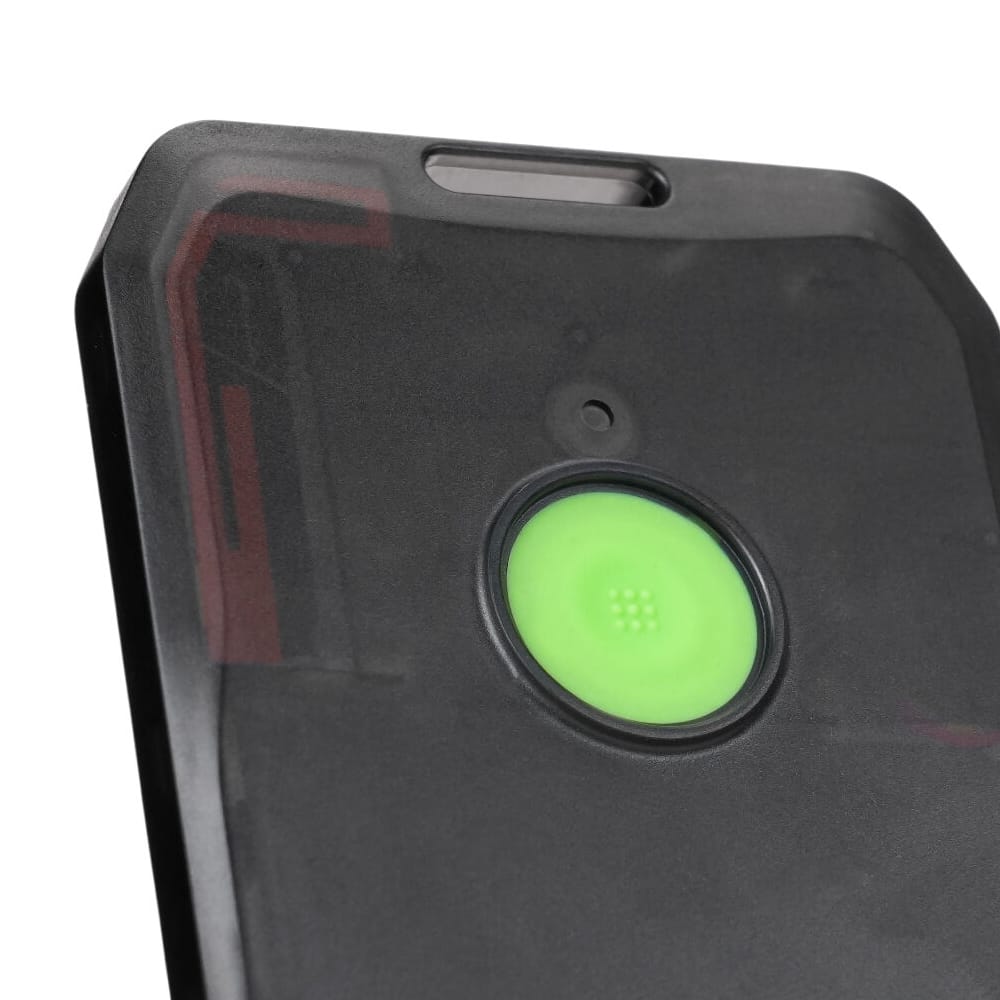

The MeshTracker X1 is a card-sized Meshtastic® GPS tracker built for off-grid communication, combining dual-band GPS, 863–928MHz LoRa support and up to five days of battery life in an IP66-rated design.
The world's first card-sized Meshtastic® device with dual-band GPS. Built for reliable off-grid communication, MeshTracker X1 is an IP66-rated Meshtastic GPS tracker supporting 863–928 MHz frequencies.
Powered by the latest Semtech LR2021 LoRa chip, it features BLE 5.0, USB-C connectivity, up to 5 days of battery life, and a compact, outdoor-ready design.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
A Meshtastic Device You'll Actually Carry: SenseCAP MeshTracker X1 is designed for people who need reliable communication and location sharing beyond cellular networks—whether in the outdoors, at large events, or during emergency situations. With a truly portable form factor and rugged IP66 protection, it brings Meshtastic connectivity into everyday carry and real field use.
Ultra-Precise Dual-Band GPS Tracking: Powered by dual-band L1+L5 GNSS and a built-in barometer, MeshTracker X1 delivers more reliable positioning and altitude awareness than single-band GPS. It is also the world's first card-sized Meshtastic device with dual-band GPS.
Reliable Long-Range Communication: Tested at 915 MHz, MeshTracker X1 enables reliable communication over distances of up to 8 km in open line-of-sight conditions, keeping teams connected during outdoor adventures, events, and emergency situations.
Next-Generation LoRa Connectivity (LR2021): Powered by Semtech LR2021, MeshTracker X1 delivers stronger RF performance with up to -141 dBm sensitivity and 2.6 Mbps FLRC data rates for faster, more reliable mesh communication, creating a foundation for future features like voice and image transmission.

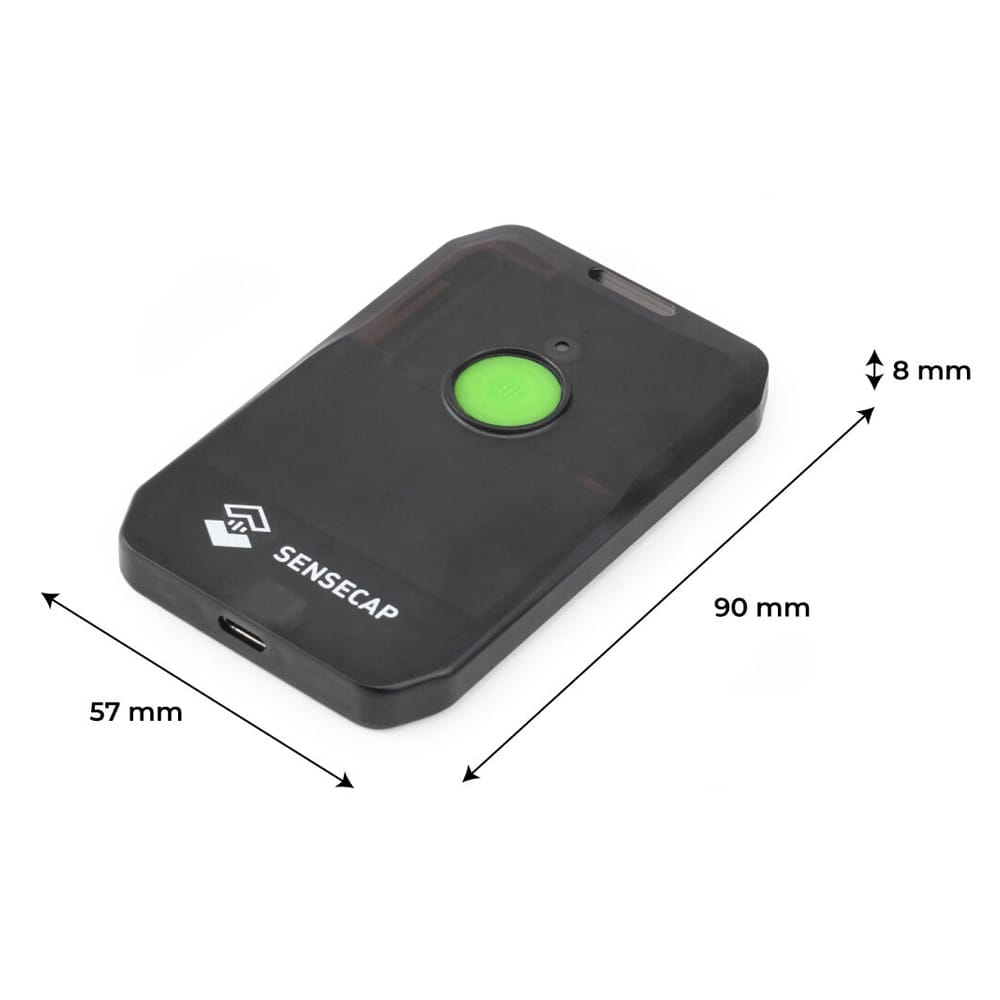

Card-Sized Design, Easy to Carry: Slim and lightweight, MeshTracker X1 is designed for everyday carry during outdoor adventures. Wear it on a lanyard, attach it to a backpack, secure it to a bike bag, or simply slip it into your pocket for effortless off-grid connectivity.

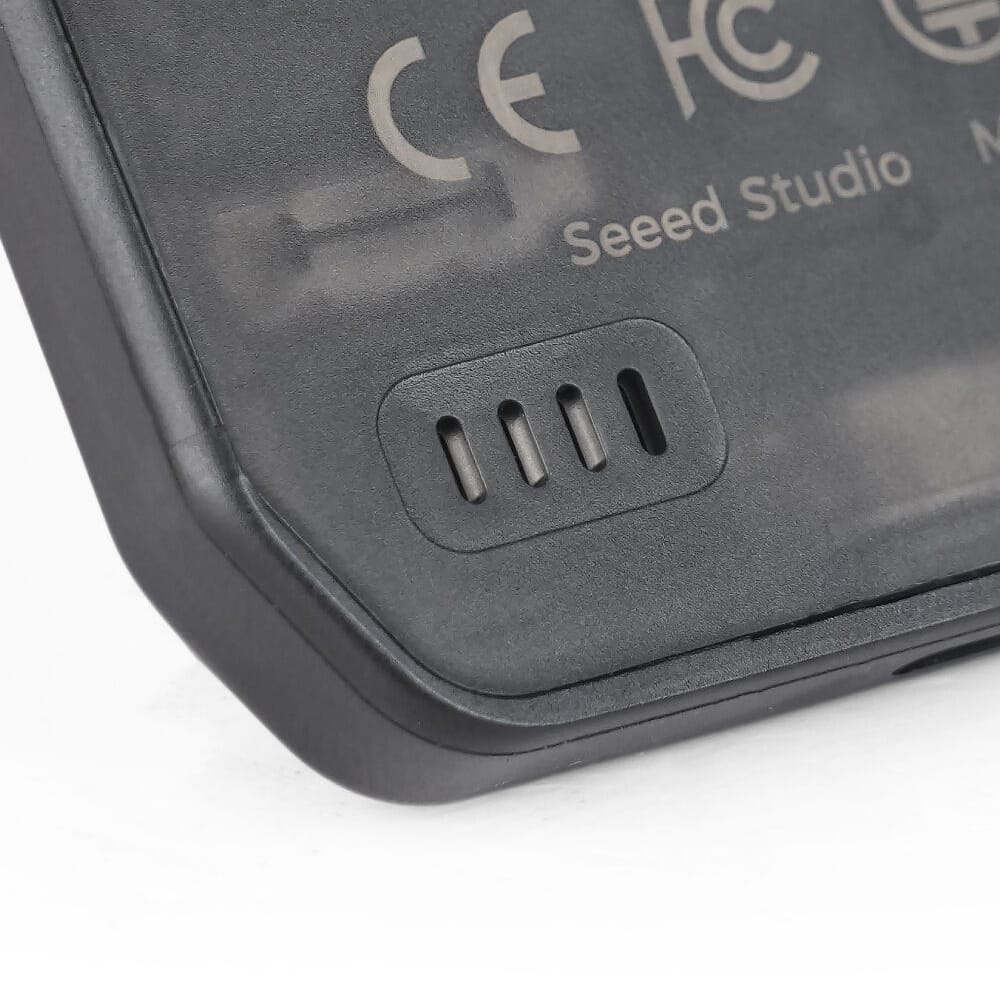

Flexible Vibration & Sound Alerts: MeshTracker X1 provides flexible notification options with built-in vibration and buzzer feedback. Stay aware of incoming messages whether you're in a noisy event, riding outdoors, or exploring quiet trails where you prefer minimal distractions.
IP66 Rugged Outdoor Protection: Built with IP66-rated protection against dust and water, ensuring reliable performance in harsh outdoor environments such as rain, mud, and dusty trails.

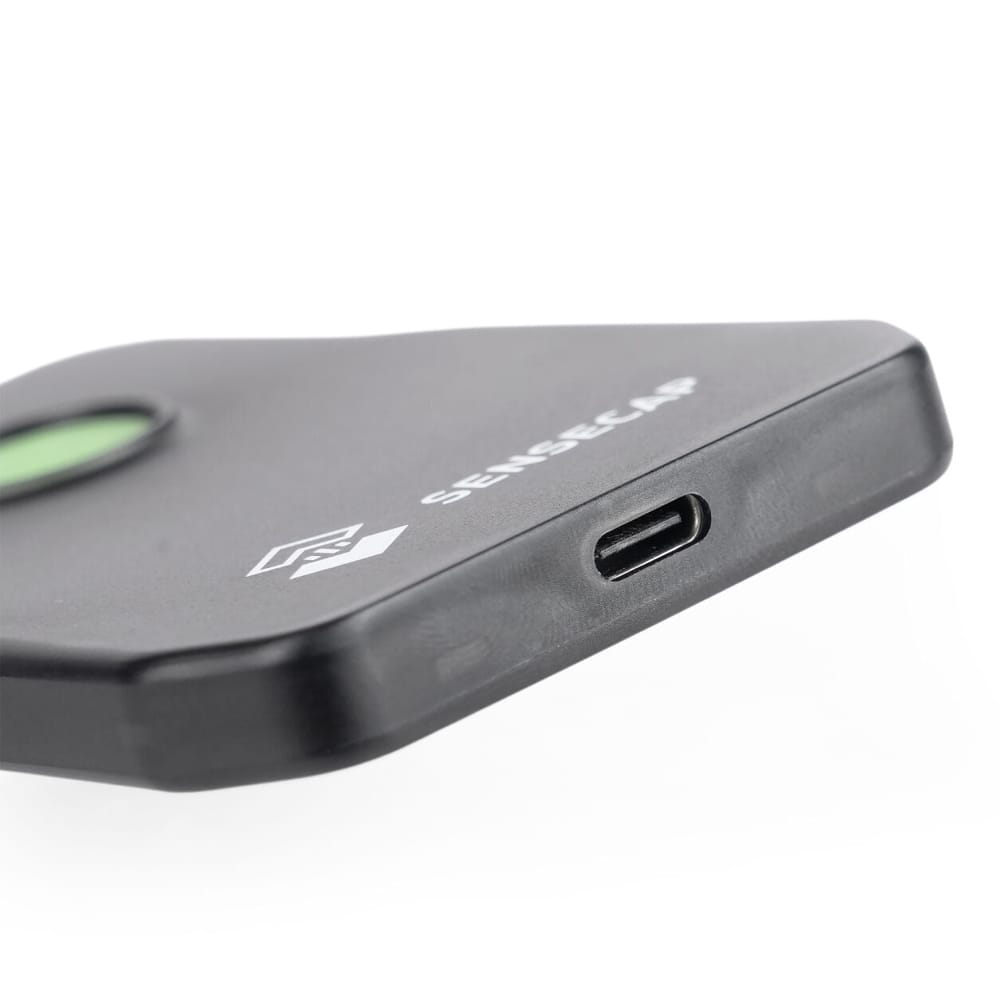

USB-C Connectivity: Standard USB-C interface for charging, firmware updates, and debugging, designed for rugged outdoor use and everyday convenience.
Extended Battery Life: A highly integrated, card-sized form factor optimized around a high-capacity 1100mAh battery, delivering up to 5 days of runtime while remaining compact and portable for outdoor carry and off-grid communication.
Specifications
Main Controller
Nordic nRF52840
LoRa
Semtech LR2021 Frequency Range: 863–928 MHz MAX TX Power: 22 dBm
Wireless
Bluetooth (v5.0)
LED
1 × RGB
Buzzer
1 × buzzer to indicate status
Button
1 × button to operate
Vibration
1 × DRV2605L
Sensor
Air Pressure Range: 300–1100 hPa Accuracy: ±0.03 hPa Resolution: 0.06 Pa
