Self-Test Cable for Home Automation HAT

SequentSKU: 104822
Price:
Sale price £10.80
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Awesome Extras

SequentHome Automation 8-Layer Stackable HAT for Raspberry Pi
Sale price £68.40 incl. VAT excl. VAT
Raspberry PiRaspberry Pi 4 Model B
Sale priceFrom £33.60 incl. VAT excl. VAT

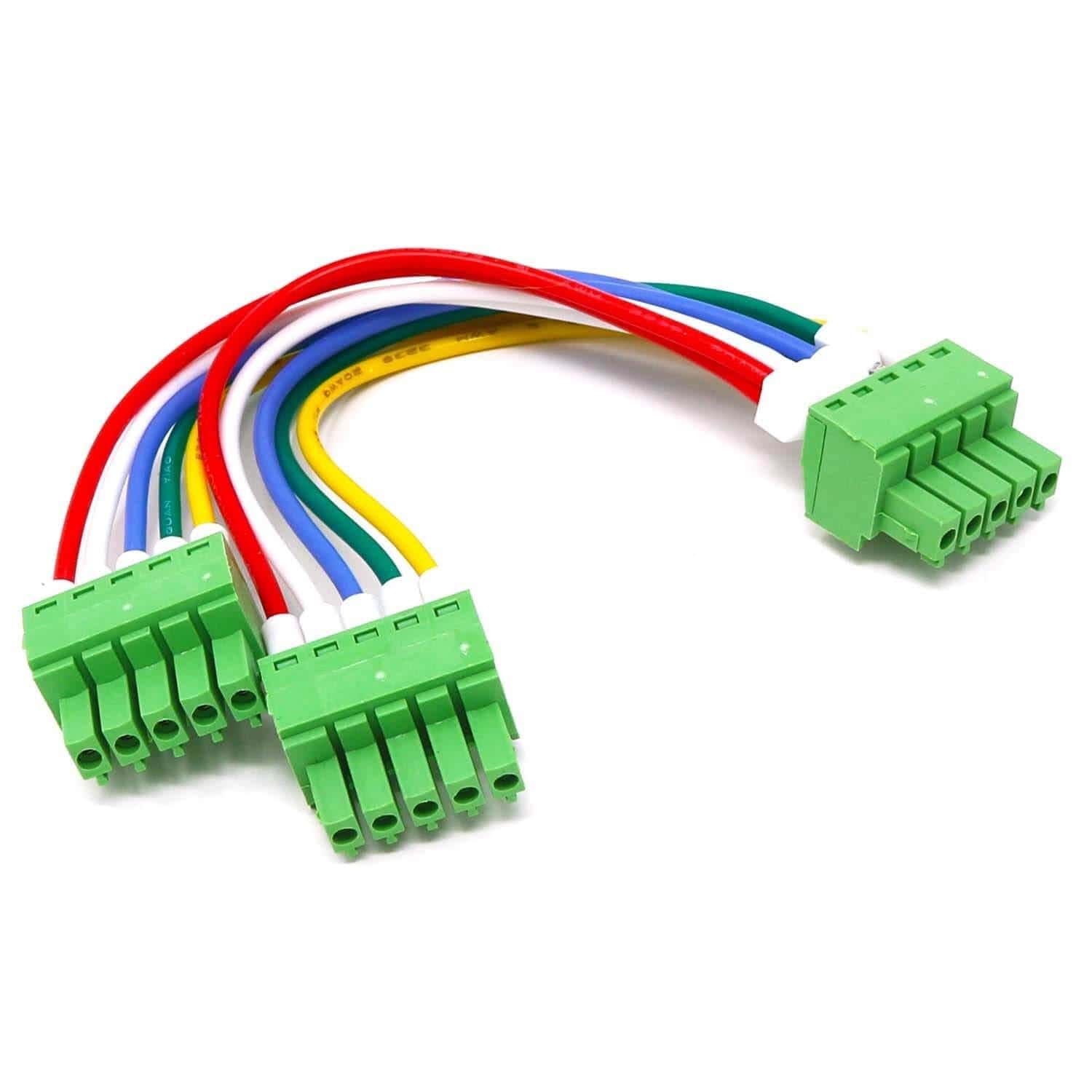

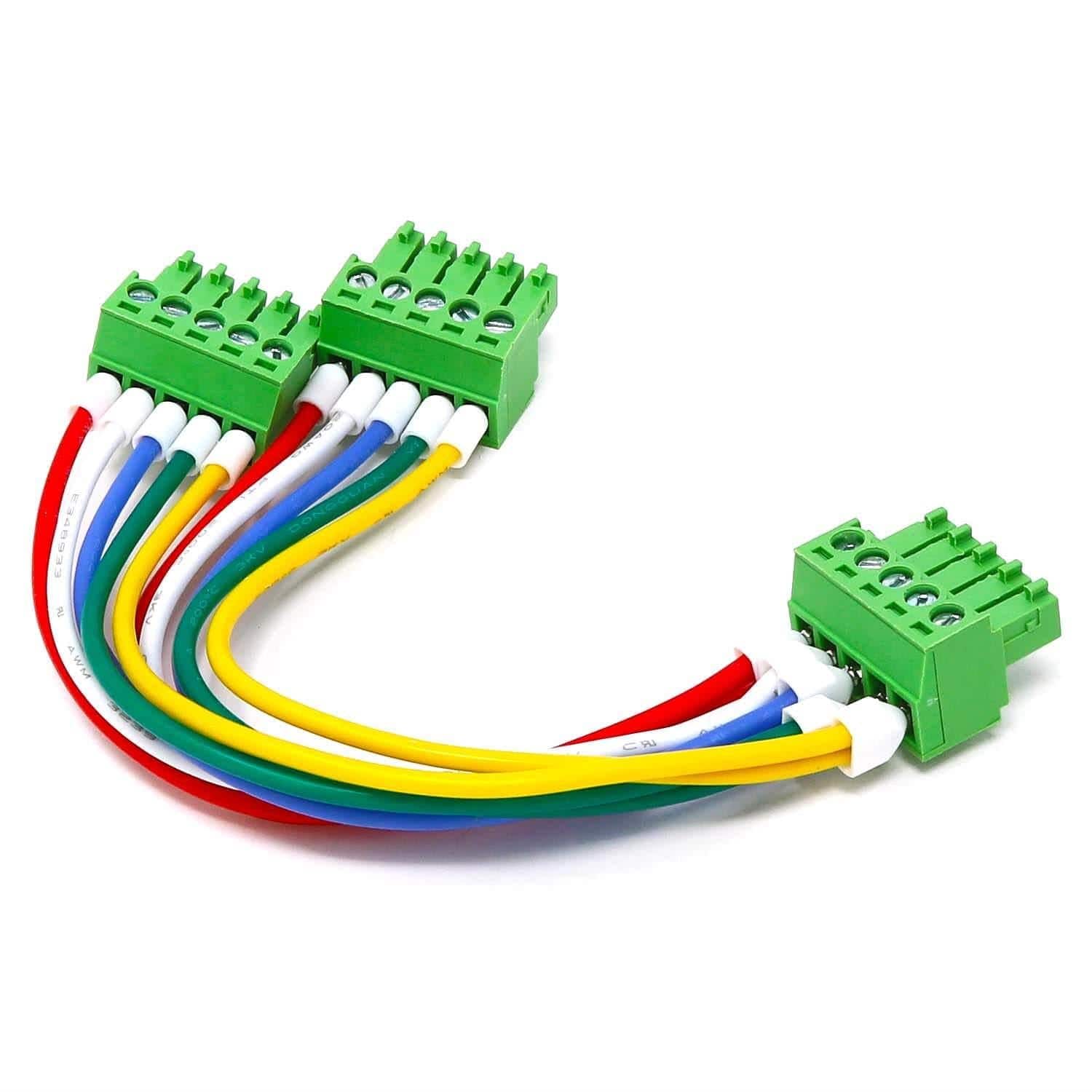

This self-test cable works with the Sequent Home Automation 8-layer stackable HAT, allowing you to test groups of three inputs and outputs on the HAT.

Features

  • Three-connector cable for self-testing the Sequent Home Automation HAT
  • Self-test groups of 3 inputs and outputs
  • Command-line software for each test

How to Use

Test the GPIO and Opto-Inputs 1-4:

Insert the cable on the left side of the card, as shown in the picture below, and run the self-test command

Test the analog inputs and outputs:

Insert the cable on the bottom side of the card, as shown in the following picture, and run the self-test command.

Test the open-drain outputs and opto-inputs 5-8:

Insert the cable on the right side of the card, as shown in the following picture, and run the self-test command.

Testing the relays

Without the loopback cable, run the command relay_test. Relays will cycle on and off in sequence and the corresponding LED's will turn on and off.
