Screw Terminal Shield for Arduino UNO

52PiSKU: EP-0142
(8 Reviews)
£13.50
incl. VAT
excl. VAT
Only 1 unit left

Awesome Extras

Prototyping Wire Spool Set - 10 Spool Solid Core by The Pi Hut - The Pi HutPrototyping Wire Spool Set - 10 Spool Solid Core by The Pi Hut - The Pi Hut
(20 Reviews)
The Pi HutPrototyping Wire Spool Set - 10 Spool Solid Core
£18 incl. VAT excl. VAT
40-pin GPIO Female to Female Ribbon Cable - Rainbow 150mm by The Pi Hut - The Pi Hut40-pin GPIO Female to Female Ribbon Cable - Rainbow 150mm by The Pi Hut - The Pi Hut
(1 Review)
The Pi Hut40-pin GPIO Female to Female Ribbon Cable - Rainbow 150mm
£3 incl. VAT excl. VAT
Arduino Uno Rev3 by Arduino - The Pi HutArduino Uno Rev3 by Arduino - The Pi Hut
(62 Reviews)
ArduinoArduino Uno Rev3
£24.50 incl. VAT excl. VAT

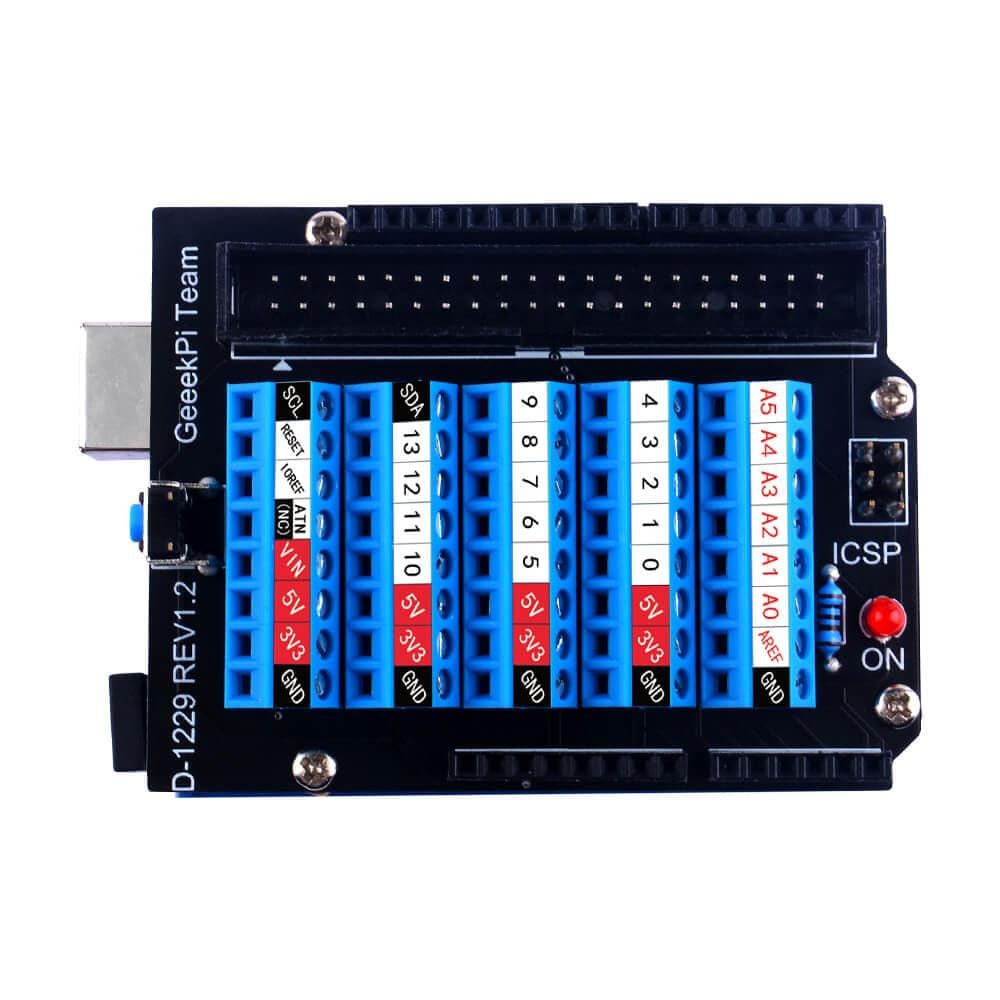

This is a screw terminal shield specifically designed for the Arduino UNO or UNO compatible boards. The board allows you to quickly build and prototype your own circuit.

The pre-soldered ICSP interface makes it more convenient for you to burn Arduino firmware, whilst the screw terminals are clearly labelled for easy identification. The board includes a power LED and a reset button on the side.

You can use a 40-pin FRC (Flat Ribbon Cable) cable to connect all of the Arduino Uno pins to peripherals or simply break them out to another PCB/board.

Features

  • Easy to install
  • Compatible with the Arduino Uno only
  • Screw Terminals
  • Clear terminal labelling
  • Pre-soldered ICSP Pin Header
  • 40-pin 2x20 2.54mm Horn Socket Connector onboard

Specifications

  • Terminal block pitch: 3.5mm/0.138"
  • Wire size range: 26AWG to 16AWG, strip length 5mm
  • Screw: M2 steel
  • Pin header and cage copper
  • Standard IDC40 pitch 0.1" header

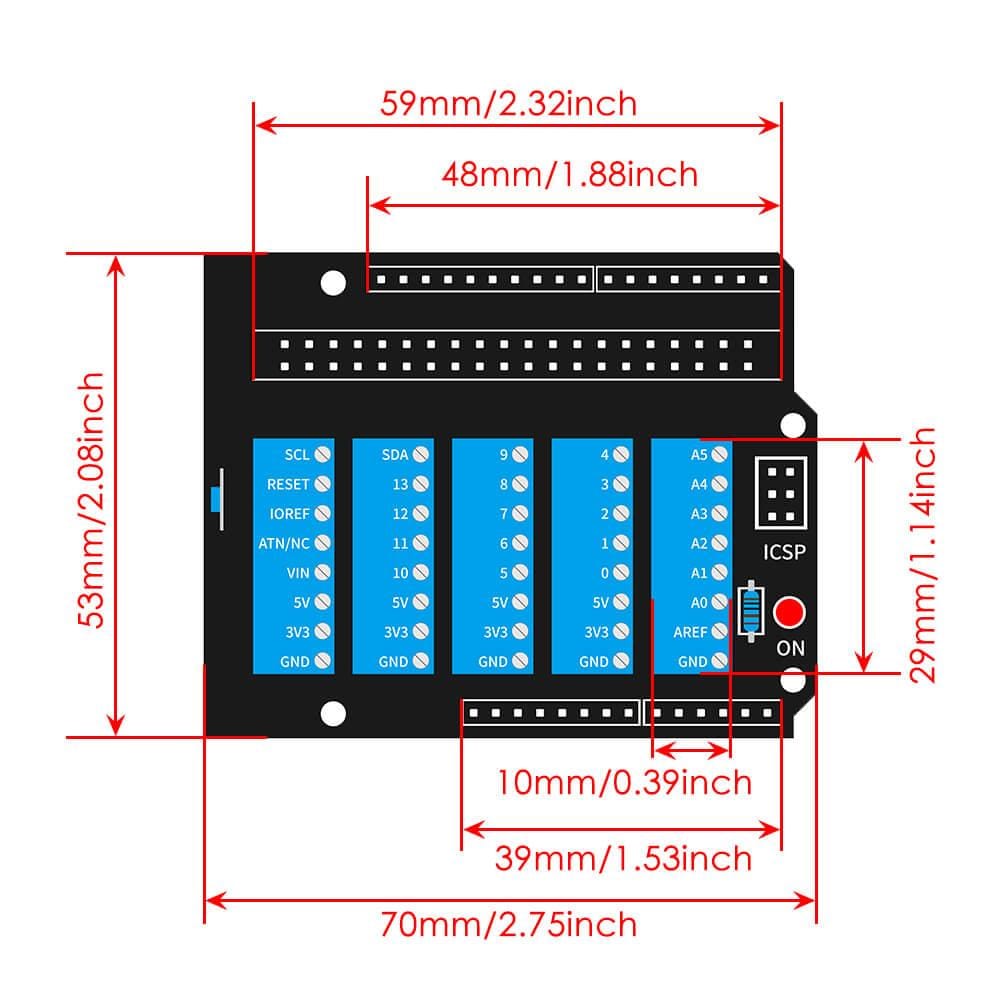

  • Dimensions: 66mm x 53mm

Package Contents

  • 1 x Screw Terminal Hat for Arduino UNO
  • 4 x M2.5 Copper Pillar
  • 4 x M2.5x6 Screw
  • 4 x M2.5 nut

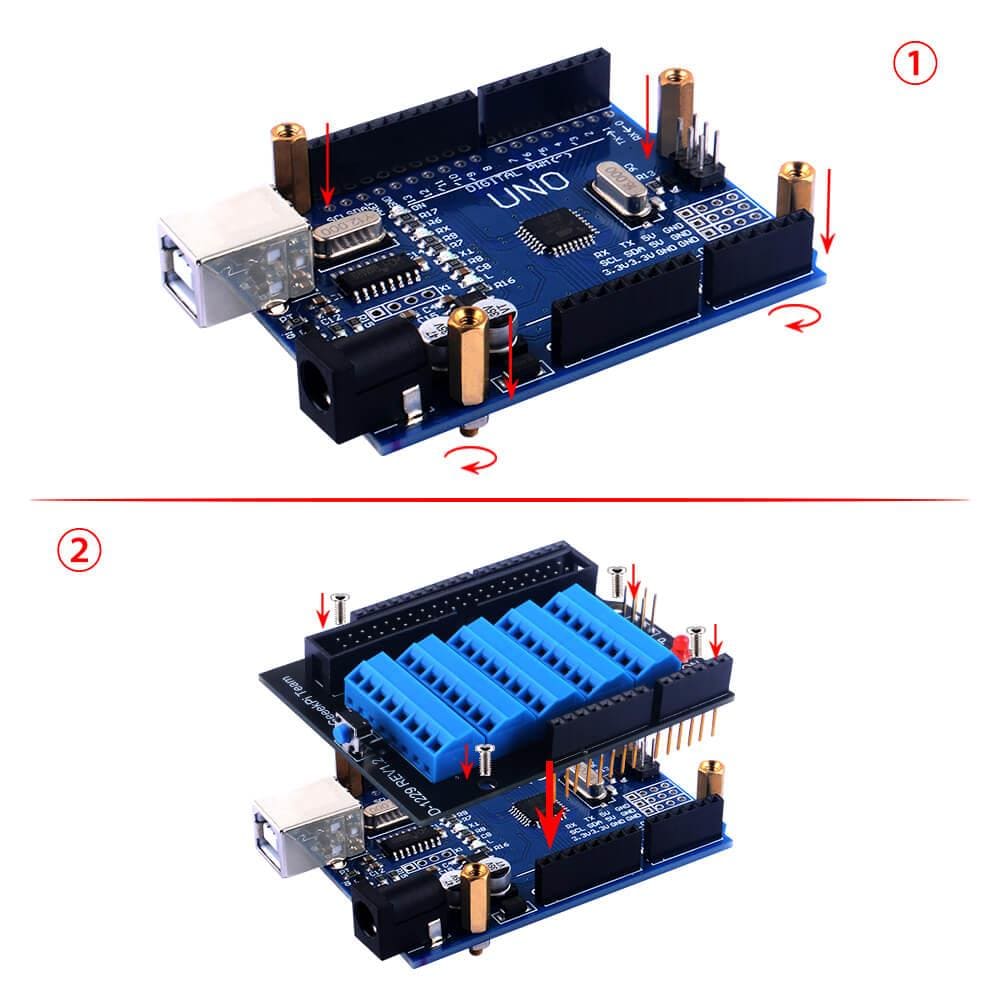

Assembly

  • On your Uno, fix the metal pillars with the M2.5 nuts on the underside of the board
  • Attach the Screw Terminal Hat to the Arduino Uno and fix it with M2.5 screws

Revision History

  • Units purchased before 10/03/2022 will have pins A5 to A0  labelled backwards (should run from A0 to A5). The included additional labels allow you to correct this if required. All units after this have corrected stickering.
