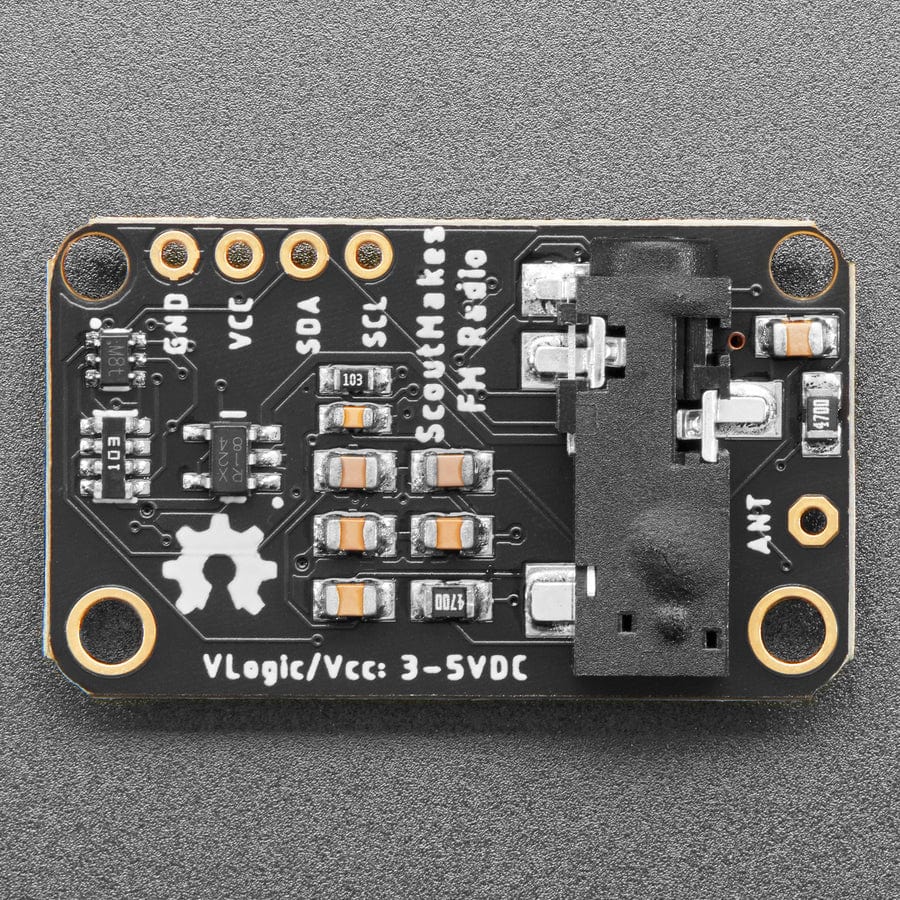

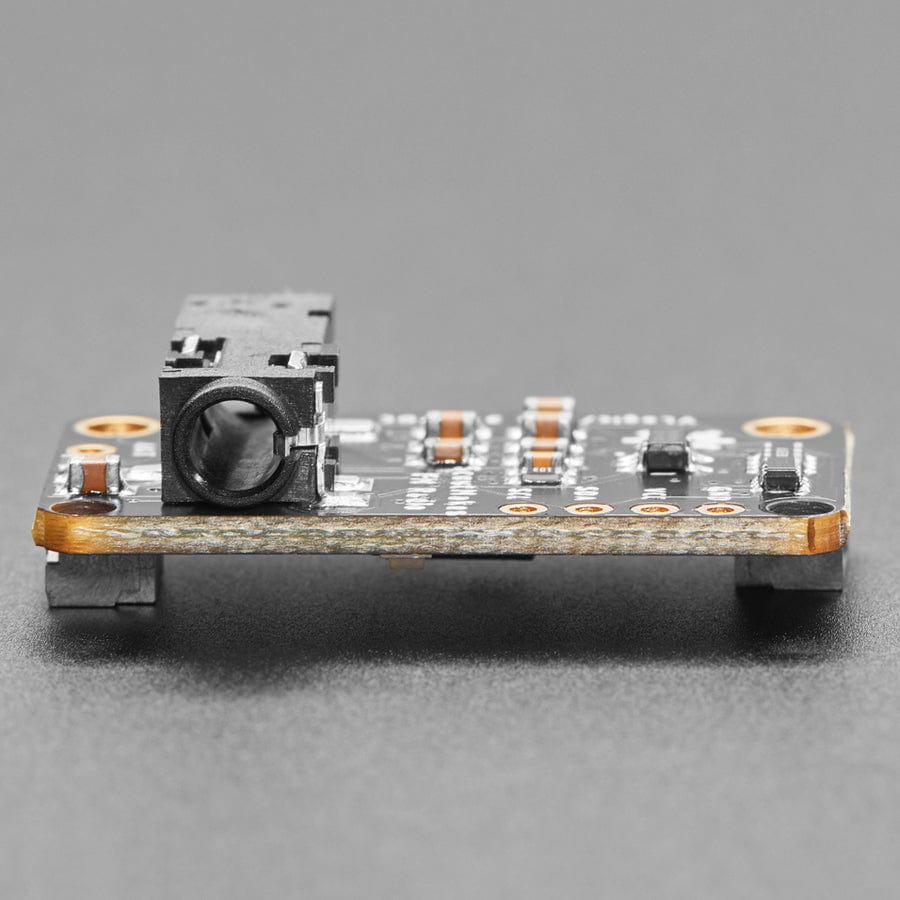

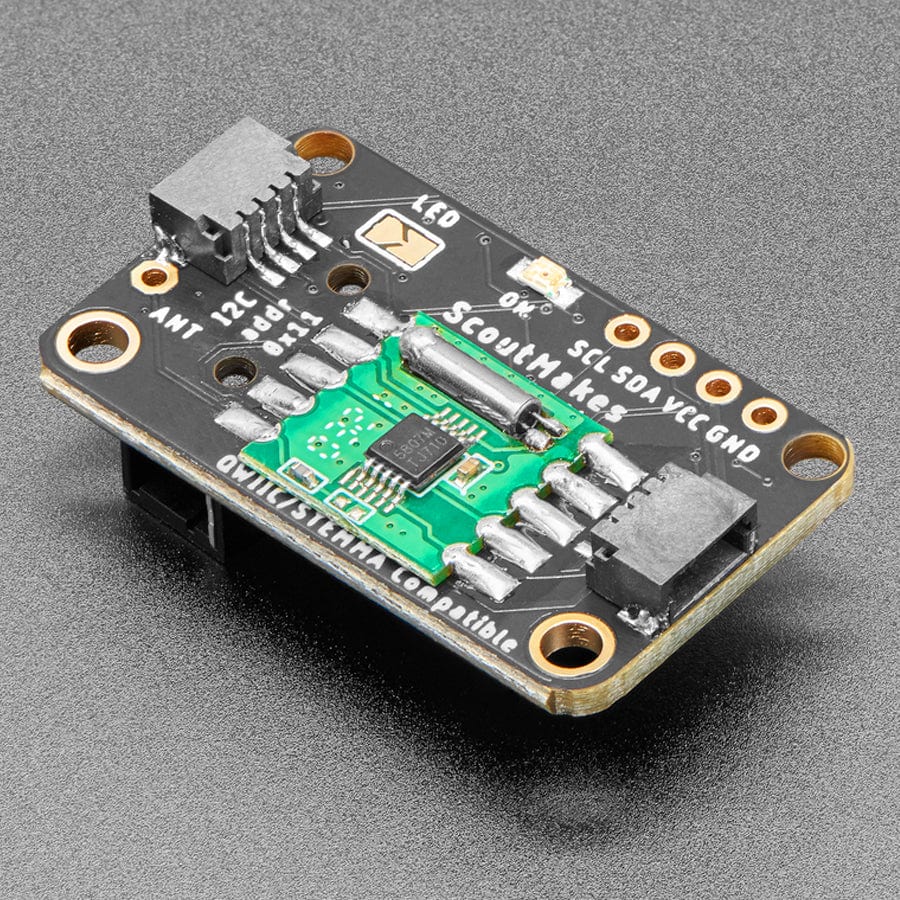

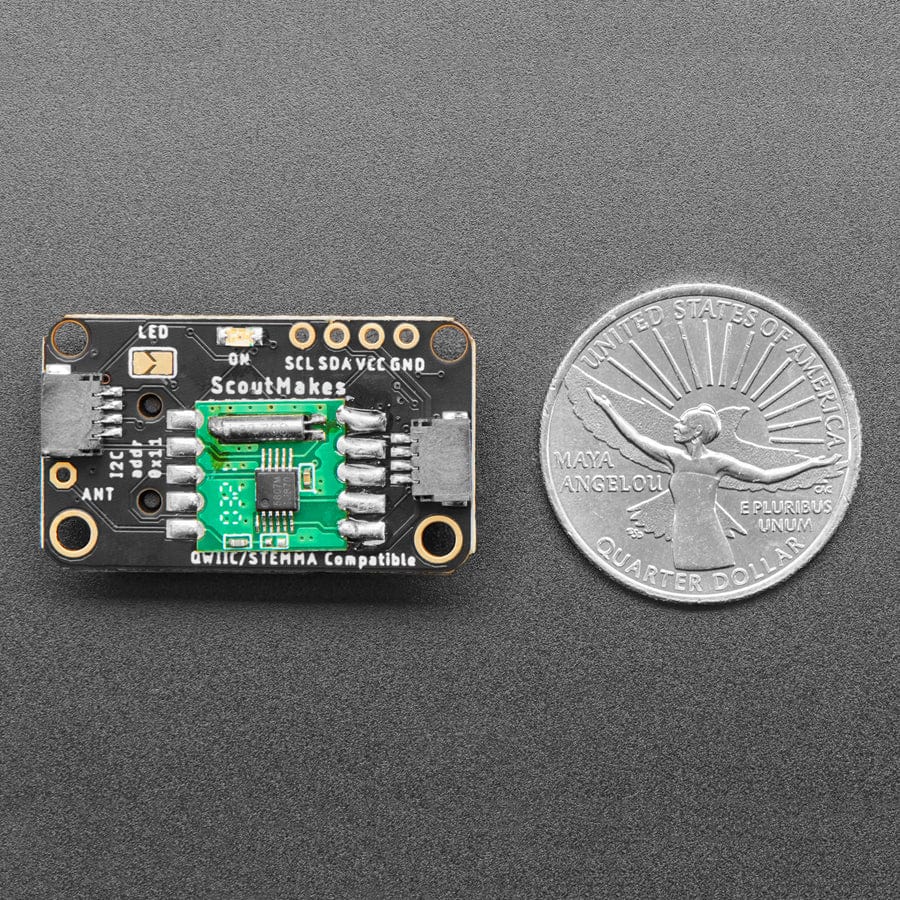

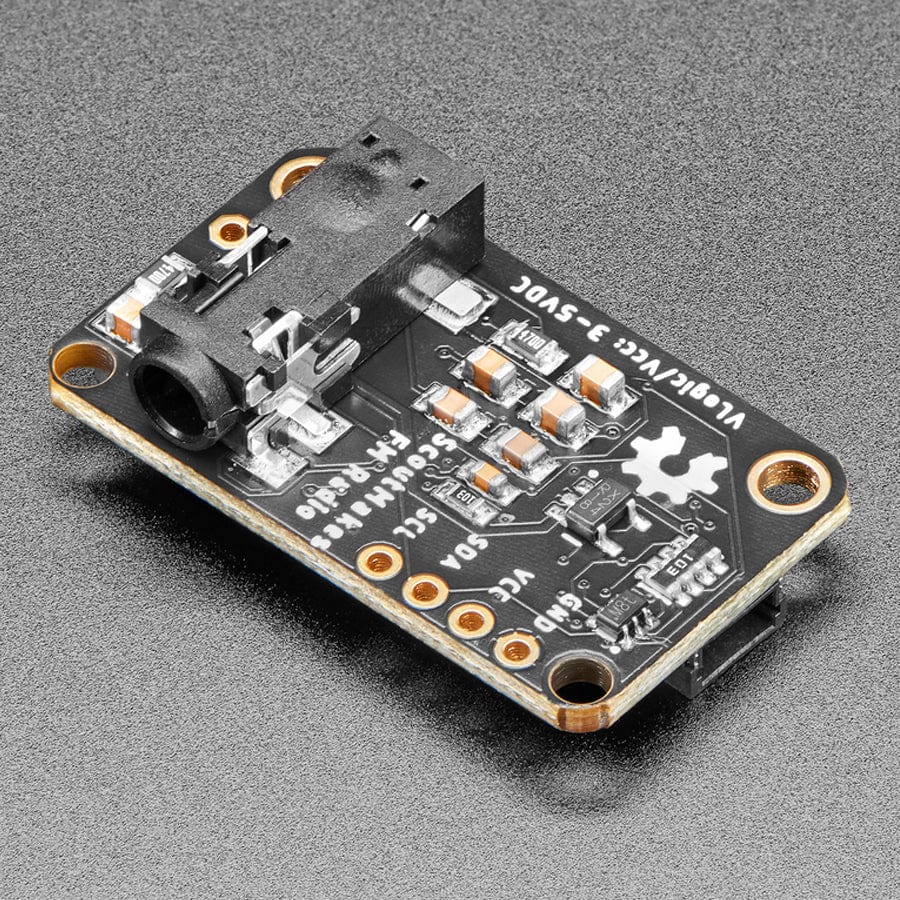

The ScoutMakes FM Radio Board is a great way to learn about the world of electronics. It is an I2C breakout board for the RDA5807 FM radio chip by RDA Microelectronics. The board supports Arduino and CircuitPython. Libraries and example code are provided to help you get started. The board also has connectors which support SparkFun's Qwiic and Adafruit's STEMMA QT I2C connector standards, JST-SH 4-pin.
The RDA5807 also has an RDS (Radio Data System) capability where station information (station name, song name) can be received. The example code shows RDS information as well.
The board is open source with design files provided. Designed and manufactured in the USA!! The design has been open-source certified by the Open Source Hardware Association (OSHWA) - US002137. Arduino & CircuitPython code can be found here.
This is a perfect introduction for newbies to get into electronics! What is more satisfying than getting an FM radio to work? No internet connection is needed! The board also is a great entry into the magical world of wireless communications.
This is the first FM radio breakout that supports CircuitPython and is STEMMA QT/Qwiic compatible. It is also open source!

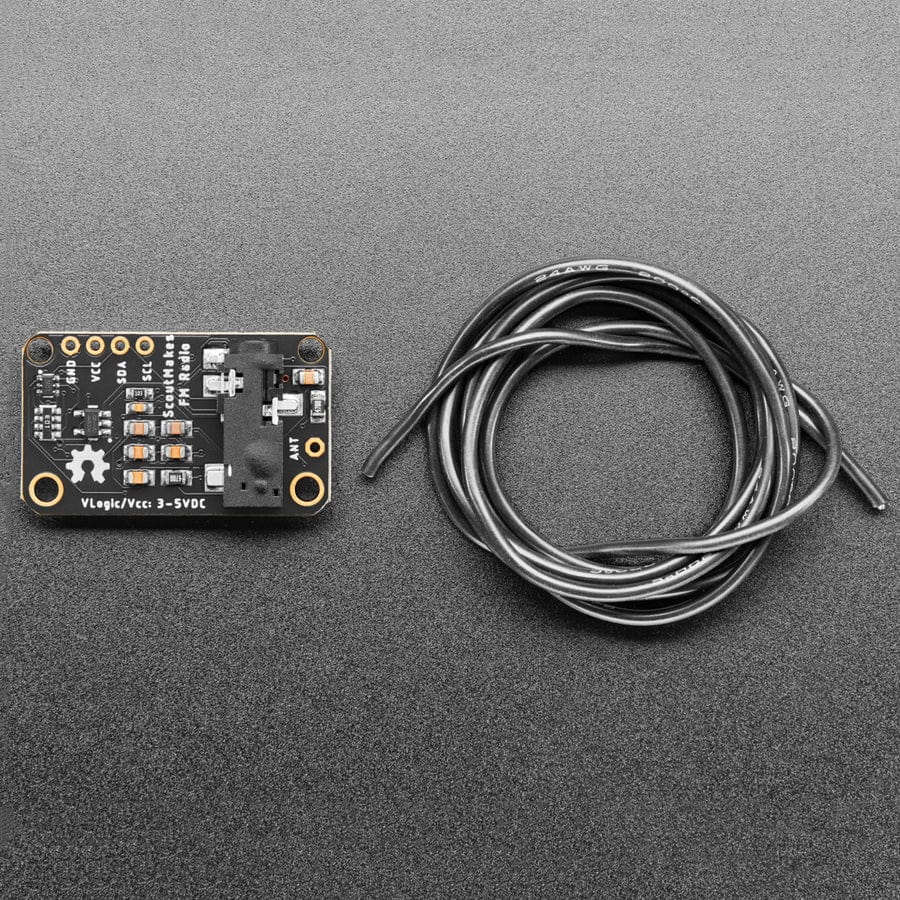

Note: Headphones, antenna wire, and STEMMA QT/Qwiic cables are NOT included with the board. A short 770 mm/30.31-inch wire will make for a good antenna (typically 1/4 of the wavelength of the tuned frequency will make for a good antenna).
Specifications
FM Radio Kit Features & Specifications
Open hardware & open source software
RDA5807M single-chip FM receiver
High-quality stereo audio output
Built-in volume and bass control
Received signal strength indicator (RSSI) information
Station scanning and presets are supported in code
Radio Data Service (RDS) information available for display
Received signal strength (RSSI) indication
Adafruit CircuitPython library
Adafruit STEMMA QT and SparkFun Qwiic connectors for easy, solderless attachment of other I²C devices
