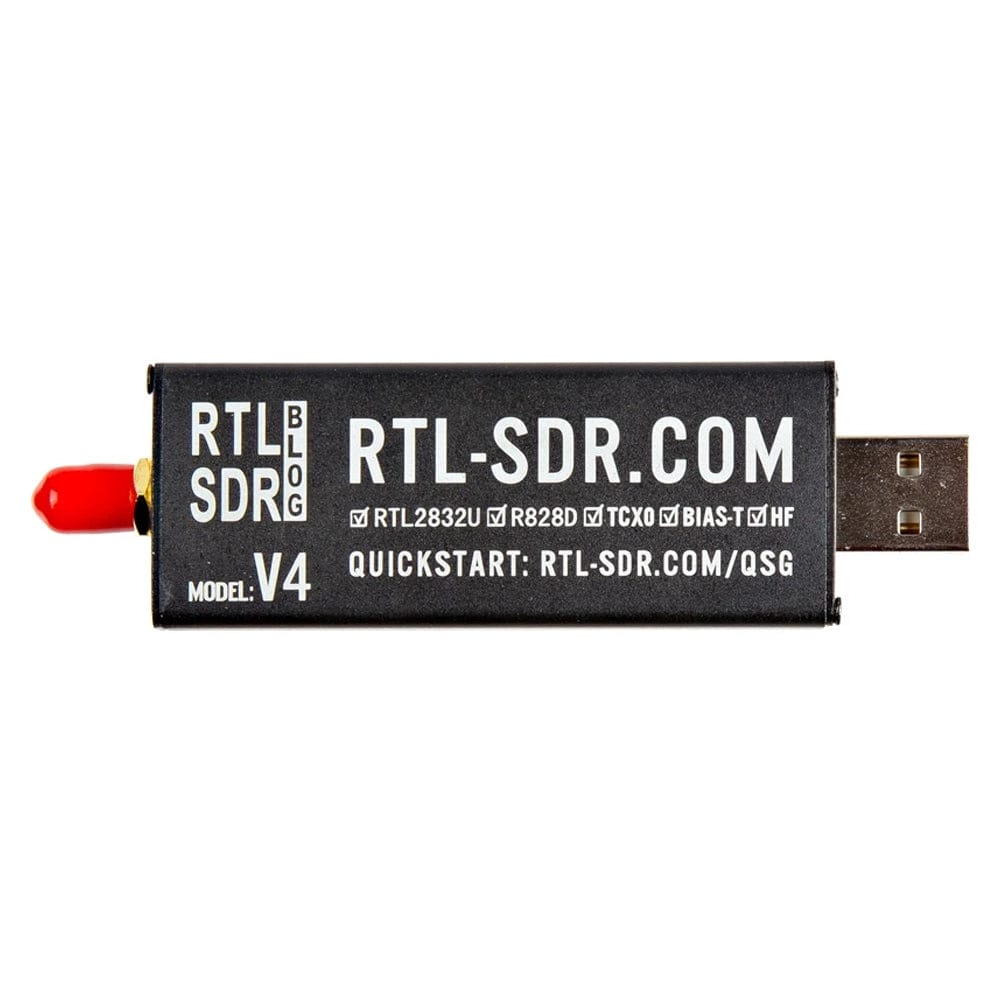

The RTL-SDR Blog V4 is an upgraded version of the popular software-defined radio (SDR) dongle, offering improved performance and additional features over the V3 model.
Key features of the V4 include the use of the R828D tuner chip, which provides enhanced frequency stability and lower power consumption compared to the R820T2 used in the V3. It also features a built-in low-noise amplifier (LNA), improved thermal design for better heat dissipation, and optimised filtering to reduce interference.
Unlike the V3, the V4 no longer supports direct sampling mode for HF signals, relying instead on upconversion or external solutions for HF reception. The V4 model maintains compatibility with popular SDR software and is ideal for applications such as radio scanning, ADS-B reception, and general signal monitoring.
NOTE: This is the newer V4 design, and it requires updating to the latest drivers to work. Before purchasing, please ensure that you understand that not all applications work with the V4 yet! Compatibility with most popular software is now okay, but some niche programs are still lagging with support. Please consult the V4 user's guide for more information.
Features & Specifications
Wide Frequency Coverage: Capable of tuning from 500 kHz to 1.766 GHz, the V4 supports a broad range of frequencies, accommodating various applications from HF to UHF bands.
Enhanced HF Reception: Integrates a built-in upconverter for improved HF signal reception, eliminating the need for direct sampling and providing better sensitivity and adjustable gain on HF frequencies.
Advanced Tuner Technology: Utilises the R828D tuner chip, featuring three switchable inputs and a triplexer circuit that isolates HF, VHF, and UHF bands, resulting in reduced interference from strong broadcast stations.
High-Precision Oscillator: Equipped with a 1 PPM temperature-compensated crystal oscillator (TCXO), ensuring exceptional frequency stability across the entire tuning range.
Robust Construction: Housed in a conductive black aluminium enclosure that provides effective shielding and passive cooling, enhancing durability and performance.
Software-Selectable Bias Tee: Features a software-activated 4.5V bias tee capable of supplying up to 180 mA, ideal for powering active antennas or external low-noise amplifiers.
Improved Filtering: Incorporates additional notch filters to mitigate common interference, ensuring clearer signal reception.
