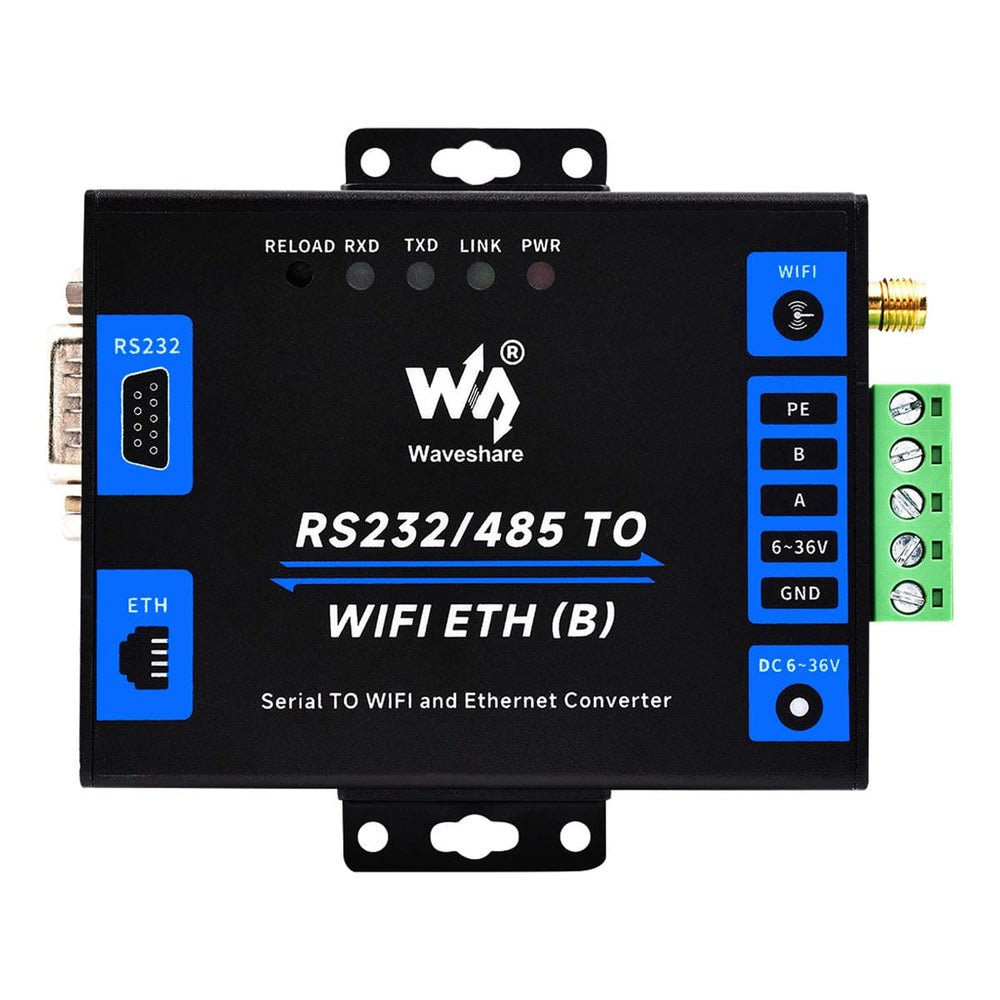

RS232/485 To WiFi/Ethernet Module (Modbus/MQTT Gateway)

WaveshareSKU: WAV-25222
Price:
Sale price £28.50
incl. VAT
excl. VAT
Stock:
Only 17 units left
Quantity:

Awesome Extras

Cat6A Shielded Snagless RJ45 Ethernet Cable - 2m - The Pi HutCat6A Shielded Snagless RJ45 Ethernet Cable - 2m - The Pi Hut
Industrial Grade Serial Server RS232/485 To WiFi and PoE Ethernet - The Pi HutIndustrial Grade Serial Server RS232/485 To WiFi and PoE Ethernet - The Pi Hut
12V 2A Power Supply with 2.1mm Barrel Jack - The Pi Hut12V 2A Power Supply with 2.1mm Barrel Jack - The Pi Hut
The Pi Hut12V 2A Power Supply with 2.1mm Barrel Jack
Sale price £13.30 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut

This serial server combines functions like a serial server, Modbus gateway, and MQTT gateway, and also enables serial port data to be converted to HTTPD Client. With interfaces for RS232, RS485, WiFi, and Ethernet, it supports various data transfer methods, including from serial port to WiFi and Ethernet to WiFi.

It includes multiple power supply interfaces, accepting a wide range of 6~36V, and has an optional PoE function. Its metal case allows for both wall-mount and rail-mount installations and its compact size makes it easy to install. It is ideal for data acquisition and serving as an IoT gateway in safety and security projects.

We also stock a PoE version here

Note: The power supply is NOT included, it is recommended to use this 12V Power Adapter

Features

  • RS232/485 to Network
  • Multi Transparent Transmission Modes
  • HTTPD/MQTT
  • Modbus Gateway
  • RJ45 Ethernet Port
  • Host/Webpage/Serial Configuration
  • Wall-Mount and Rail-Mount Support

Specifications

Power supply DC 6~36V
Power supply method DC 5.5 power port, screw terminal

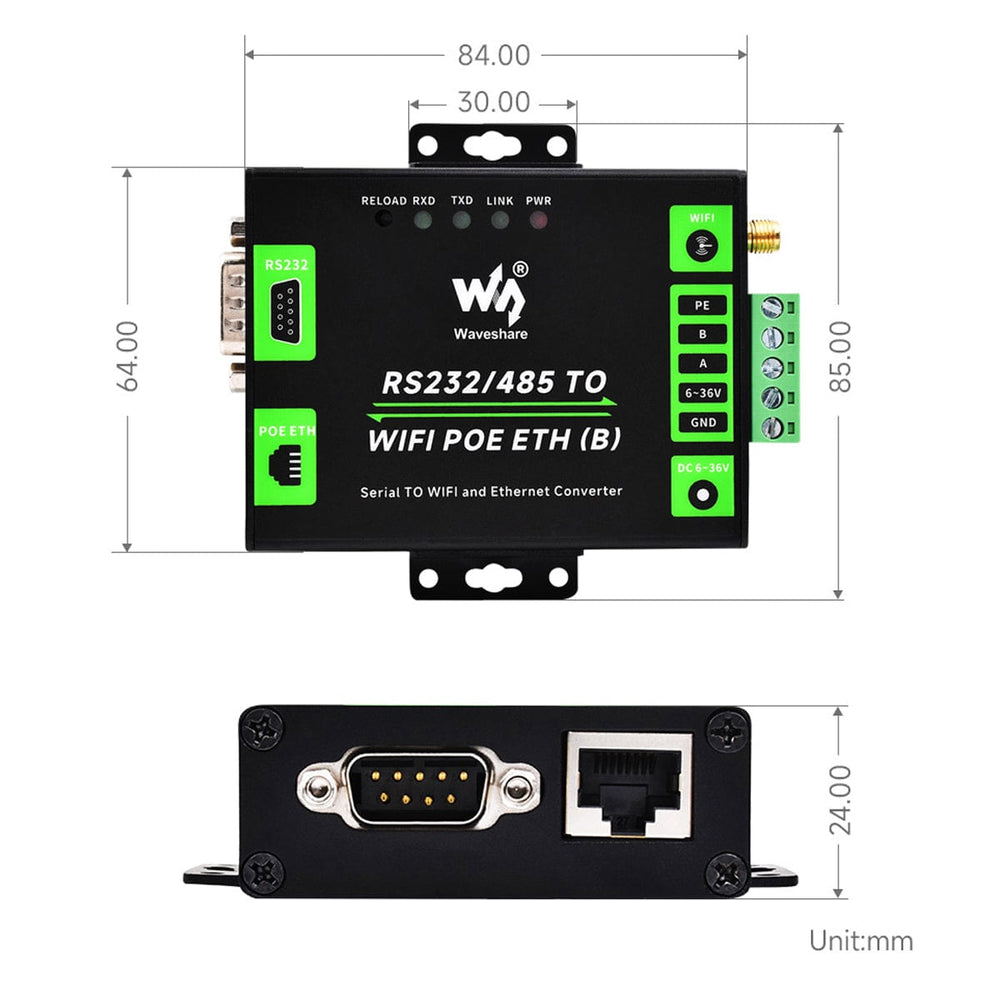

Dimensions
(L x W x H) 84.00 x 64.00 x 24.00mm
Communication
Ethernet 10 / 100M auto-negotiation RJ45 connector
WIFI 802.11b/g/n compliant
Serial port RS232 (ESD/EFT)
RS485 (ESD/EFT/surge protection)
Wireless Specifications
Frequency Band 2.412 ~ 2.484 GHz
Wireless network Station / AP / AP+Station Mode
Security mechanism WPA-PSK / WPA2-PSK
Encryption type TKIP / AES
Transmitting power 802.11b: +19dBm (Max.@11Mbps)
802.11g: +18dBm (Max.@54Mbps)
802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)
Receiving sensitivity 802.11b: -89dBm (@11Mbps)
802.11g: -81dBm (@54Mbps)
802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
Serial Specifications
Baudrate 300 ~ 460800 bps
Parity bit None, odd, even, mark, space
Data bit 5 ~ 9 bits
Flow control RTS/CTS
Software
Protocol TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration Host, web browser, serial AT command
Communication method TCP/IP direct communication, VCOM
Operating mode Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
Environment Requirements
Operating temperature -40℃ ~ 85℃
Humidity range 5% ~ 95% relative humidity

Resources

Pinout

Package Contents

  1. 1x RS232/485 Serial Server

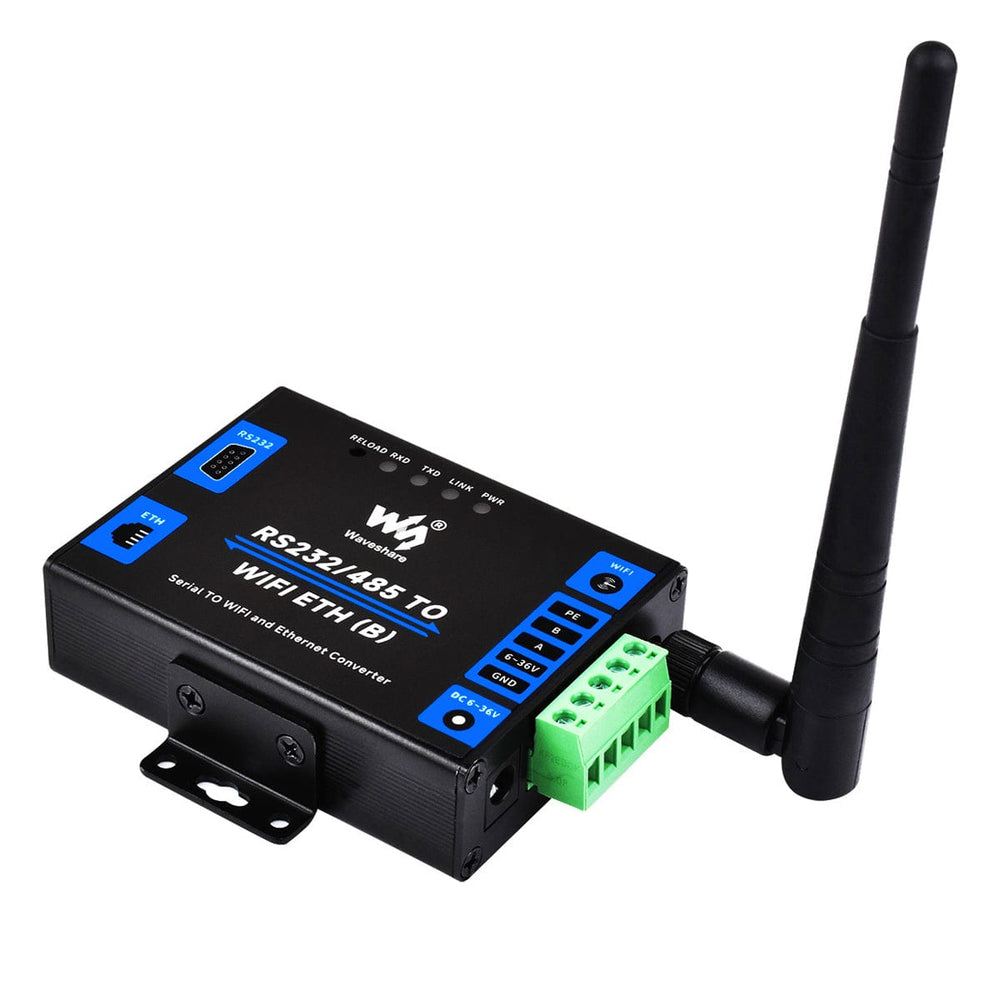

  2. 1x 2.4G WiFi antenna
  3. 1x Rail-mount buckle
  4. 1x Screwdriver
  5. 1x Screws pack
