RP2350 MCU Board with 1.28" Round IPS LCD Touch Display (240x240)

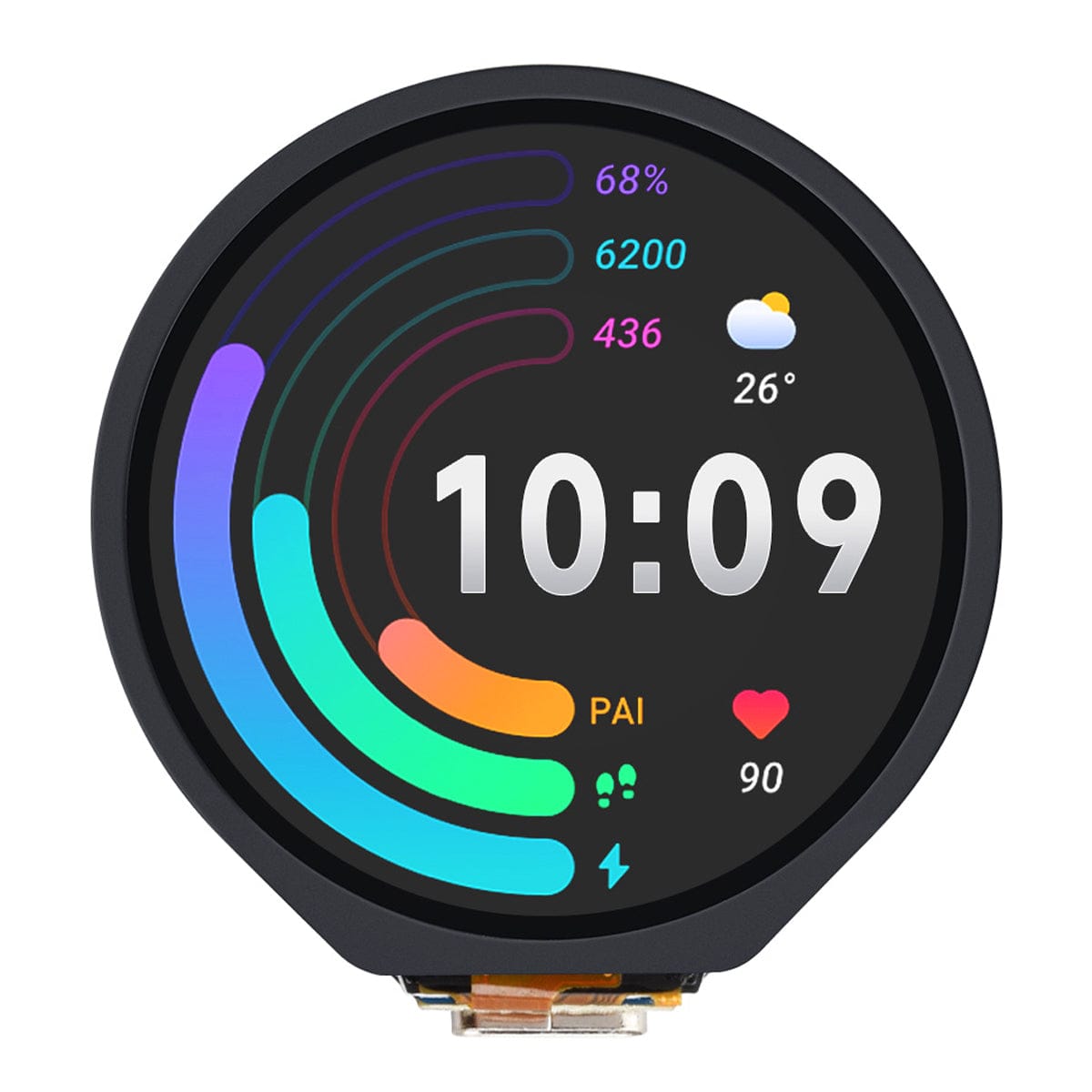

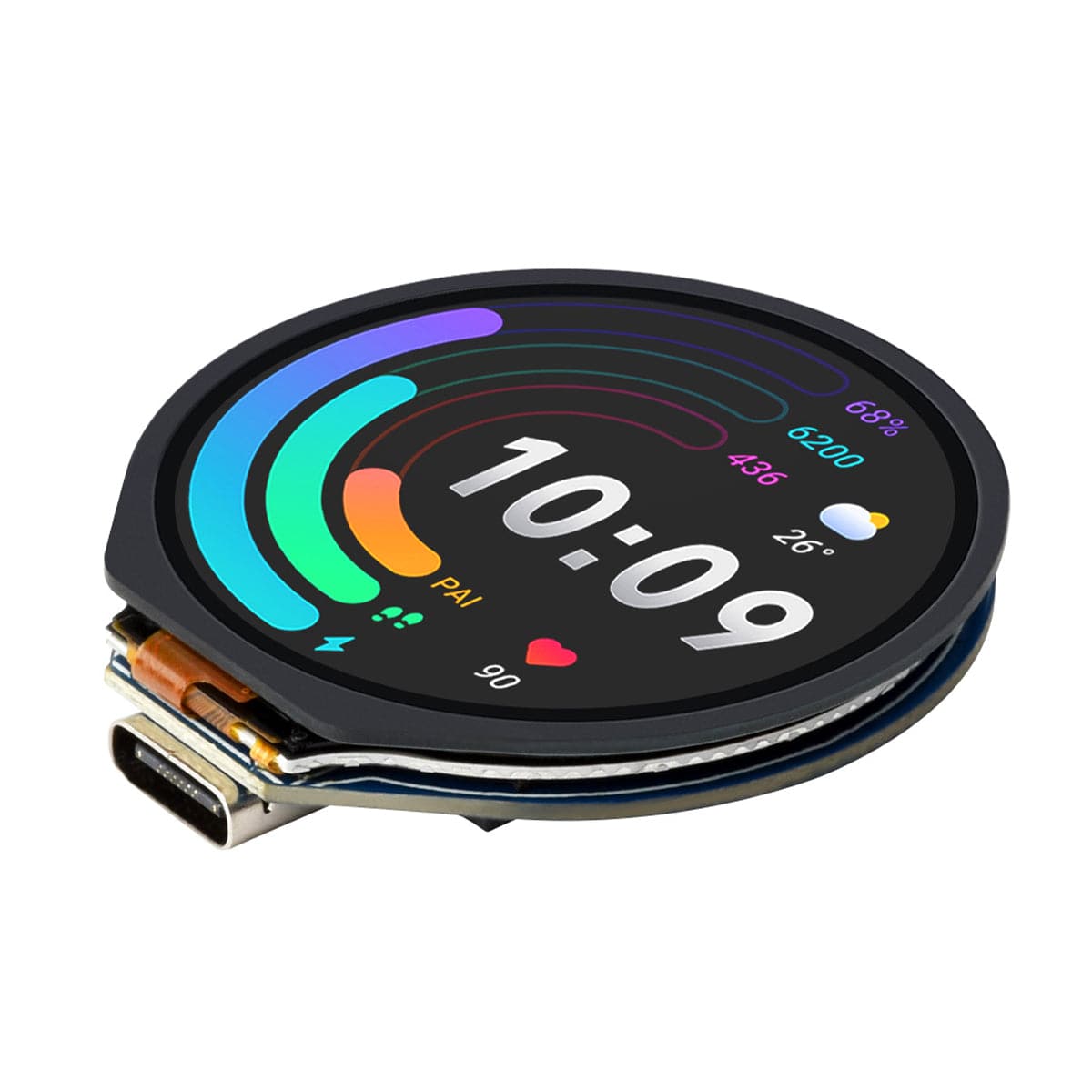

This RP2350 MCU board has a 1.28" capacitive touch display with a 240 x 240 resolution and 65k colours, providing a display that is vibrant and easy on the eyes. Powered by the RP2350 microcontroller, it has dual-core Arm Cortex-M33 and Hazard3 RISC-V processors, operating at speeds up to 150 MHz.

The board includes a lithium-ion battery recharge manager, which is great for any projects you have on the go! It also comes with a 6-axis sensor, that has a 3-axis accelerometer and a 3-axis gyroscope, allowing it to detect motion and provide orientation sensing.

For connectivity, there are multiple ways for you to connect your parts, including SPI, I2C, UART, ADC, and PWM channels. It supports USB 1.1 with both device and host capabilities and features a USB Type-C connector for programming and power. The board also includes 4MB of onboard Flash memory for sufficient storage.

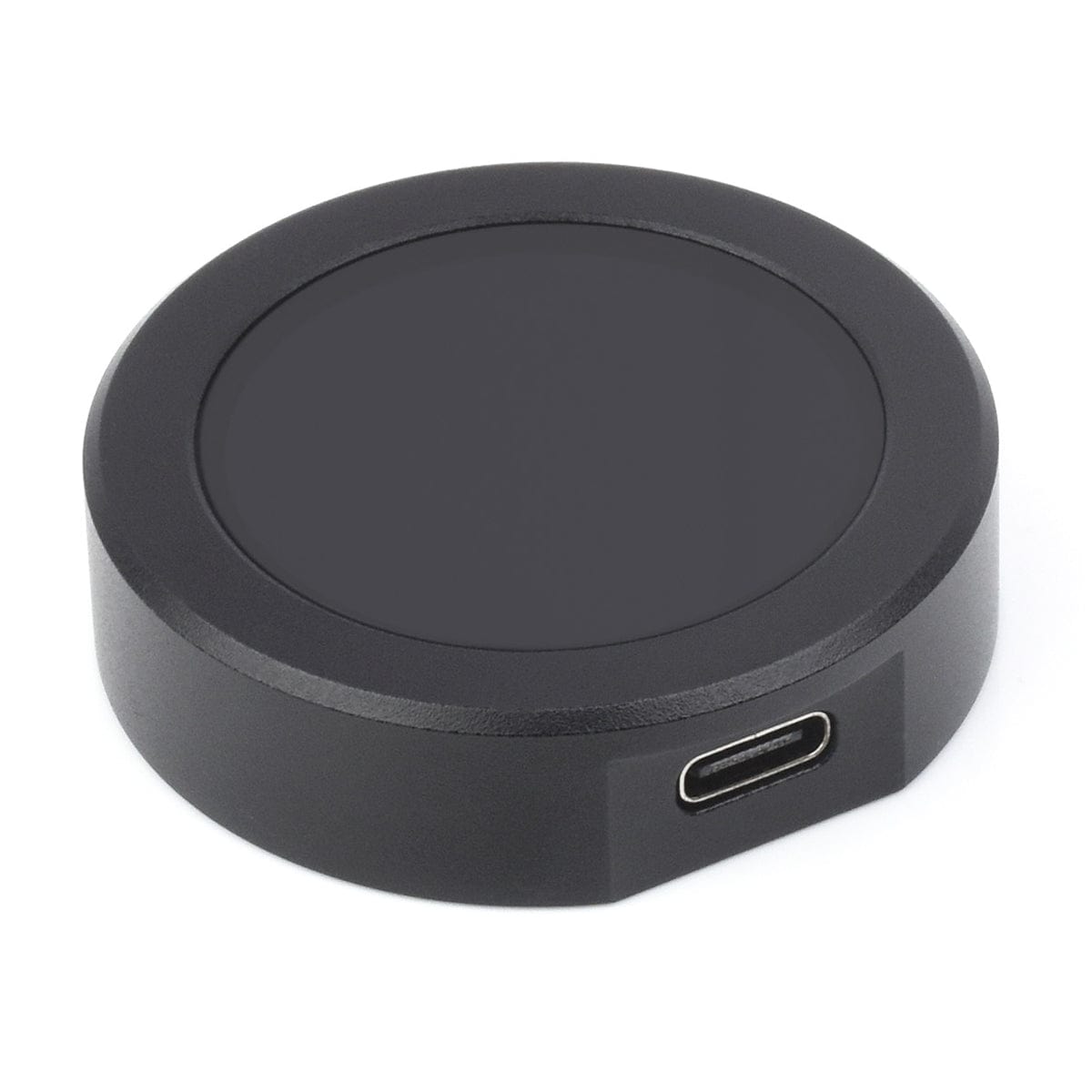

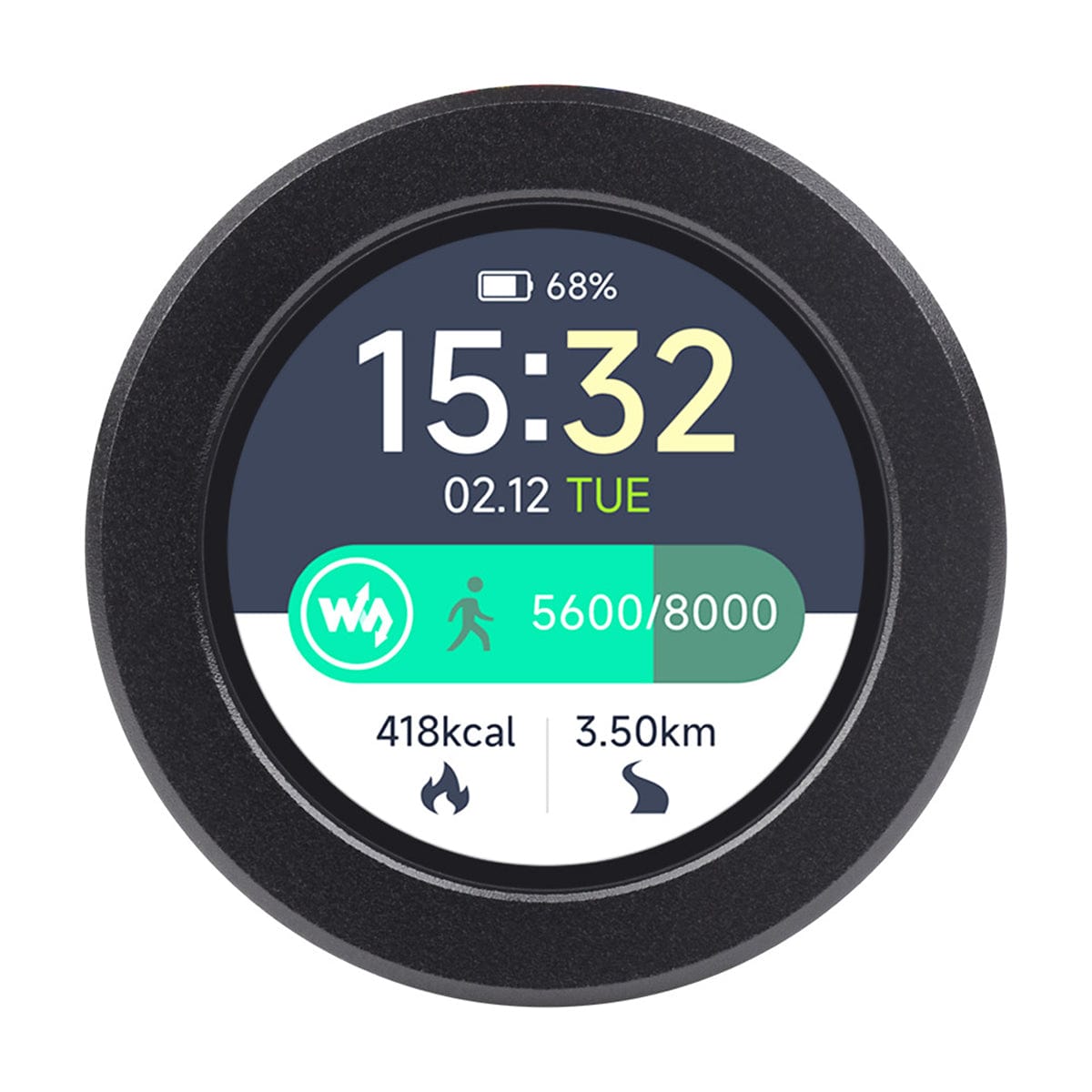

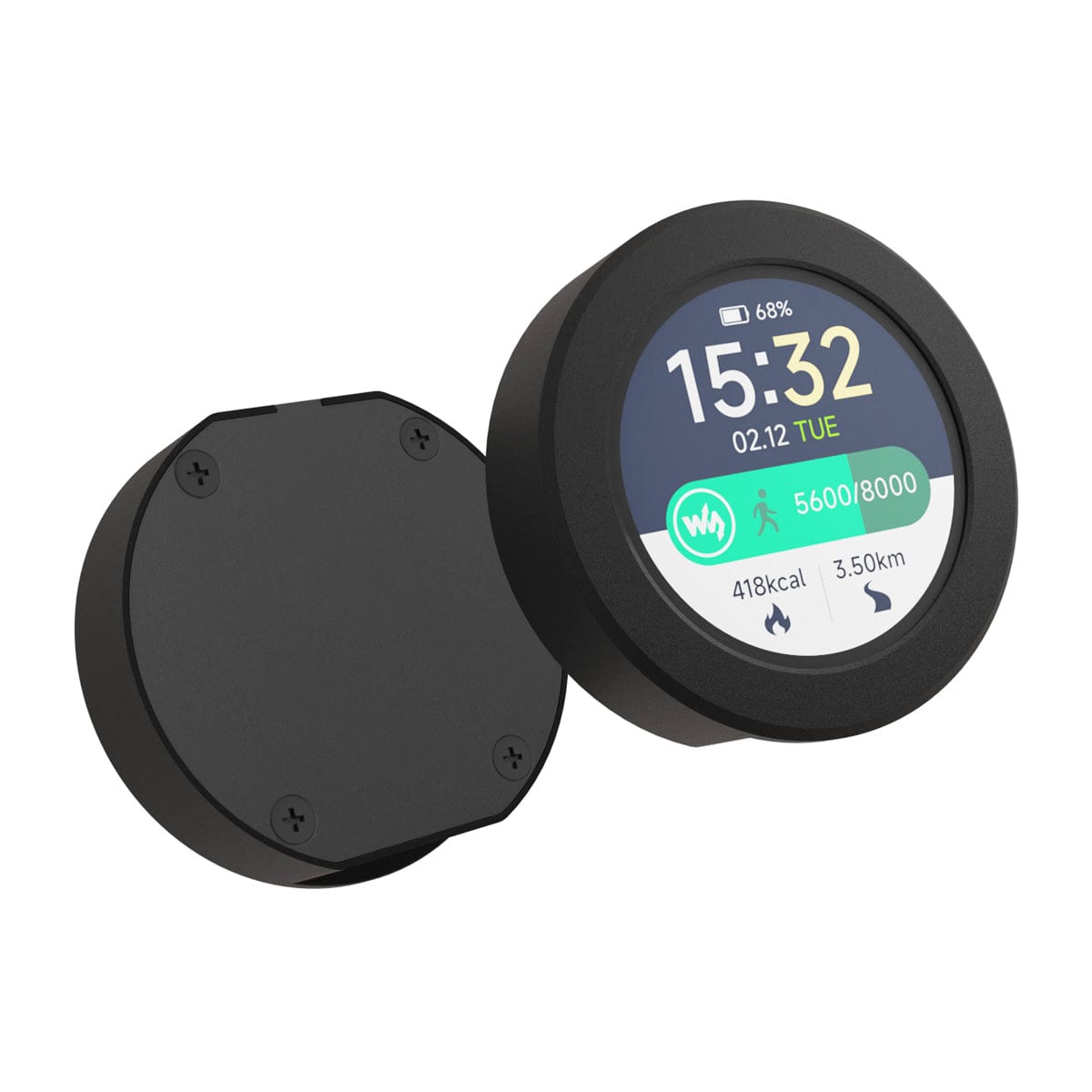

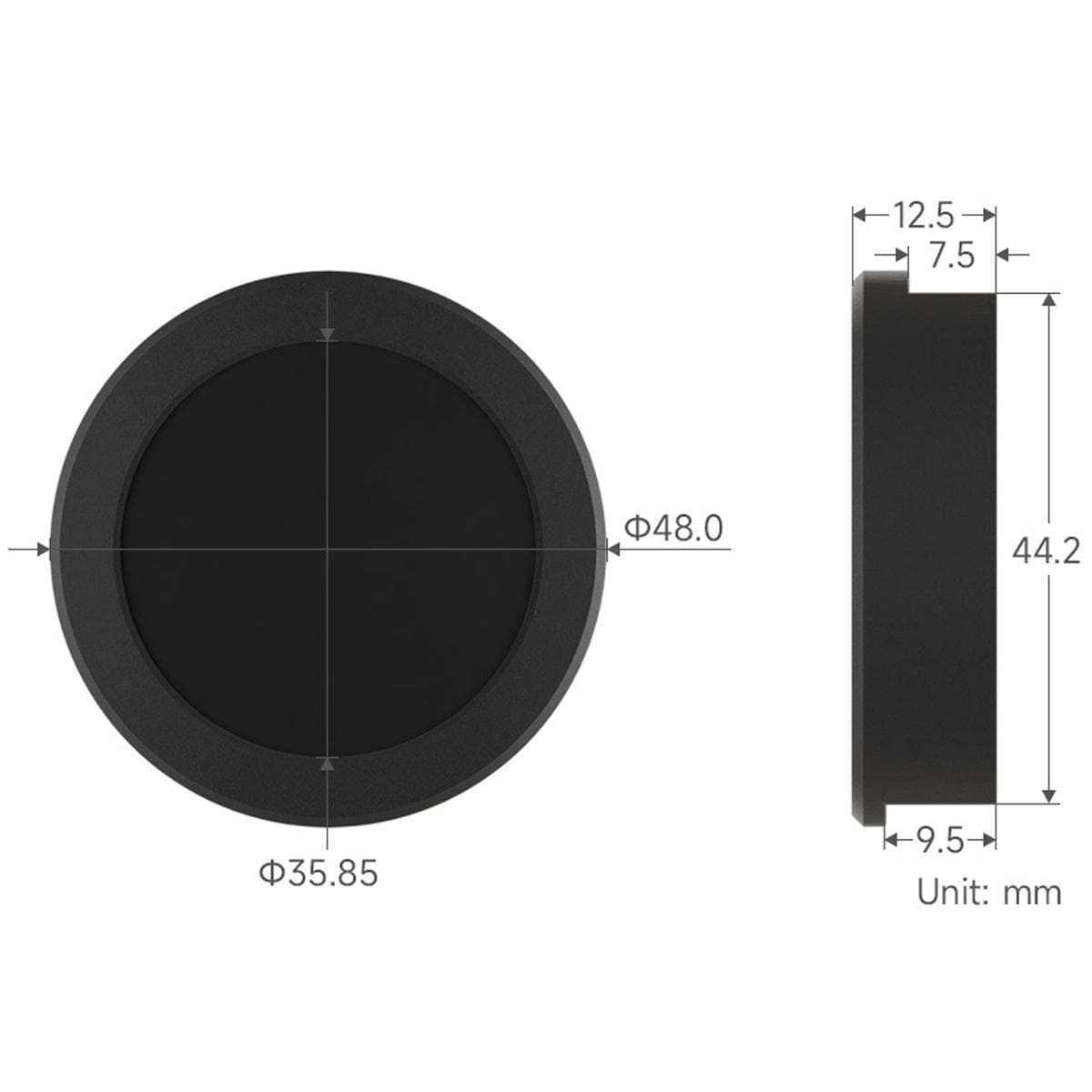

You can program the board using C/C++ or MicroPython, with comprehensive SDKs and development resources available to help with your next project creation. An (optional) CNC metal case can be added to the board to make it more durable if you think it's going to pick up some knocks when transporting it, and it also helps with heat dissipation.

Note: There are two options for this product. Board only and With Metal Case. Please select which option you want before adding to your cart!

Please note: this board uses a tiny MX1.25 connector for LiPo power. Most LiPo batteries on the market (including ours) use a larger JST fitting. We do not yet stock batteries with an MX1.25 connector, however, you can customise your battery with one of our 1.25mm pitch cables to make a compatible battery yourself (assuming you have the ability, knowledge and tools to do this safely).

Features

• RP2350 microcontroller chip
• Unique dual-core and dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V core processor, flexible clock running up to 150 MHz
• Built-in 520KB of SRAM and 4MB of on-chip Flash
• Type-C interface, keeping up with the trend of the times, no need to entangle the front and back plugging
• 1.28" capacitive touch display, 240 x 240 resolution, 65K color
• Lithium battery recharge/discharge header, suitable for mobile scenarios
• USB1.1 host and device support
• Low-power sleep and hibernation modes
• Drag-and-drop downloads can be made by USB recognition as mass storage
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 6 x GPIO pin via SH1.0 connector

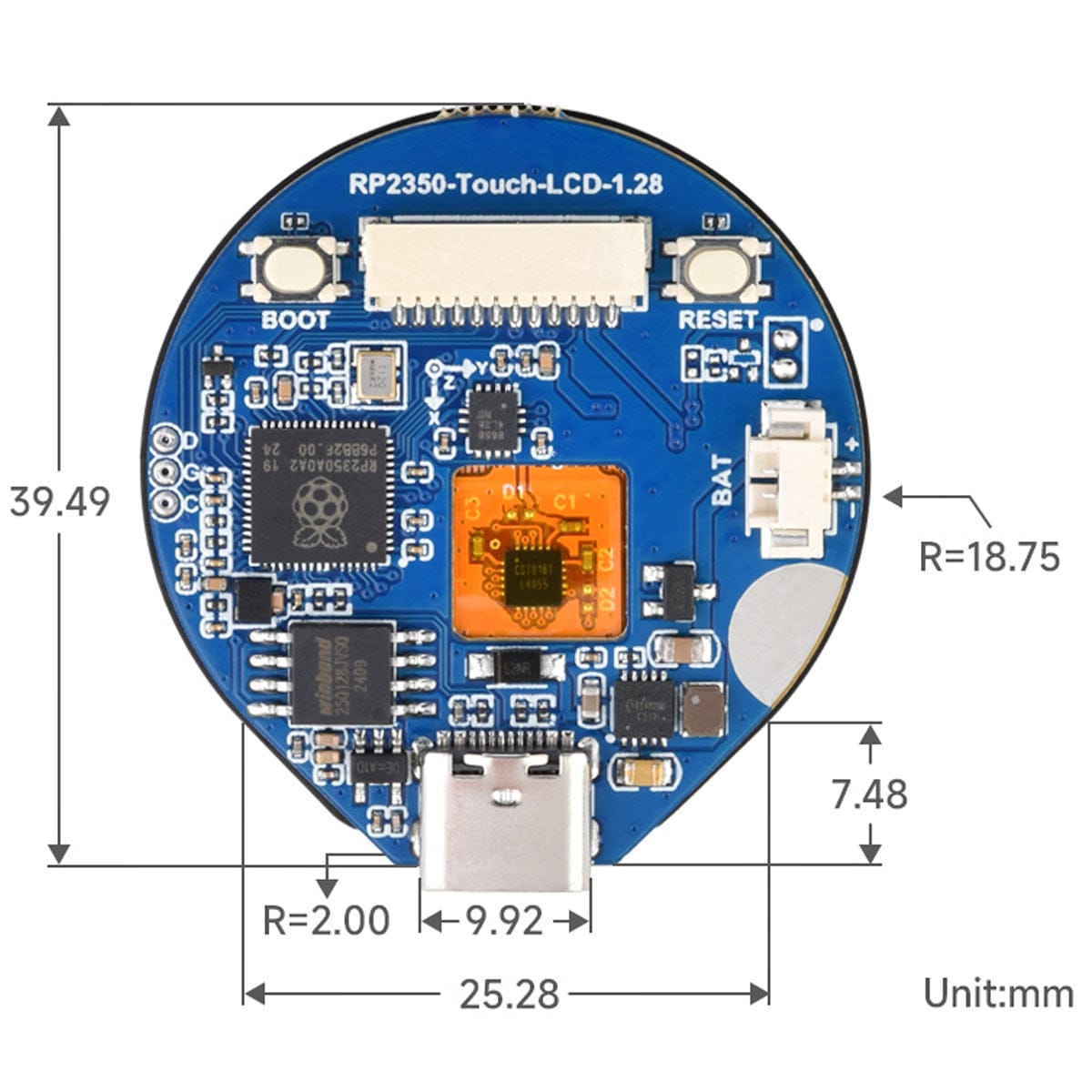

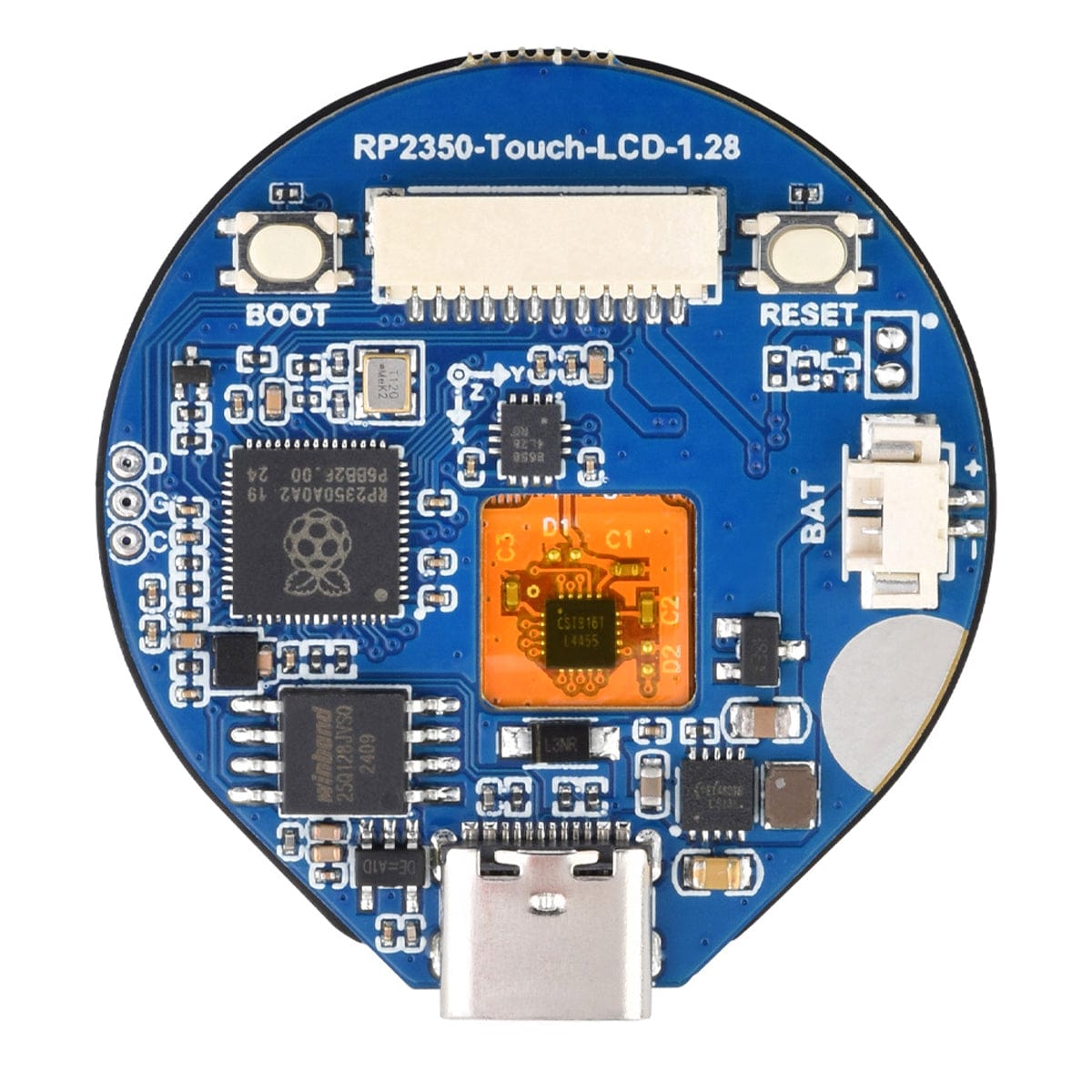

What's on Board

1. USB Type-C connector
   For program burning, USB 1.1 with device and host support
2. ETA6098
   High-efficiency Lithium battery recharge manager
3. RT9193-33PB
   300mA low dropout, low noise, ultra-fast LDO
4. W25Q128JVSIQ
   16MB NOR-Flash
5. RP2350
   Dual-core and dual-architecture design, up to 150 MHz operating frequency
6. QMI8658
   6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
7. BOOT button
   Press it when resetting to enter download mode
8. RESET button
9. MX1.25 battery header
   MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging

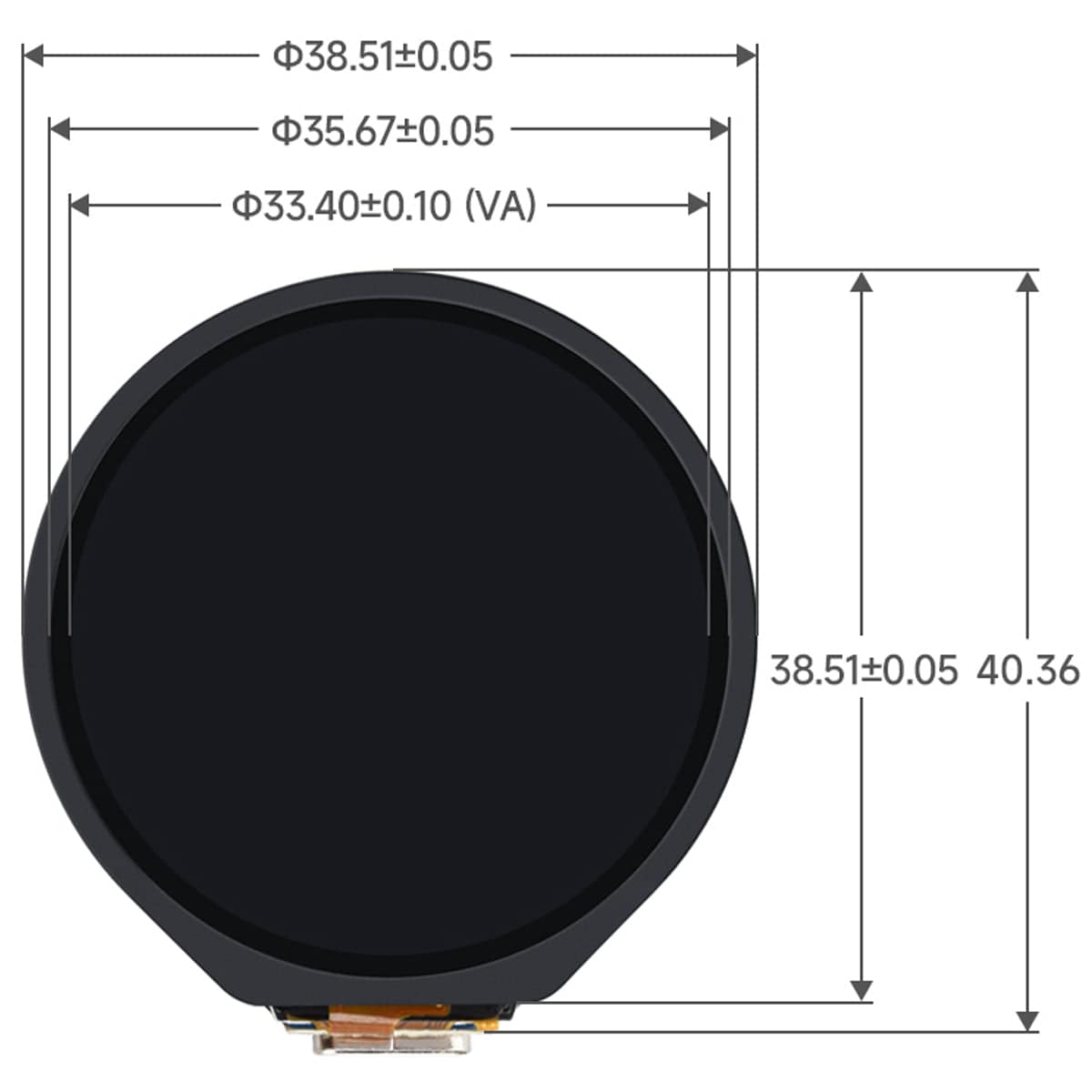

Specifications

Resources

• Product Wiki
• Schematic

Pinout

Package Contents

Board Only

• 1x RP2350 MCU Board
• 1x SH1.0 12-pin cable

With CNC Metal Case

• 1x RP2350 MCU Board with Metal Case
• 1x SH1.0 12-pin cable
