RP2350-GEEK Development Board

If you're looking for a development board that also acts as a debugger for your Raspberry Pi or ARM Microcontroller, look no further! This little device has been built around the Raspberry Pi RP2350 MCU and is compatible with standard CMSIS-DAP debugging tools like OpenOCD, which attaches to Raspberry Pi’s 3-pin debug connector for debugging and can be used to debug most ARM-based microcontrollers.

The board has three ports, SWD, UART, and I2C, making it a lot easier to set up debugging and anything else you need to connect to. To keep an eye on any progress, there's a vibrant 1.14" IPS LCD Display with 240 x 135 resolution and 65K colour. For your storage needs, there is an SD card slot and 16MB of flash memory.

Features

• RP2350 microcontroller chip by Raspberry Pi
• 3-pin SWD port for connecting the debugged target board
• Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers
• Works with OpenOCD and other tools supporting CMSIS-DAP
• Raspberry Pi 3-pin Debug Connector Specification
• 3-pin USB to UART bridge
• 4-pin I2C port for the testing target board
• 1.14" 240 x 135 pixels 65K colour IPS LCD
• Equipped with plastic case and cables
• Open-source firmware, more convenient to upgrade

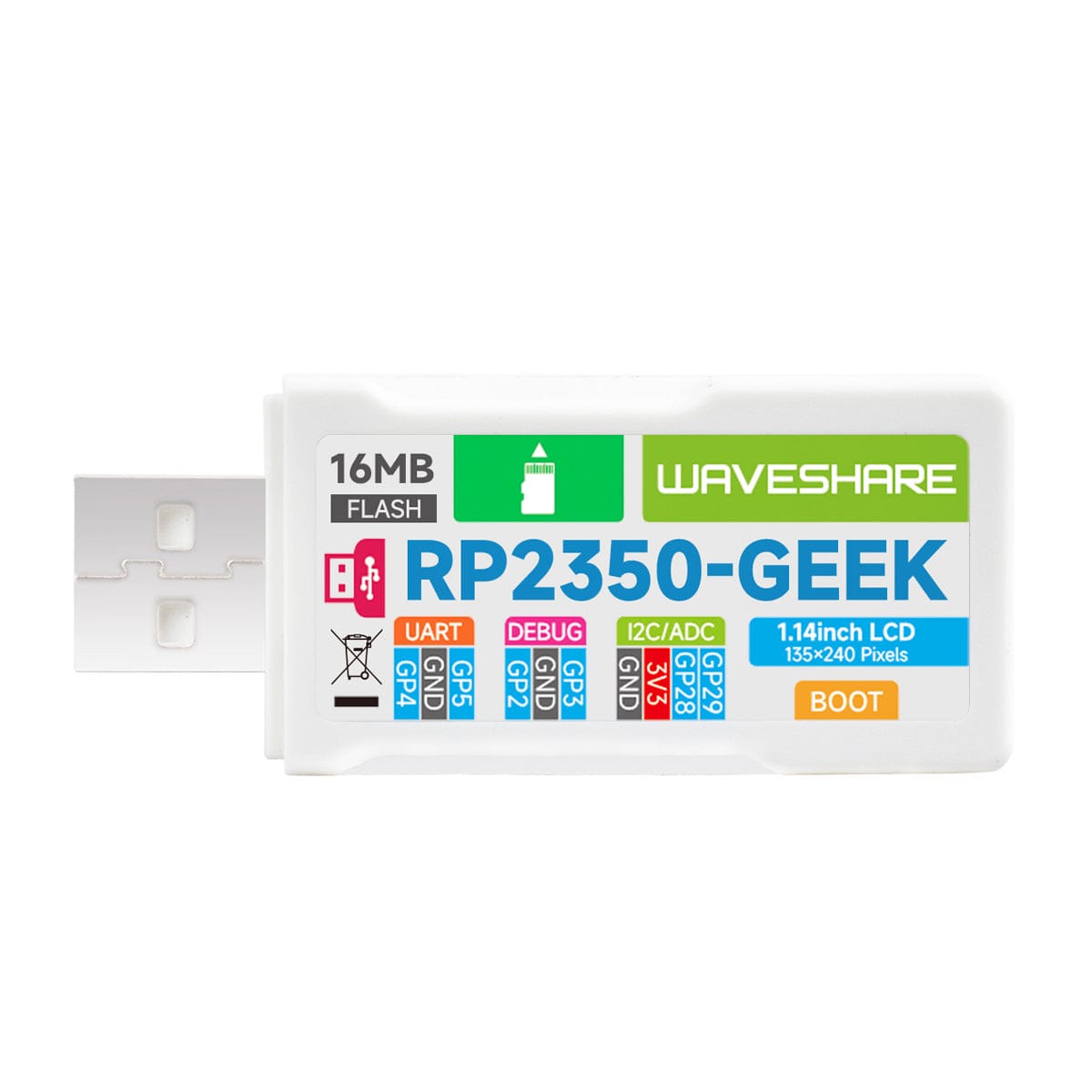

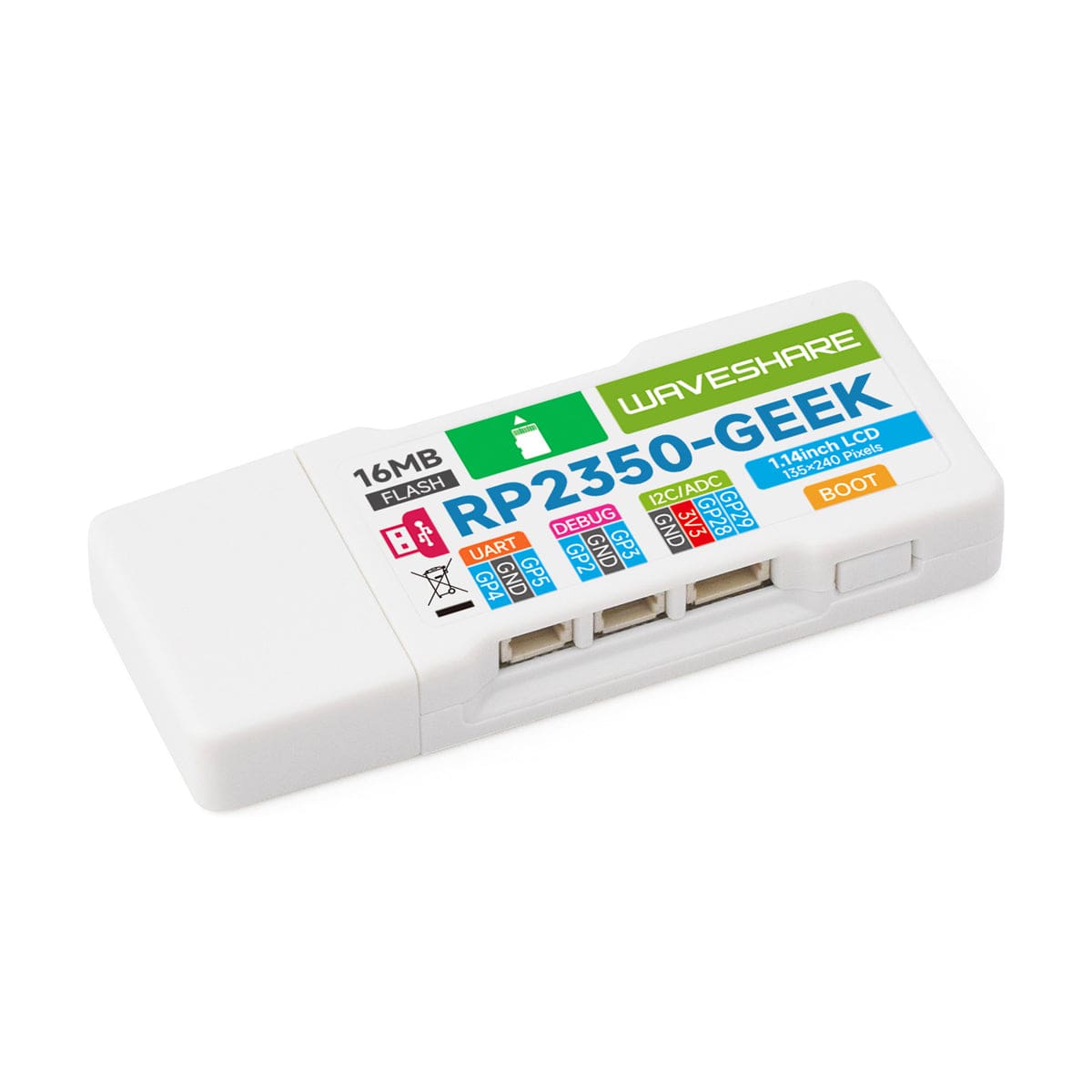

What's on Board

1. USB Type-A interface
2. UART port
3. SWD port
4. I2C port
5. SD Card Slot
   Supports SDIO interface and SPI interface communication
6. W25Q128JVSIQ
   16MB NOR-Flash
7. RP2350
8. BOOT button

Resources

• Product Wiki
• Schematic

Connection Example - Raspberry Pi Pico 2

Note: Raspberry Pi Pico is NOT included

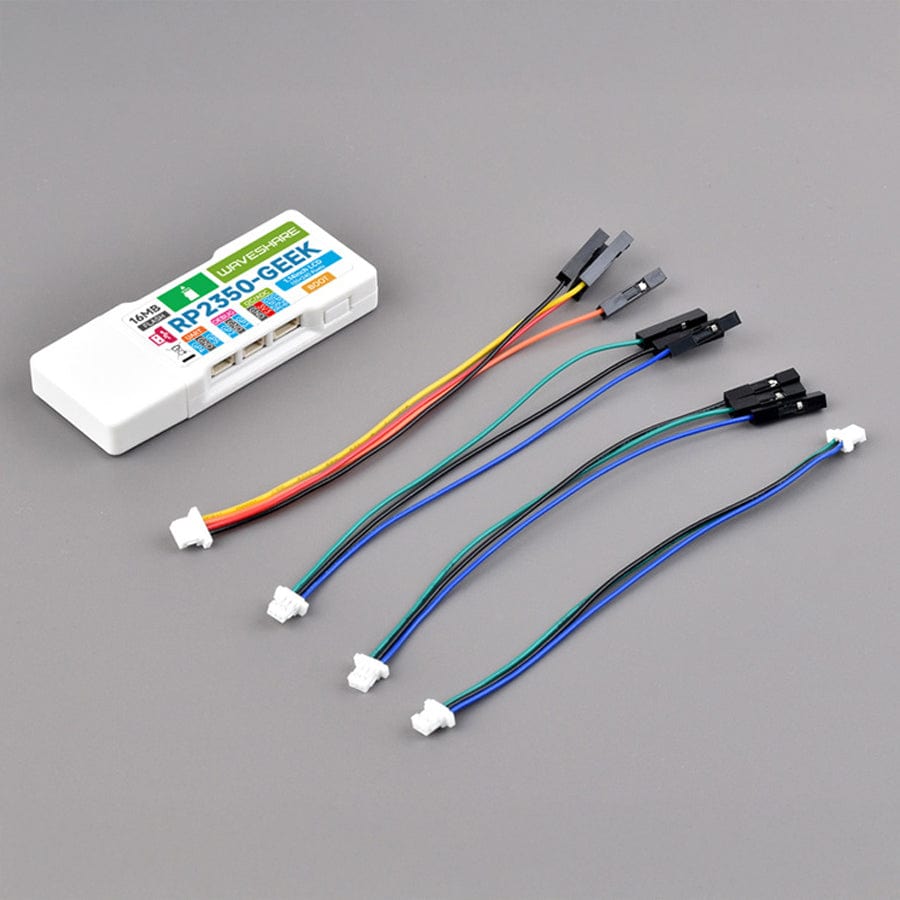

Package Contents

• 1x RP2350-GEEK
• 1x Cable Kit
