RP2040-LCD

WaveshareSKU: WAV-20891
Price:
Sale price £15.10
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Compatible with:

Awesome Extras

Raspberry Pi Pico W - The Pi HutRaspberry Pi Pico W - The Pi Hut
Raspberry PiRaspberry Pi Pico W
Sale priceFrom £5.80 incl. VAT excl. VAT
USB-A to USB-C Cable - Black - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
Breadboard for Pico - The Pi HutBreadboard for Pico - The Pi Hut
Monk MakesBreadboard for Pico
Sale price £4.20 incl. VAT excl. VAT
Get Started with MicroPython on Raspberry Pi Pico - 2nd EditionGet Started with MicroPython on Raspberry Pi Pico - 2nd Edition

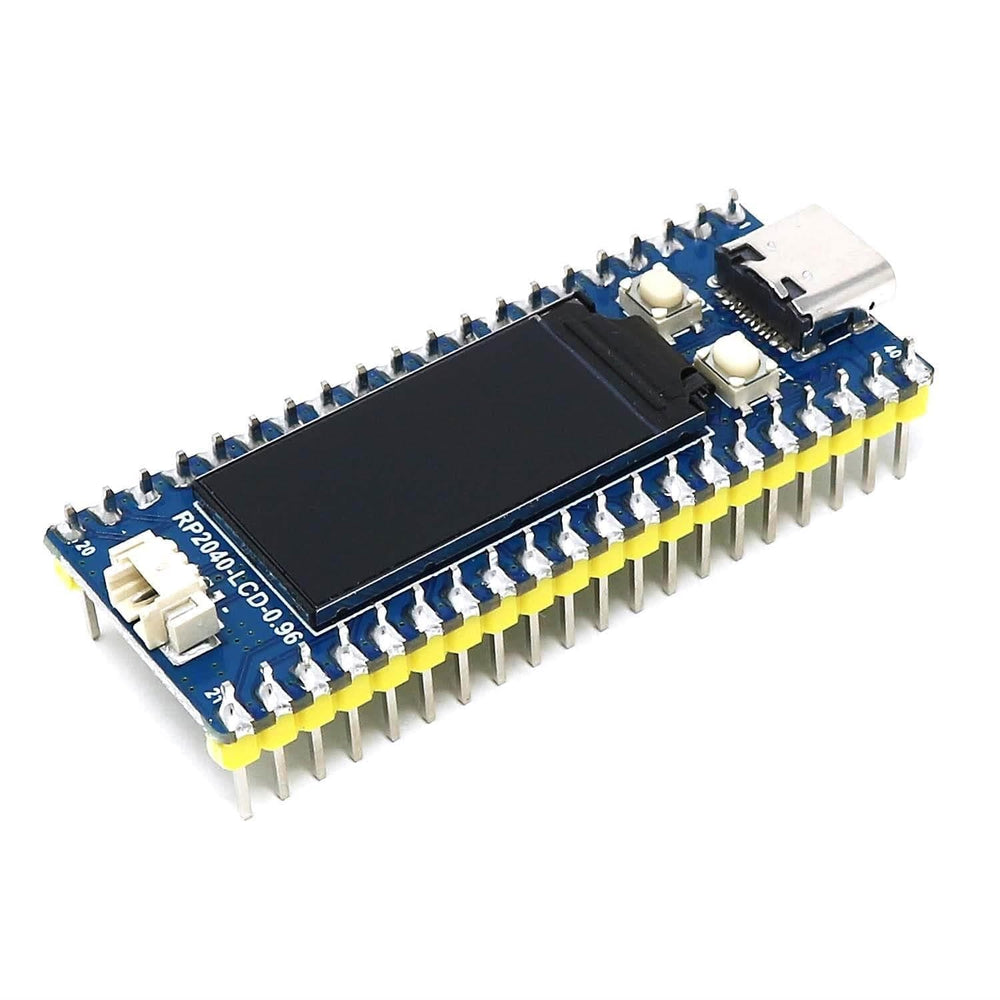

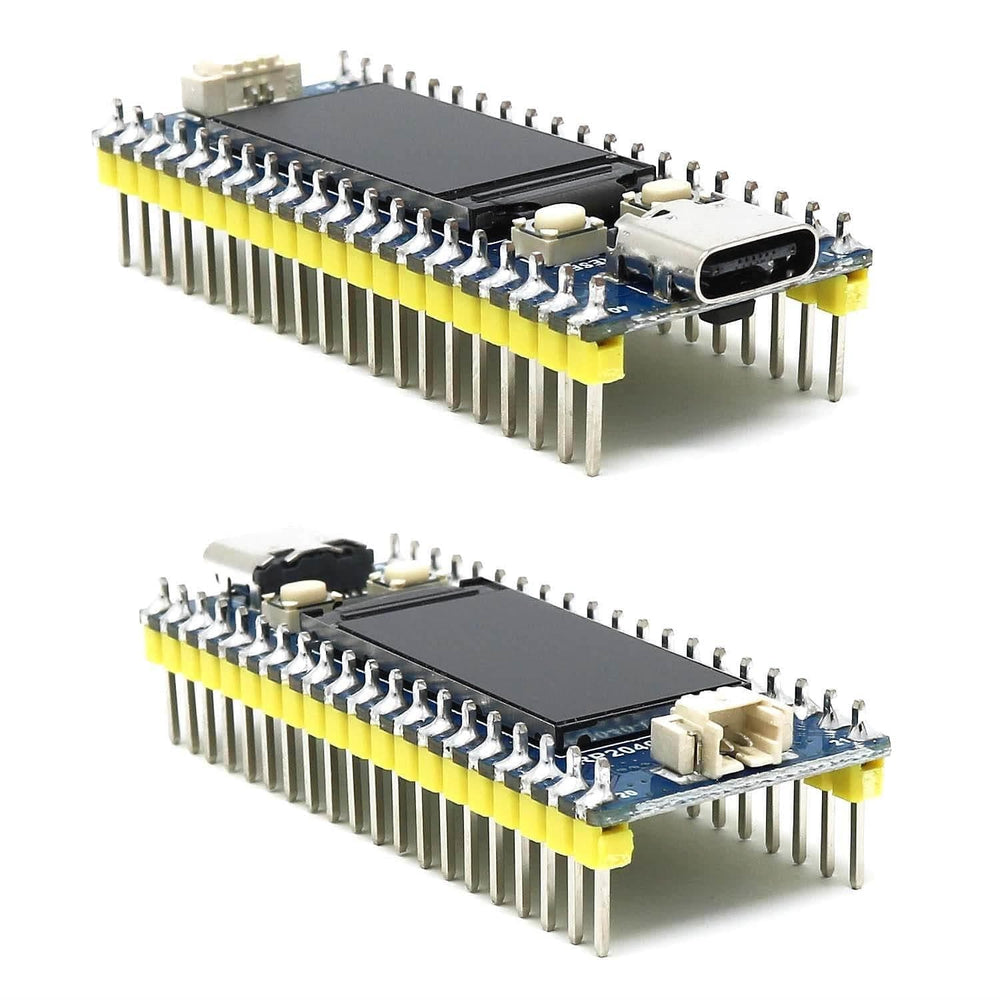

The RP2040-LCD is a development board based on the Raspberry Pi RP2040 and inspired by the Raspberry Pi Pico, with an 0.96" IPS LCD display, USB-C connection, onboard LiPo battery charging and pre-soldered headers!

Using the same GPIO pinout as the Raspberry Pi Pico, the same environment/SDK and a similar board shape and size, the RP2040-LCD offers users additional features in the familiar Pico format, including:

  • 0.96" IPS LCD display
  • USB-C Connector (with 1800mA regulator)
  • Battery recharge circuit and header for 3.7V LiPo batteries
  • Pre-soldered headers
  • 2MB onboard Flash memory
  • Reset button

The board also includes reset/boot buttons and flat debug pads. Your existing Raspberry Pi Pico add-on boards are pin-compatible and can be used with the same libraries and software - use it just like you would a Raspberry Pi Pico!

We are currently only stocking the pre-soldered version, removing the need to solder pin headers yourself. Don't forget to grab a USB-C cable!

Features

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of onboard Flash memory
  • USB-C connector
  • 0.96" 160×80 pixels 65K colorful IPS LCD display
  • Lithium battery recharge/discharge header, suitable for mobile devices
  • Onboard DC-DC chip TPS63000, high-efficiency DC-DC buck-boost chip, 1.8A current switch
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 26 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support
  • Dimensions: 51mm x 21mm

What's Onboard?

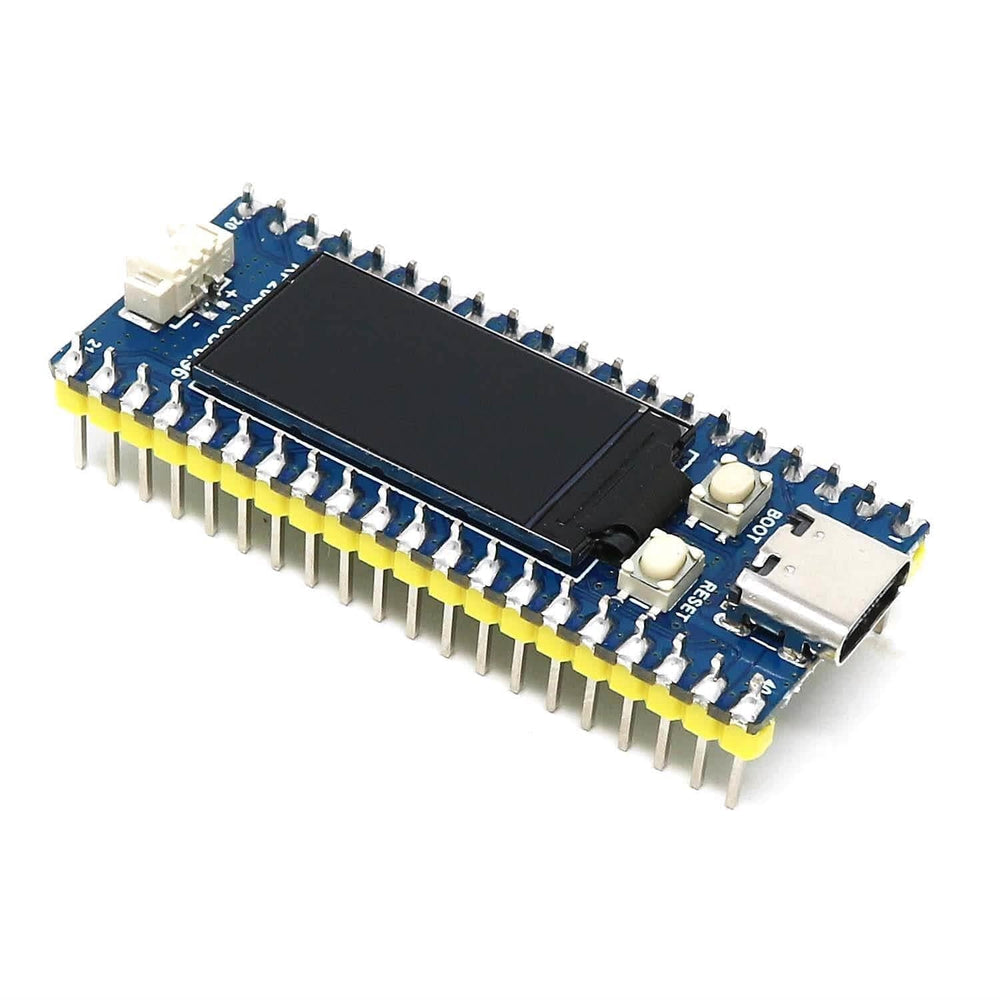

RP2040-LCD Features

1) USB Type-C connector
2) BOOT button
 - Press to reset and enter download mode
3) RESET button
4) 0.96" IPS LCD display
 - 160 × 80 pixels, 65K colorful
5) Battery header
 - MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
6) TPS63000
 - High-efficiency DC-DC buck-boost chip
7) ETA6096
 - High-efficiency Lithium battery recharge manager
8) RP2040
 - Dual-core processor, up to 133MHz operating frequency
9) W25Q16JVUXIQ
 - 2MB NOR-Flash

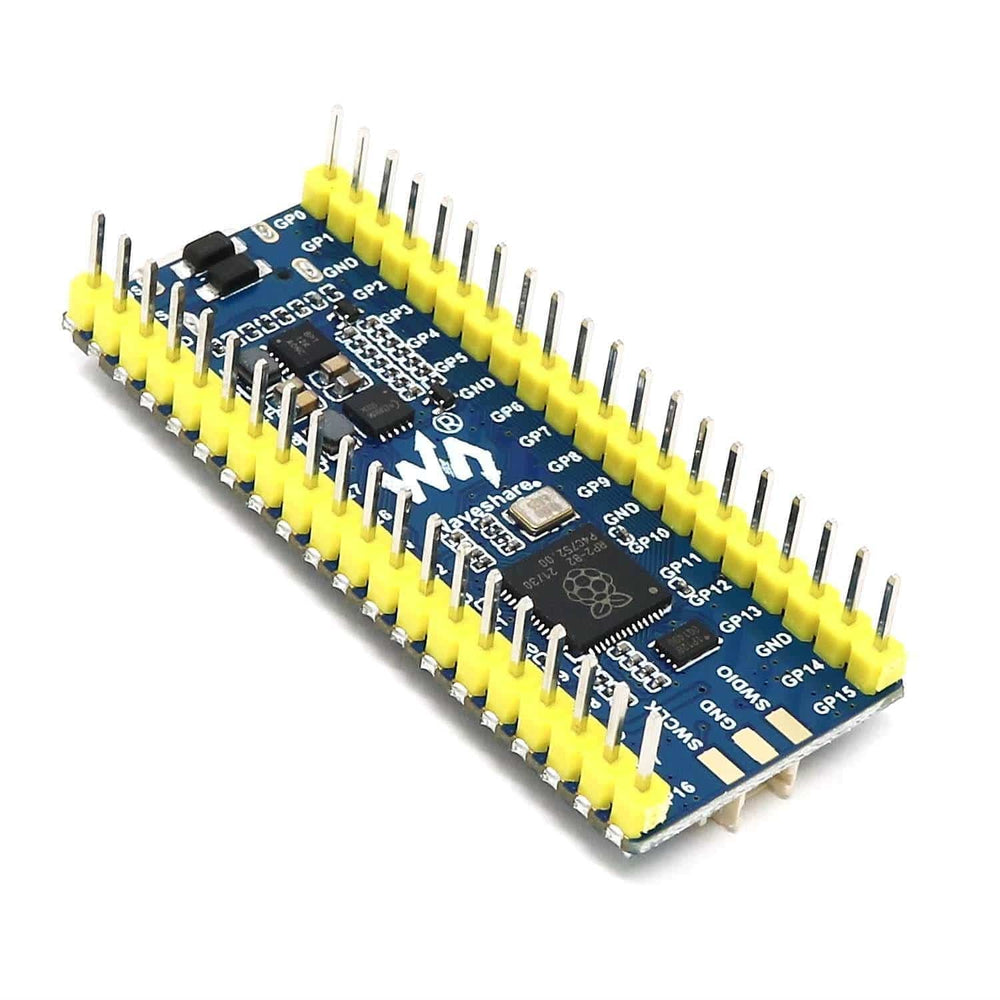

10) DEBUG points
11) Pinout
 - Compatible with Raspberry Pi Pico

Package Contents

  • 1x RP2040-LCD board (with soldered headers)

Resources

Pinout

RP2040-LCD Pinout
