RP2040 Development Board with 1.69" LCD Touch Display (240 x 280)

This development board has a 1.69" capacitive touch LCD with 240 x 280 resolution and 262K colours that provide vibrant and clear visuals, making it ideal for various projects such as handheld devices, control panels, or portable projects.

Powered by the RP2040 chip, it has dual-core ARM Cortex-M0+ processing with 264KB of SRAM, making it ideal for running custom projects easily. Its compact size and simple connection via USB-C make it easy to integrate into projects, while the included example codes help you get started quickly.

It also includes a lithium battery recharge/discharge header, making it ideal for portable projects, and an onboard RTC chip with a battery header for accurate timing. This module is ideal for anyone looking to add a responsive and colourful display to their projects.

Please note: this board uses a tiny MX1.25 connector for LiPo power. Most LiPo batteries on the market (including ours) use a larger JST fitting. We do not yet stock batteries with an MX1.25 connector, however, you can customise your battery with one of our 1.25mm pitch cables to make a compatible battery yourself (assuming you have the ability, knowledge and tools to do this safely).

Features

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 16MB of onboard Flash memory
• Type-C connector, keeps it up to date, easier to use
• 1.69" capacitive touch display, 240 x 280 resolution, 65K color
• Lithium battery recharge/discharge header, suitable for mobile devices
• RTC chip and RTC battery header for timing and scheduling functions
• Buzzer for sound-producing peripheral
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• Accurate clock and timer on-chip
• Temperature sensor

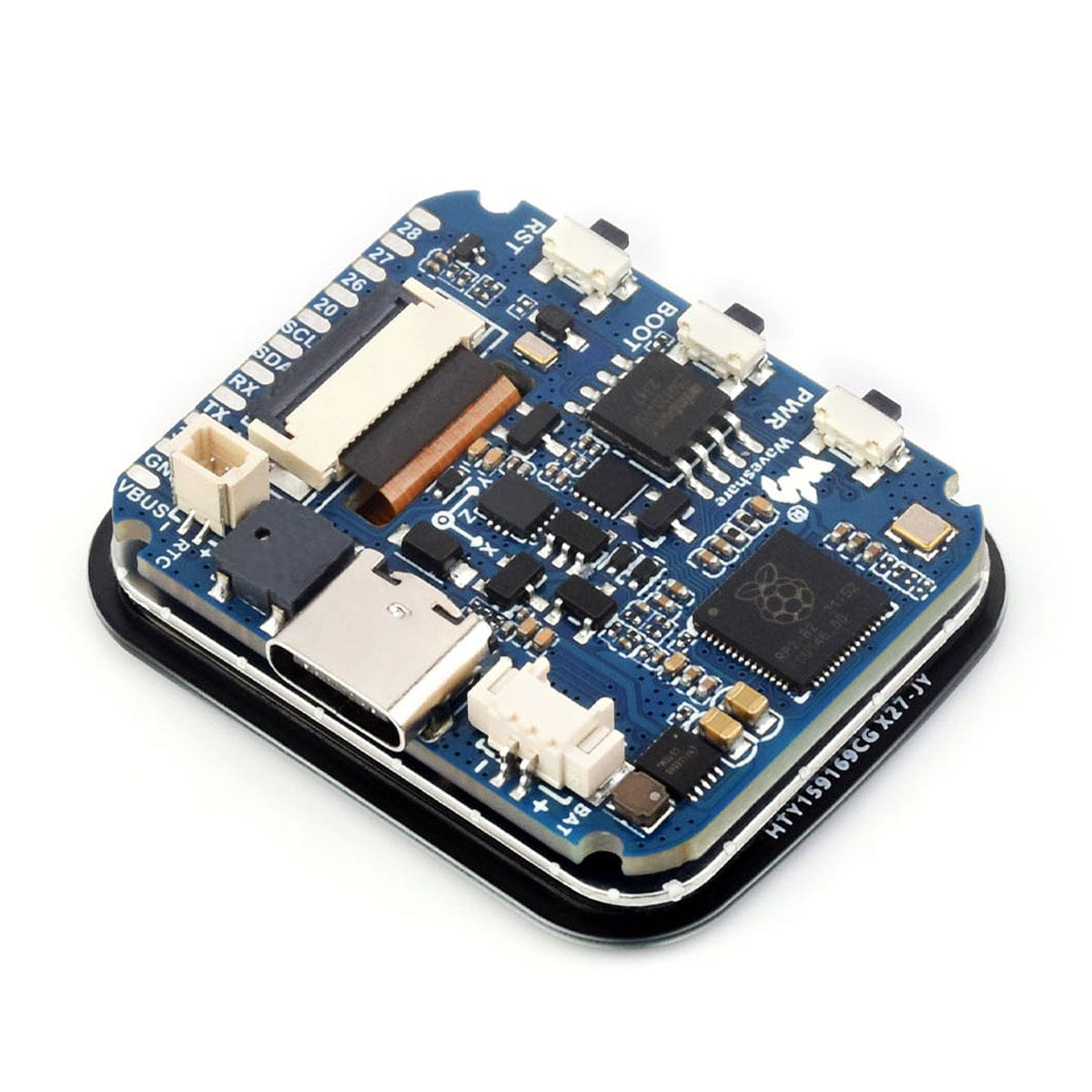

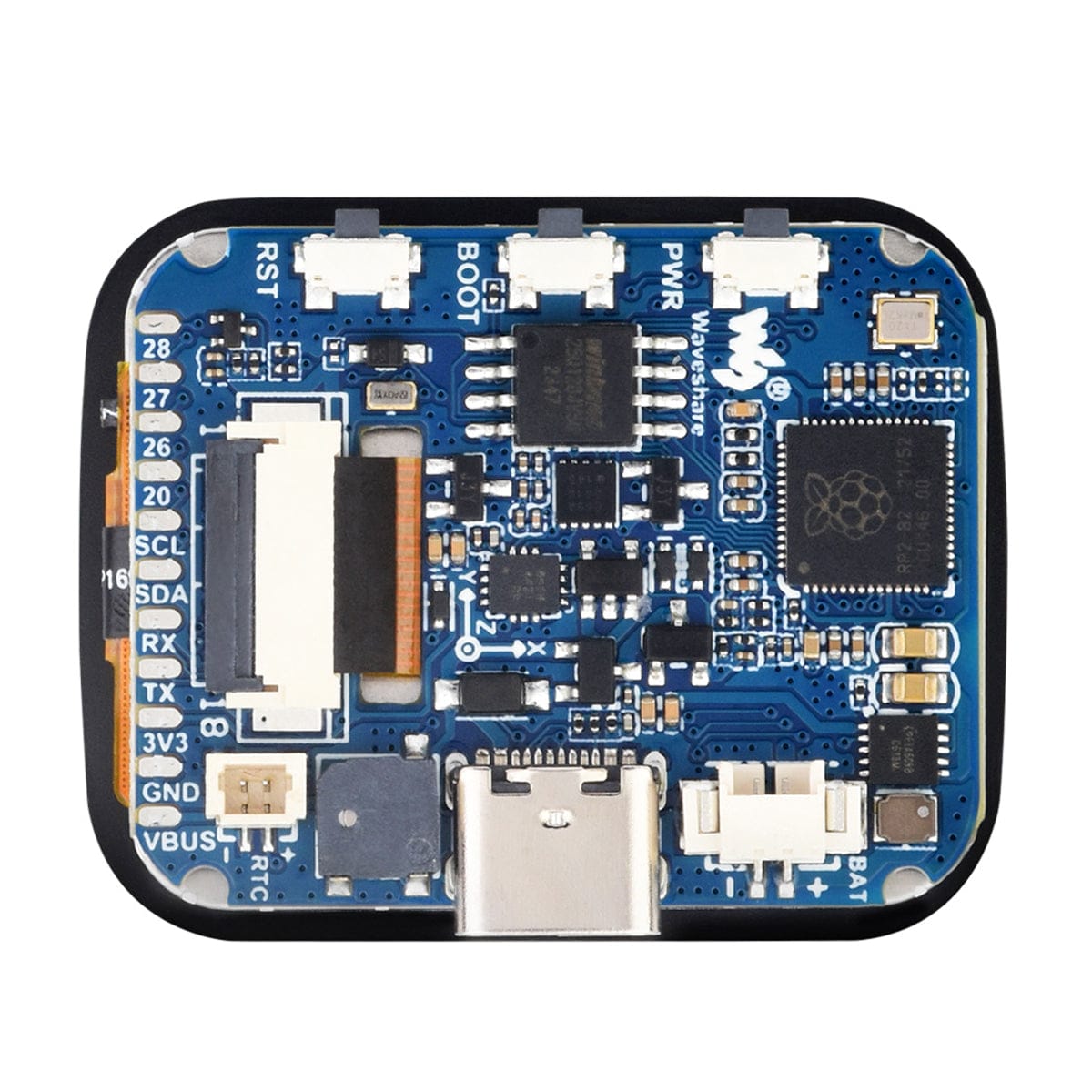

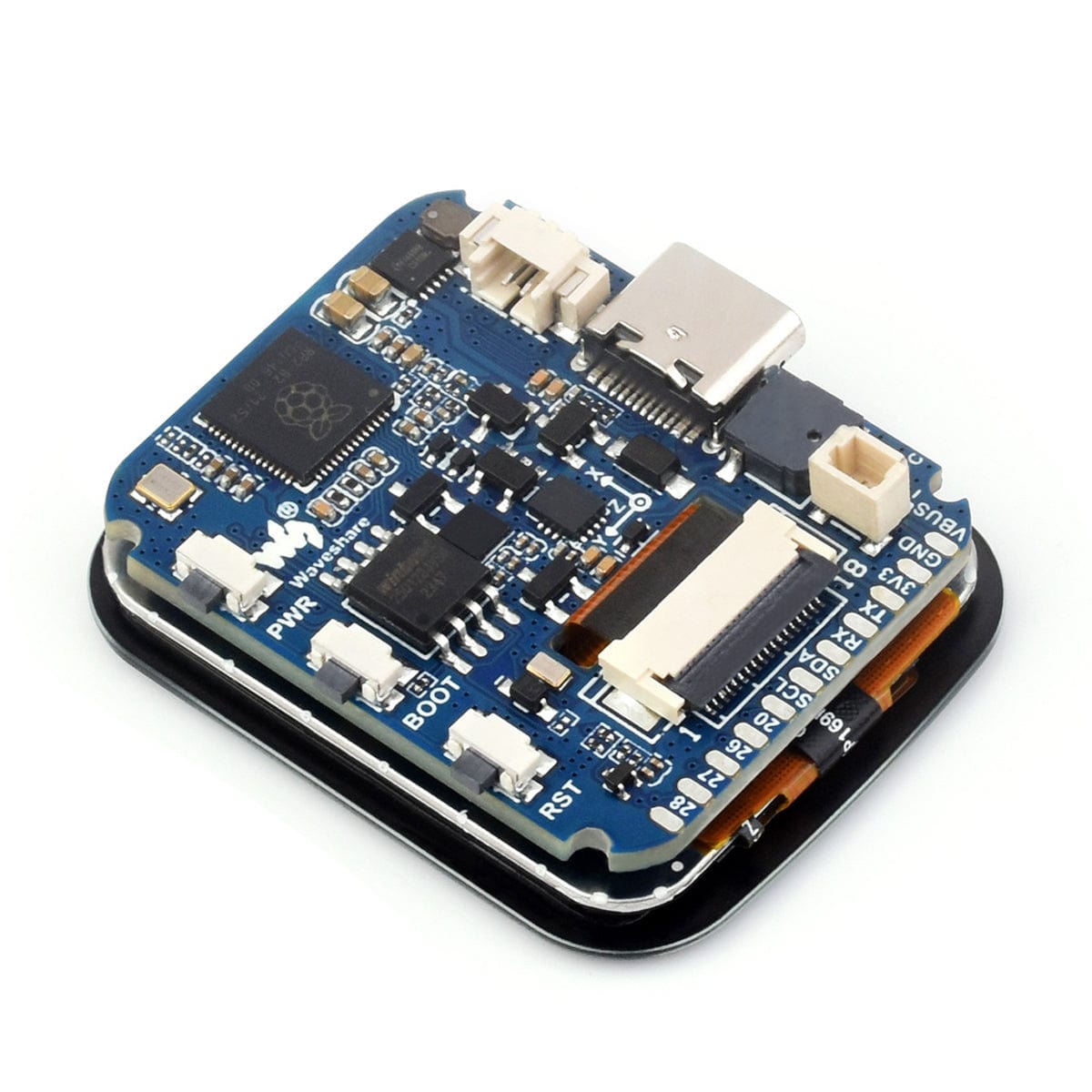

What's on Board

1. RP2040
   Dual-core processor, up to 133MHz operating frequency
2. W25Q128JVSIQ
   16MB NOR-Flash
3. PCF85063
   RTC chip
4. QMI8658
   6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
5. ETA6098
   High-efficiency lithium battery recharge manager
6. MX1.25 Battery Header
   MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
7. Type-C Connector
   For programming, USB 1.1 with device and host support
8. Buzzer
   Sound-producing peripheral
9. RTC Battery Header
   For connecting rechargeable RTC batteries (only supports rechargeable RTC batteries)
10. PWM Button
    Supports battery power supply control, single-press, double-press, multi-press and long-press operations
11. BOOT Button
12. RST Reset Button

Specifications

Resources

• Product Wiki
• Schematic
• RP2040 Datasheet

Pinout

Package Content

• 1x RP2040 Development Board with 1.69" Touch LCD
