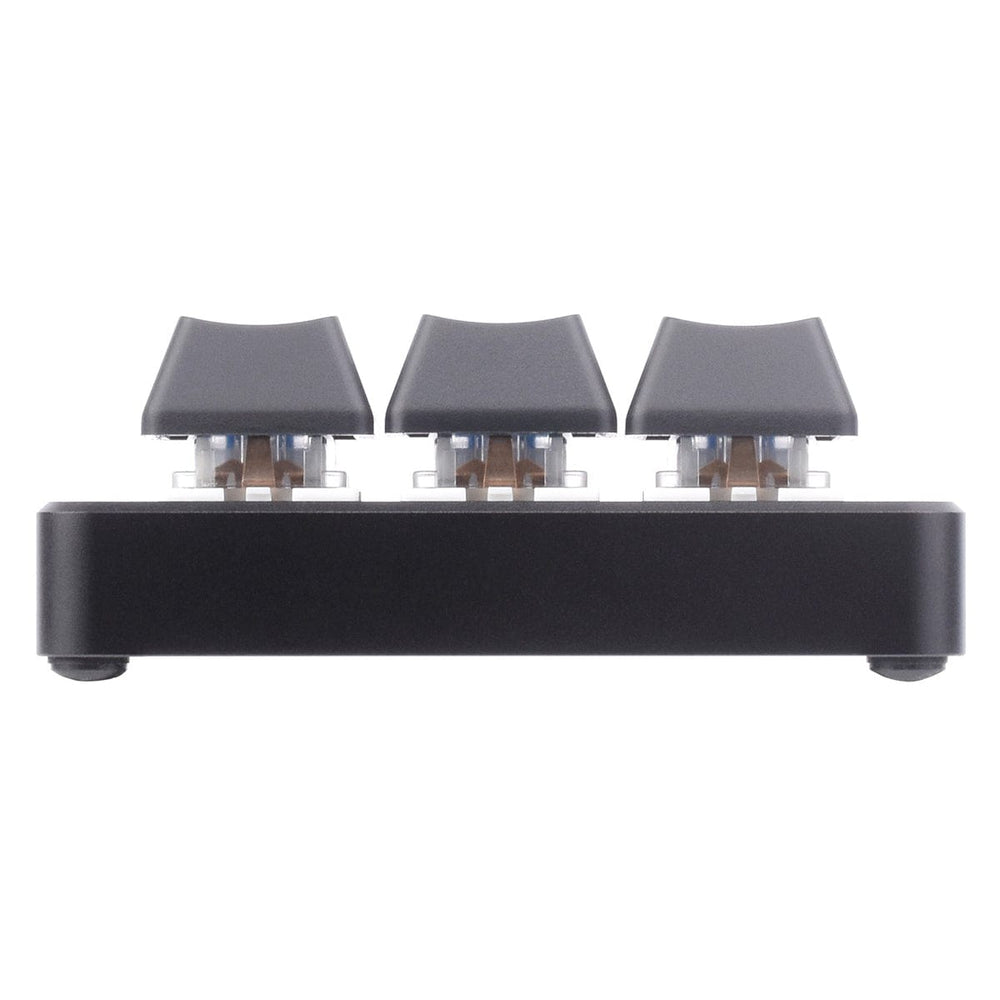

RP2040 Ctrl C/V Shortcut Keyboard Plus

WaveshareSKU: WAV-26462
Price:
Sale price £12.30
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

USB-A to USB-C Cable - Black - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
USB-C to Micro-USB Cable - Black - The Pi Hut
The Pi HutUSB-C to Micro-USB Cable - Black
Sale priceFrom £2.50 incl. VAT excl. VAT
Raspberry Pi Pico W - The Pi HutRaspberry Pi Pico W - The Pi Hut
Raspberry PiRaspberry Pi Pico W
Sale priceFrom £5.80 incl. VAT excl. VAT

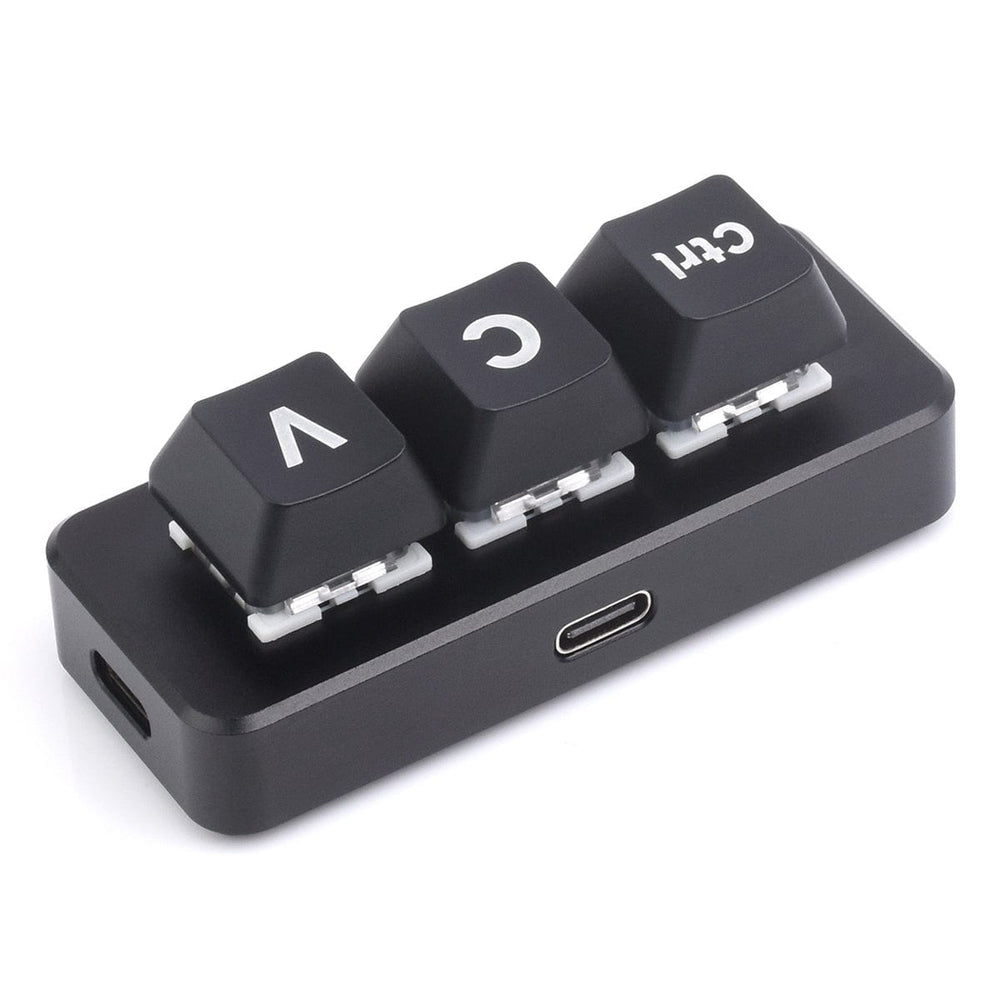

This Ctrl C/V Shortcut Keyboard has the RP2040 microcontroller chip from Raspberry Pi and is equipped with a dual-core Arm Cortex M0+ processor that can run up to 133 MHz. This 3-key development board comes with dual Type-C ports for easy, driver-free plug-and-play functionality.

Pre-set with the shortcut keys "Ctrl", "C", and "V", the keyboard's keys are also programmable to suit different needs. It includes black keycaps that are customisable and sit in a sturdy CNC metal case with hot-swappable technology, allowing for the easy swapping of switches without soldering. The keyboard also features subtle RGB lighting effects, adding a touch of personalisation to your project.

Features

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

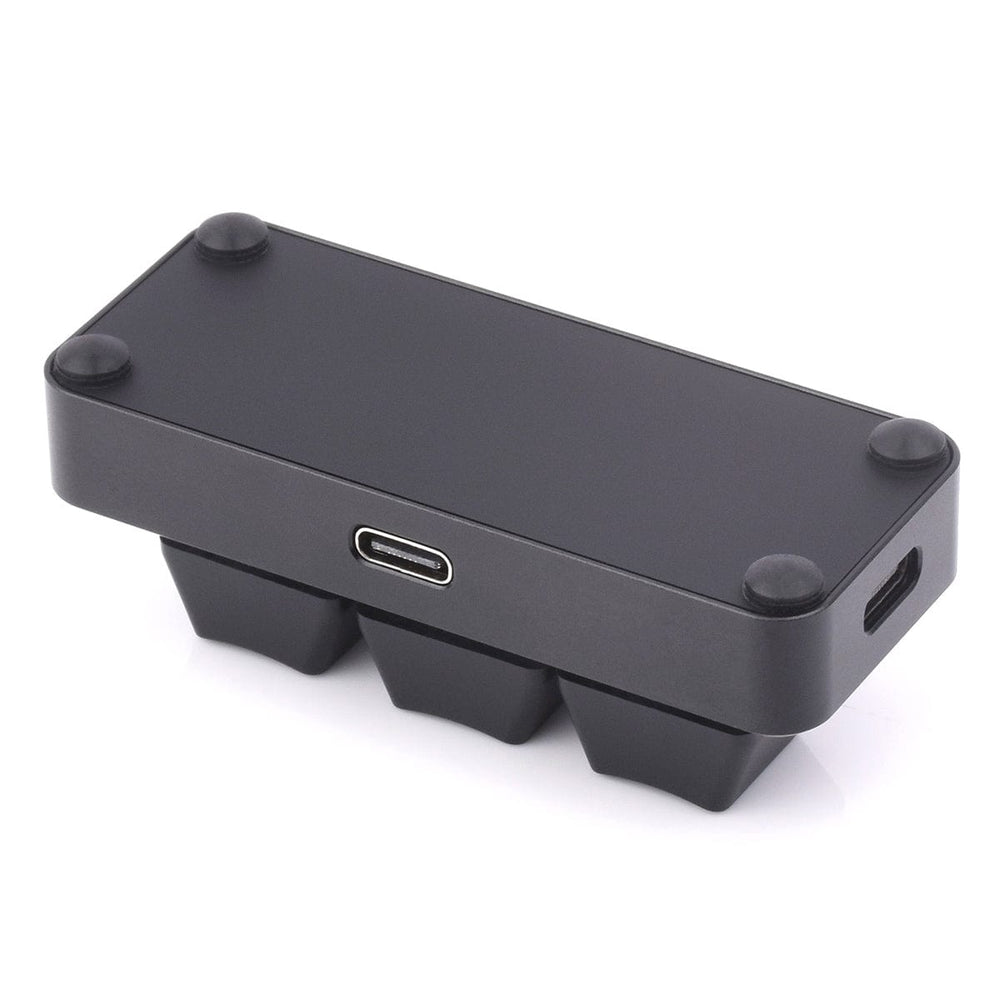

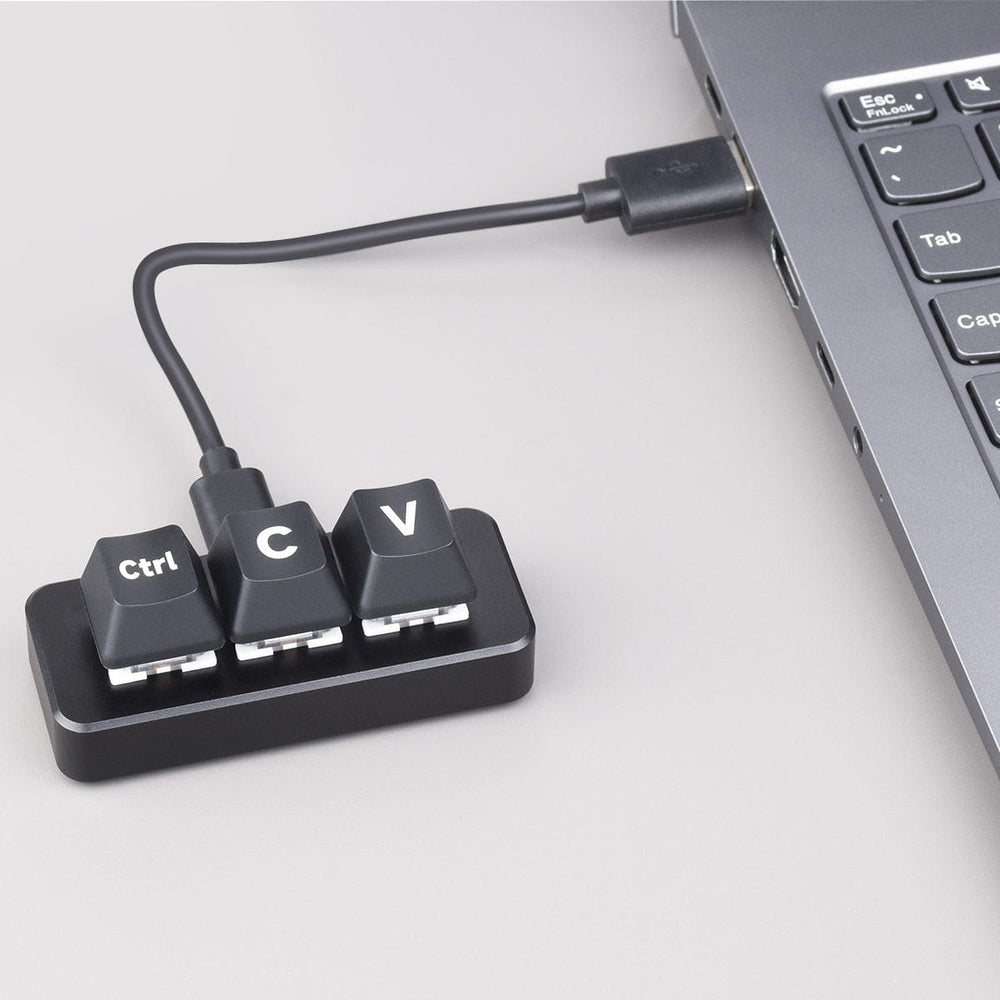

  • Dual Type-C ports (choose one of two), plug-and-play, driver free

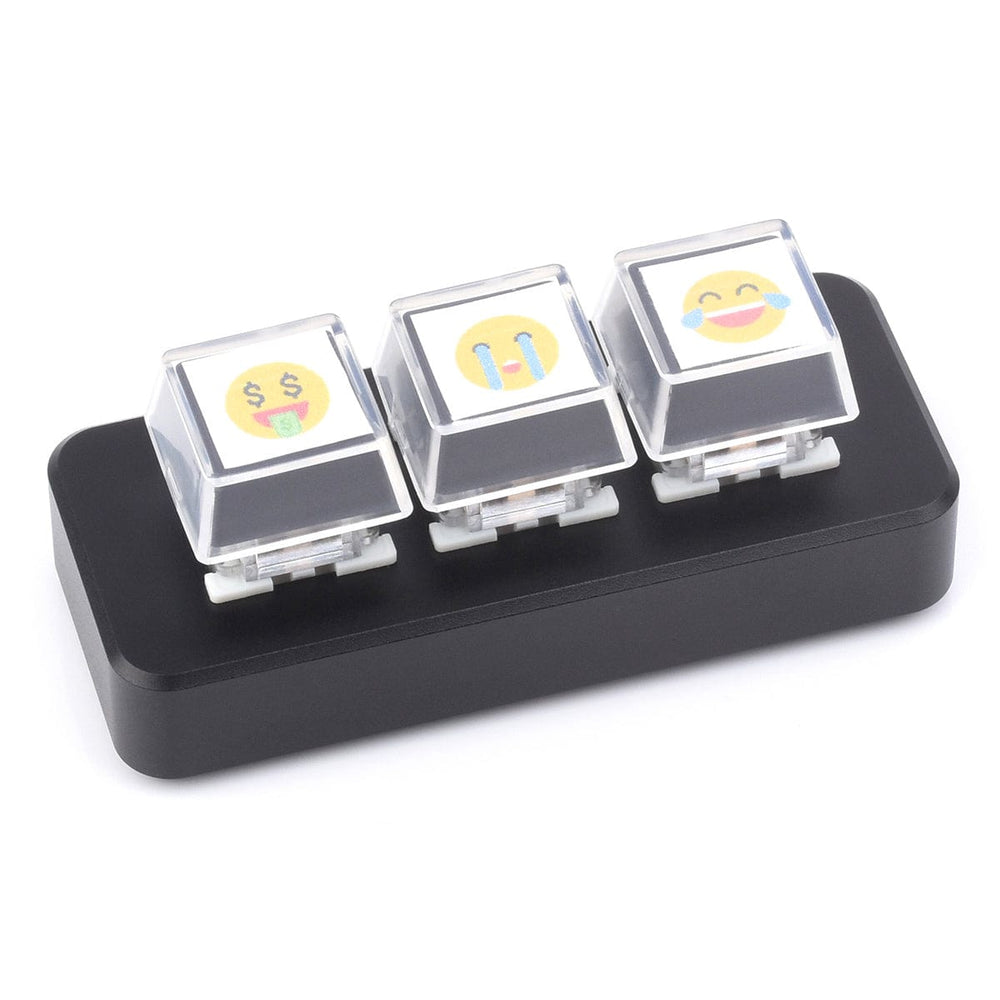

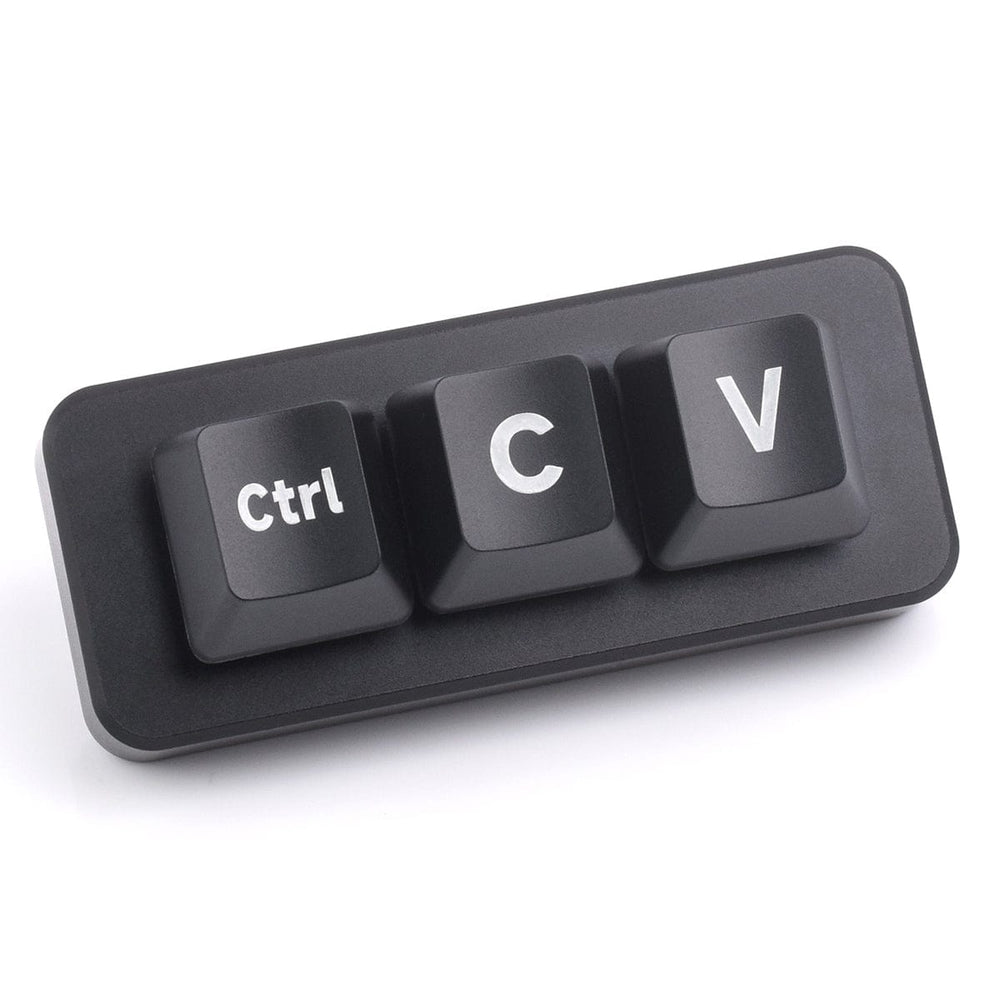

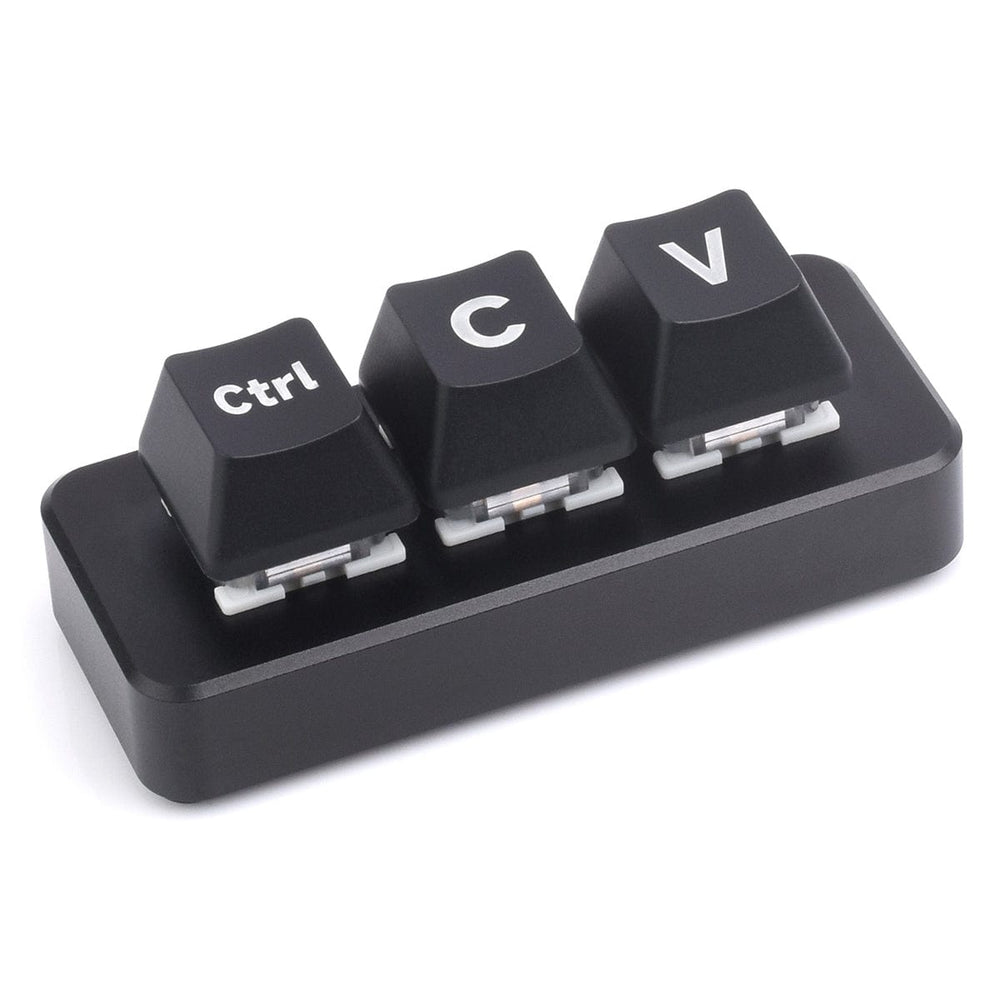

  • The default function of three keys is "Ctrl", "C", and "V", programmable for other functions. Comes with two-layer black keycaps without character for customised use.

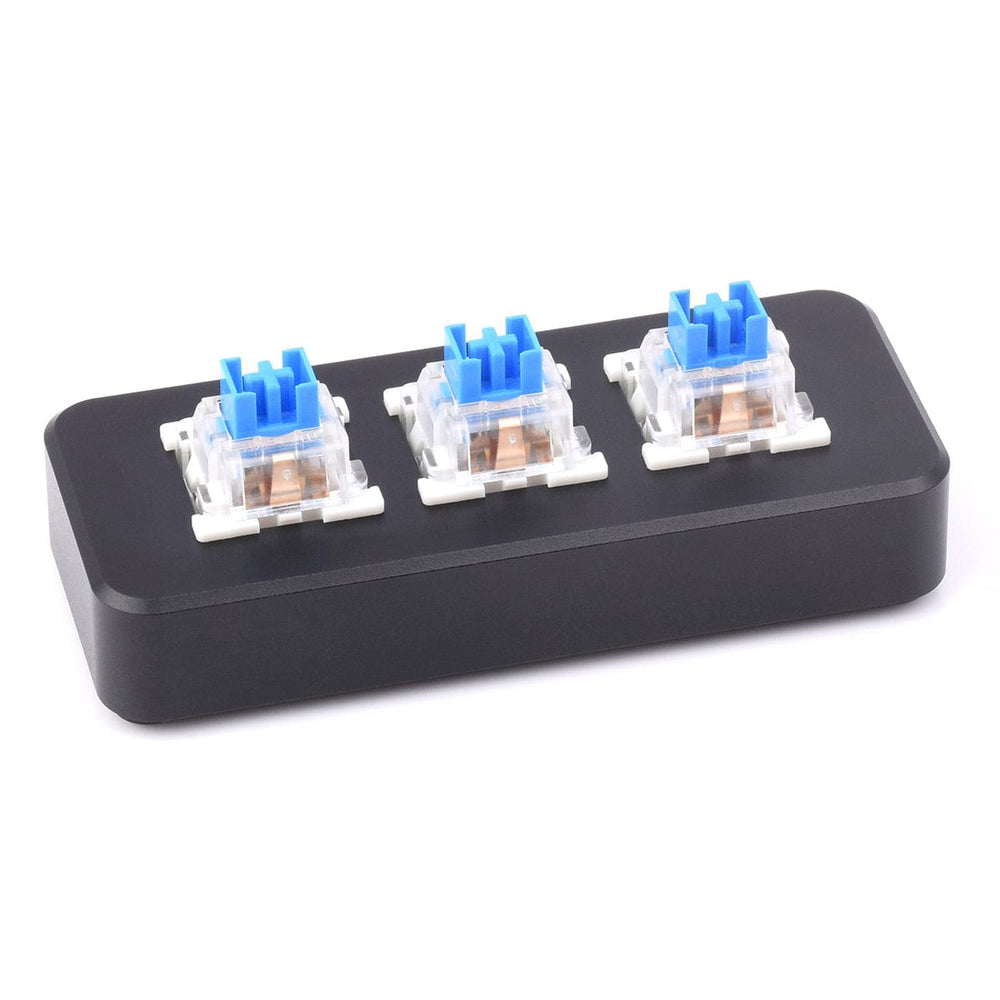

  • Hot-swappable technology, allowing users to replace the switches
  • Dustproof blue switch by default, providing more pronounced tactile feedback and mechanical feeling
  • The keys come with RGB LED and the backlight colour can be customized according to your needs

Specifications

Total Travel 4.00mm
Actuation Force 50±10gf
Tactile Travel 1.80mm
Bottom-out force 65gf Max
Activation point travel 2.20±0.6mm
Tactile Force 60±10gf
Initial Force 30gf Min

Resources

Package Contents

  • 1x RP2040 Ctrl C/V Shortcut Keyboard Plus
  • 3x Double-layer black keys
