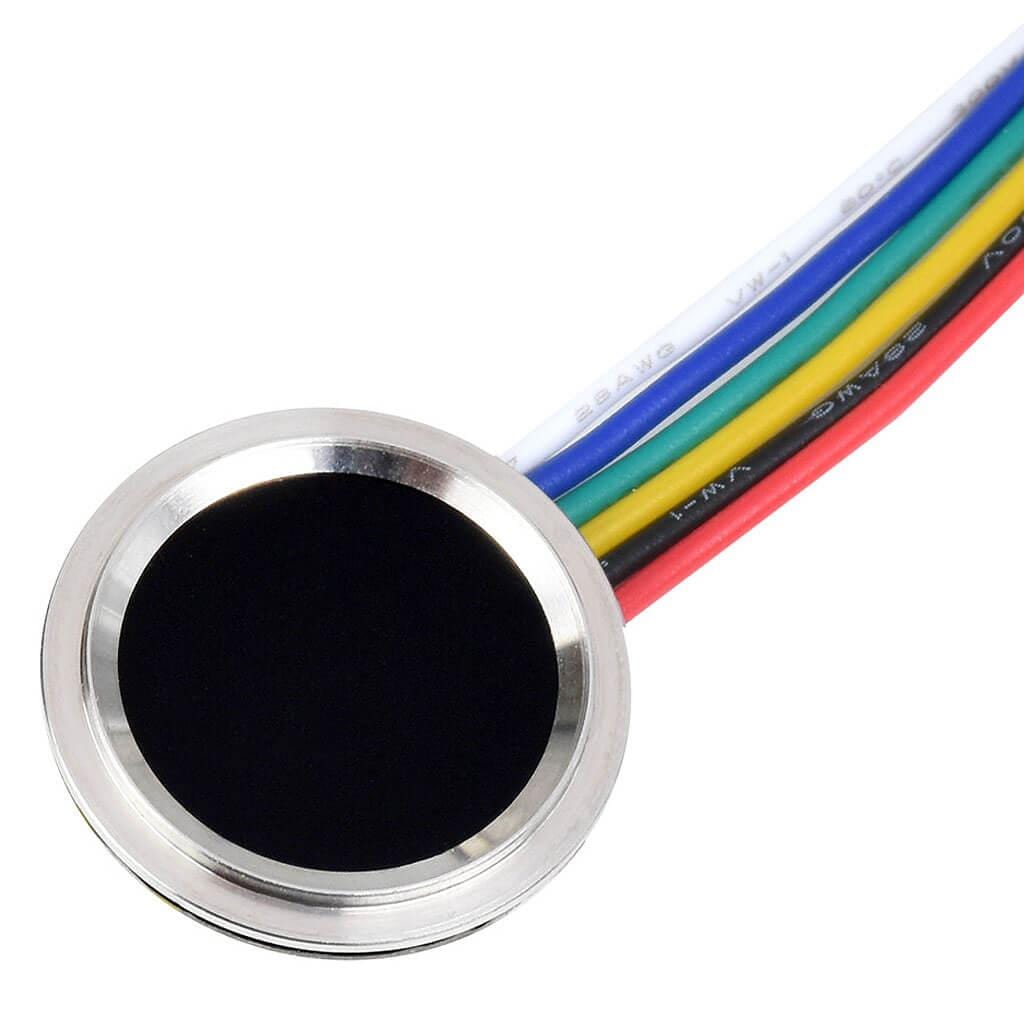

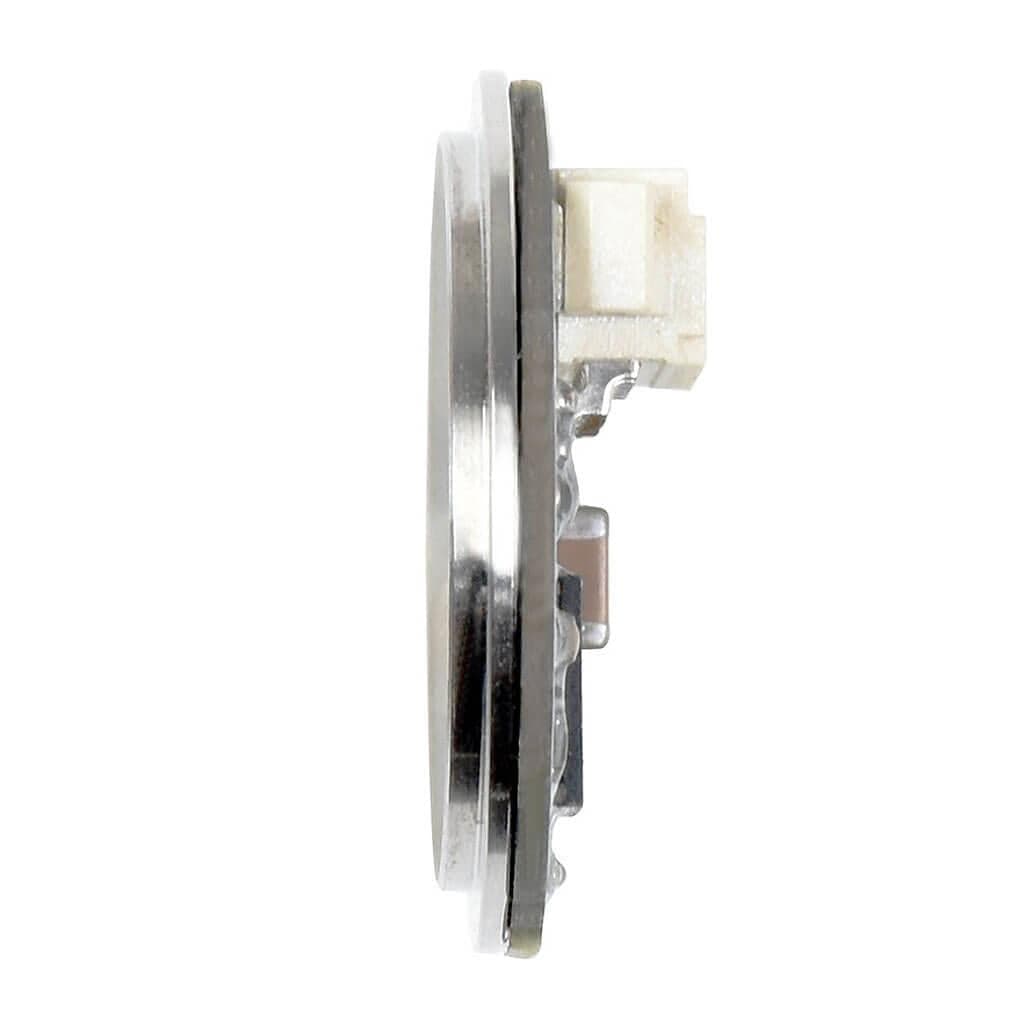

Round All-in-one Capacitive Fingerprint Sensor (D)

WaveshareSKU: WAV-20903
Price:
Sale price £21.60
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Awesome Extras

Save 30%
WaveshareHigh Precision Capacitive Fingerprint Reader (B)
Sale price £42.35 Regular price £60.50 incl. VAT excl. VAT
Raspberry PiRaspberry Pi 4 Model B
Sale priceFrom £33.60 incl. VAT excl. VAT
ArduinoArduino Uno Rev3
Sale price £24.50 incl. VAT excl. VAT

Based on a high-performance Cortex processor, combined with a high-security commercial fingerprinting algorithm, the UART Fingerprint Sensor (D) features functionalities such as fingerprint enrolling, image acquisition, feature finding, template generating & storing, fingerprint matching and more!

Without any knowledge about the complicated fingerprinting algorithm, all you need to do is send some simple UART commands to quickly integrate it into fingerprint verification applications which require small size and high precision.

Features

  • Easy to use by some simple commands
  • Commercial fingerprinting algorithm, supports functions like fingerprint enrolling, fingerprint matching, fingerprint image acquisition, fingerprint feature uploading
  • Capacitive sensitive detection, just touch the collecting window lightly for fast verification

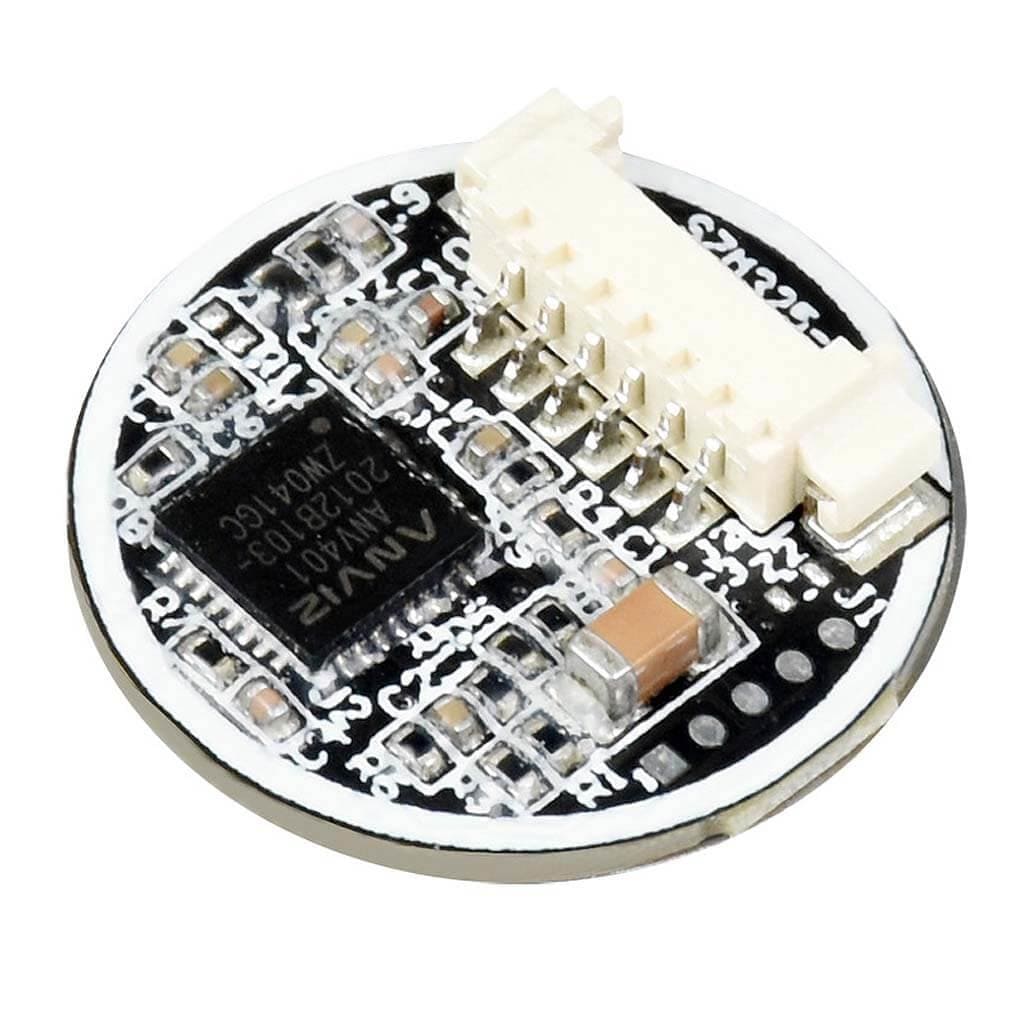

  • Highly integrated hardware, processor and sensor in one small chip, suitable for compact applications

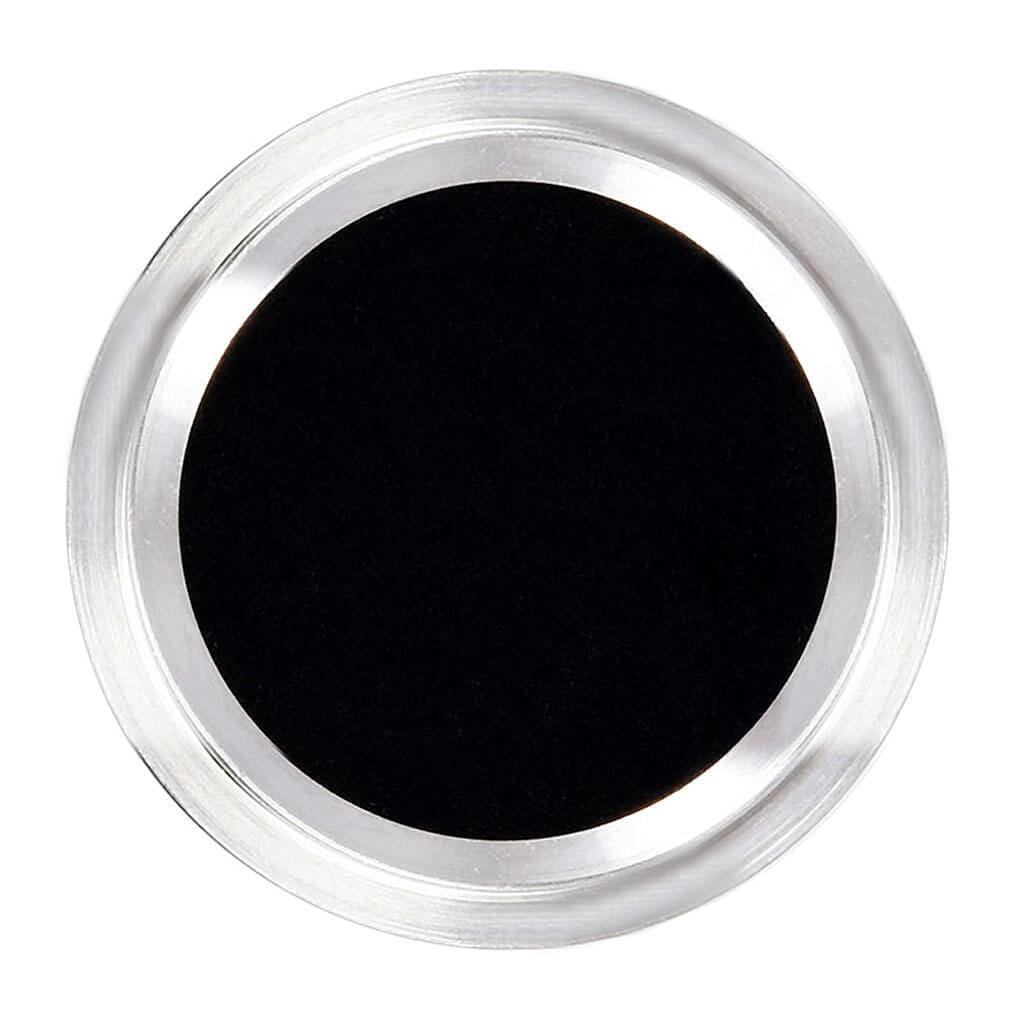

  • Narrow stainless steel rim, supports 360° omni-directional verification
  • Embedded human sensor, the processor will enter sleep automatically and wake up when touched for lower power consumption
  • Onboard UART connector, easy to connect with hardware platforms such as Raspberry Pi

Specifications

Sensor Capacitive touch sensor
Resolution 508 DPI
Image pixels 160×160
Image greyscale 8
Sensor dimension R15.5 mm
Fingerprint capacity 150
Matching time <500ms (1:N, and N≤100)
False acceptance rate < 0.001%
False rejection rate < 0.1%
Operating voltage 2.7~3.3V
Operating current < 50mA
Sleep current < 16uA
ESD Contact discharge 8KV / aerial discharge 15KV
Communication port UART
Baudrate 19200 bps
Operating environment Temperature: -20°C~70°C
Humidity: 40%RH~85%RH (no condensation)
Storage environment Temperature: -40°C~85°C
Humidity: <85%RH (no condensation)

Pinout

Package Contents

  • 1x UART Fingerprint Sensor (D)

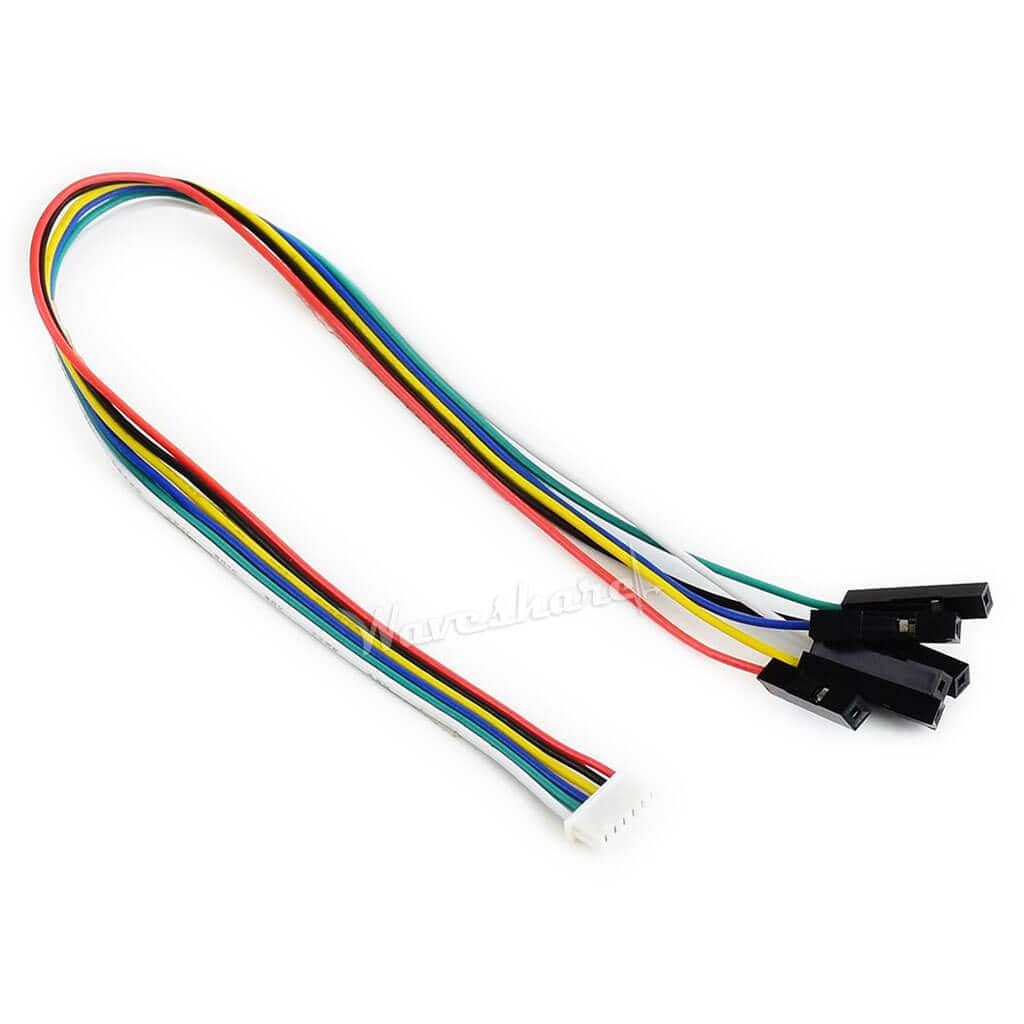

  • 1x 6-pin squid wire
