Rotation Sensor

WaveshareSKU: WAV-9533
Sale price £3.80
incl. VAT
excl. VAT
Only 8 units left

Awesome Extras

The Pi Hut5-pin Sensor Cable
Sale price £1 incl. VAT excl. VAT
WaveshareDHT11 Temperature-Humidity Sensor
Sale price £4.30 incl. VAT excl. VAT
WaveshareColour Sensor
Sale price £10.80 incl. VAT excl. VAT

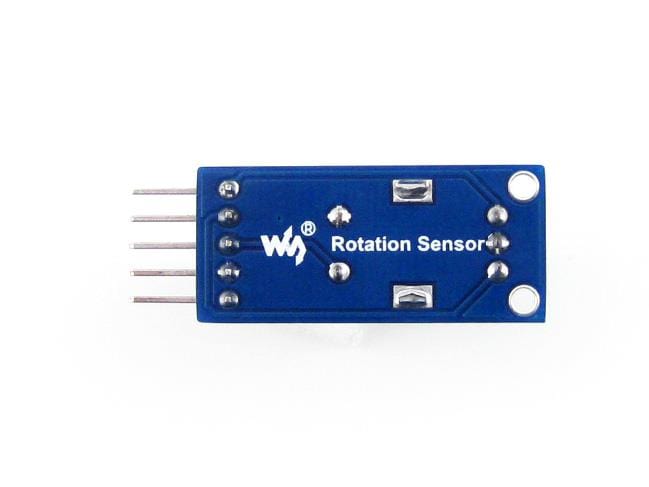

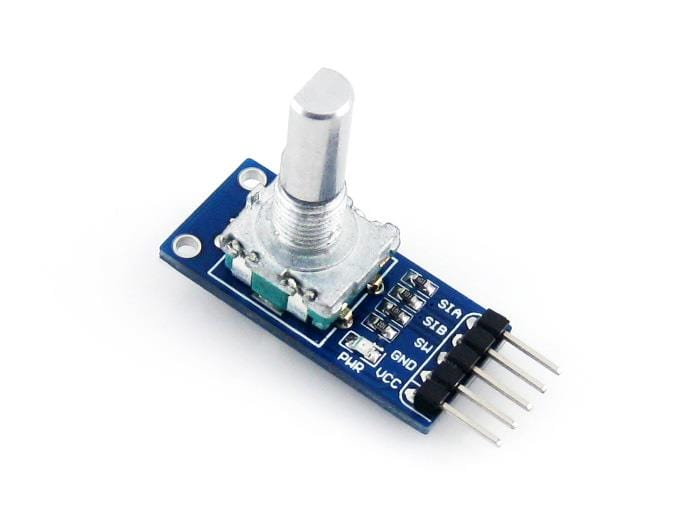

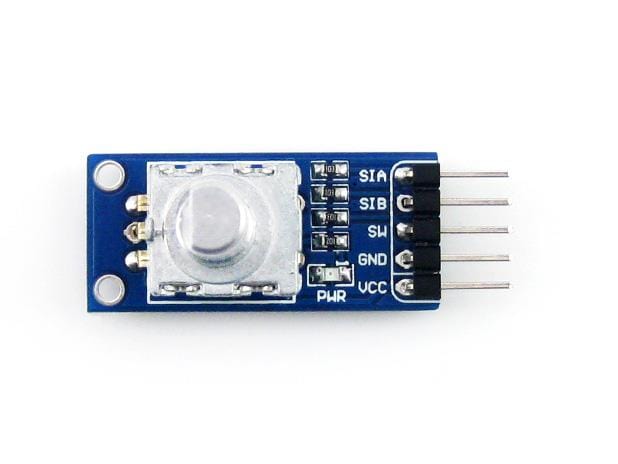

This rotation sensor from Waveshare detects clockwise/anti-clockwise rotations: degrees and laps.

An incremental encoder is a kind of rotation sensor for translating the rotary displacement into a sequence of digital pulse signals. The displacement can be gained by counting the number of pulses outputted in the course of clockwise or anticlockwise rotation.

Comparing with the potentiometer, the rotary counter has no limit for counting. So, there is a reset button provided to reset the counter to the initial state, restarting at 0.

This module is intended for prototyping and learning, therefore no locking nut is included.

Note: This sensor does not come with a cable or locking nut.


  • Pulses per lap: 15
  • Power: 3.0V ~ 5.3V
  • Dimension: 32.1mm * 15.4mm
  • Mounting holes size: 2.0mm
  • Sensor only - no cable

How to Use

    Product Wiki:

    In the case of working with an MCU:

    • VCC ↔ 3.0V ~ 5.3V
    • GND ↔ power supply ground
    • SW ↔ MCU.IO (encoder button status)
    • SIB ↔ MCU.IO (output status)
    • SIA ↔ MCU.IO (output status)
