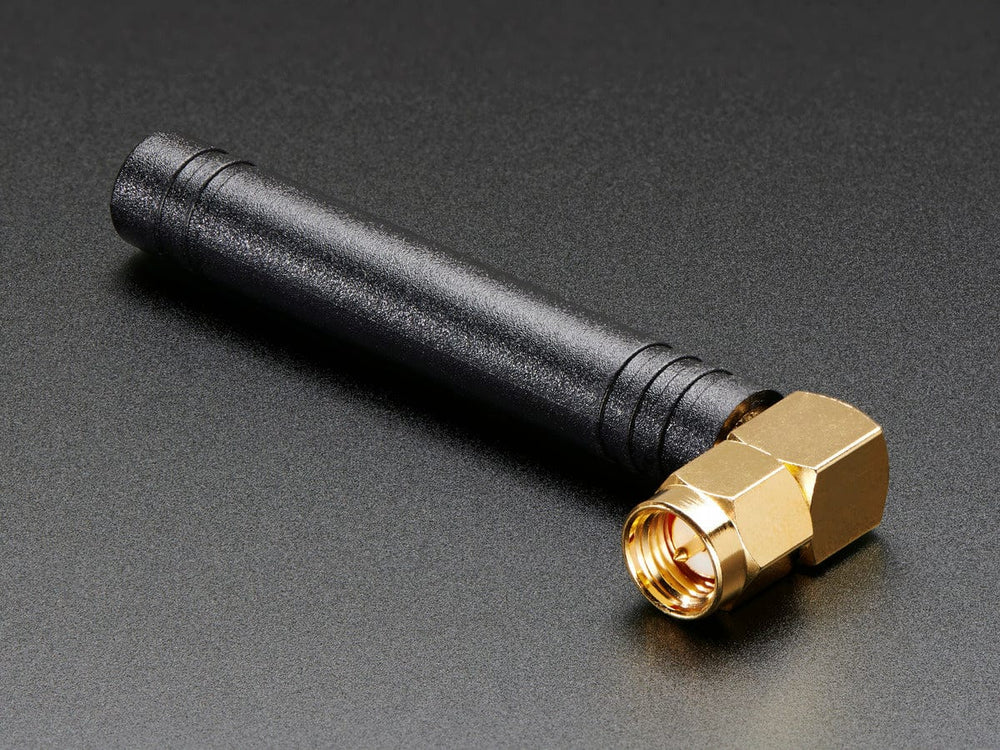

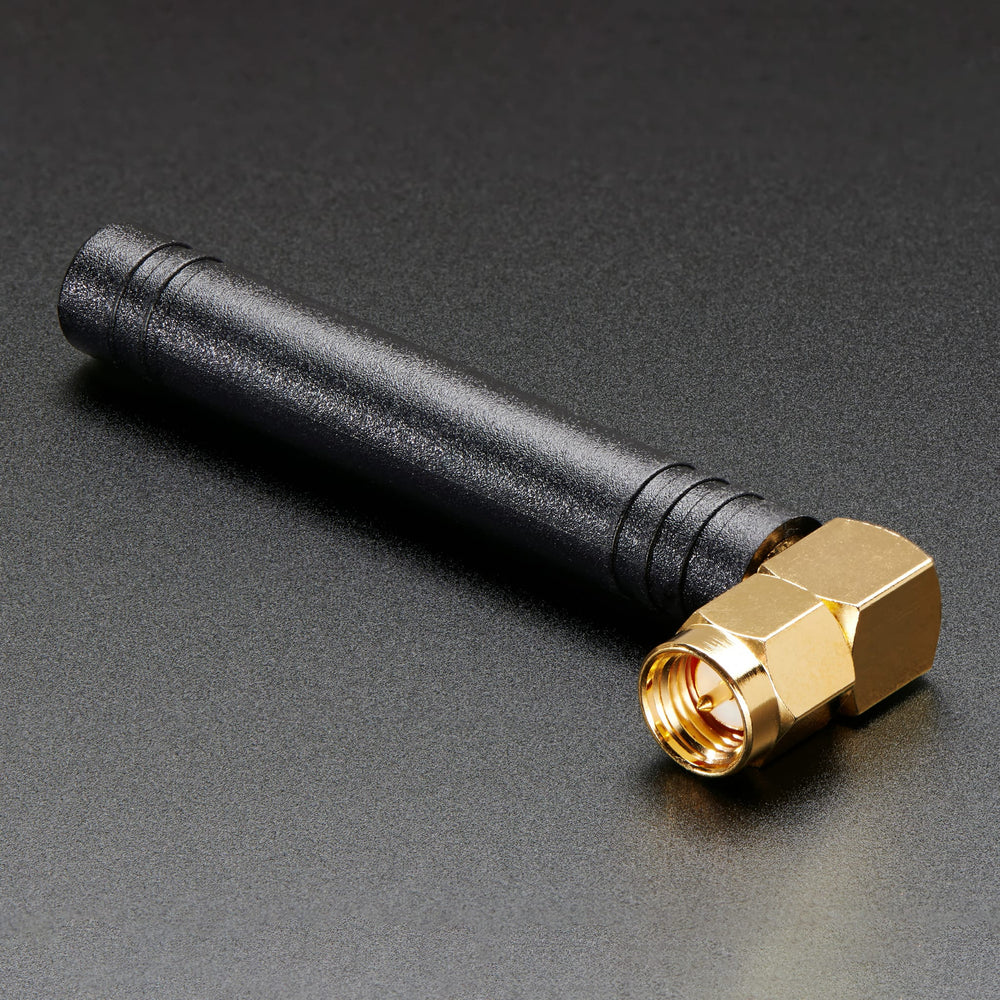

Right-angle Mini GSM/Cellular Quad-Band Antenna - 2dBi SMA Plug

This 2dBi Right-Angle SMA Antenna provides reliable wireless performance across multiple cellular frequency bands, making it ideal for GSM, GPRS, and other 850 to 2100MHz RF applications.

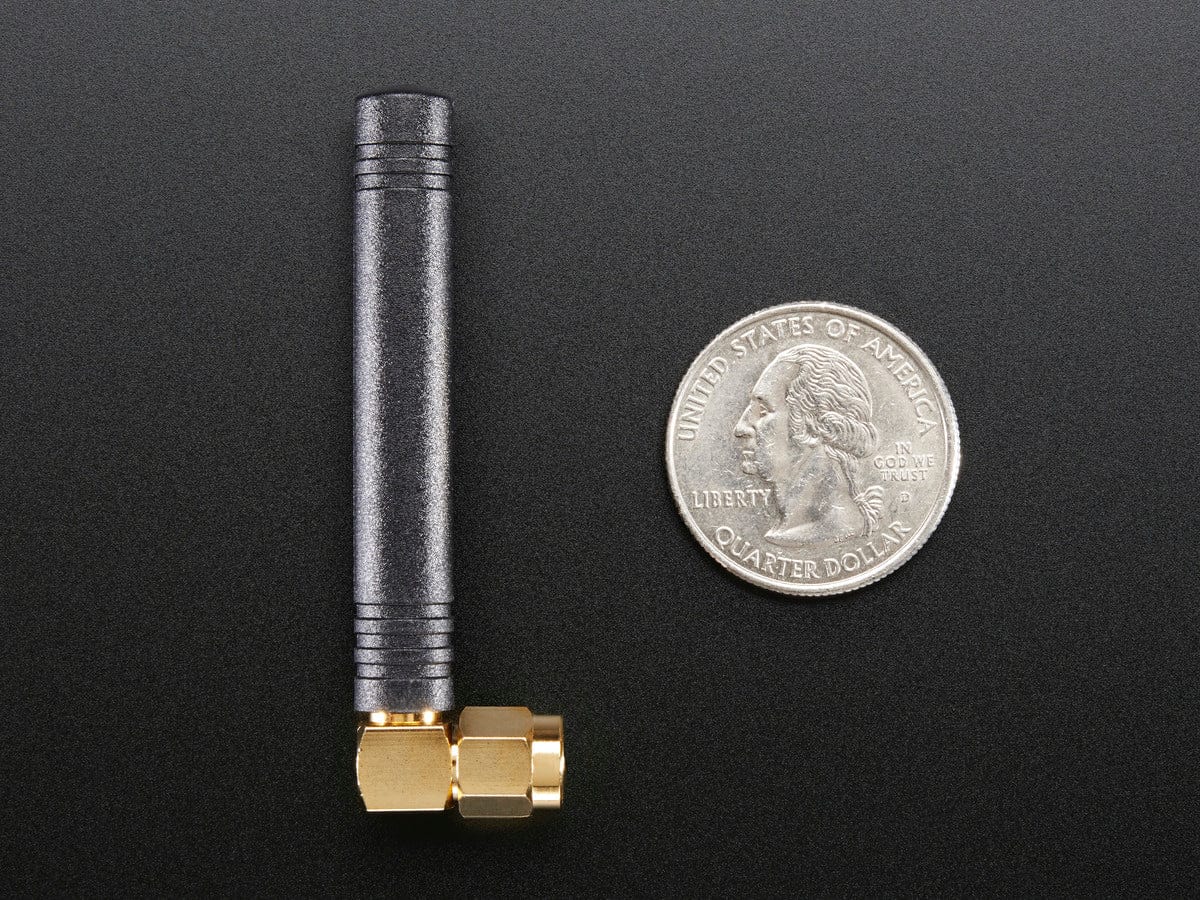

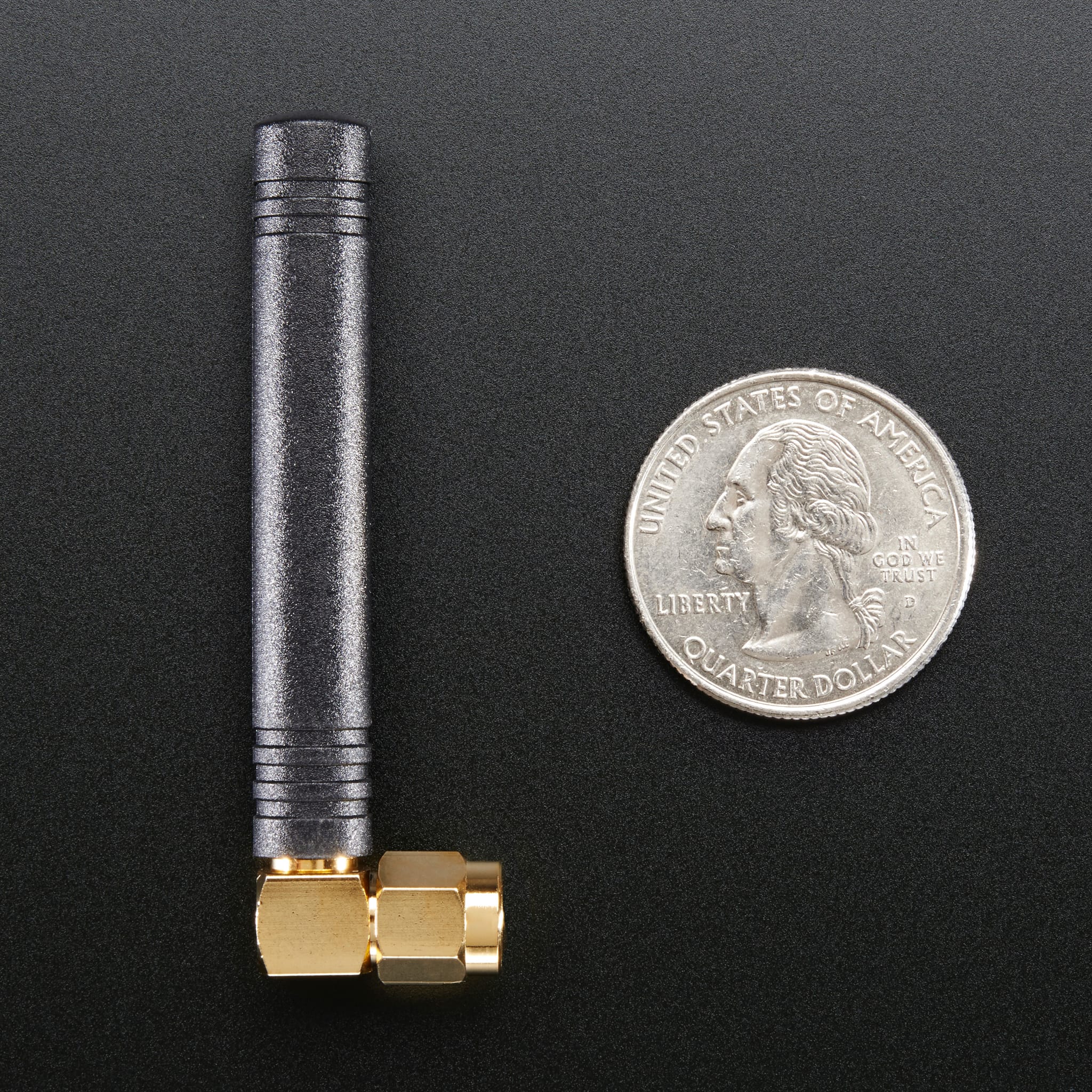

This 57mm long antenna has 2dBi of gain and 50Ω impedance so it will work fantastically with just about any 850/900/1800/1900/2100 wireless receiver/transmitter such as any Cellular or GSM/GPRS device.

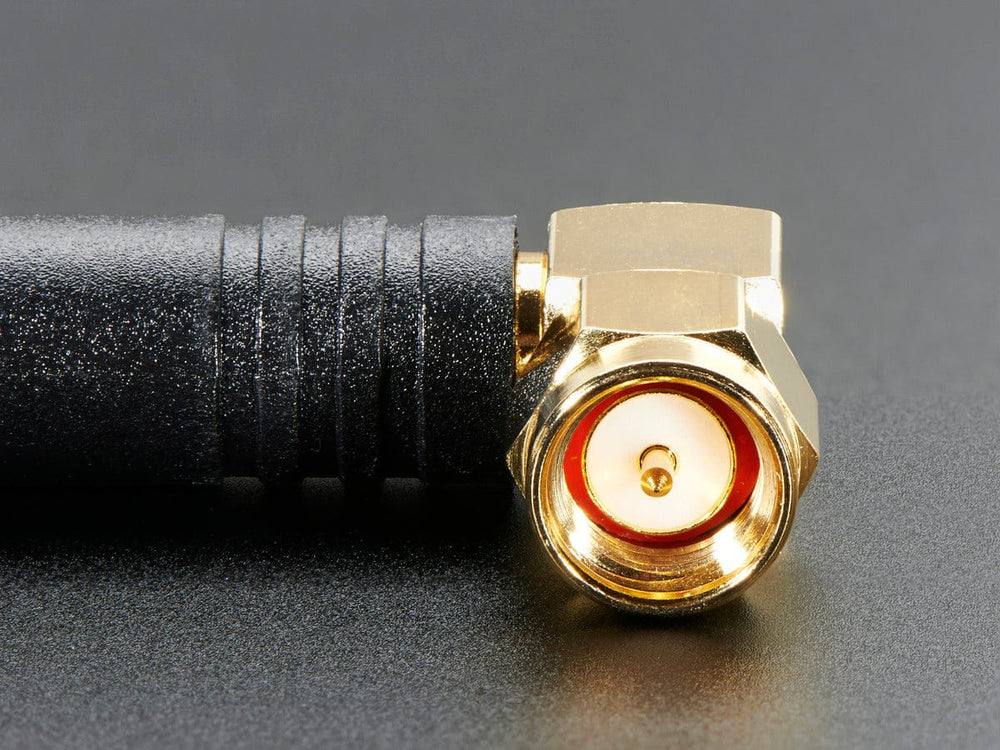

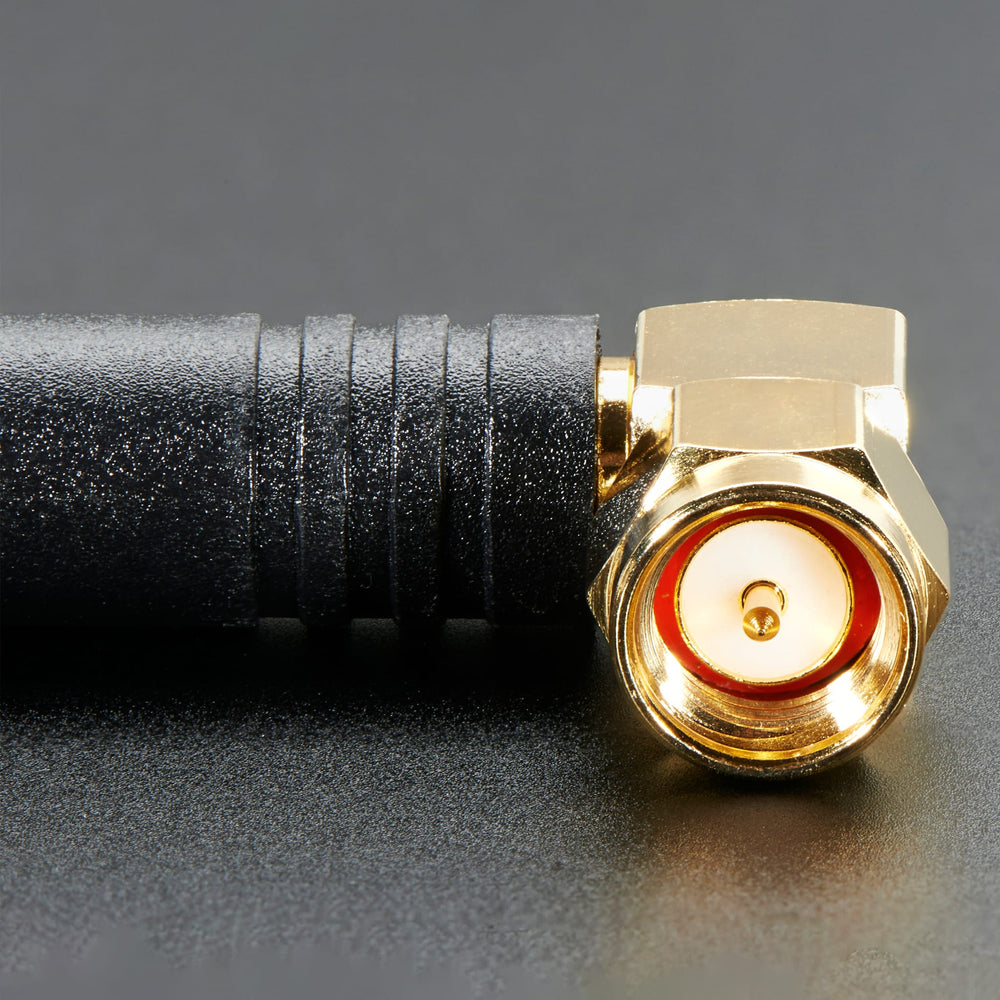

Antenna comes with a Right-angle SMA connector. If you need to connect this to an RP-SMA connector for some reason, use this handy adapter and if you need to connect to a u.FL connector, just pop on this adapter.

Features

• 57mm length antenna
• 2dBi gain
• 50Ω impedance
• Compatible with 850/900/1800/1900/2100 MHz frequencies
• Suitable for GSM, GPRS, and cellular devices
• Right-angle SMA connector included
• RP-SMA adapter available (sold separately)
• u.FL adapter available (sold separately)

Specifications

• Frequency: 850/900/1800/1900/2100 MHz
• Gain: 2 dBi
• V.S.W.R.: <=2:1
• Polarization: Vertical
• Connector: SMA Male Right Angle (Option)
• Impedance: 50Ω
• Operation Temperature: -20ºC ~ 60ºC
• Storage Temperature: -30ºC ~ 75ºC
• Length: 57mm
• Length of Connector: 16.5mm
• Weight: 8g

Resources

• Datasheet
• Image of dimensions

Package Contents

• 1x Right-angle Mini GSM/Cellular Quad-Band Antenna - 2dBi SMA Plug
• 1x Right-angle SMA connector
