Mini GSM/Cellular Quad-Band Antenna - 2dBi SMA Plug

The Pi HutSKU: ADA1859
£5.90
incl. VAT
excl. VAT
Only 2 units left

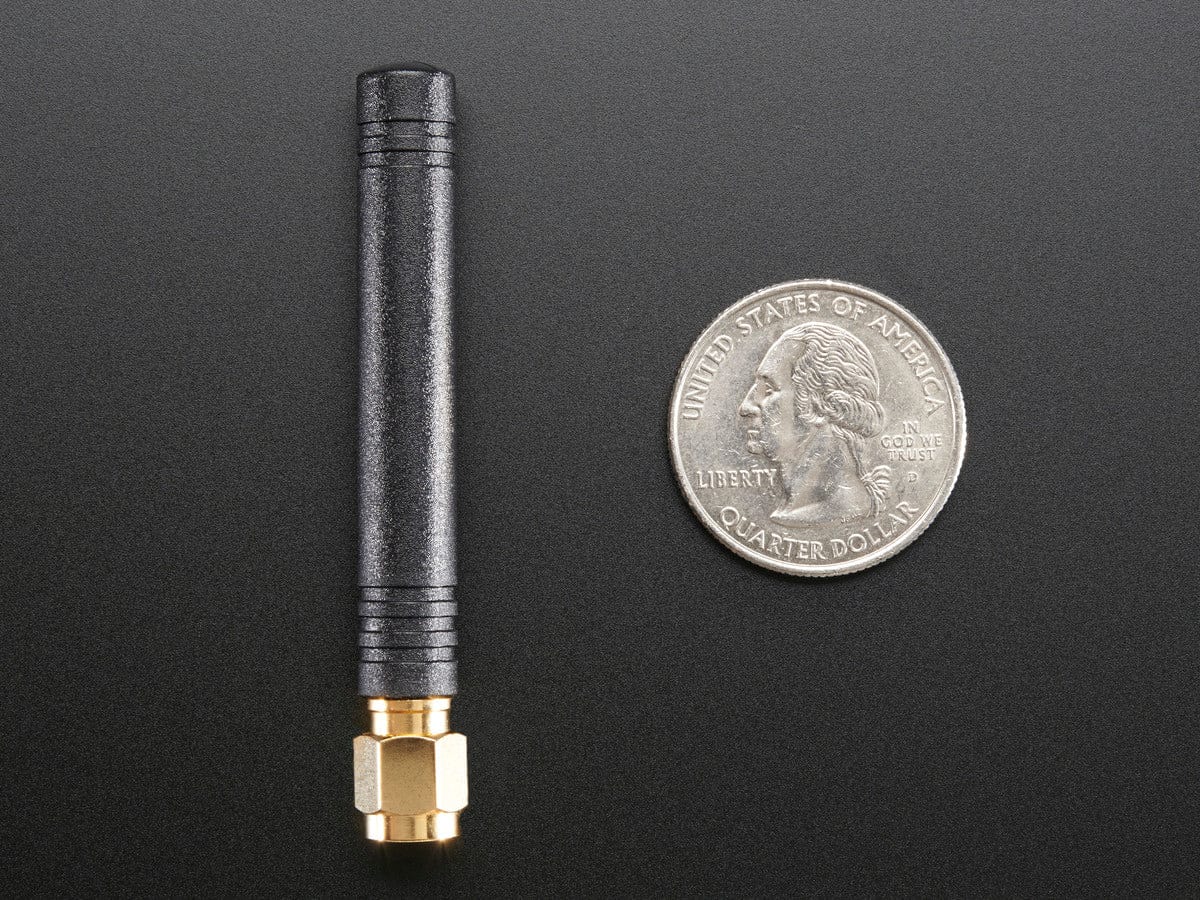

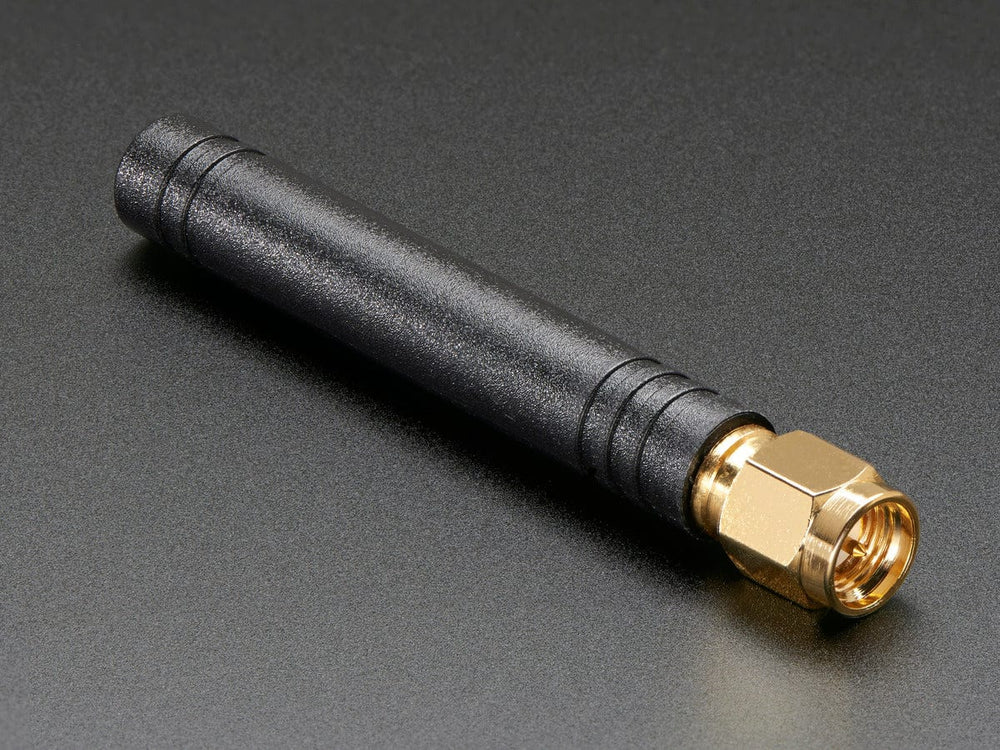

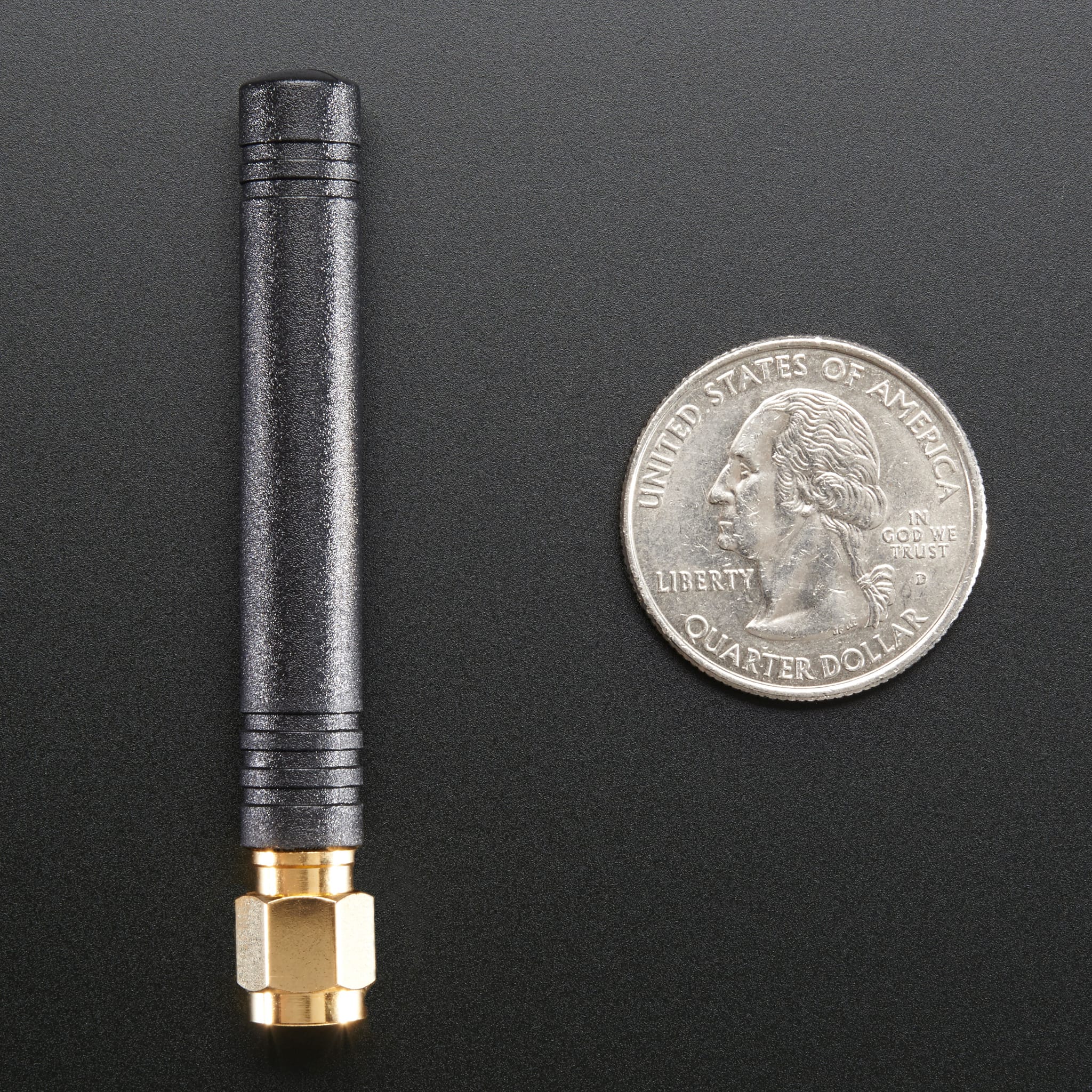

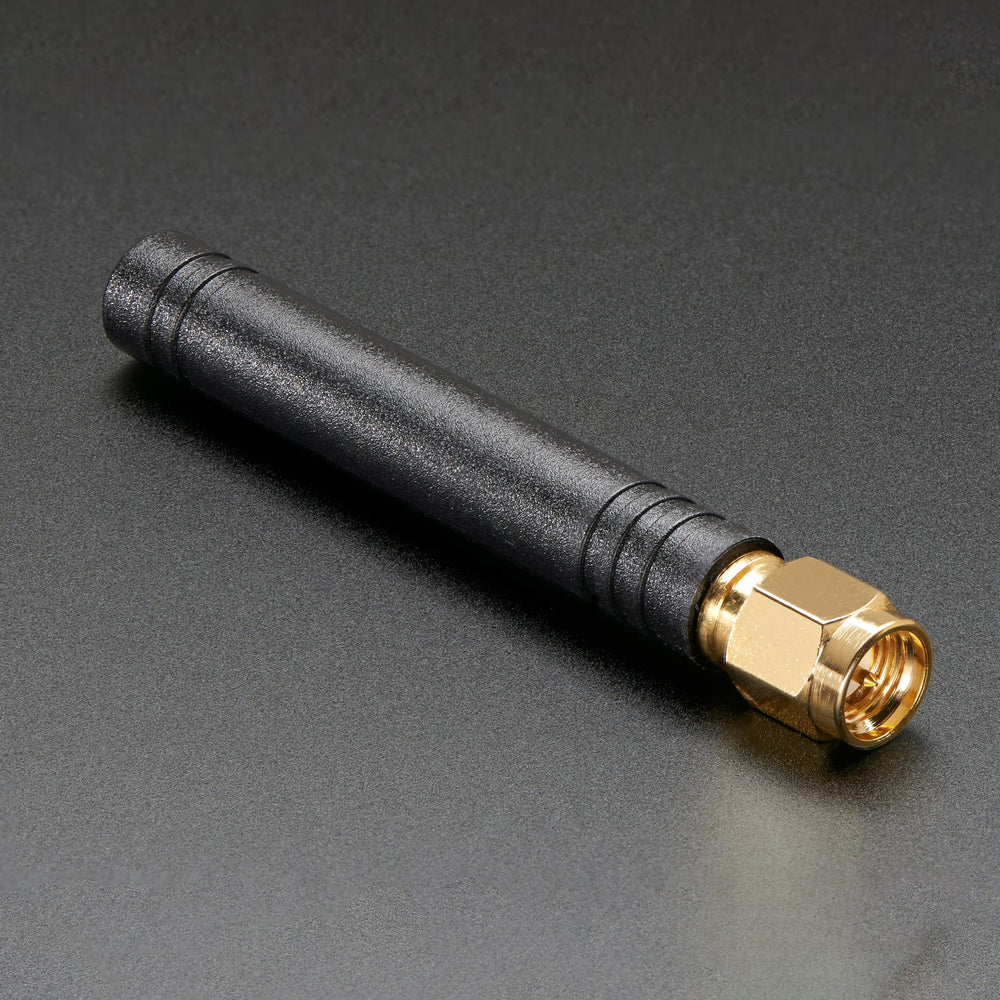

This 2.4"/61mm long antenna has 2dBi of gain and 50Ω impedance so it will work fantastically with just about any 850/900/1800/1900/2100 wireless receiver/transmitter such as any Cellular or GSM/GPRS device.

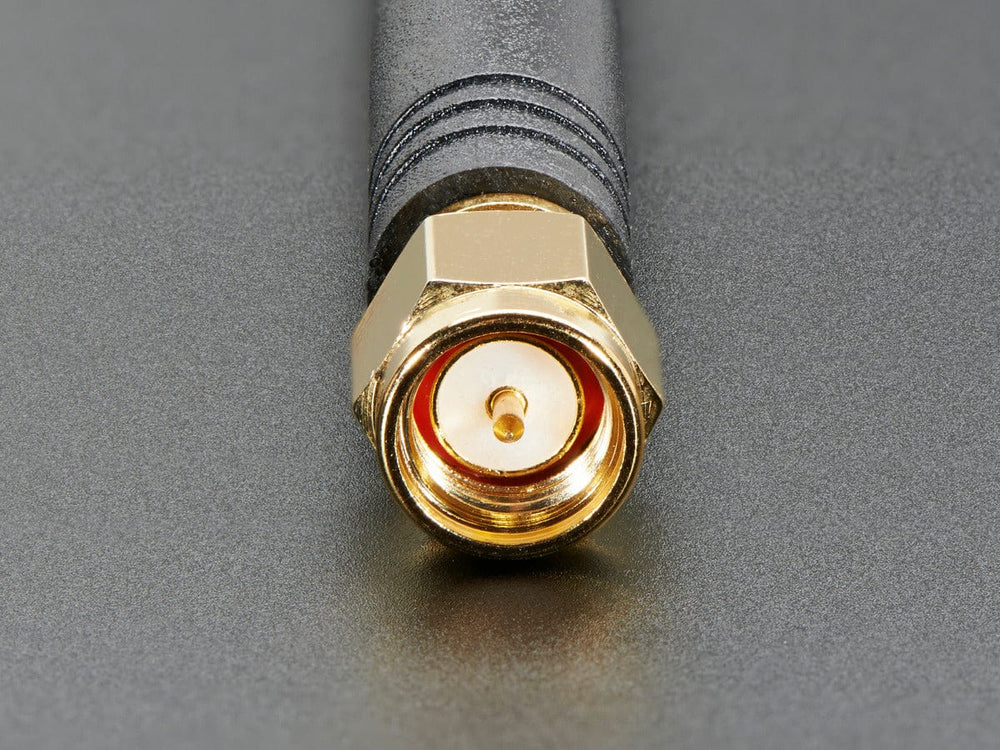

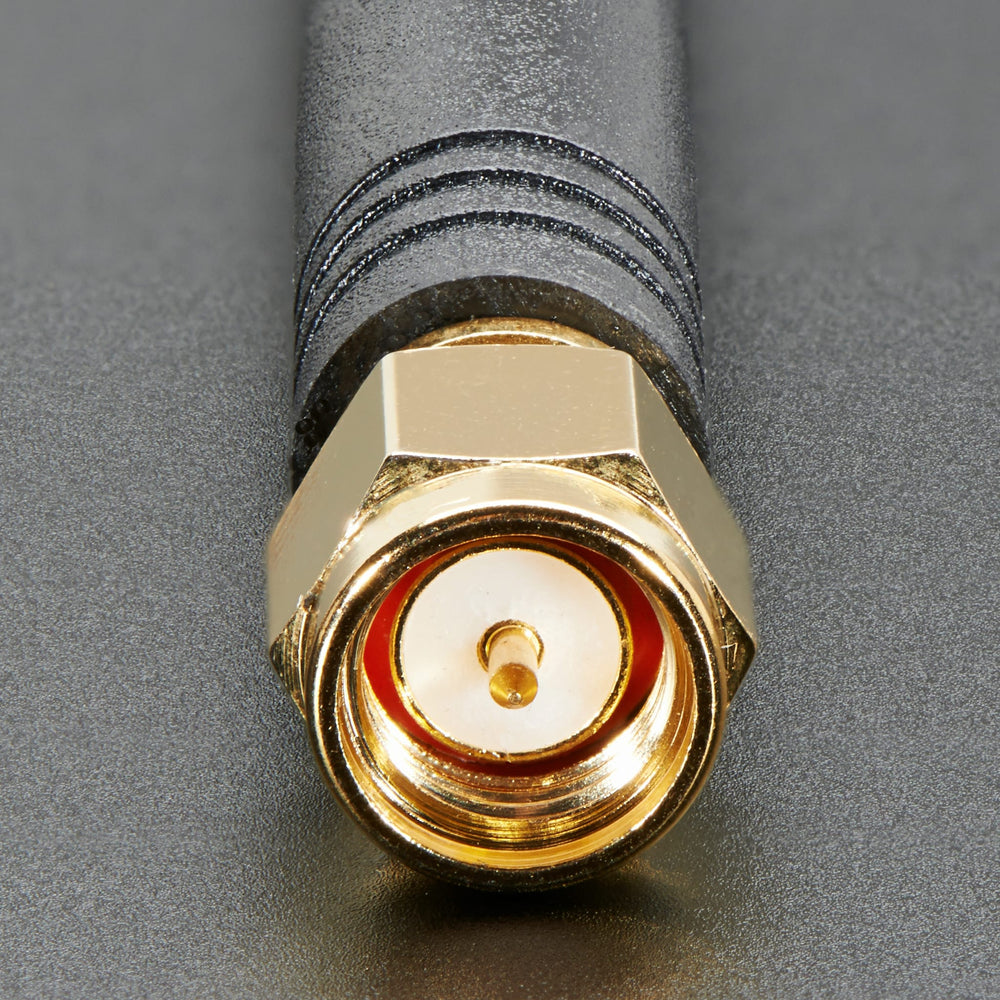

Antenna comes with a SMA connector, which is the most common type you'll see for Cellular development boards. If you need to connect this to an RP-SMA connector for some reason, use this handy adapter and if you need to connect to a u.FL connector, just pop on this adapter.

Technical Details

Specifications:

  • Datasheet
  • Frequency: 850/900/1800/1900/2100 MHz
  • Gain: 2 dBi
  • V.S.W.R.: <=2:1
  • Polarization: Vertical
  • Connector: SMA Male (Option)
  • Impedance: 50Ω
  • Operation Temperature: -20ºC ~ 60ºC
  • Storage Temperature: -30ºC ~ 75ºC


Dimensions:
