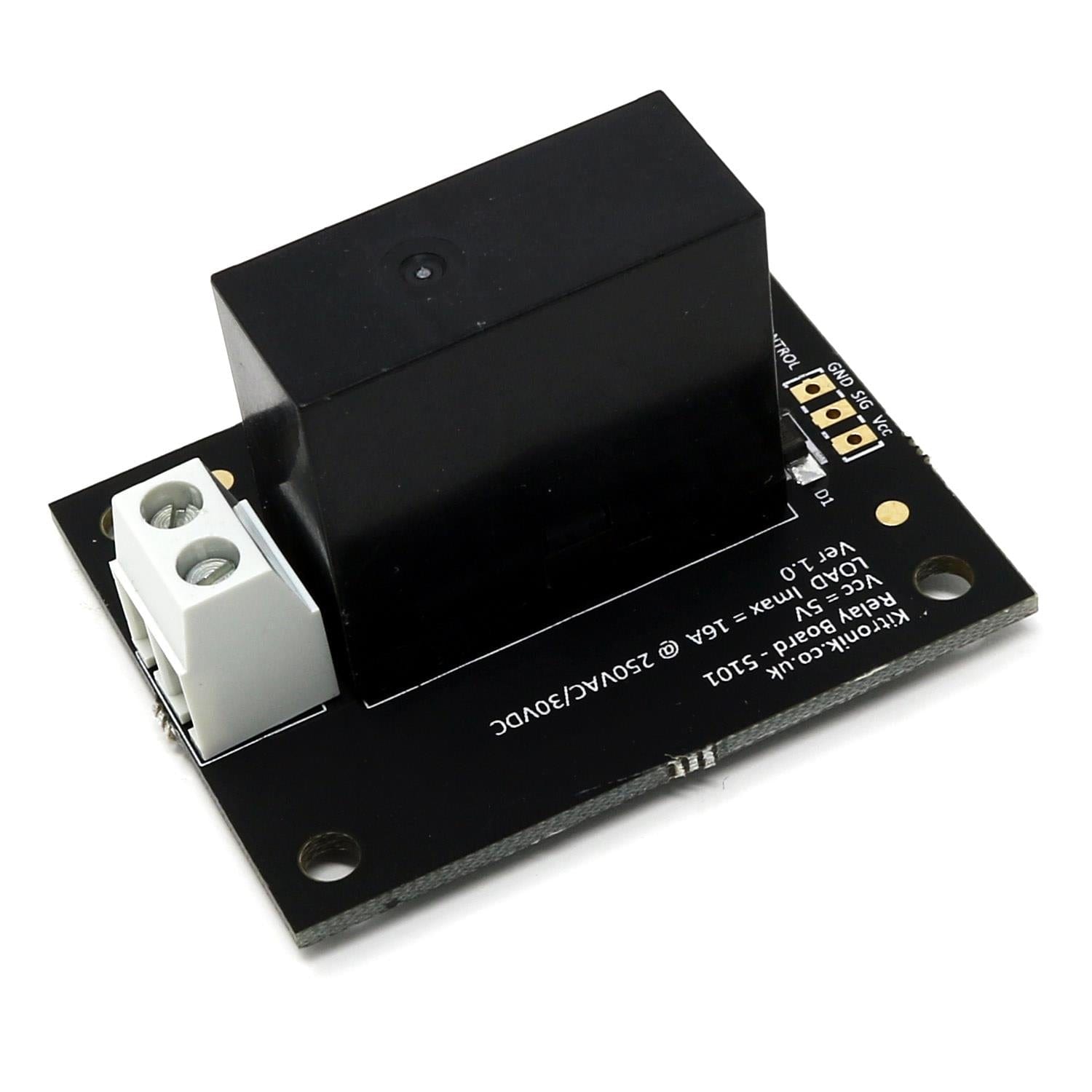

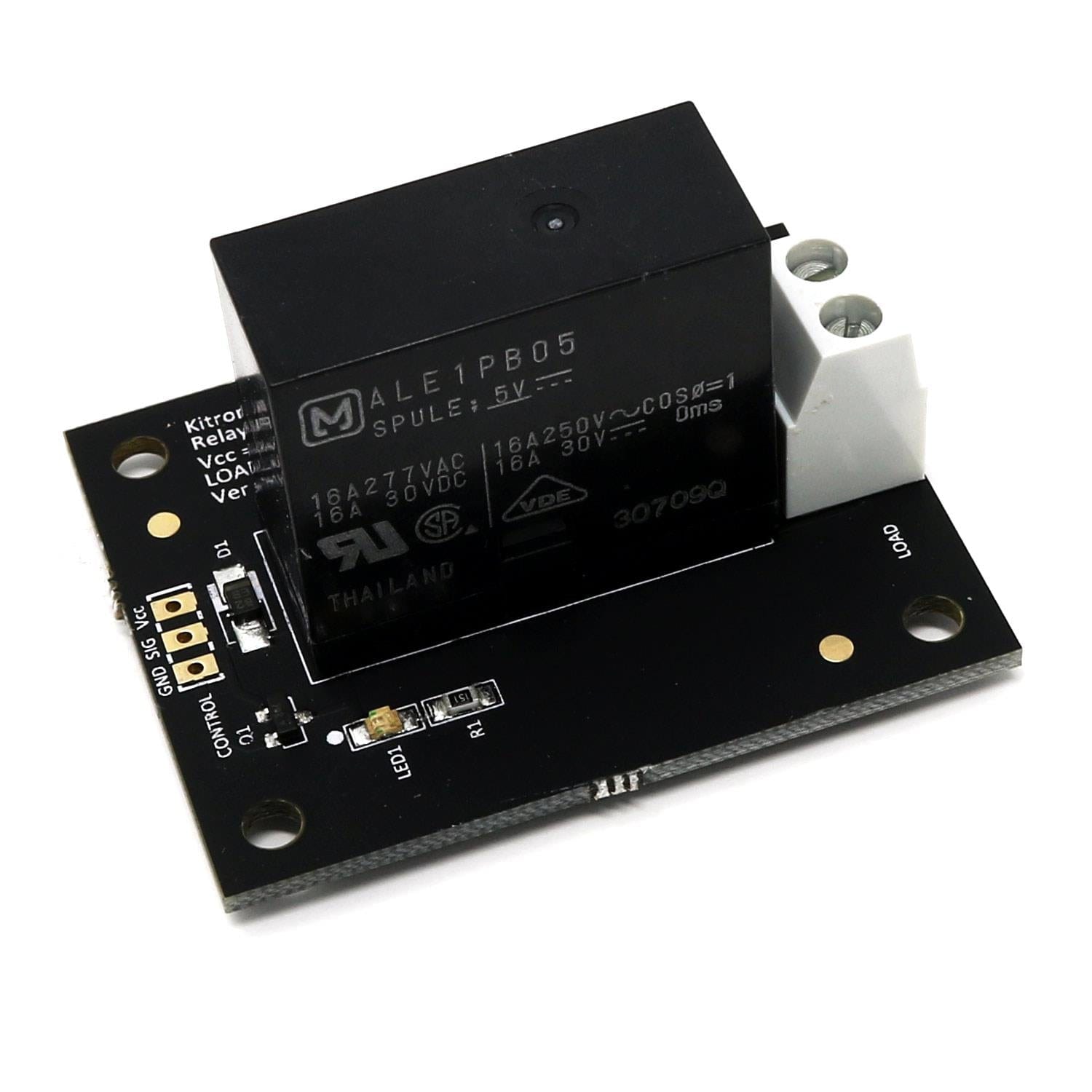

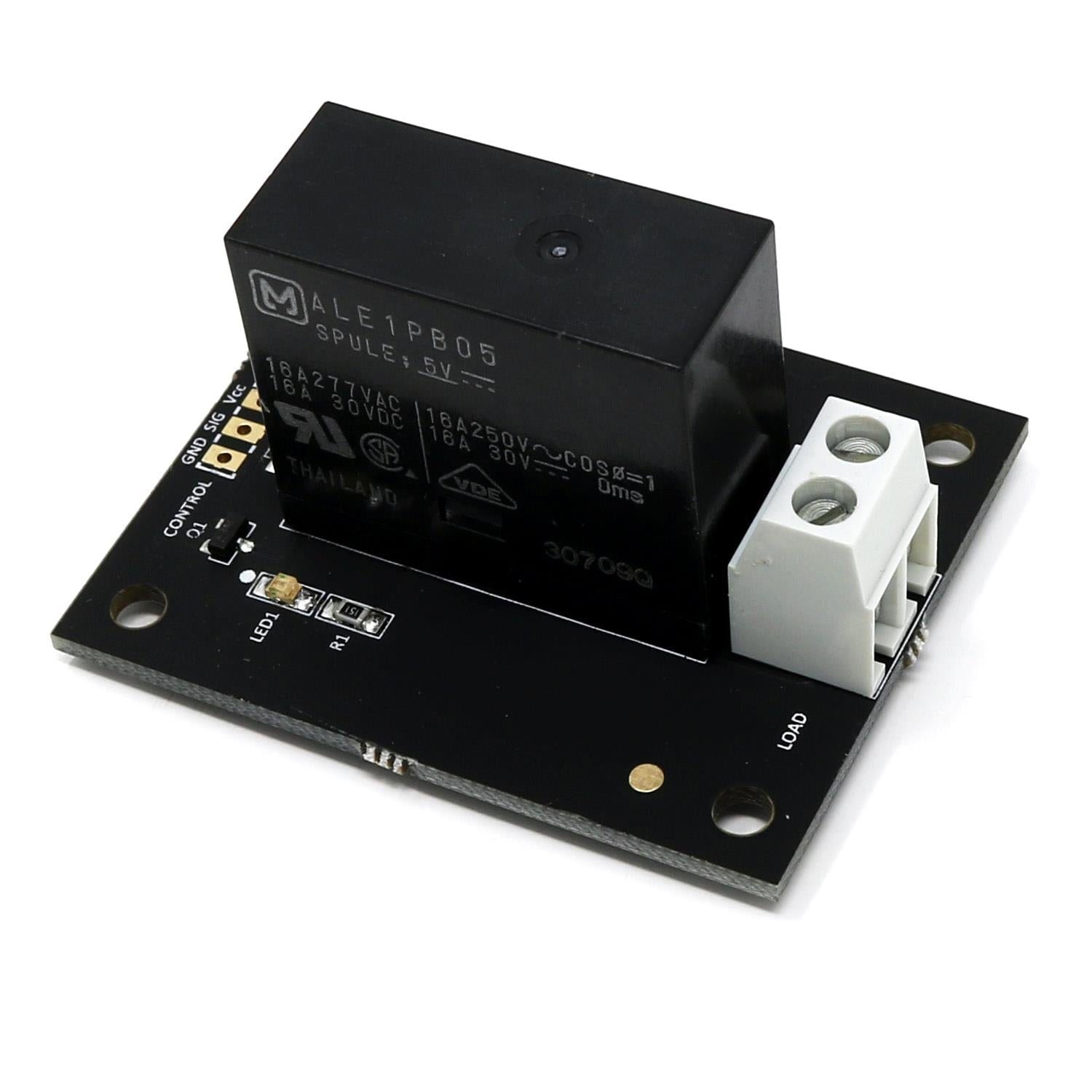

Relay Control Breakout Board

KitronikSKU: KIT5101
Price:
Sale price £10.80
incl. VAT
excl. VAT
Stock:
Only 6 units left
Quantity:

Awesome Extras

(38 Reviews)
The Pi HutPrototyping Wire Spool Set - 6 Spool
Sale price £12 incl. VAT excl. VAT
(7 Reviews)
The Pi HutHook-up Wire Spool Set - 22AWG Solid Core - 10 x 25ft
Sale price £18 incl. VAT excl. VAT
(6 Reviews)
The Pi HutBreak-away 0.1" 36-pin strip male header - Black - 10 pack
Sale price £4.30 incl. VAT excl. VAT

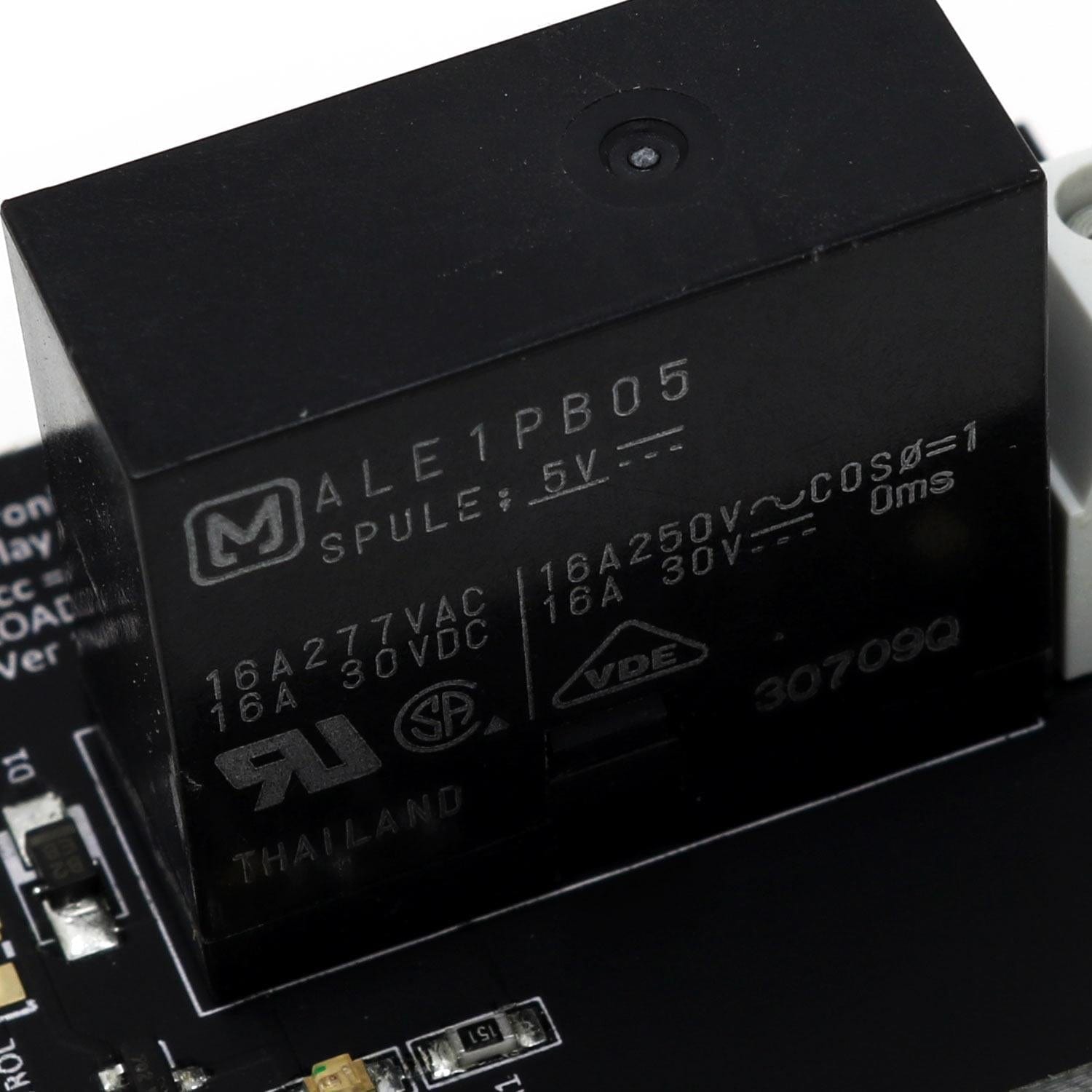

This breakout board allows a low power logic level device running at 5V to operate a relay. The relay can switch up to 16A 250VAC or 16A 30VDC. This lets your low power microprocessor control big, power-hungry devices!

To use the board you simply connect a constant 5V supply along with a signal connection. When the signal connection is taken high (over 2.1V) the relay and onboard LED indicator turn on. At this point, the relay which is normally open becomes a closed circuit.

Caution: This breakout board can be used with mains electricity, however we don't recommend it and should only be undertaken by suitably professionally qualified people. Stick to battery-powered devices, robots and similar!

Features

  • High current output drive (16A)
  • LED indicates when the relay is operating

Contents

  • 1 x Relay Breakout Board

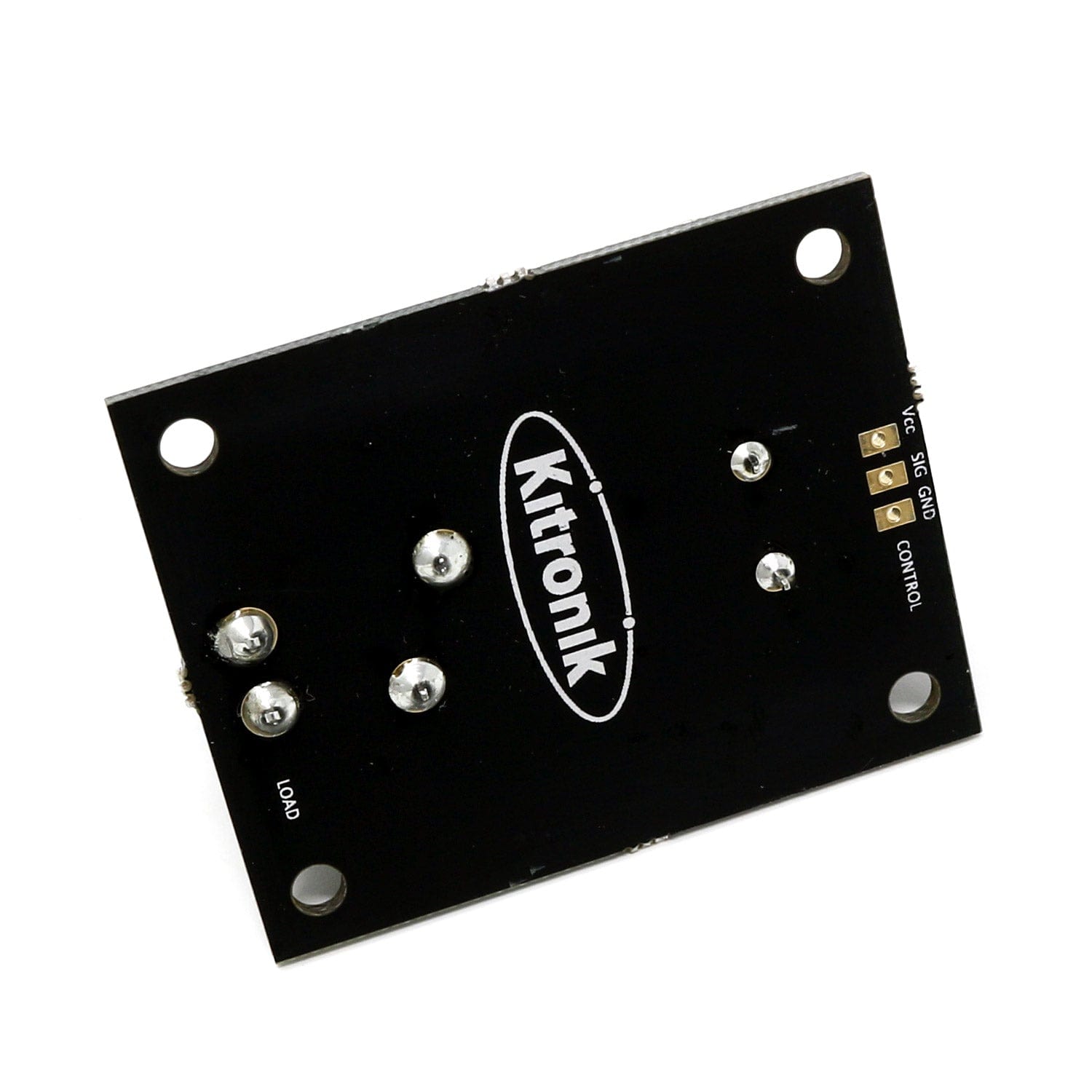

Connections

  • GND - Ground / zero volts
  • Vcc - 5V power input
  • SIG - The signal input, 2.1V turns the relay on, 0V turns it off
  • LOAD - The outputs of the relay, when the relay is on these pins are connected together
