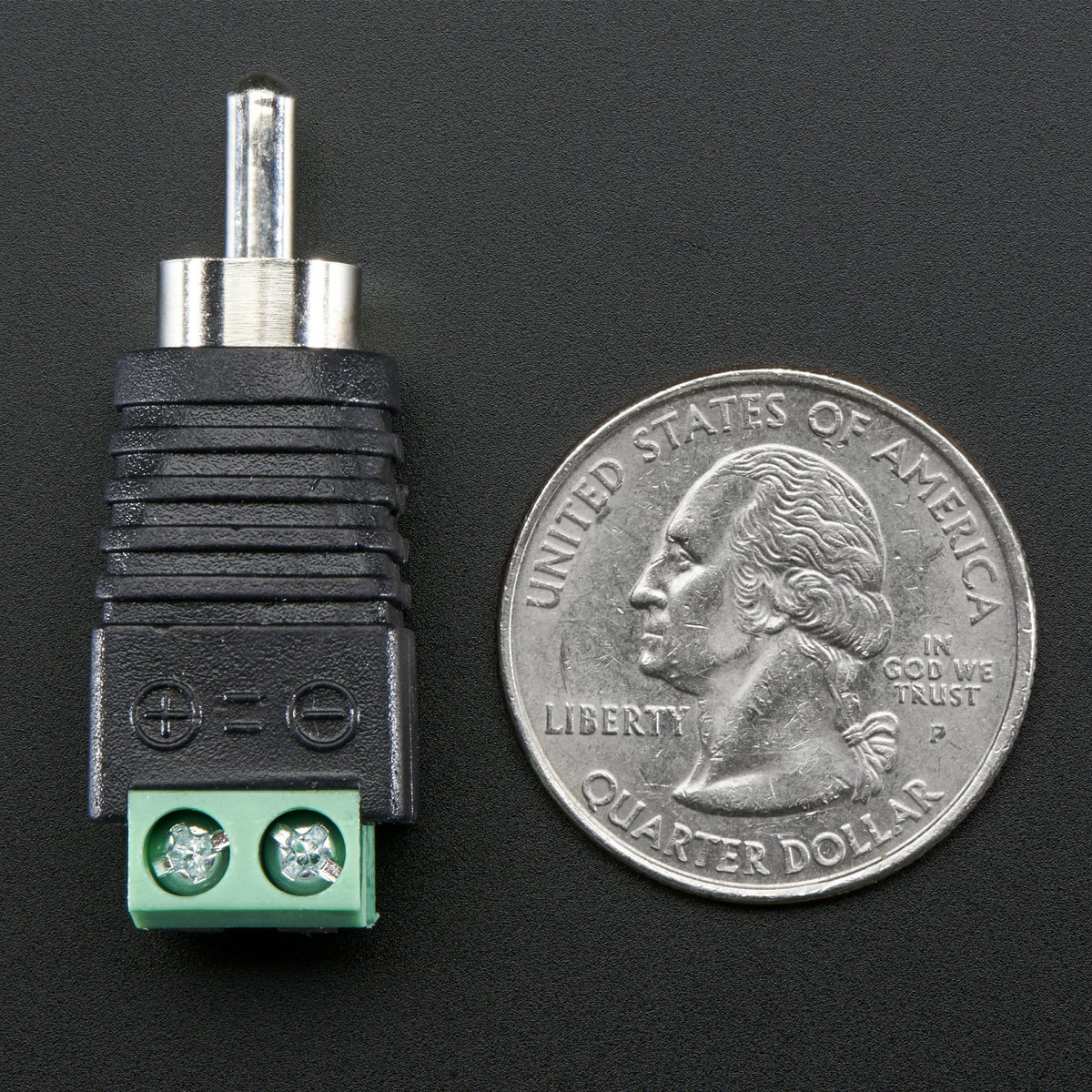

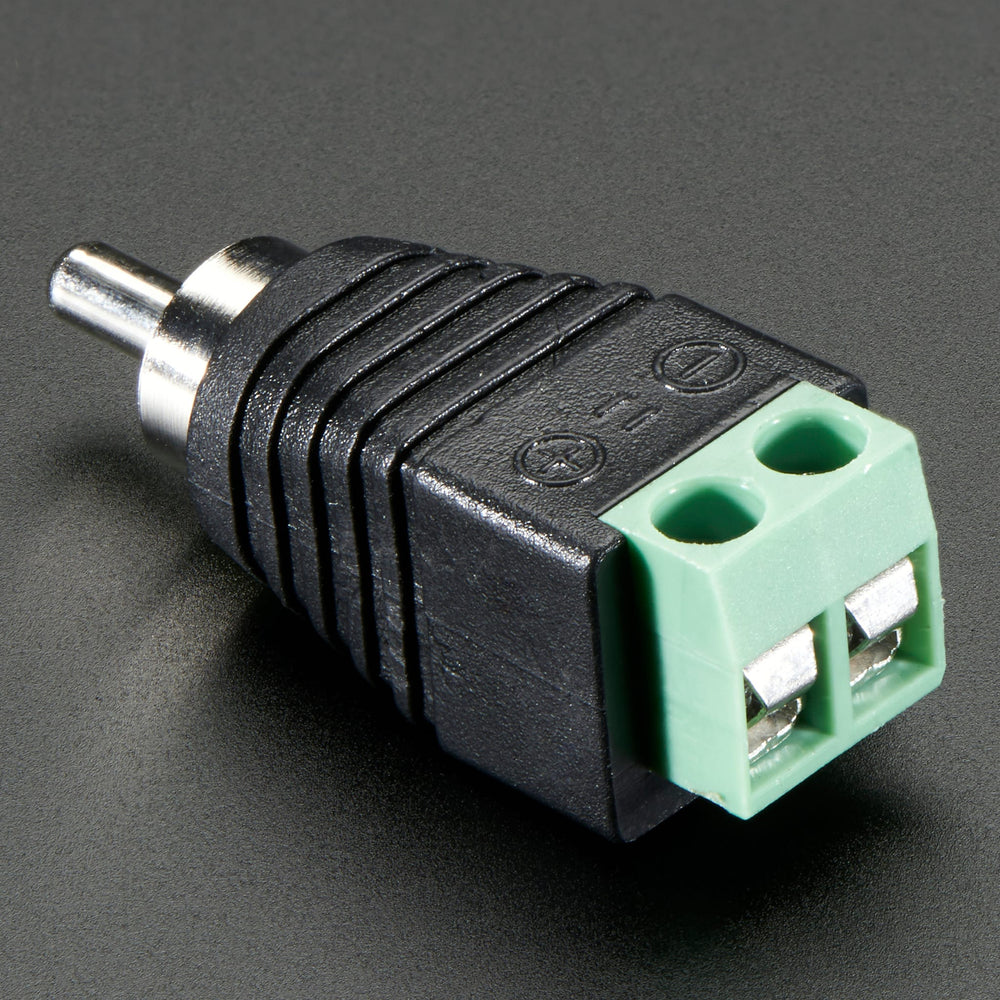

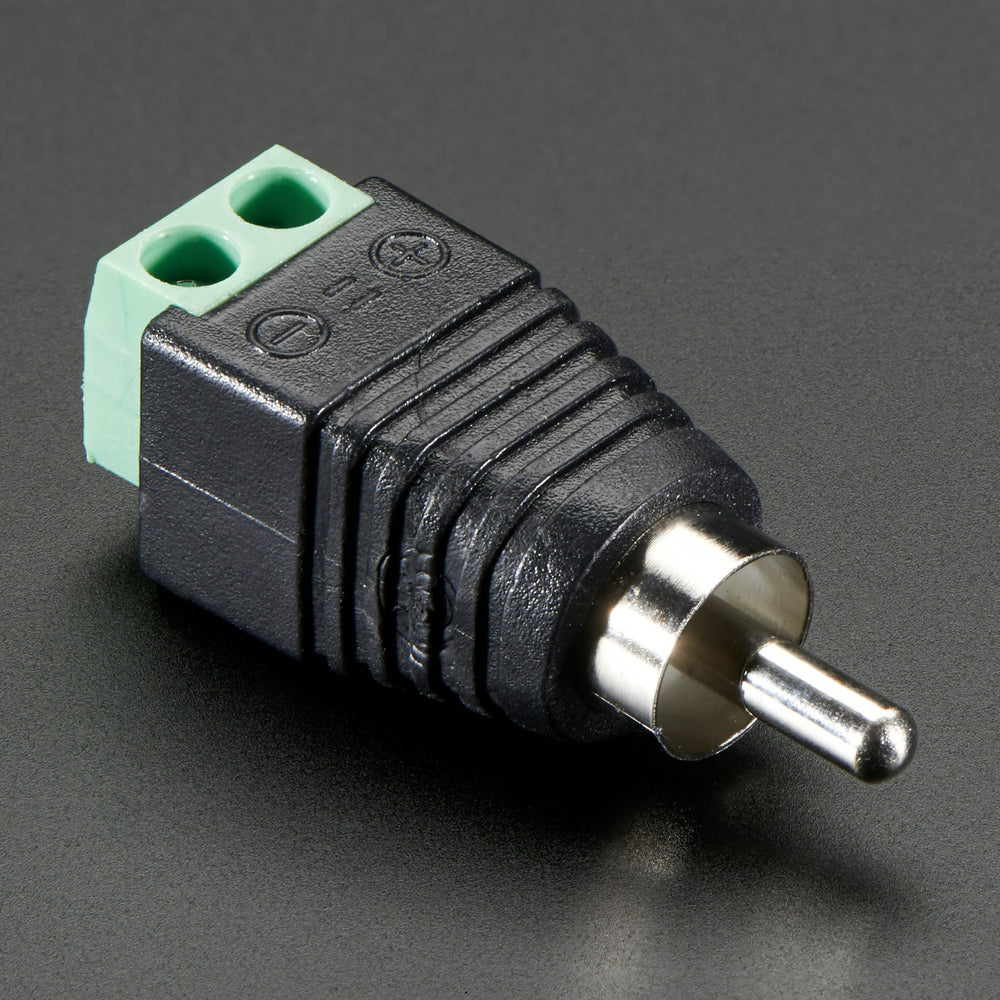

RCA (Composite Video, Audio) Male Plug Terminal Block

This RCA Male Terminal Block provides a simple solder-free way to connect bare wires to a standard RCA connection, using screw terminals for quick and secure custom audio or composite video wiring.

One truth about working with A/V is you always need the cable or adapter you don't have in your toolbox. That's why we love these terminal-block RCA connectors so much. No soldering required! Use stranded or solid core wire and a small screw driver to create custom wiring jigs.

This is the RCA (Composite Video, Audio) Male Terminal Block. RCA is one of the most common A/V connectors.

We also stock the matching RCA (Composite Video, Audio) Female Jack Terminal Block.

Features

• Male RCA connector with terminal block design
• No soldering required
• Compatible with stranded or solid core wire
• Easy installation with small screwdriver
• Create custom wiring configurations
• Standard composite video and audio connectivity
• Essential for A/V toolbox

Specifications

• Dimensions: 38.1mm x 13.7mm x 13.8mm

• Weight: 6.2g

• Wire gauge: 26-16AWG

Package Contents

• 1x RCA (Composite Video, Audio) Male Plug Terminal Block
