RasPiBox "Open" Plus Prototyping DIN Rail Raspberry Pi 2/3 Case

RasPiBox "Open" Plus Prototyping DIN Rail Raspberry Pi 2/3 Case
In Stock
£ 33.95

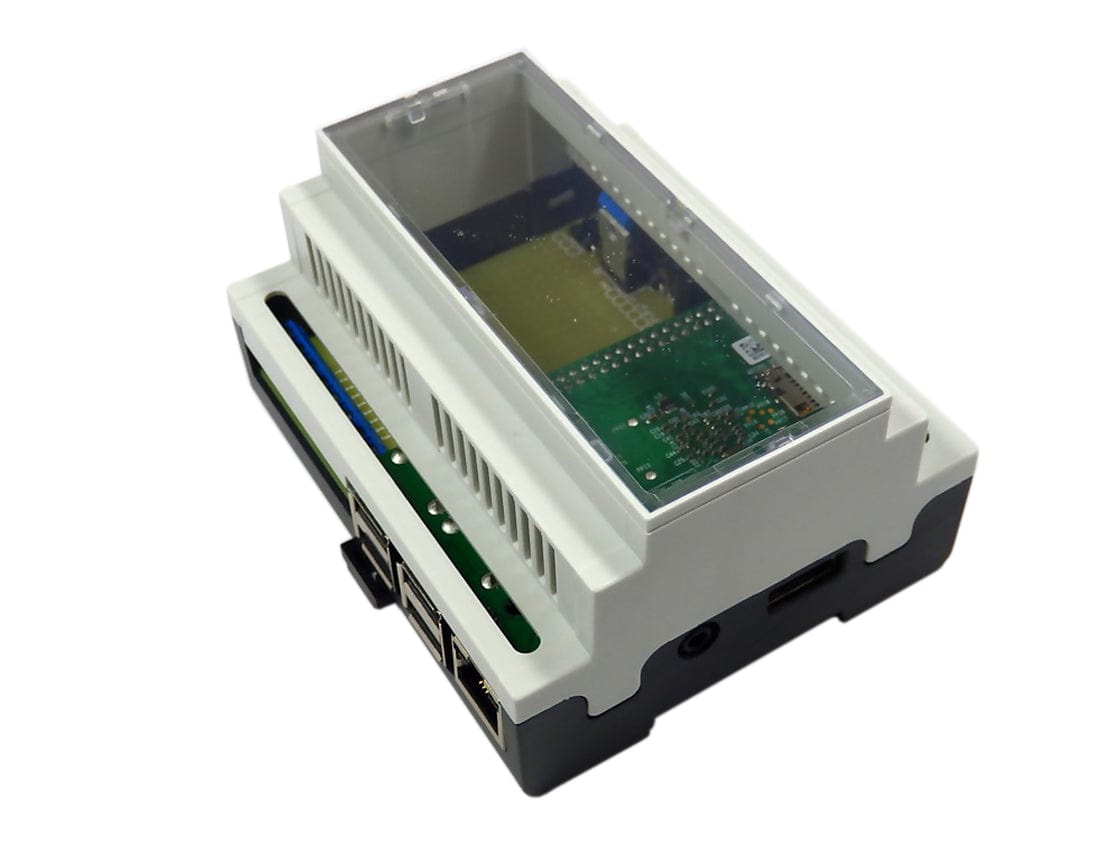

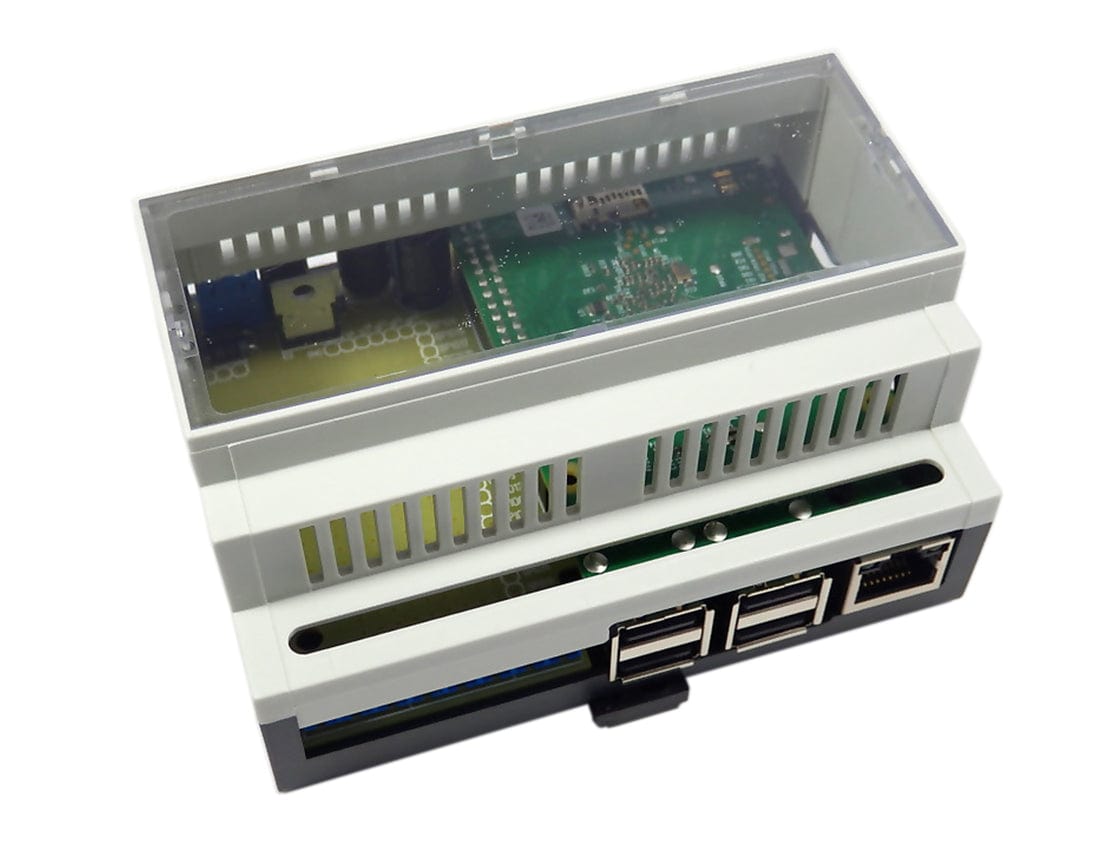

The RasPiBox Open Prototyping Din Rail Raspberry Pi case is a DIN rail mountable enclosure with embedded prototyping plate designed specifically for the Raspberry Pi! The unit includes an internally mountable prototyping plate within the enclosure.

Please Note. That this is the Rev1. version of the RasPiBox, compatible with the Rev.1 version of the OLED Display

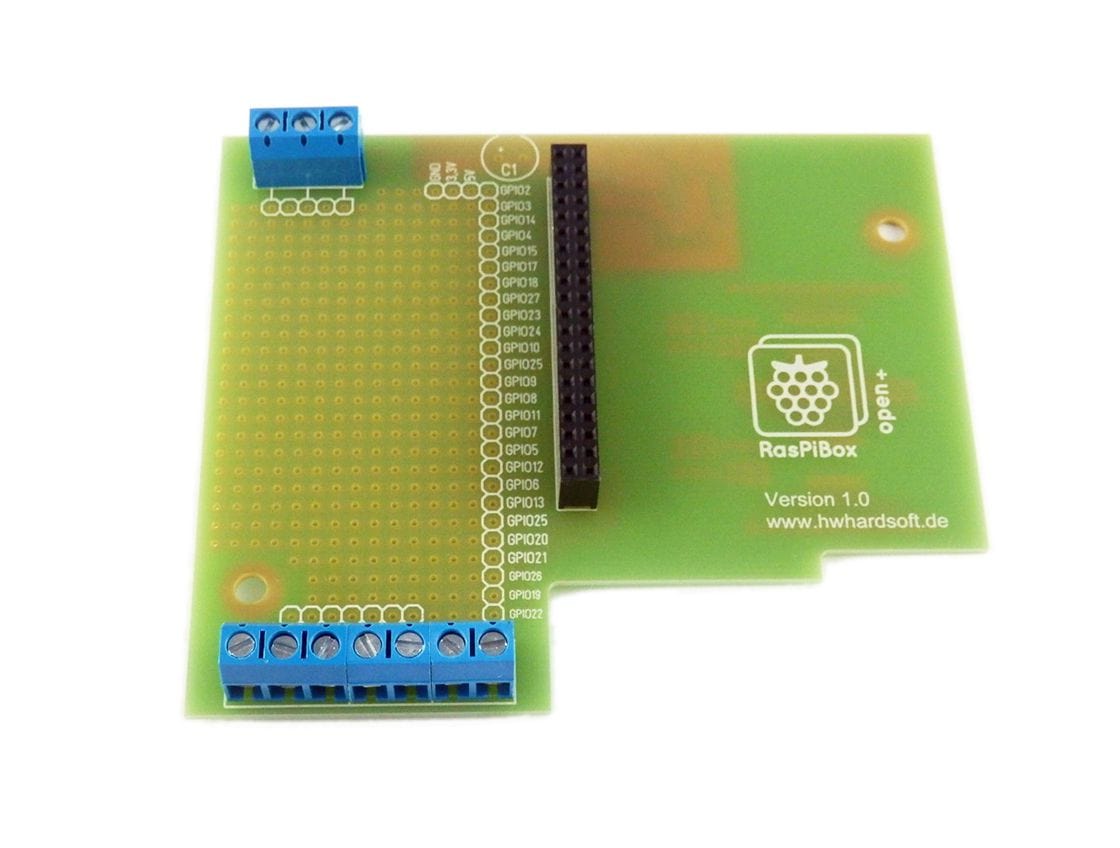

The prototyping area is ultra flexible -  half of which is for THT parts and half of which is for SMD parts so you can wire up DIP chips, relays, and the like. Along the edges of the proto area, all the GPIO/I2C/SPI and power pins are connected and marked. You can connect your work via terminals with the world ouside the enclosure and the whole unit is DIN compatble and designed to fit within a control cabinet!

This kit also includes parts for a 5V/1.7A voltage regulator.

RasPiBox Open Plus Prototyping Din Rail Raspberry Pi case Features:

  • milled cab rail enclosure (highest quality - made in Germany)
  • top shell with transparent cover
  • for EN50022 DIN rails
  • prototyping plate - fits perfectely in the enclosure
  • 2x 2-pin terminal blocks
  • 2x 3-pin terminal blocks

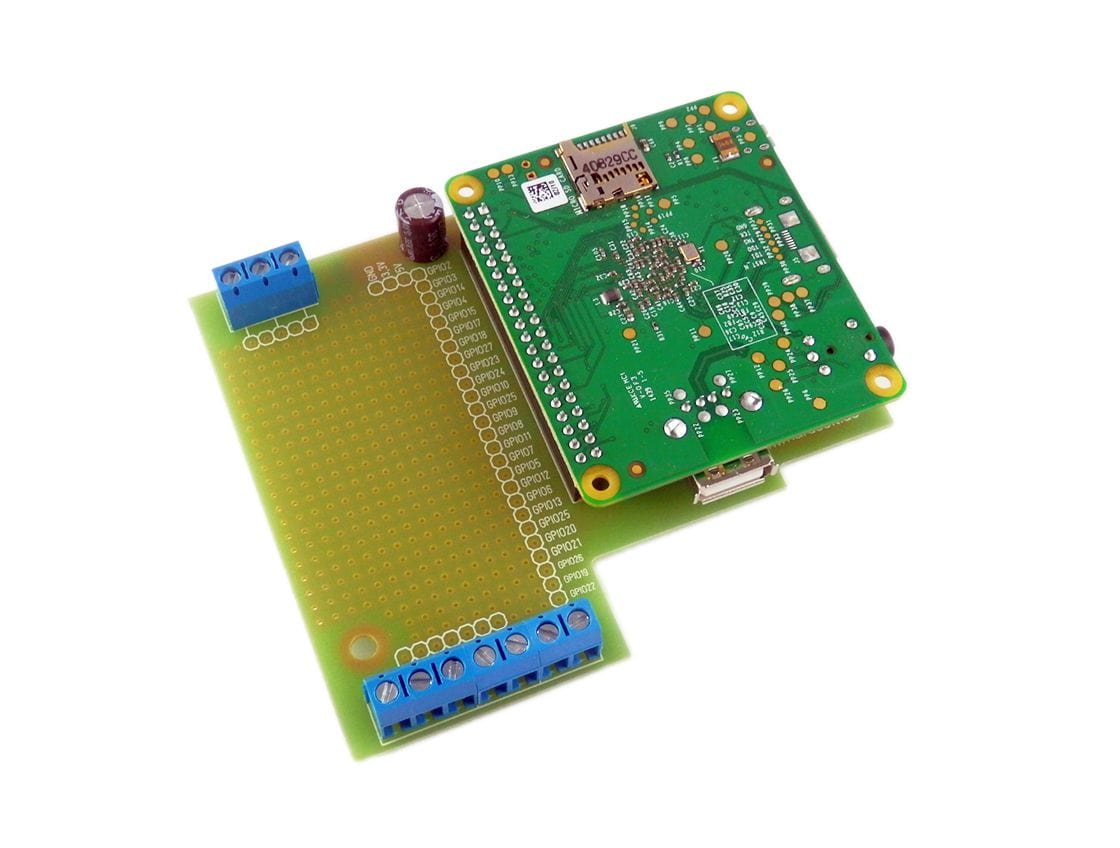

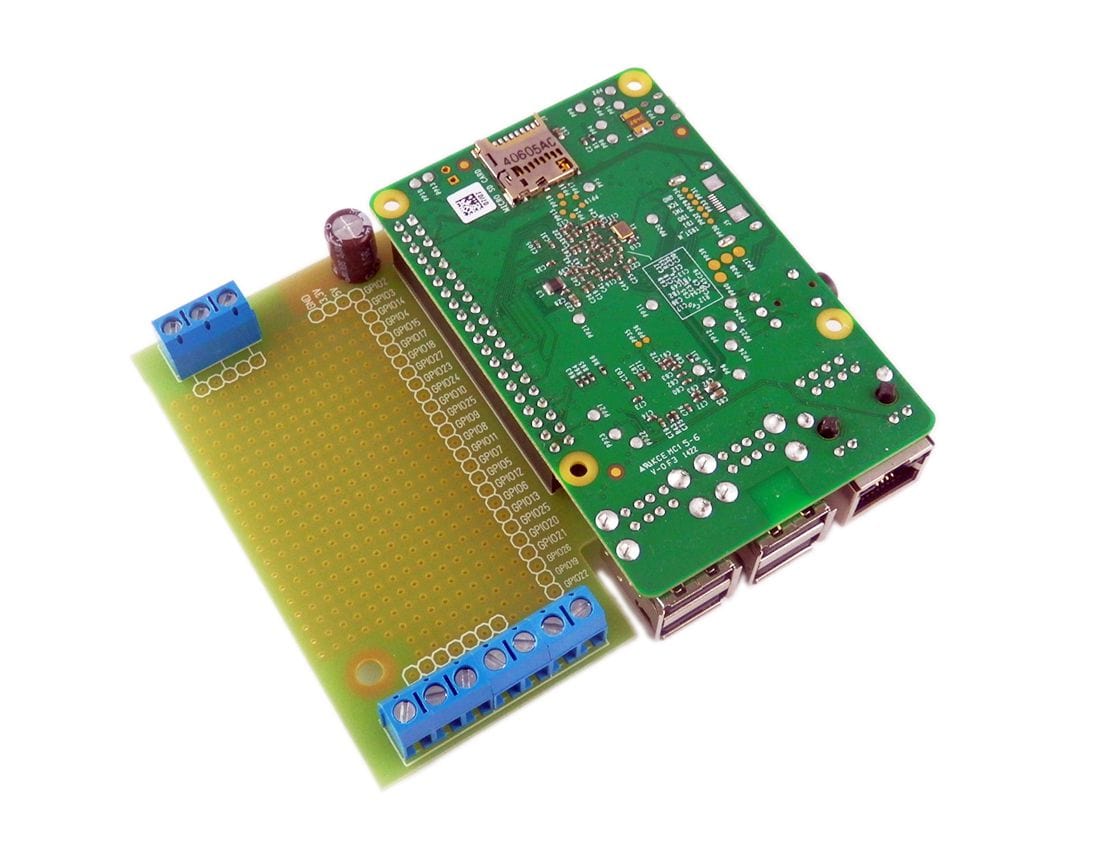

  • 40 pole socket for the Raspberry Pi A+ , B+ , 2 B, 3 B
  • SSOP and SOIC breakout area for integrated circuits
  • 0805 and SOT23 breakout area for other SMD parts
  • pcb contains a layout for a 5V voltage switching regulator
  • for Raspberry Pi model A+, B+, 2 B, 3 B  and Zero only
