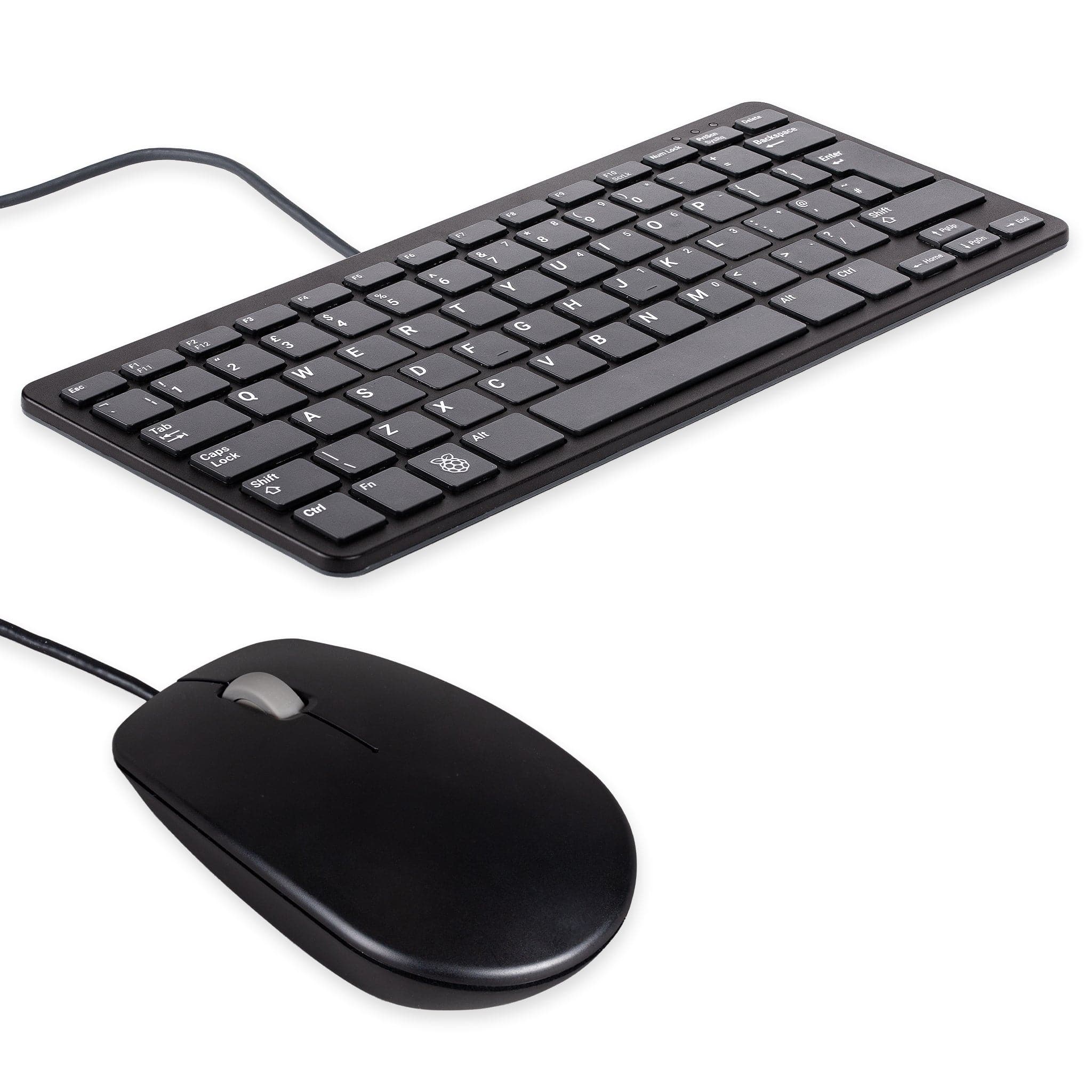

Raspberry Pi Keyboard & Mouse by Raspberry Pi - The Pi HutRaspberry Pi Keyboard & Mouse by Raspberry Pi - The Pi Hut
Raspberry PiRaspberry Pi Keyboard & Mouse
Sale priceFrom £7.50 incl. VAT excl. VAT
Raspberry Pi Mouse Pad V3 by Raspberry Pi - The Pi HutRaspberry Pi Mouse Pad V3 by Raspberry Pi - The Pi Hut
Raspberry PiRaspberry Pi Mouse Pad V3
Sale price £3 incl. VAT excl. VAT
Raspberry Pi Black Design Mug by Raspberry Pi - The Pi HutRaspberry Pi Black Design Mug by Raspberry Pi - The Pi Hut
Raspberry PiRaspberry Pi Black Design Mug
Sale price £9 incl. VAT excl. VAT

This is the smaller version of the Raspberry Pi Touch Display 2, with a more compact 5" capacitive touchscreen display offering the same 720x1280 resolution and five-finger capacitive touch.

Just like its big brother, the 5" Raspberry Pi Touch Display 2 requires only two connections to your Raspberry Pi - power from the GPIO pins, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers (except for the Pi Zero and Pi 400/500 line). Both cables are included, including versions to support the different models of Raspberry Pi.

The Raspberry Pi provides power to the display - no separate power supply is required - and Raspberry Pi OS already provides touchscreen drivers with support for five-finger capacitive multi-touch and on-screen keyboard support, giving you full functionality without the need to connect a keyboard or mouse.

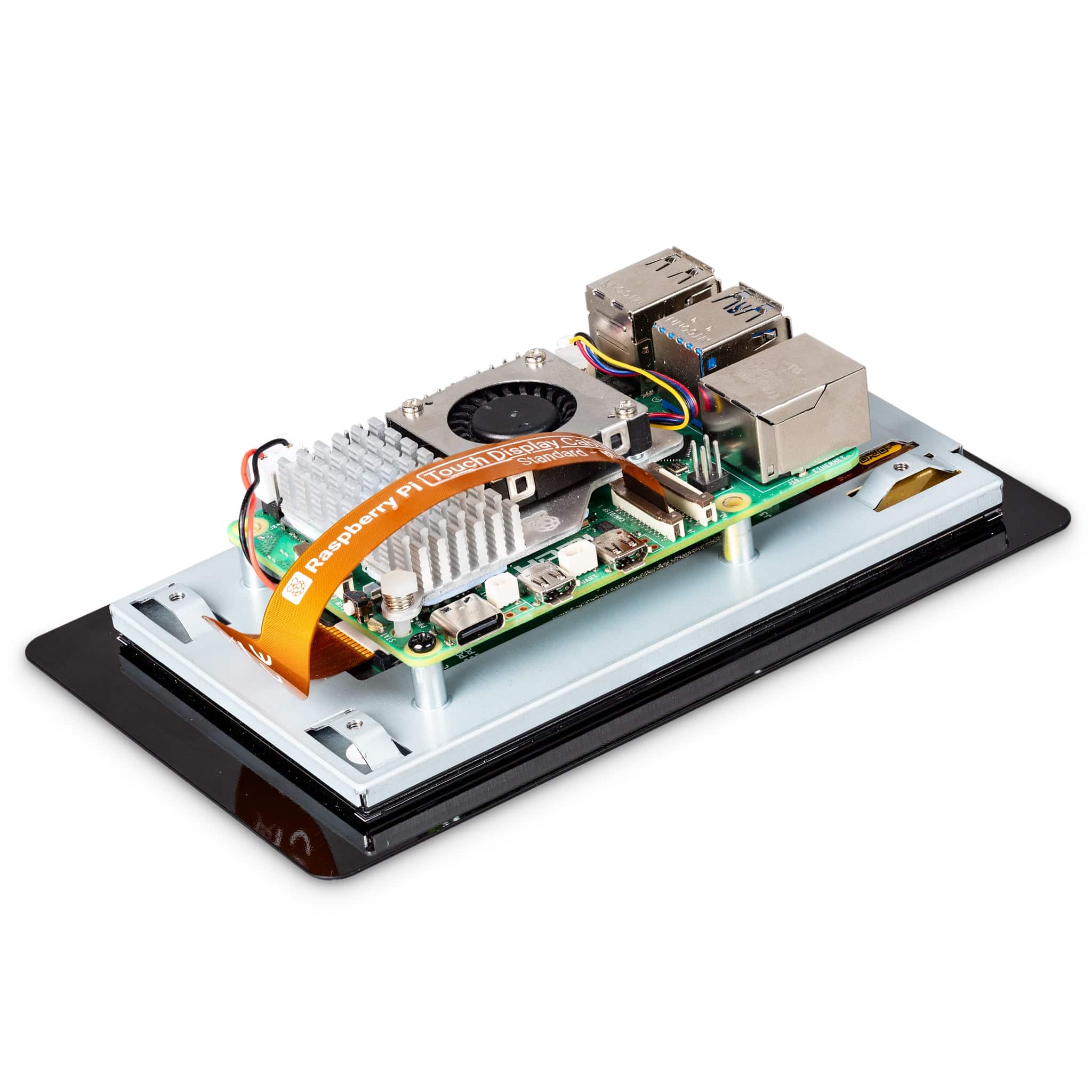

Your Raspberry Pi mounts on the rear of the display using the included fixings, allowing full use of Active Coolers and HATs. The GPIO power cable will consume some of your GPIO pins, so be sure to use a HAT with stacking headers, or grab one of these handy USB power adapters to keep your pins free.

Raspberry Pi and Active Cooler not included.

Features

  • 5" capacitive touchscreen display
  • 720x1280 resolution
  • Five-finger capacitive multi-touch support
  • On-screen keyboard support
  • DSI interface connection
  • Powered from Raspberry Pi GPIO using included cable
  • Compatible with all Raspberry Pi computers (except Pi Zero and Pi 400/500)
    • Not compatible with Raspberry Pi Pico (it's a microcontroller, not a computer)
  • Touchscreen driver support in Raspberry Pi OS
  • Rear mounting for Raspberry Pi with included fixings

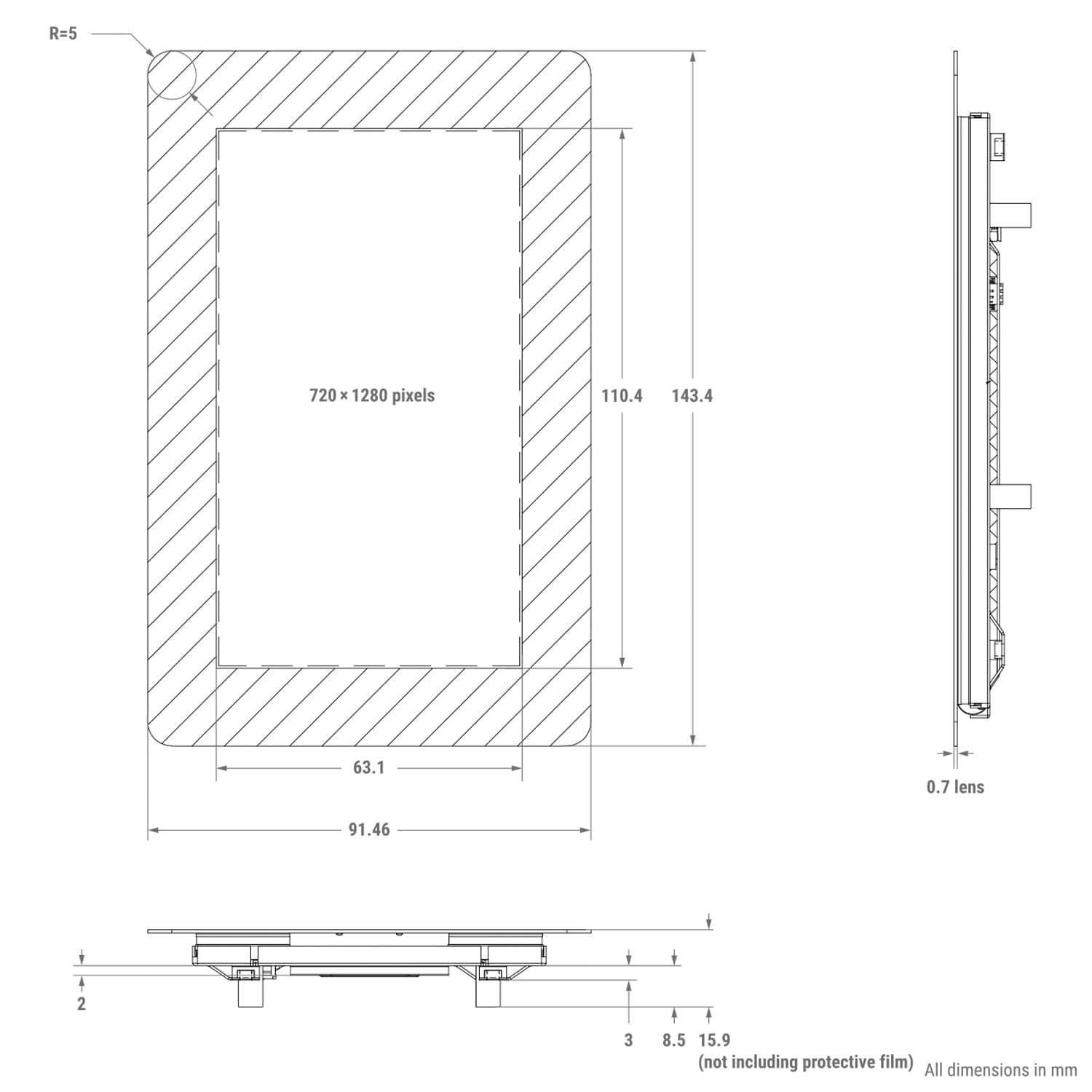

Specifications

Size 5″ display
Active area 110.4 mm × 62.1 mm
Viewing angle 80°
Display format 720 × 1280 pixels
Display type True multi-touch capacitive touch panel, supporting five-finger touch
Liquid Crystal Display Thin-Film Transistor (LCD TFT)
Normally black, transmissive
Touch response time 35 ms
Surface treatment Anti-glare
Colour configuration RGB-stripe, 24-bit RGB
Backlight brightness 500 cd/m² typical, max
Operating temperature −20 °C to +70 °C
Production lifetime Raspberry Pi Touch Display 2 will remain in production until at least January 2030
Compliance For a full list of local and regional product approvals, please visit pip.raspberrypi.com

Resources

Package Contents

  • 1x Raspberry Pi Touch Display 2 (5")
  • 1x DSI cable (for Pi 5)
  • 1x DSI cable (for Pi 4/3/3B+/2)
  • 1x GPIO power cable
  • 8x M2.5 Mounting screws

Raspberry Pi and Active Cooler not included.
