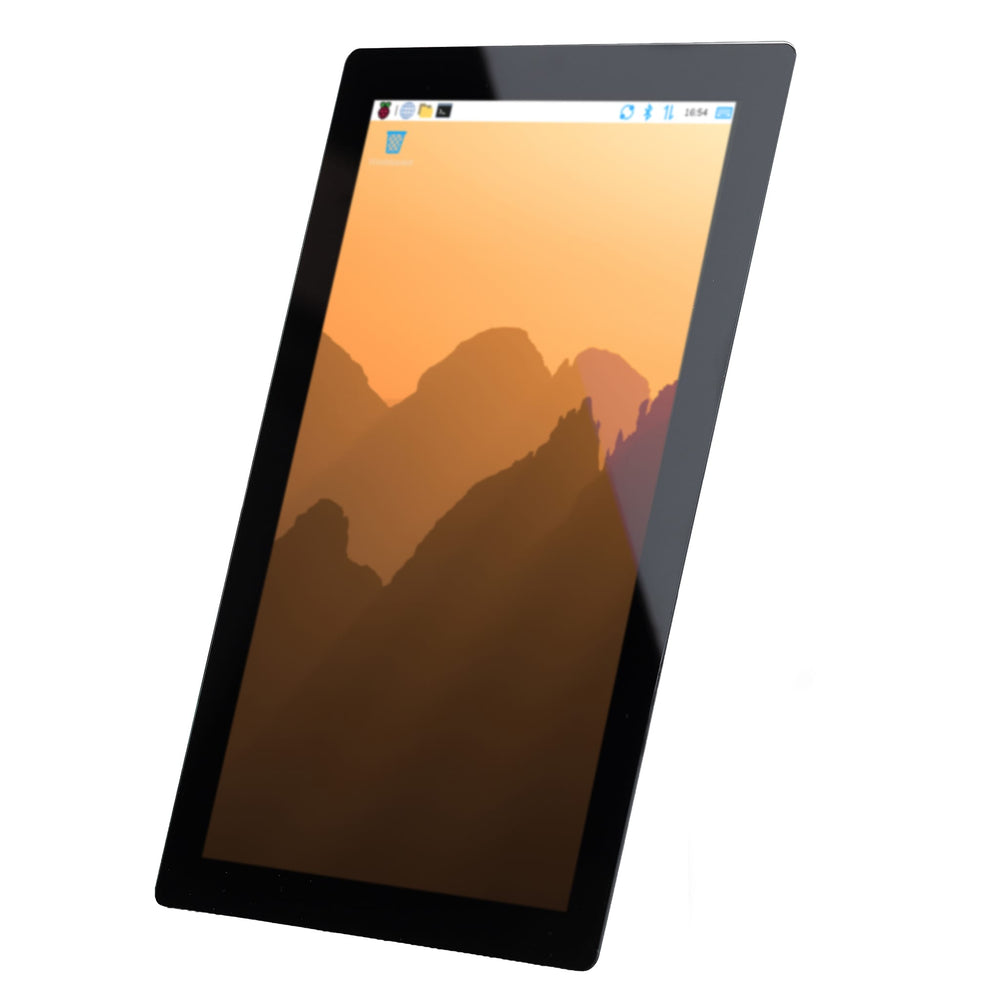

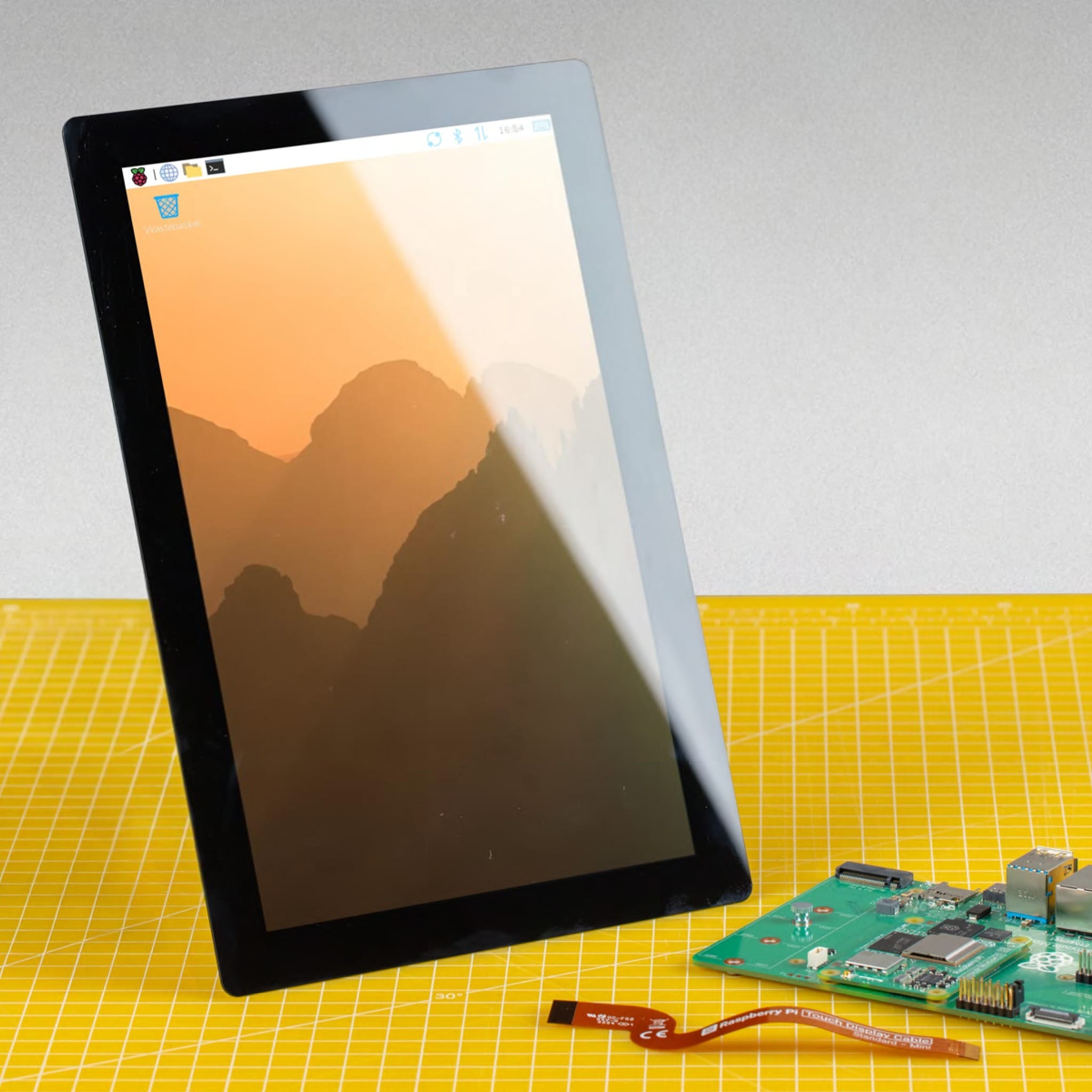

The Raspberry Pi Touch Display 2 - 10" is the largest display in the range from Raspberry Pi, with 7" and 5" options also available.
It's a multi-touch, 10.1" 1200x1920 panel ideal for adding a large, interactive display to your Raspberry Pi projects. Unlike the smaller versions in the range, it's compatible with Raspberry Pi 5 and Compute Modules* only.
Raspberry Pi OS provides touchscreen drivers with support for ten-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse (although the Raspberry Pi Keyboard & Mouse is available if you prefer them!). The display defaults to portrait but can be rotated easily in software.

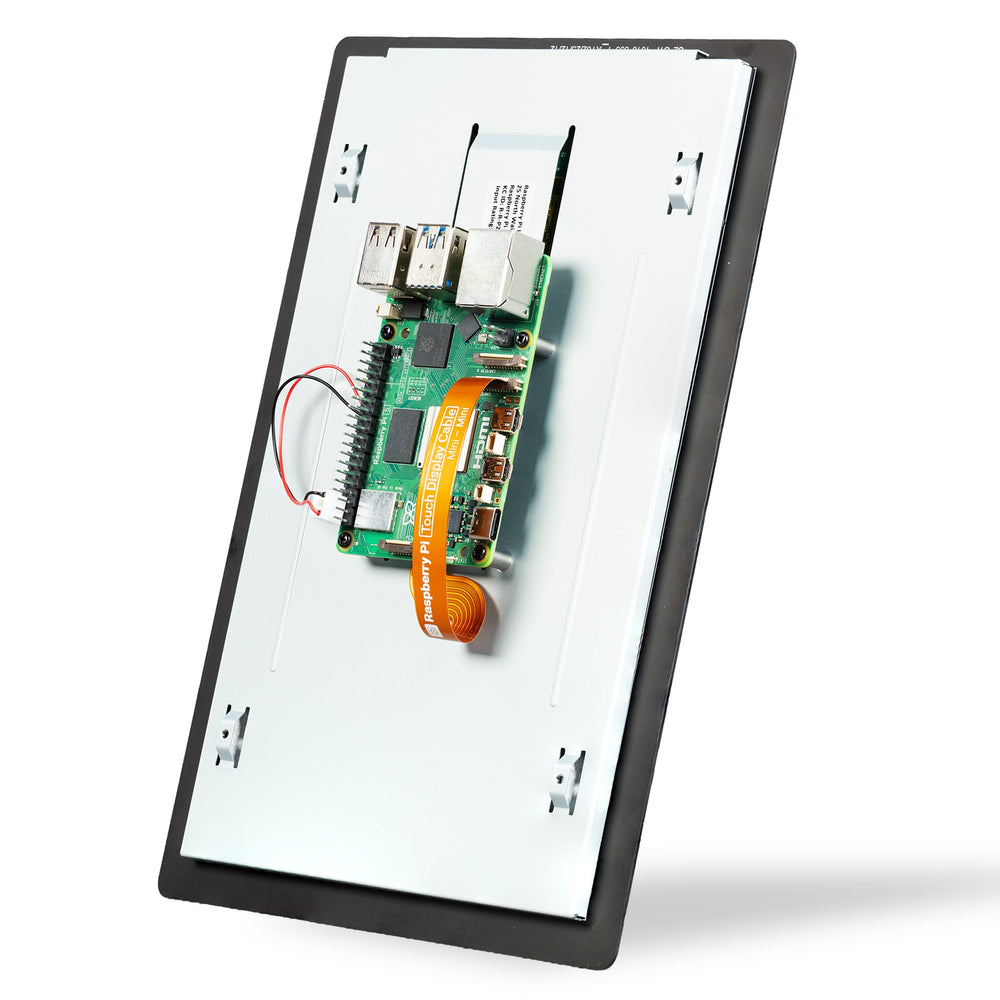

Only two connections are required to connect the display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port to your Raspberry Pi. Two ribbon cables are included for attaching to your Raspberry Pi, along with a power cable to connect it to the GPIO pins, and eight M2.5 mounting screws.
*Compute Modules do not feature a physical DSI port. An IO board with DSI connection is required.
Raspberry Pi not included
Features
10.1" multi-touch display
Compatible with Raspberry Pi 5 and Compute Modules only
Compute Modules require an IO board with a DSI connection
1200×1920 resolution
Ten-finger touch support
On-screen keyboard support
Portrait orientation by default with software rotation
DSI ribbon cable and GPIO power connections
Includes two ribbon cables, GPIO power cable and eight M2.5 mounting screws
Not compatible with Pi 1-4 due to the 10" display using all four DSI lanes, requiring the narrower, but higher-bandwidth, ribbon cable and the newer display connector found only on Raspberry Pi 5 and the Compute Module IO boards.
