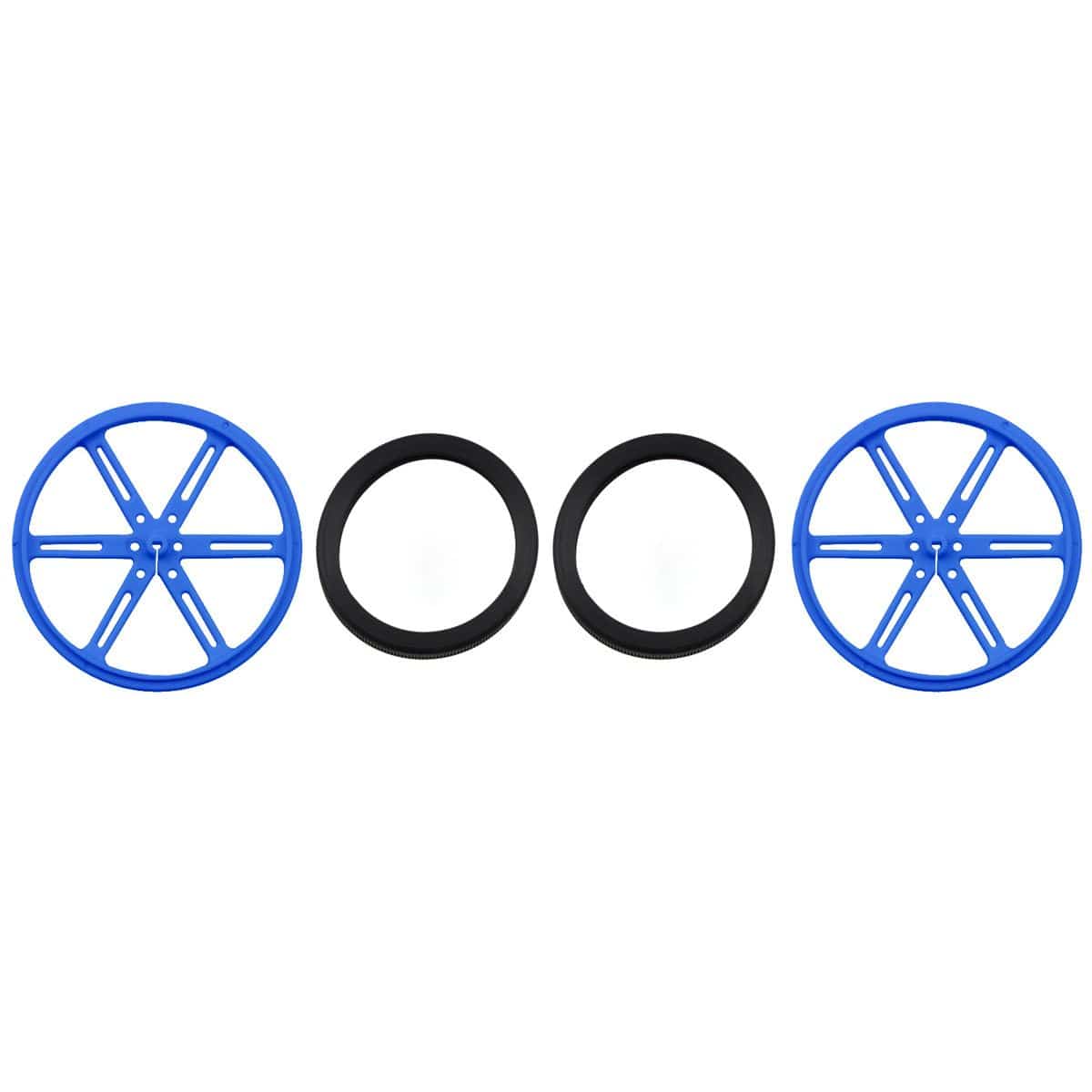

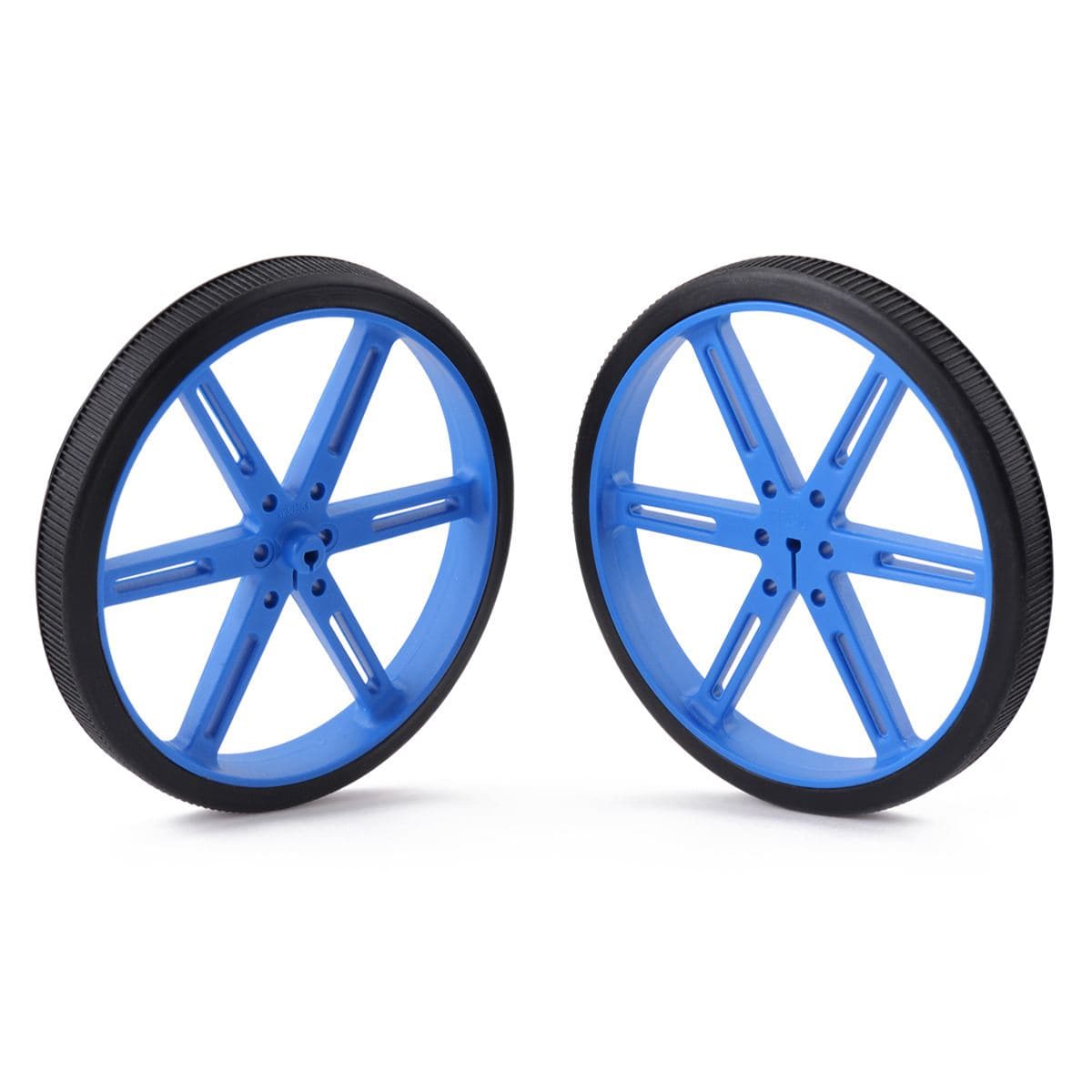

These Pololu blue plastic wheels have silicone tires and measure 90 mm in diameter, and they press-fit onto the 3mm D shafts on many of our motors, including our micro metal gearmotors and mini plastic gearmotors. Additionally, this wheel is compatible with several of our universal mounting hubs, which can serve as adapters for motors with different shafts. This product is a pair of wheels.
These wheels are great for robotics, custom RC vehicles, or any other project you need to get rolling. They measure 90mm in diameter and are designed to press-fit securely onto D output shafts with a diameter of 3 mm. Six mounting holes for #4 or M3 screws make it possible to use the wheel with any of our universal mounting hubs for those screw sizes, enabling these wheels to be used with our larger metal gearmotors and stepper motors.

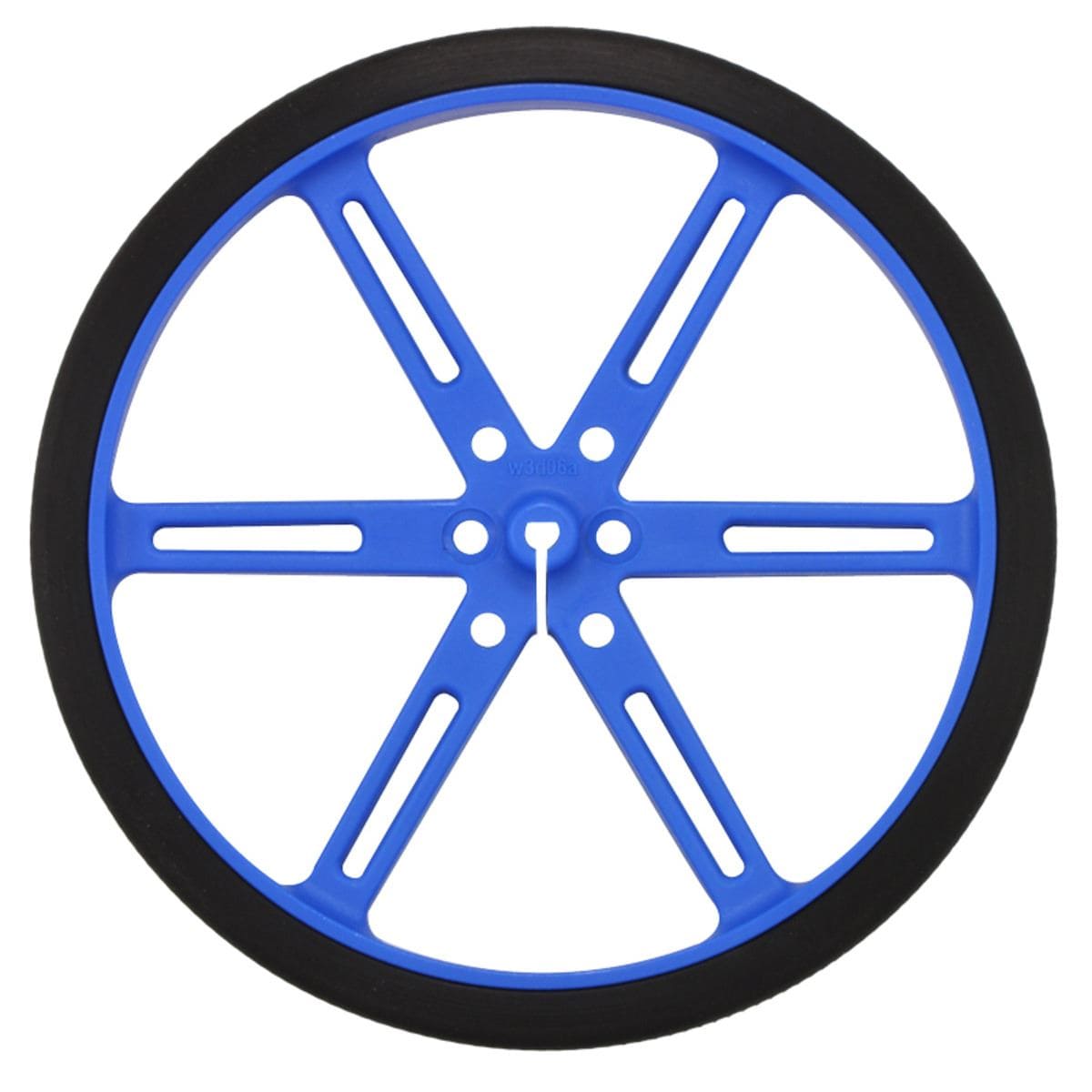

The slots in the six spokes fit #2 or M2 screws and allow additional accessories to be mounted to the wheel such as decorations or parts of an encoder system. The included silicone tires feature horizontal treads for improved traction.
This is the blue version of our 90×10mm wheel pair. These same-sized wheels are also available in red, yellow, black or white.
- Colour: Blue
- Size: 90x10 mm
- Weight: 0.8 oz*
- Shaft diameter: 3 mm**
- Wheels: ABS
- Tyres: Silicone rubber
* Per wheel, including tyre
**D-shaped hole for press-fit onto Micro Metal Gearmotors and Mini Plastic Gearmotors
