Pololu Universal Aluminium Mounting Hub for 4mm Shafts - #4-40 Holes (2-Pack)

PololuSKU: POL-1081
Price:
Sale price £8.10
incl. VAT
excl. VAT
Stock:
Only 6 units left
Quantity:

Awesome Extras

DC Motor - 12V 100RPM with Hub & Bracket - The Pi Hut
ModMyPi12V DC Motor 25D - 100RPM with Hub & Bracket
Sale price £14 incl. VAT excl. VAT
Pololu 25D Metal Gearmotor Bracket Pair - The Pi HutPololu 25D Metal Gearmotor Bracket Pair - The Pi Hut
PololuPololu 25D Metal Gearmotor Bracket Pair
Sale price £7.60 incl. VAT excl. VAT
Pololu Wheel 60×8mm Pair - Black - The Pi HutPololu Wheel 60×8mm Pair - Black - The Pi Hut
PololuPololu Wheel 60×8mm Pair - Black
Sale price £5.70 incl. VAT excl. VAT

These Pololu universal aluminium mounting hubs allow you to mount custom wheels and mechanisms to 4mm diameter motor shafts

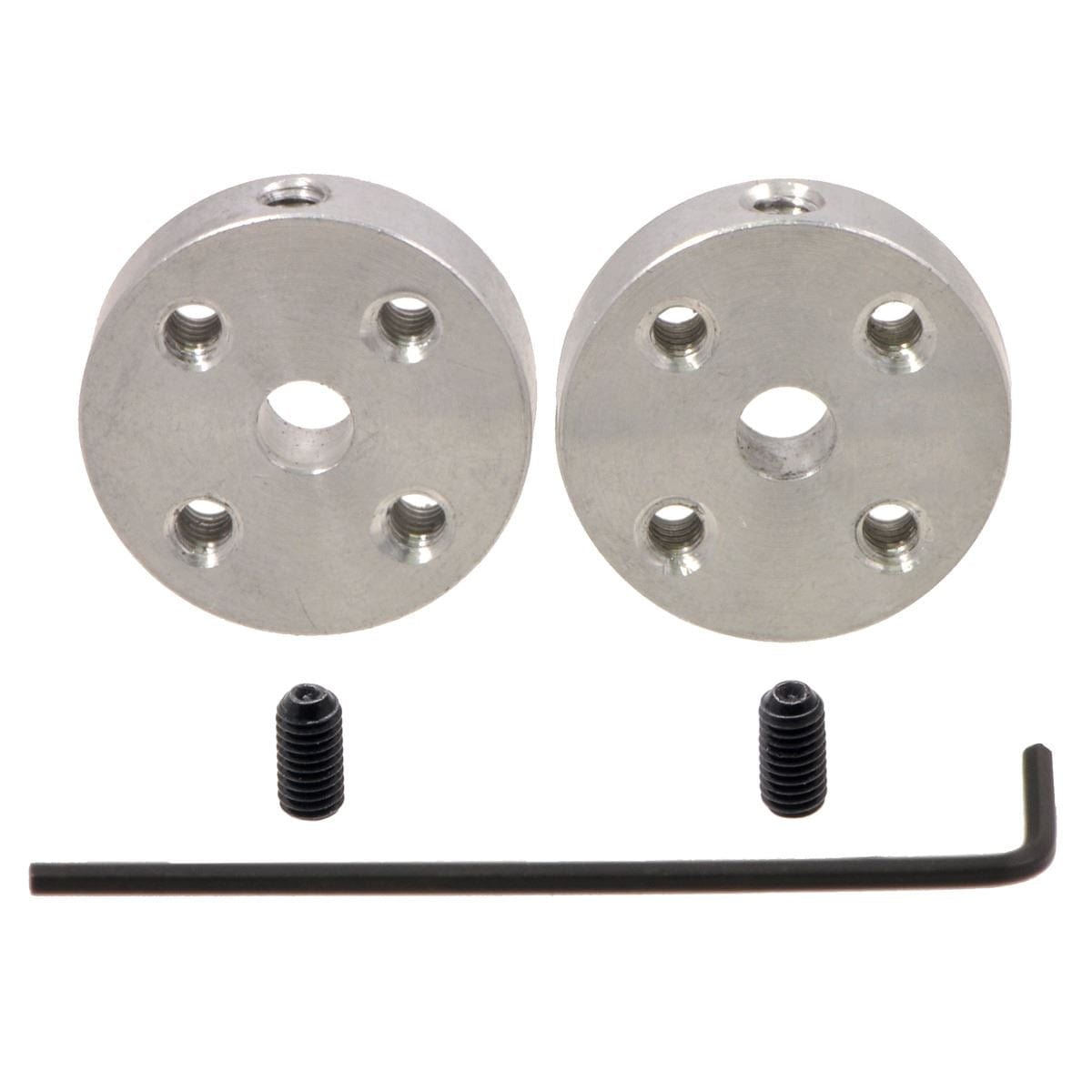

The set includes two hubs, two #4-40 set screws for securing the hubs to motor shafts, and one 0.05″ Allen wrench for use with the set screws. Each hub has four threaded mounting holes for #4-40 screws (not included).

We have an assortment of universal mounting hubs available, spanning several shaft sizes and featuring mounting holes threaded for metric or imperial screws. These universal mounting hubs are designed to work with most 4mm diameter shafts, including round shafts and “D” shafts.

Each of the two included hubs has four mounting holes for #4-40 screws (not included), letting you mount custom wheels or mechanisms to your motors. The two included #4-40 hex set screws (one for each hub) allow secure coupling of shaft to hub, and a 0.05″ hex wrench (often the smallest size in SAE Allen wrench sets) is included for use with the set screws.

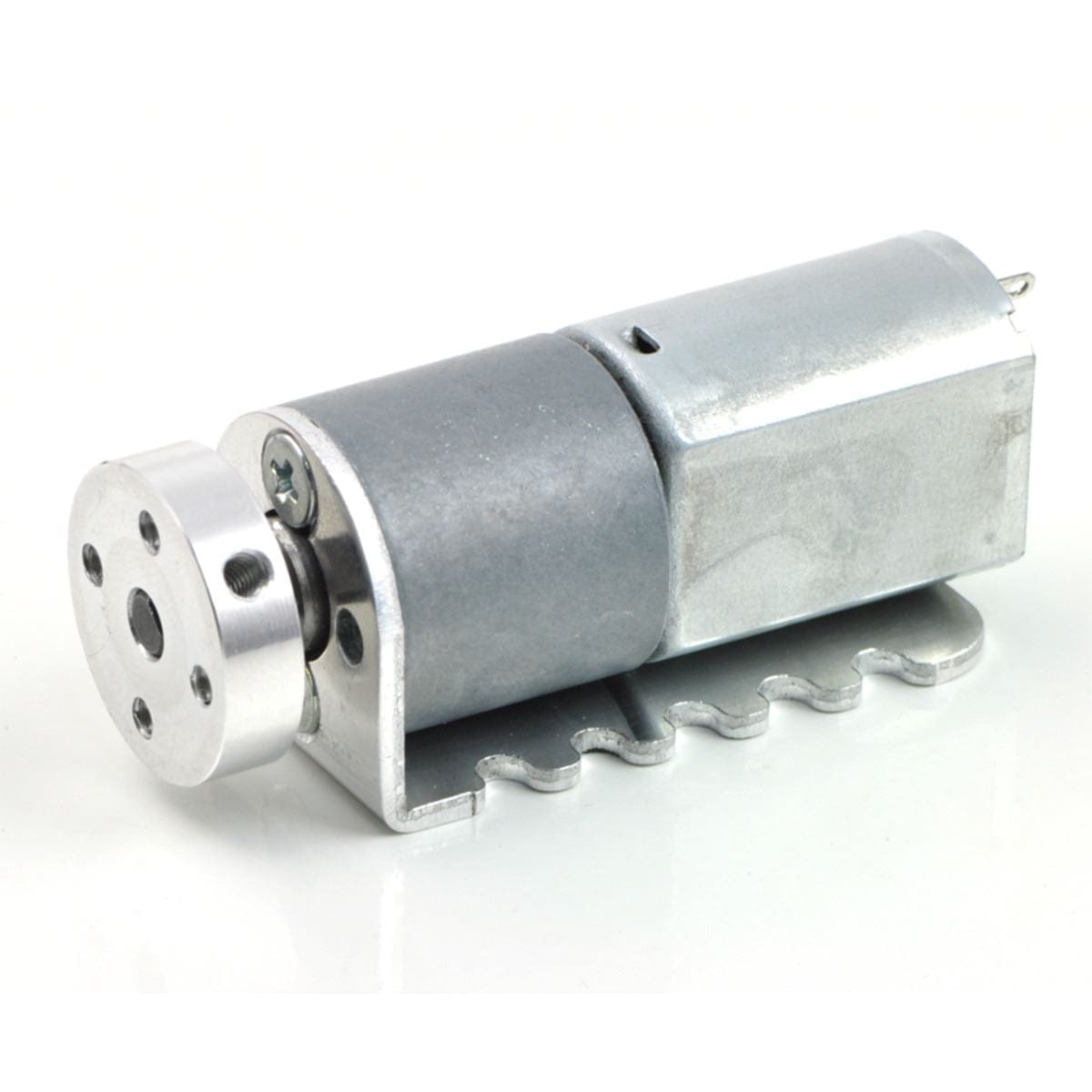

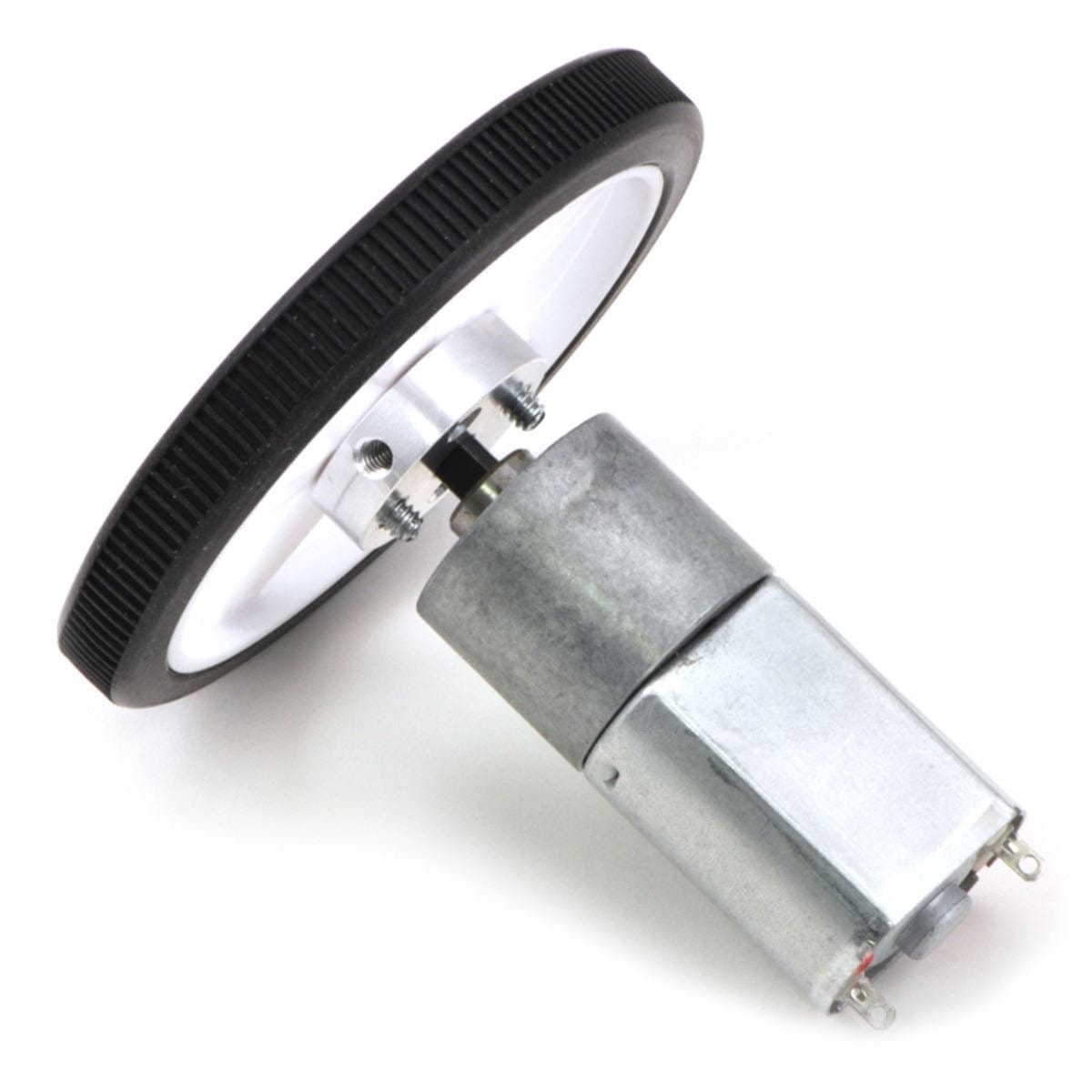

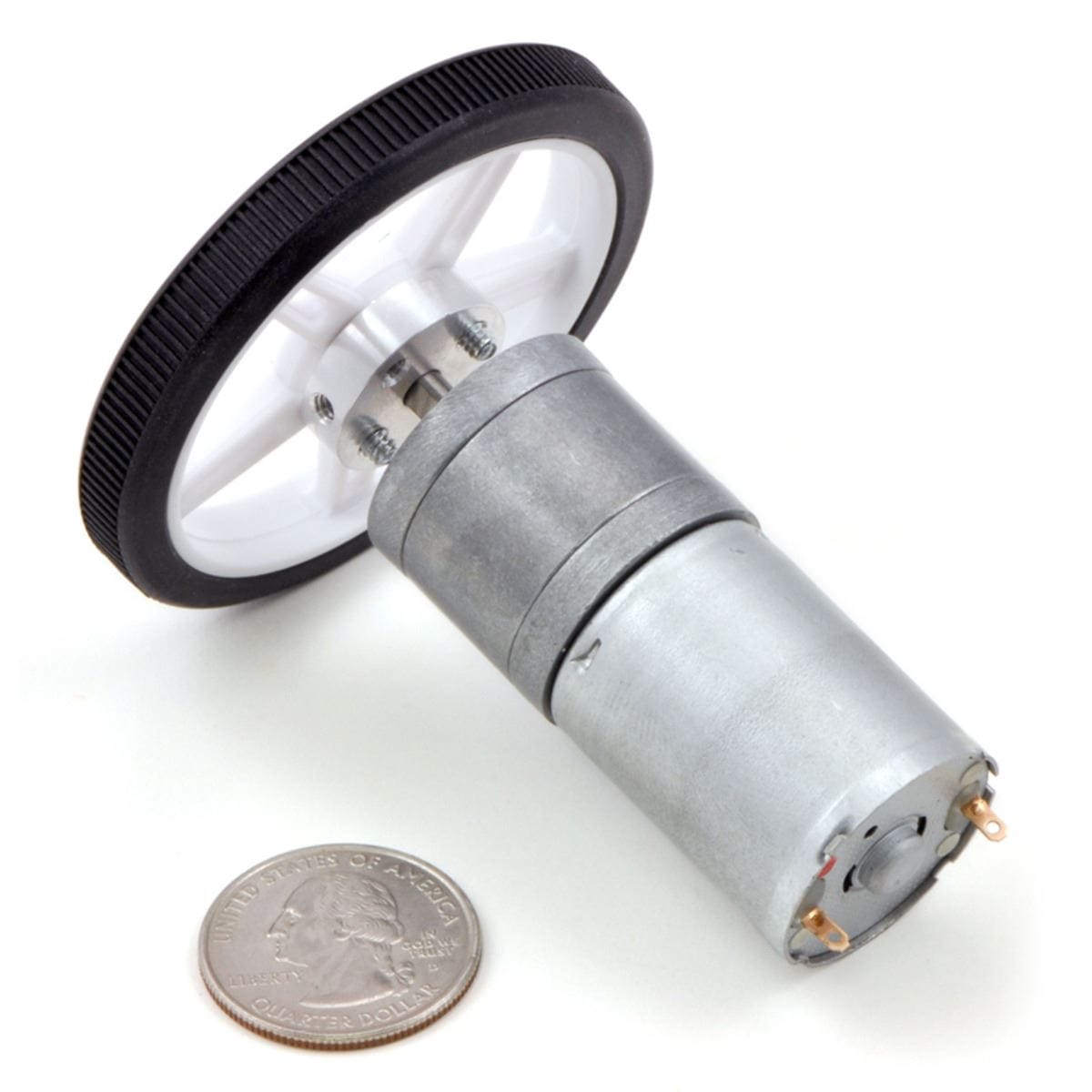

The product images show a hub with Pololu’s 25:1 metal gearmotor 20Dx44L and a Pololu 20D metal gearmotor bracket. These hubs will work with any 20D metal gearmotor or 25D metal gearmotor, and they also work with 60mm, 70mm, 80mm, and 90mm Pololu wheels (excluding the Multi-Hub versions; see the individual wheel pages for compatibility details).

Specifications

  • Size: 19 mm diameter × 5 mm thick
  • Weight: 3.2g*
  • Shaft diameter: 4mm
  • Mounting hole size: #4-40**

*For a single hub only (without set screw)
**This is also the size of the set screw
