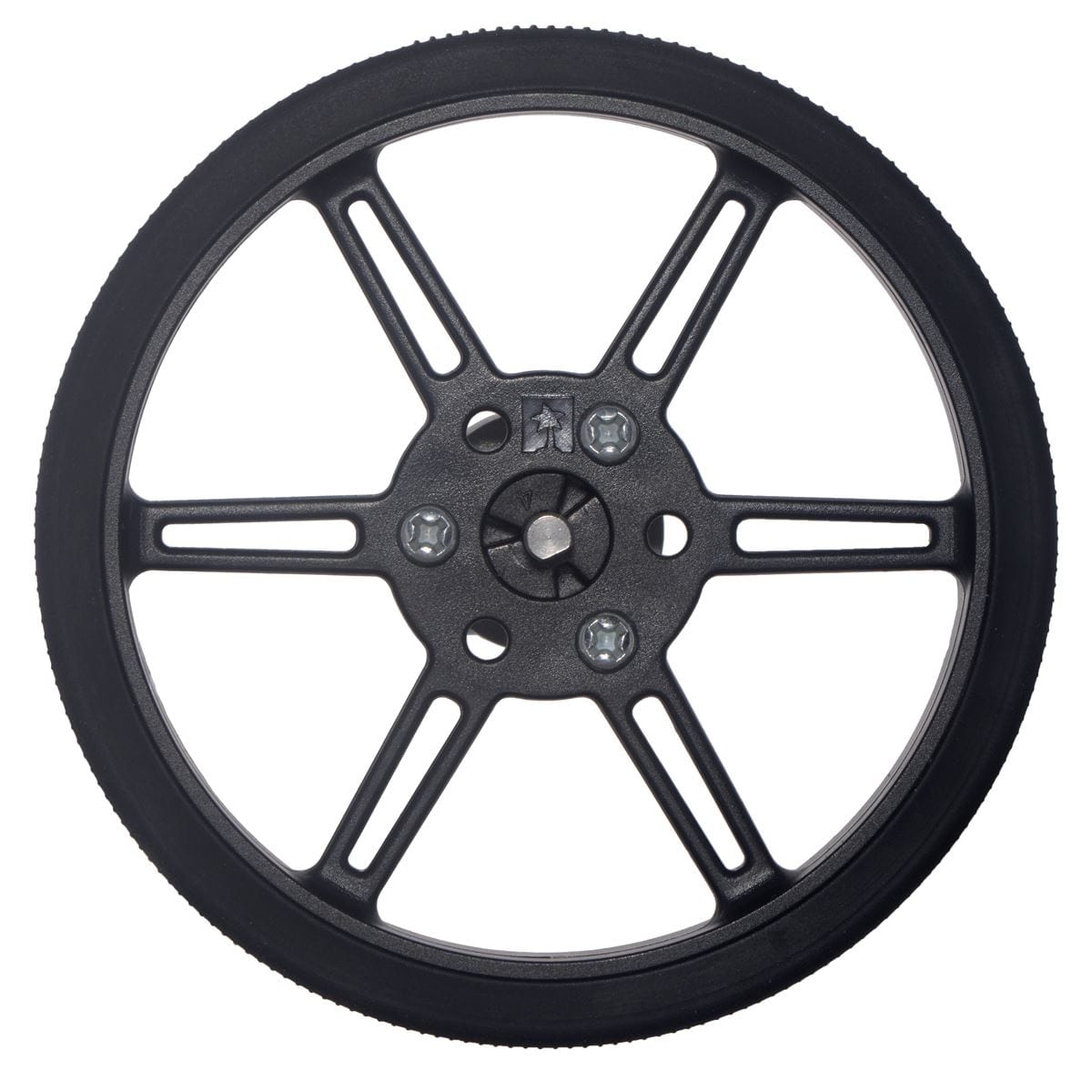

Pololu Multi-Hub Wheel w/Inserts for 3mm/4mm Shafts - 80x10mm Black (2-Pack)

These versatile black plastic wheels have silicone tires and measure 80mm in diameter.

What makes them special is the included set of interchangeable collets that can be inserted into the wheel to firmly grab four different shaft types:

• 3mm D
• 3mm round
• 4mm D
• 4mm round

The collet inserts start with a comfortably loose fit on their intended shafts, and unlike simple press-fit wheels, their grip on the shaft gets progressively tighter as they are compressed into the wheel disc, reducing the chances that the shaft will be able to slip within the wheel. The combined thickness of the collet and collet plate is approximately 6 mm, so we recommend you use this wheel with motors that have shafts that are at least 7.5 mm long. See the dimension diagram (384k pdf) for more information.

These versatile wheels use interchangeable collets to tightly grab a variety of different common motor shafts, including the 3mm D-shafts on our micro metal gearmotors and mini plastic gearmotors and the 4mm D-shafts on larger metal gearmotors.

The wheels are 80mm in diameter with 10mm wide silicone tires, and are also available in white. This product is a pair of wheels.

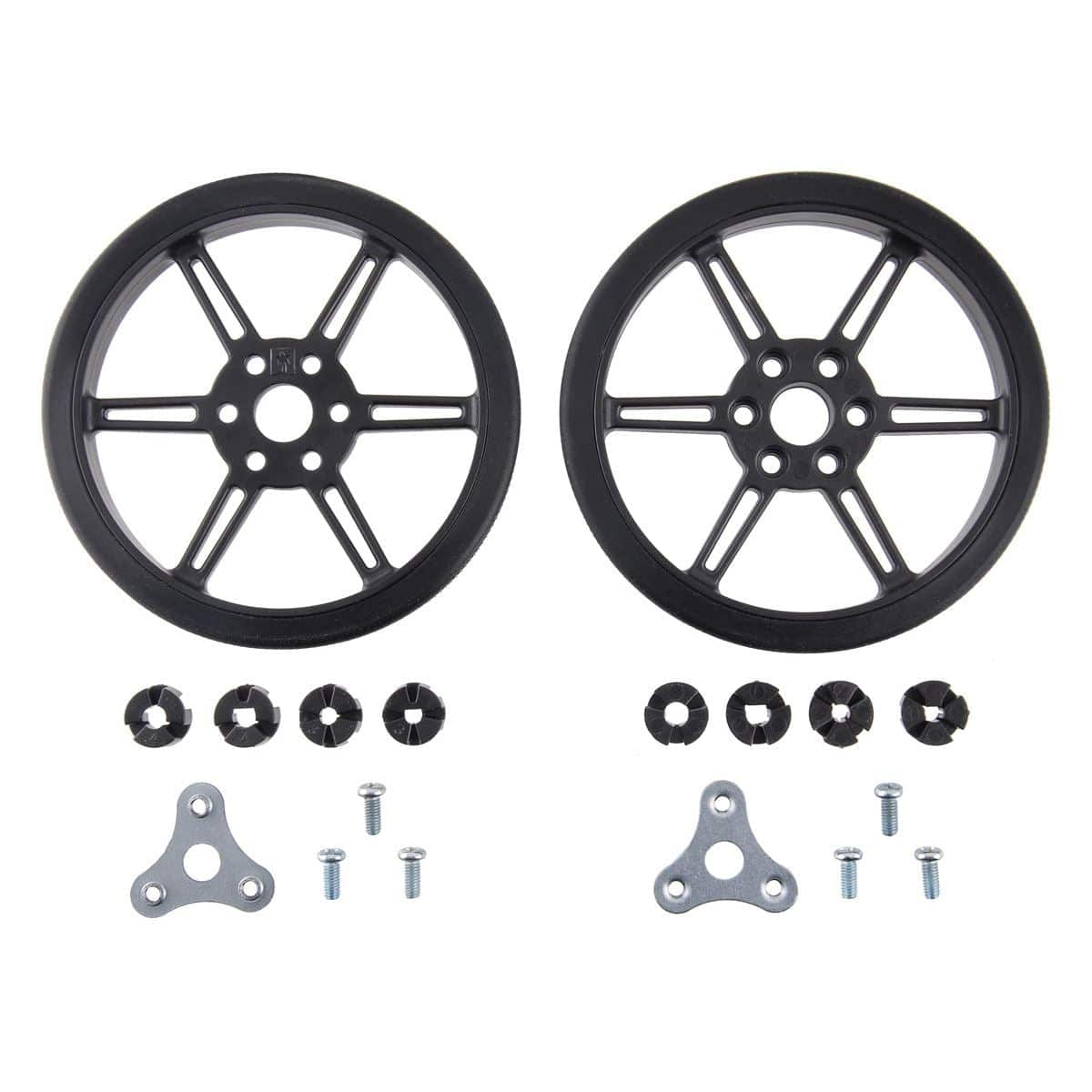

Package Contents

• 2x Silicone tire
• 2x Black ABS wheel disc
• 8x black ABS collet inserts for the following shaft types:
  • 2x 3mm D-shafts
  • 2x 3mm round shafts
  • 2x 4mm D-shafts
  • 2x 4mm round shafts
• 2x Threaded metal collet plate
• 6x 7mm-long M3 screws

Specifications

• Colour: Black
• Size: 80x10 mm
• Weight: 23g*
• Shaft type: 3mm D, 3mm round, 4mm D, 4mm round
• Materials:
  • Wheels: ABS
  • Tyres: Silicone rubber

* Per wheel, including tyre

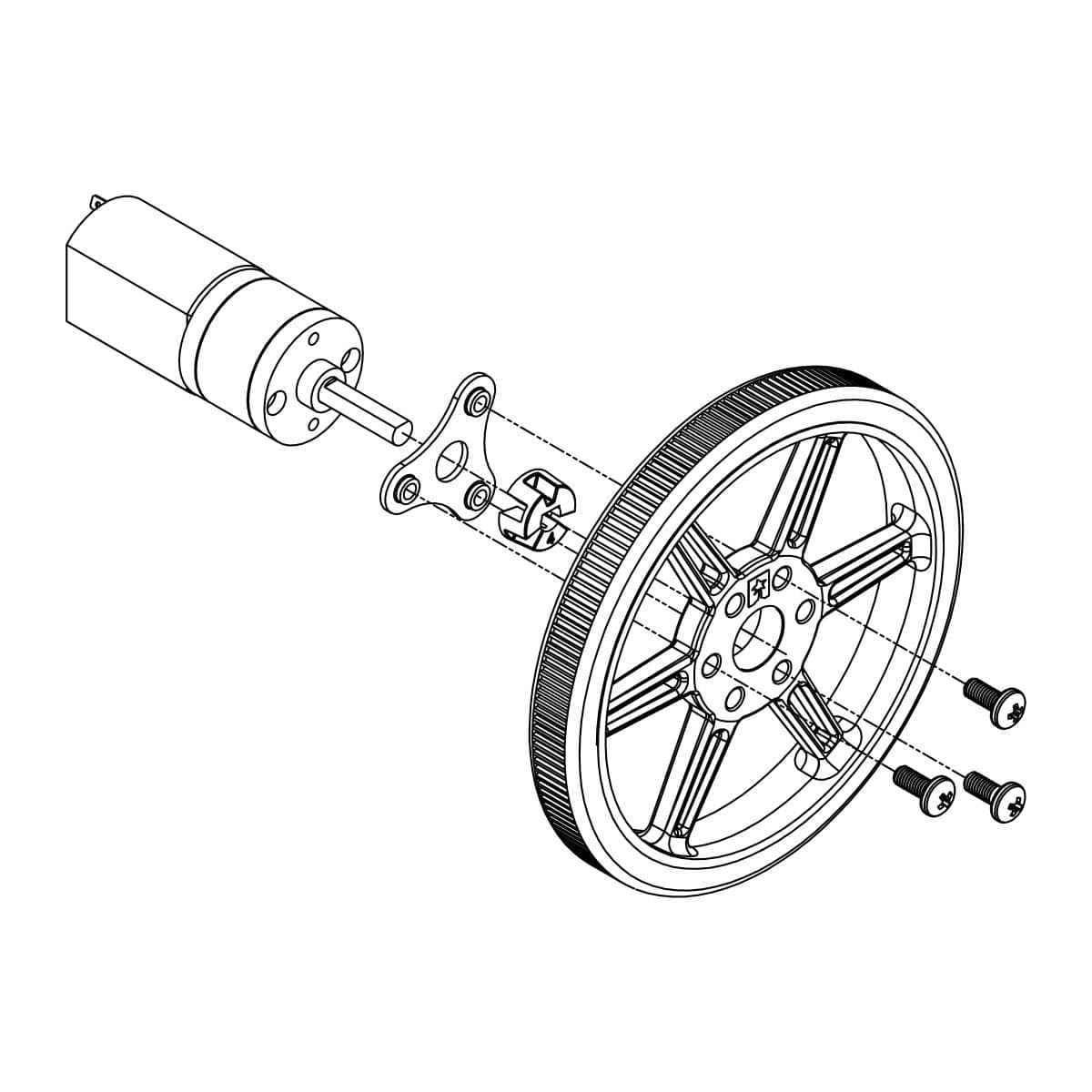

Installation

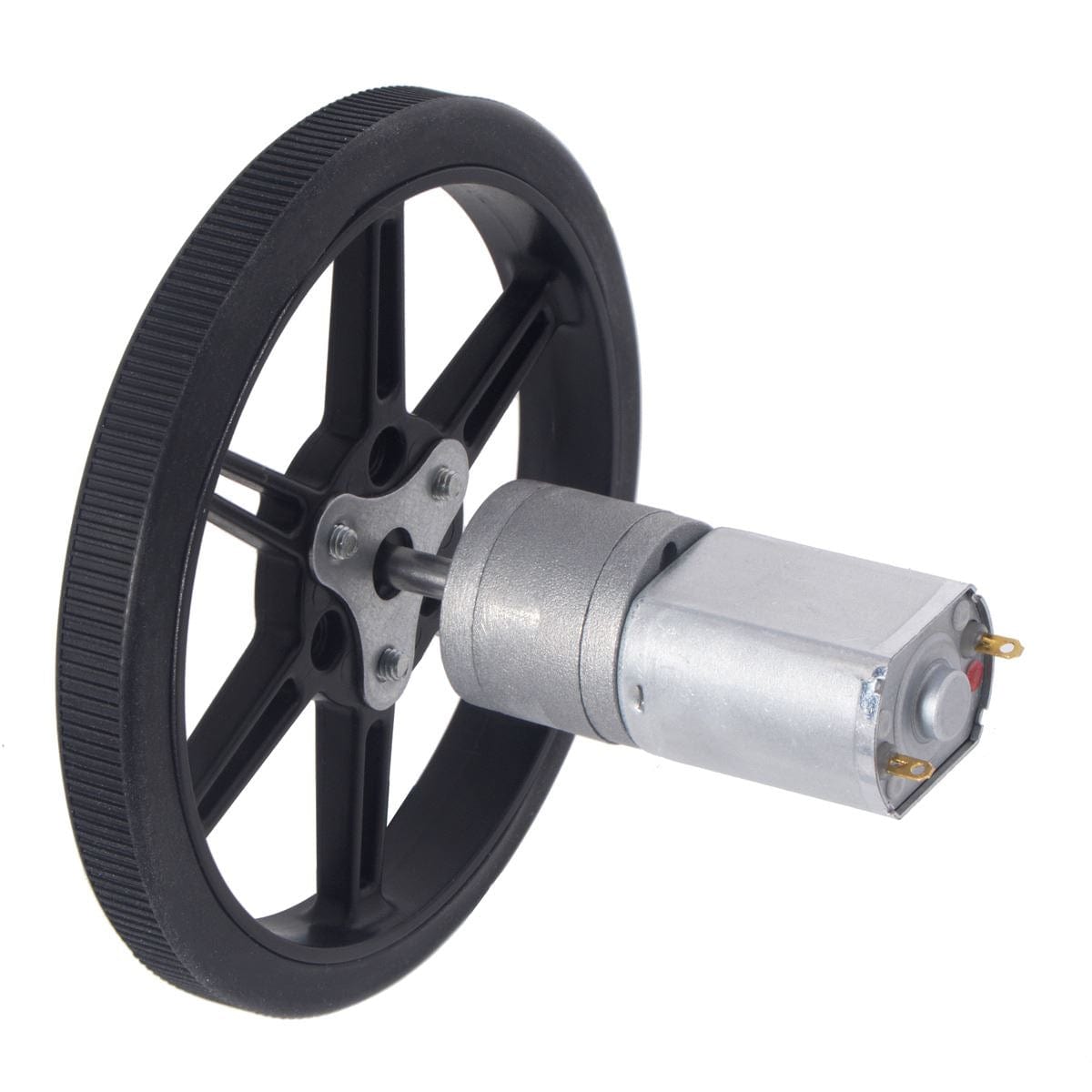

1. Insert the motor shaft through the hole in the middle of the collet plate, making sure that the protrusions around the three threaded holes are facing out, away from the motor. Warning: these protrusions can be sharp!
2. Slide the appropriate collet onto the motor shaft, making sure that the embossed digit (i.e. the “3” or “4”) is facing out, away from the motor.
3. Slide the wheel onto the motor shaft with the embossed Pololu logo facing out, away from the motor, and press it onto the collet firmly, which will cause the collet to start squeezing down on the shaft. If you have the collet or wheel backwards, the collet will not fit into the hole in the wheel.

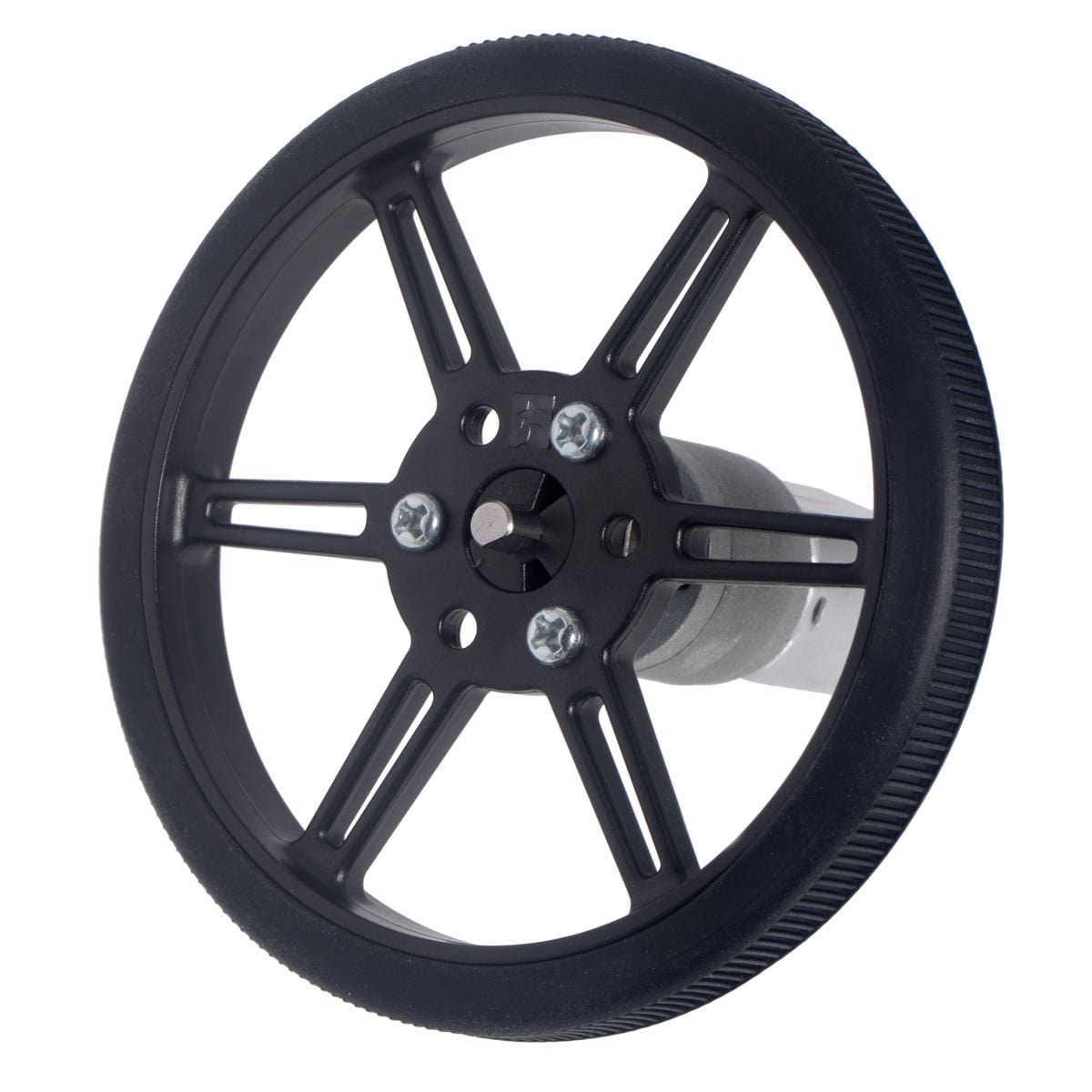

4. Insert three M3 screws through every other hole in the wheel and start screwing them into the threaded holes in the collet plate. Tighten each screw a little at a time so the wheel is pulled onto the collet evenly. For typical shafts, you will be able to tighten until the collet plate is almost flush with the back of the wheel, and the front of the collet is almost flush with the front of the wheel. If your shaft is a little larger than nominal, the collet might not press as far into the wheel, and if your shaft is a little smaller than nominal, you can insert something like a small washer between the collet plate and the collet to let it push the collet even farther into the wheel (i.e. past flush). Be careful not to over-tighten the screws as this can strip the threading on the collet plate.

Note that it is possible to assemble the wheels with a little wobble, but if that is a concern in your application, you can adjust how you tighten the three screws to get it as lined up as you like. Alternatively, you can often also fix a wobble just by pushing hard on the rim of the wheel at place where it’s most out of alignment.

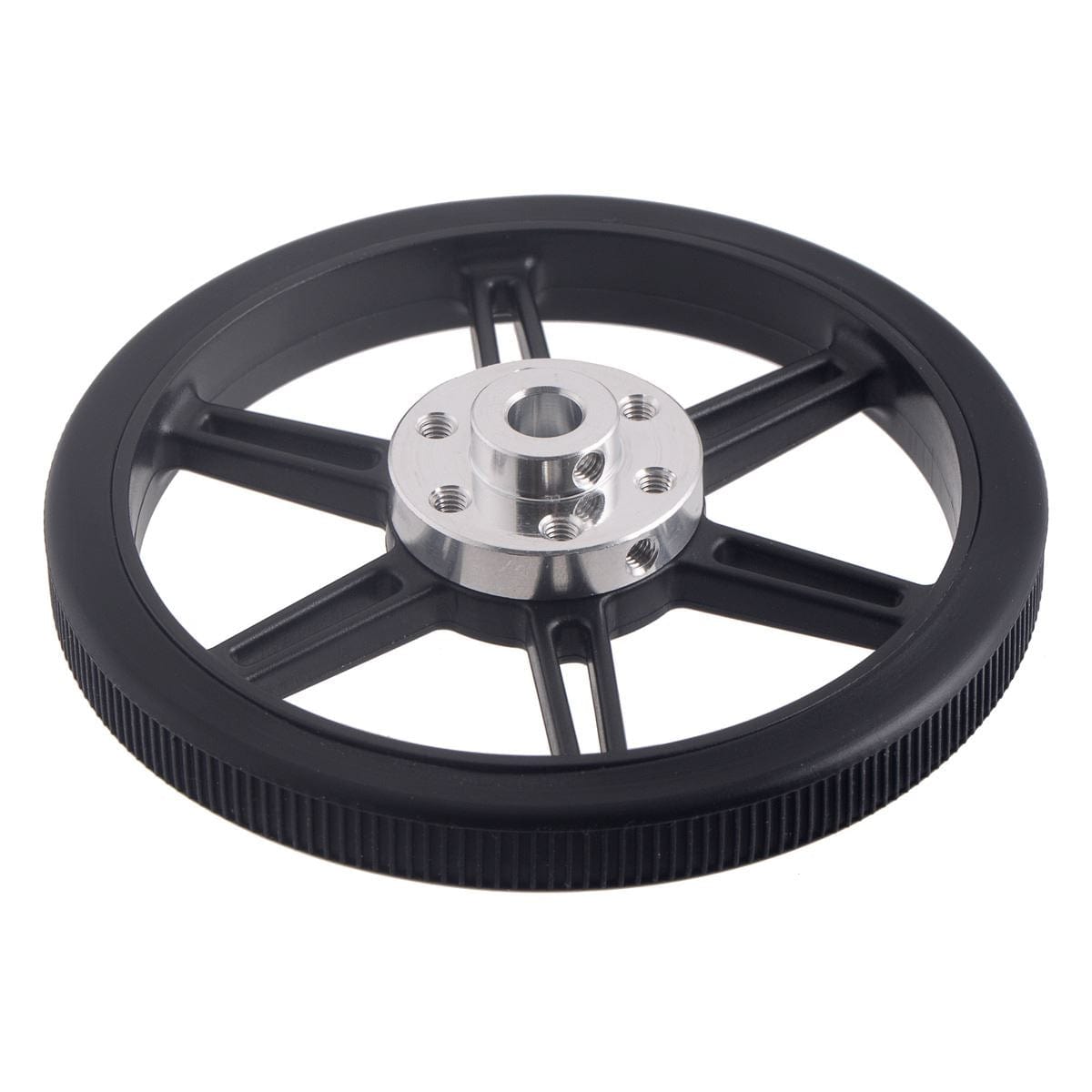

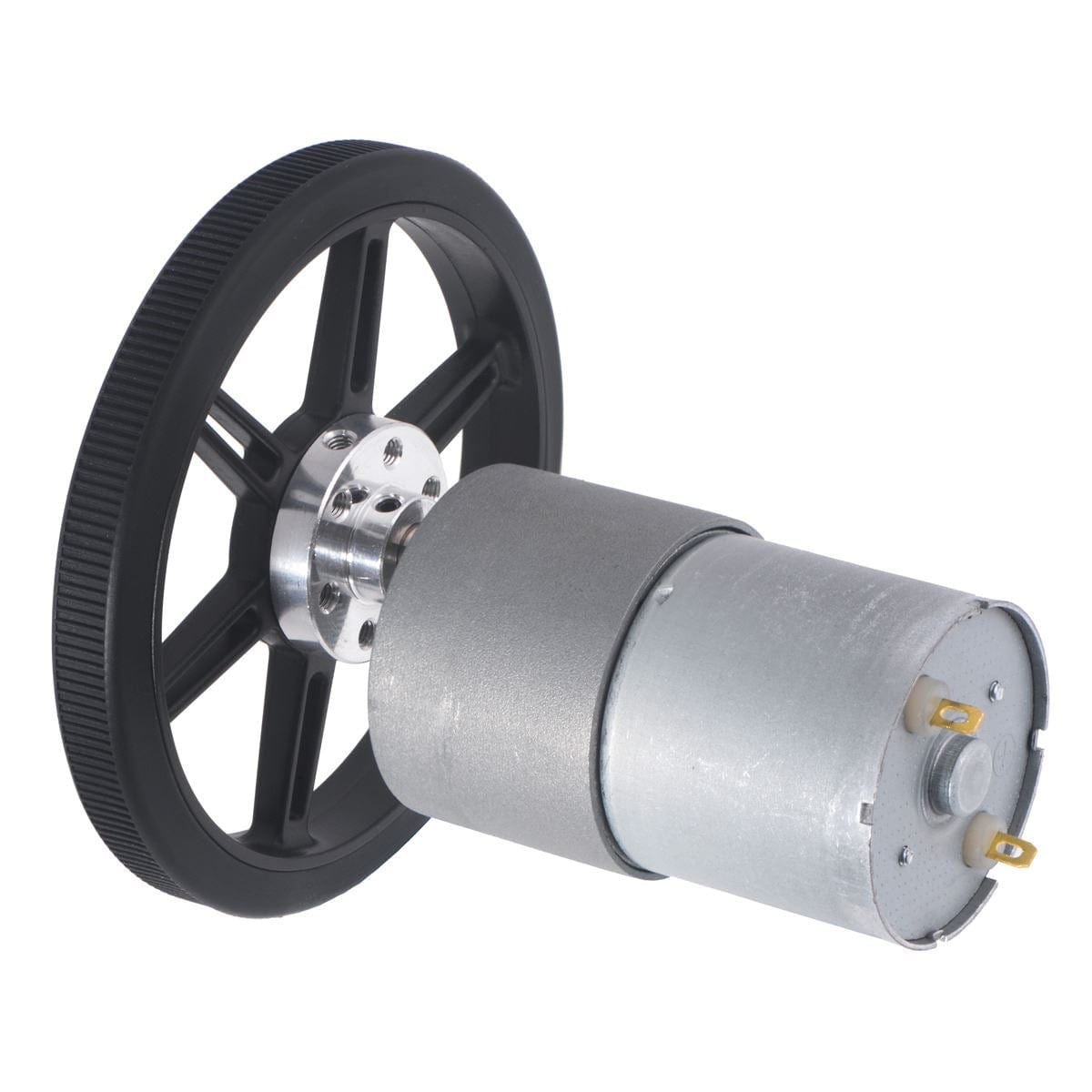

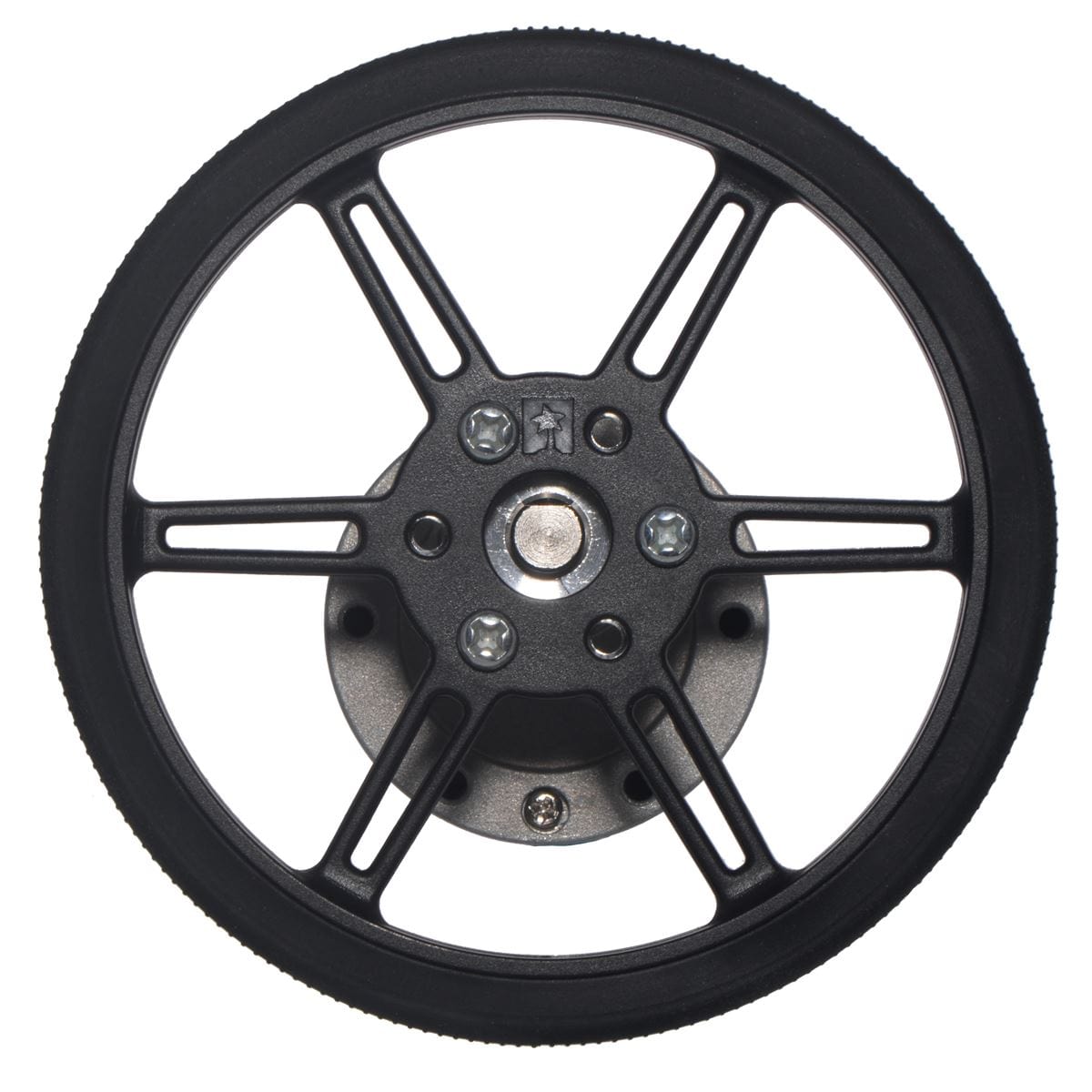

The hole spacing on these wheels also works with larger Pololu Universal Mounting Hubs (6 mm diameter and up), which can be used to adapt these wheels to motors with larger shafts.

If you get an M3 version of the universal mounting hub, you can use the 7 mm M3 screws that are included with the wheel to mount them together. However, please note that those screws will only go about 2 mm into the universal mounting hub, so you might consider getting longer screws (like 10 mm M3) for a more secure setup.
